Trailers / Utility & Landscape Trailers / Tube-Top Utility Trailers

35SA 35SA
Big Tex Single Axle Tube Top Utility Trailer

35SA

Single Axle Utility Trailer

A trailer that works hard at home and on the job, the 35SA Single Axle Utility Trailer delivers versatility, reliability, and convenience—no matter the task at hand. Transporting equipment, landscaping supplies, or even some side-by-side vehicles, it’s a trailer that’s built for homeowners and outdoor enthusiasts seeking a rugged and dependable trailer for years to come.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
35SA-10 Bumperpull 2995 lbs 3500 lbs 893 lbs 2102 lbs 10' 77" 121-1/2” 73” 48-1/2” 36-1/8"
35SA-12 Bumperpull 2995 lbs 3500 lbs 983 lbs 2012 lbs 12' 77" 145-1/2” 85” 60-1/2” 36-1/8"
35SA-14 Bumperpull 2995 lbs 3500 lbs 1073 lbs 1922 lbs 14' 77" 169-1/2” 97” 72-1/2” 36-1/8"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Slipper Spring
Coupler 2" A-Frame 2" Forged Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot 2,000# Fold-Up Jack
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders 9" x 32" Rolled Formed w/ Back
Ramps 4' Slide-In Angle Ramps 4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting

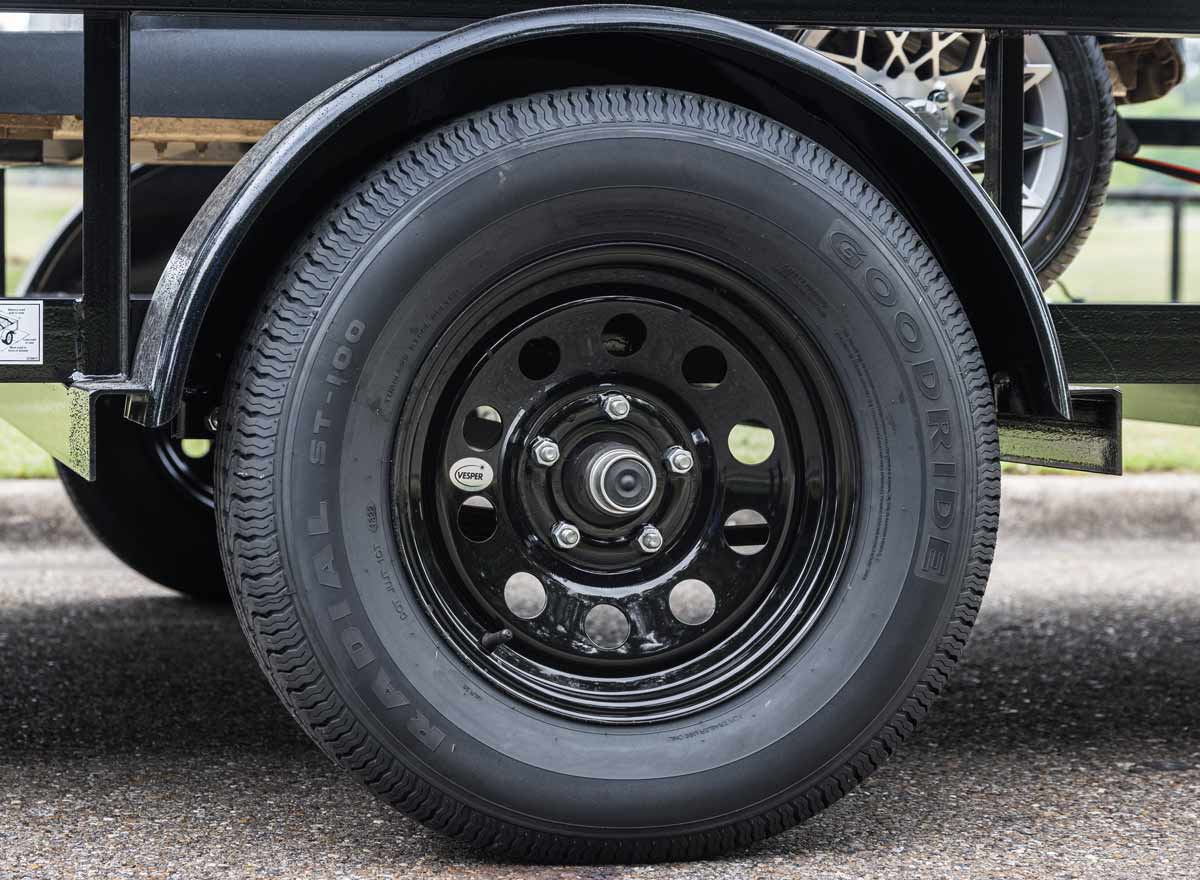

Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops
Sides 17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)
https://www.bigtextrailers.com/wp-content/uploads/2023/07/30sas-35sa_specdiagram.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
