Vanguard Trailers from Big Tex

10TV

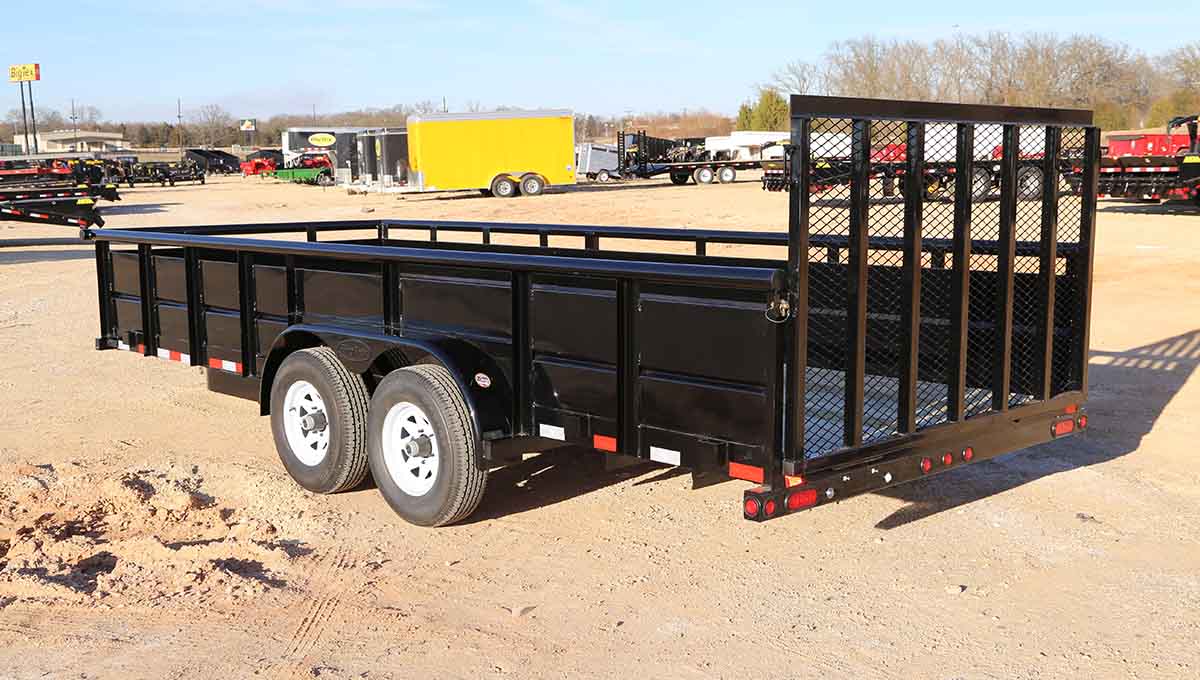

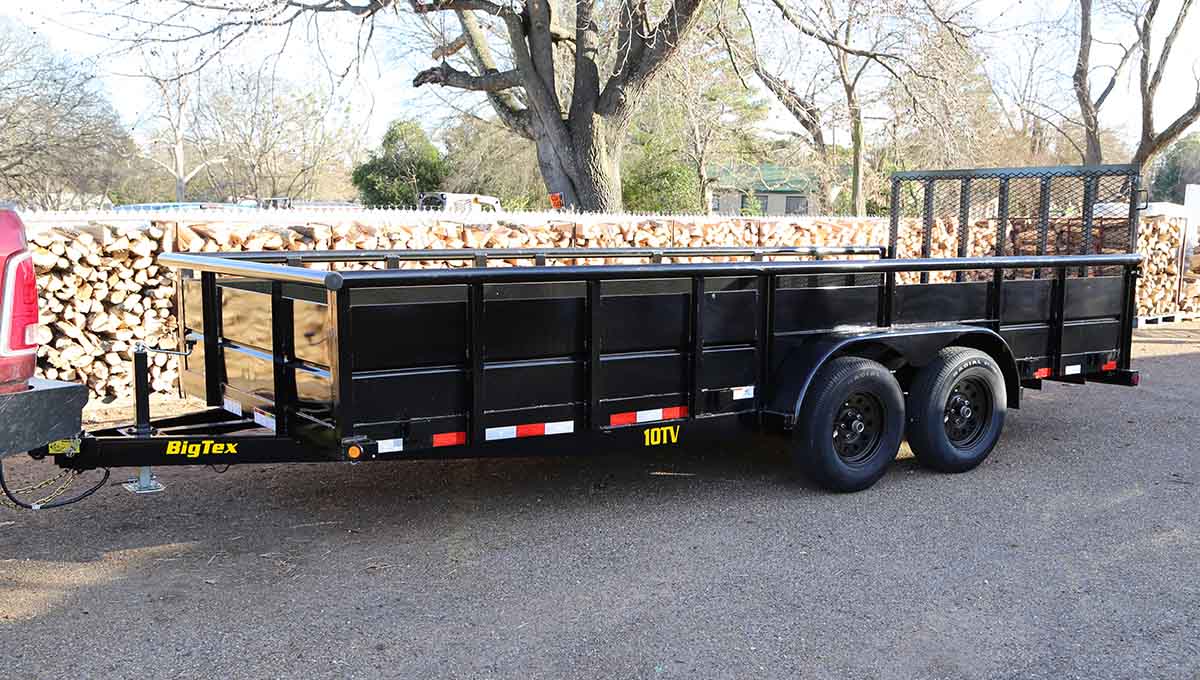

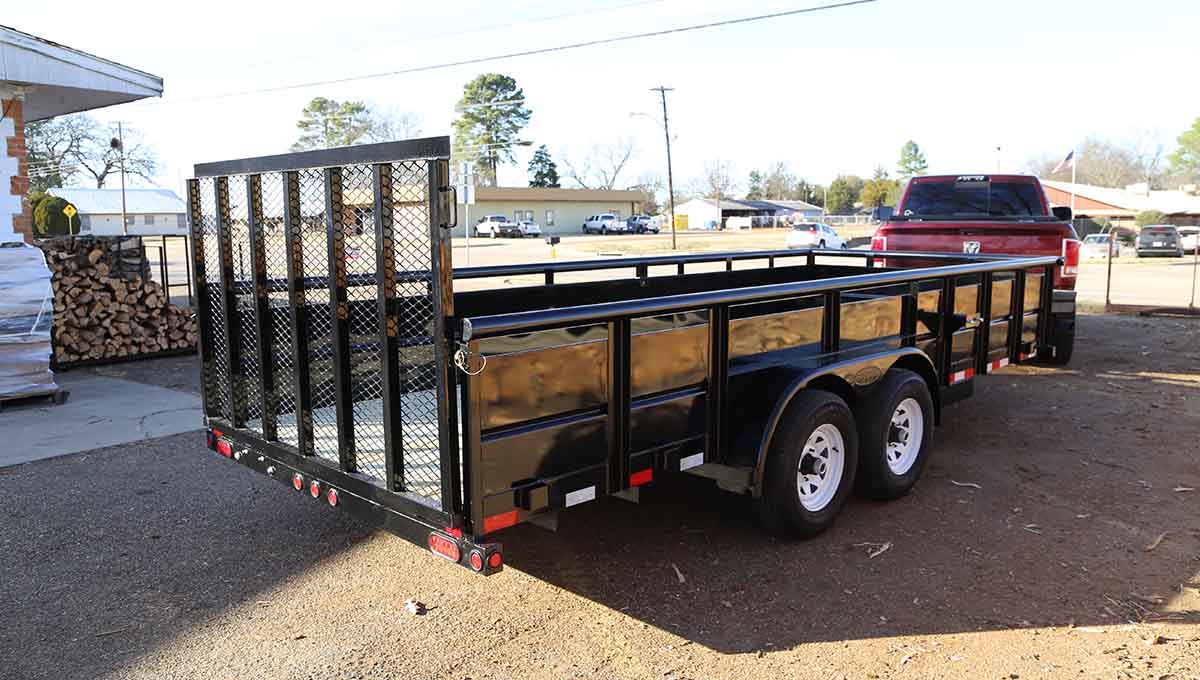

Pro Series Tandem Axle Vanguard Trailer

Rugged. Durable. Adaptable. Work harder and longer with the 83’’ wide 10TV Tandem Axle Vanguard Trailer, purpose-built for landscapers transporting heavy-duty lawn and garden equipment. Higher, v-crimped steel sides provide the strength you need to handle the day-to-day demands of your job while also securing and protecting cargo. No need to worry about cargo falling off during transportation. For the ultimate in versatility, it also includes an adjustable coupler that makes it a simple task to adjust to different hitch heights within a fleet of trucks—perfect for those running bigger landscaping operations.

With you for the long haul

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
10TV-18 Bumperpull 9990 lbs 5200 lbs 2350 lbs 7640 lbs 18' 83" 217-1/2" 127" 90-1/2" 43-1/2"
10TV-20 Bumperpull 9990 lbs 5200 lbs 2475 lbs 7515 lbs 20' 83" 240" 138" 102" 43-1/2"

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self Adjusting Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer

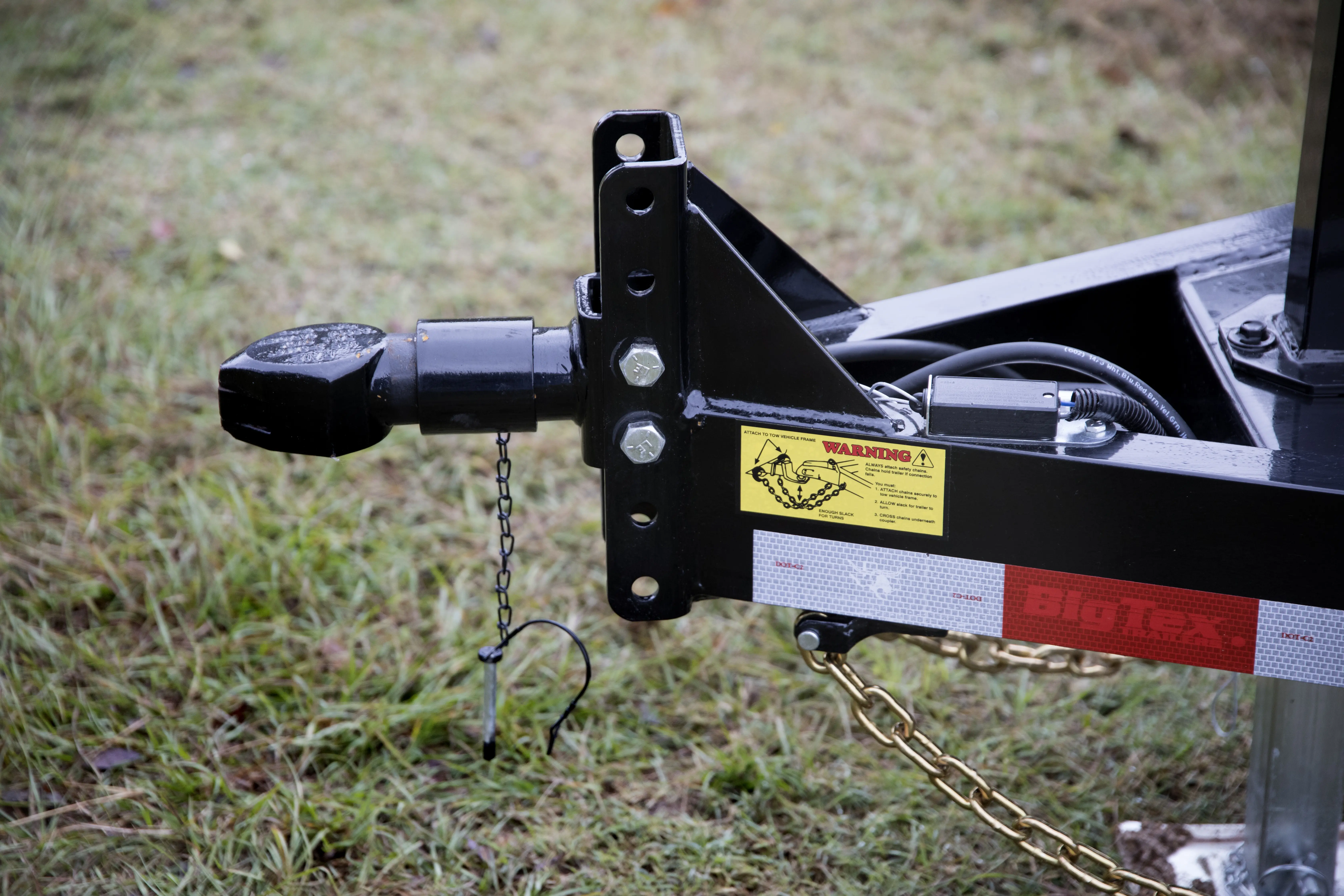

Coupler 2-5/16” Demco EZ Latch Adjustable Pintle in Channel 2-5/16” Stamped Coupler
Safety Chains 1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 8,000# Drop Leg, Set-Back Jack (Bolted On)
Frame 5" x 3" x 1/4" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" 16 Ga. Tear Drop Fender

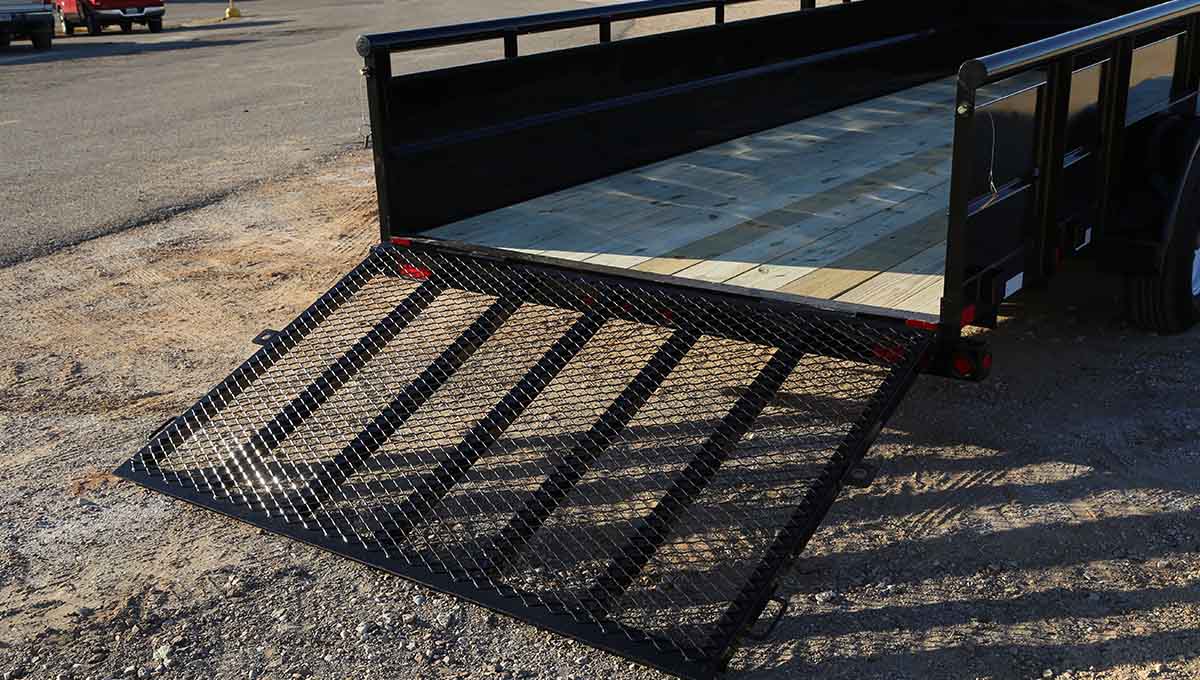

Ramps 4' Heavy Duty Integrated Ramp Gate with Spring Assist 5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist
Stake Pockets (4) Stake Pockets on Outside Frame Additional Stake Pockets (Each)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST225/75R-15 Load Range D
Bolt Pattern 6 Bolt
Spare Tire Spare Tire (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black

View Color Options

Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed 5/8" D-Ring Additional Tie Loops
Sides 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
Storage Bolt-On Landscape Box for (24" x 24" x 81-1/2")
Top Rail 2" x 2" Square Tubing
Uprights 3" x 2" x 3/16" Angle

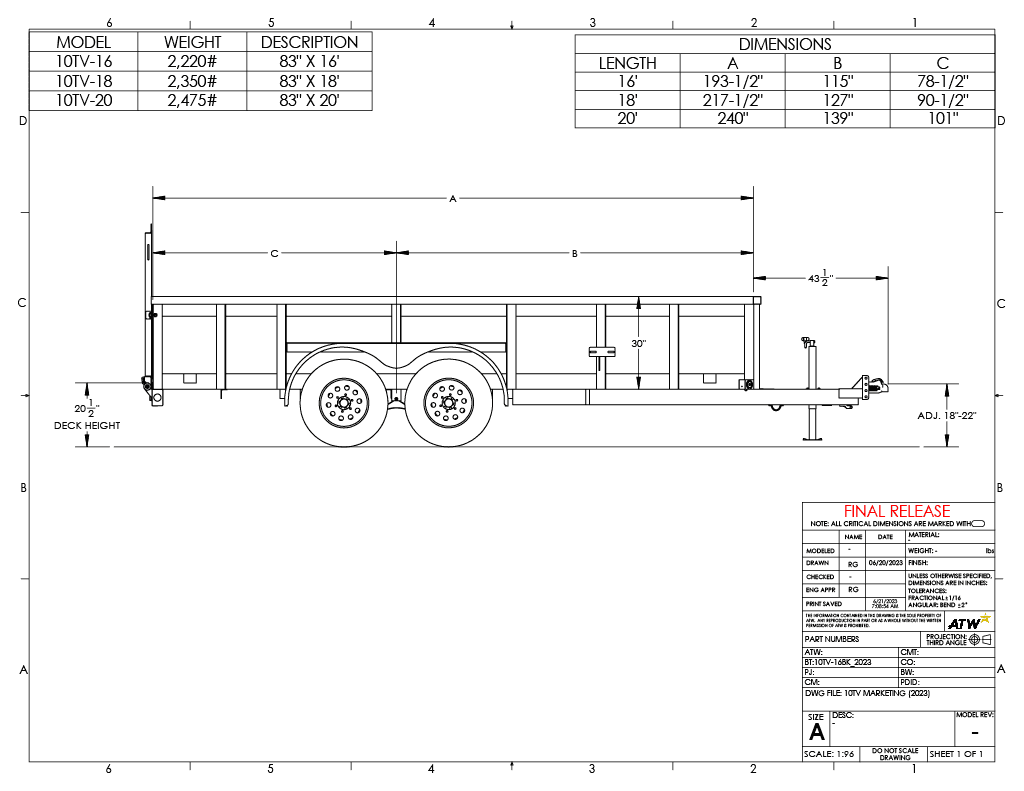

https://www.bigtextrailers.com/wp-content/uploads/2023/07/10TV_specdiagram_v2.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
