Heavy Duty Tandem Axle Pipe Top Utility Trailer

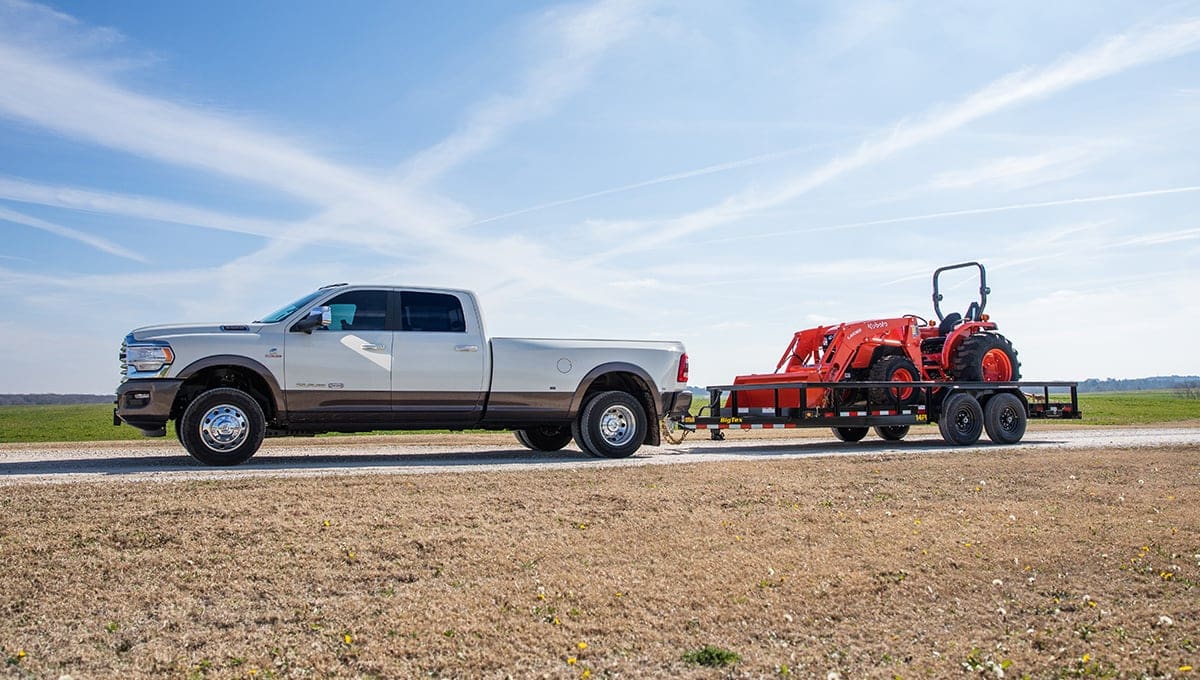

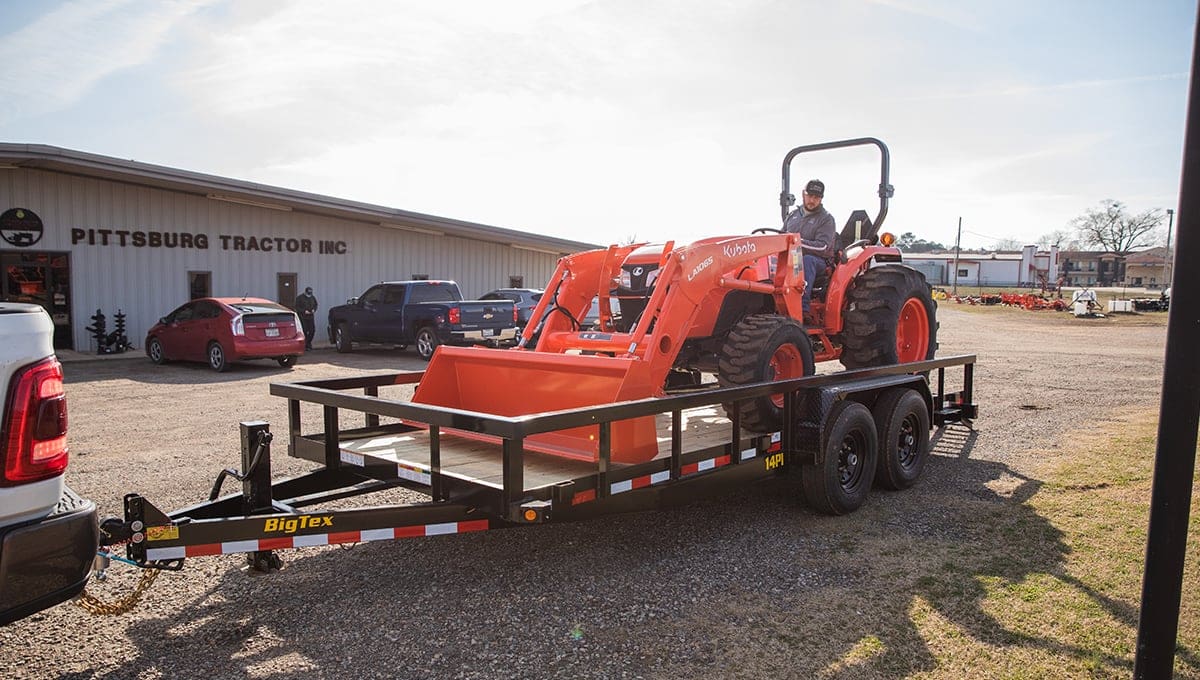

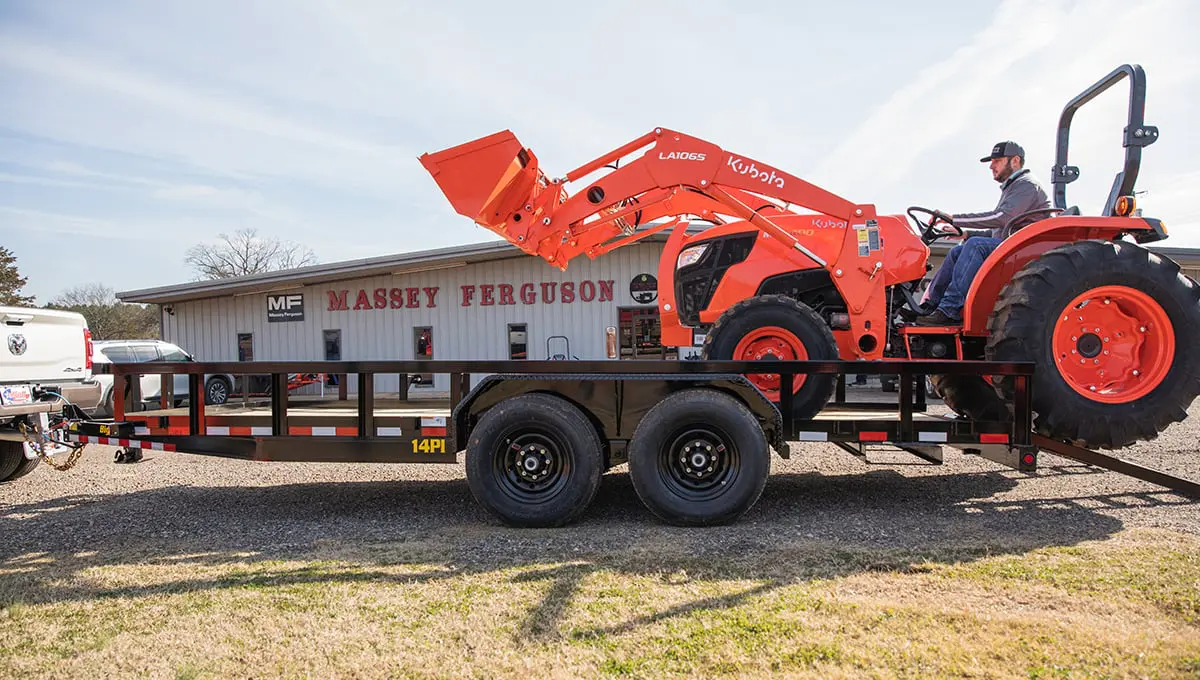

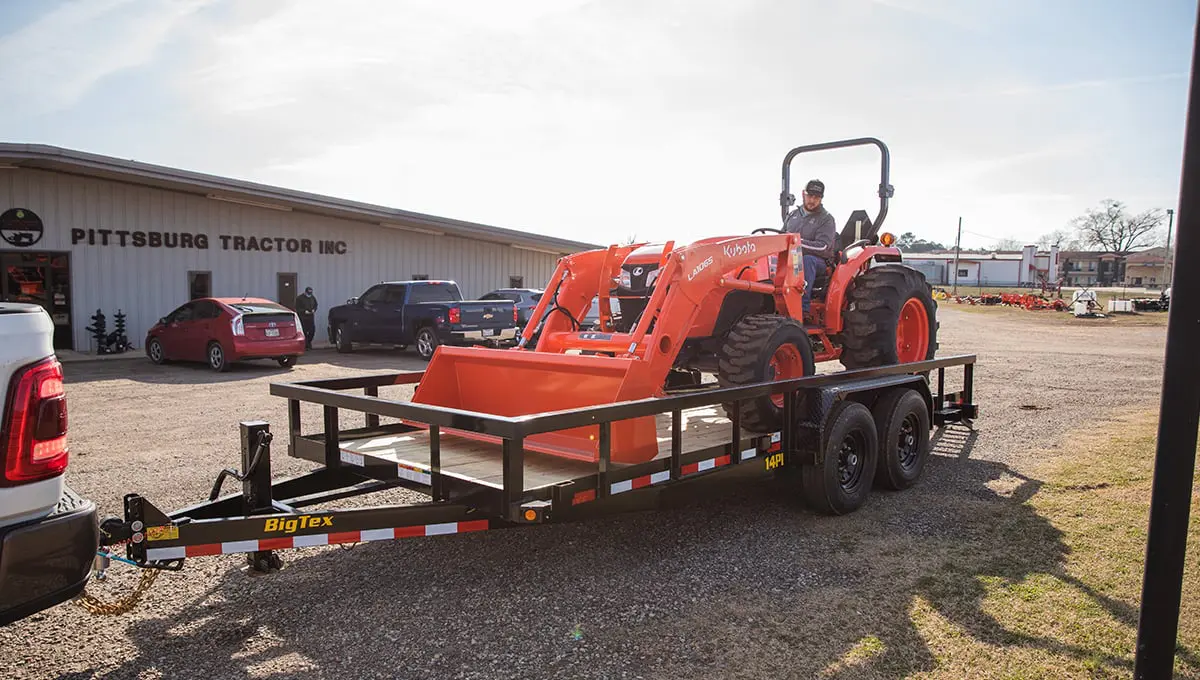

Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
Fast and Easy Hitching
The Demco EZ Latch Coupler is built to last and provides a fast and easy connection, and its automatic latching system securely locks when lowered—saving you both time and effort.
Your Haul, Secured

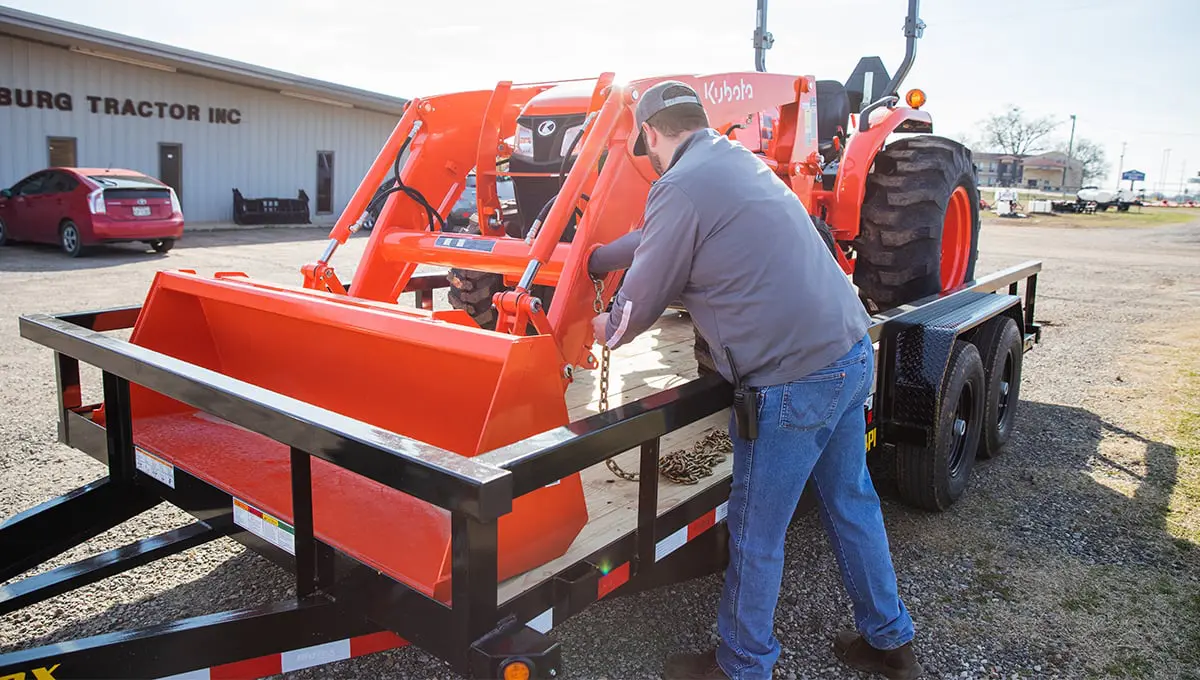

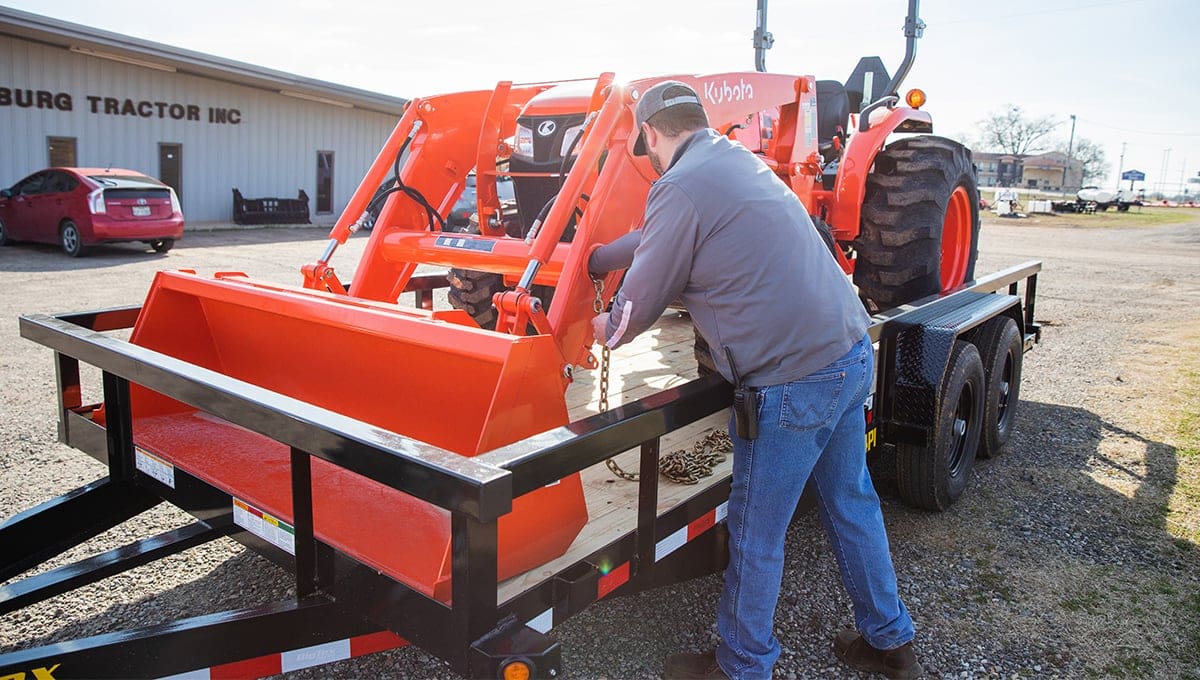

Safely and conveniently secure your cargo with four tie-down loops inside the bed.

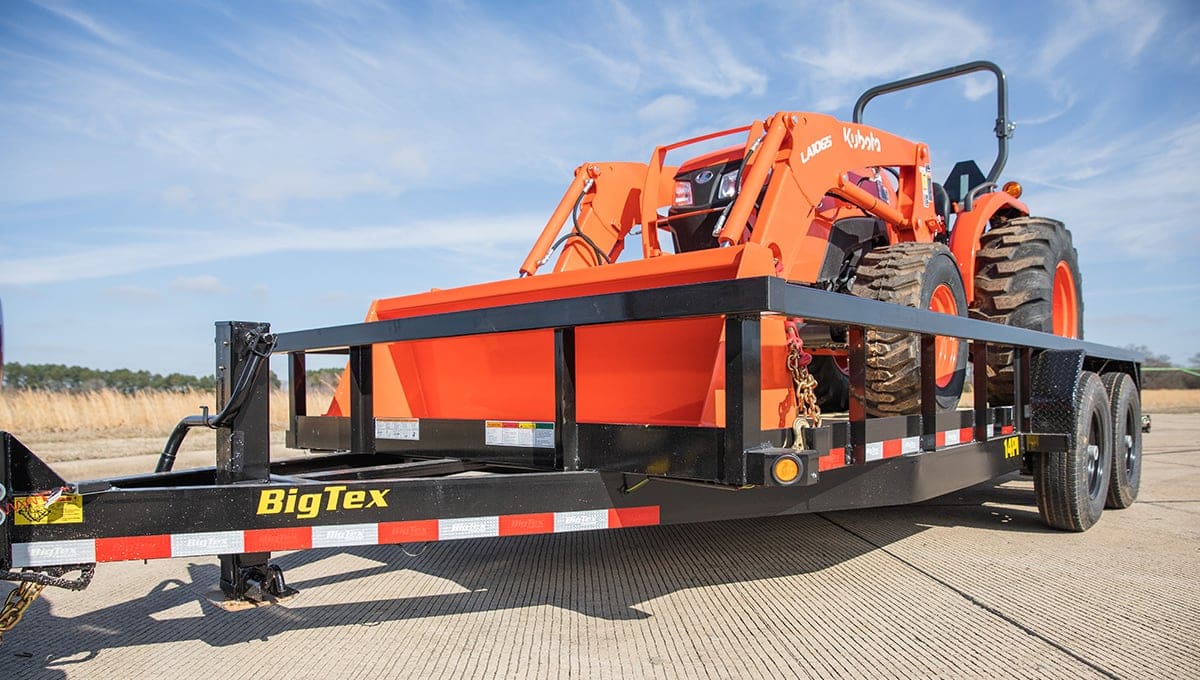

Sturdy 3" x 3" Pipe Top Rail
Constructed from 3" x 3" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
Effortless Maintenance. Smoother Ride.

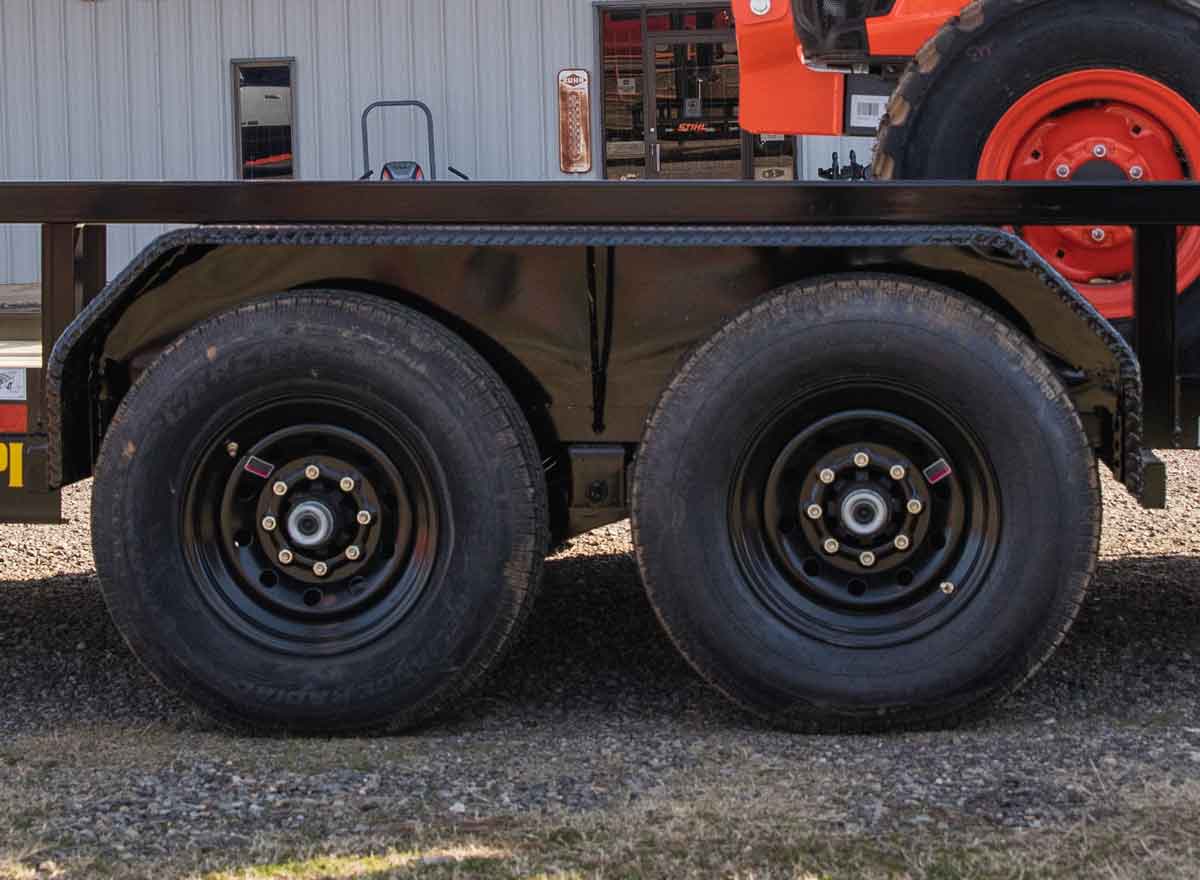

High-quality, industry-leading axles deliver a smooth, reliable ride, and both axles are equipped with self-adjusting brakes to make brake maintenance a breeze.
0 of 0

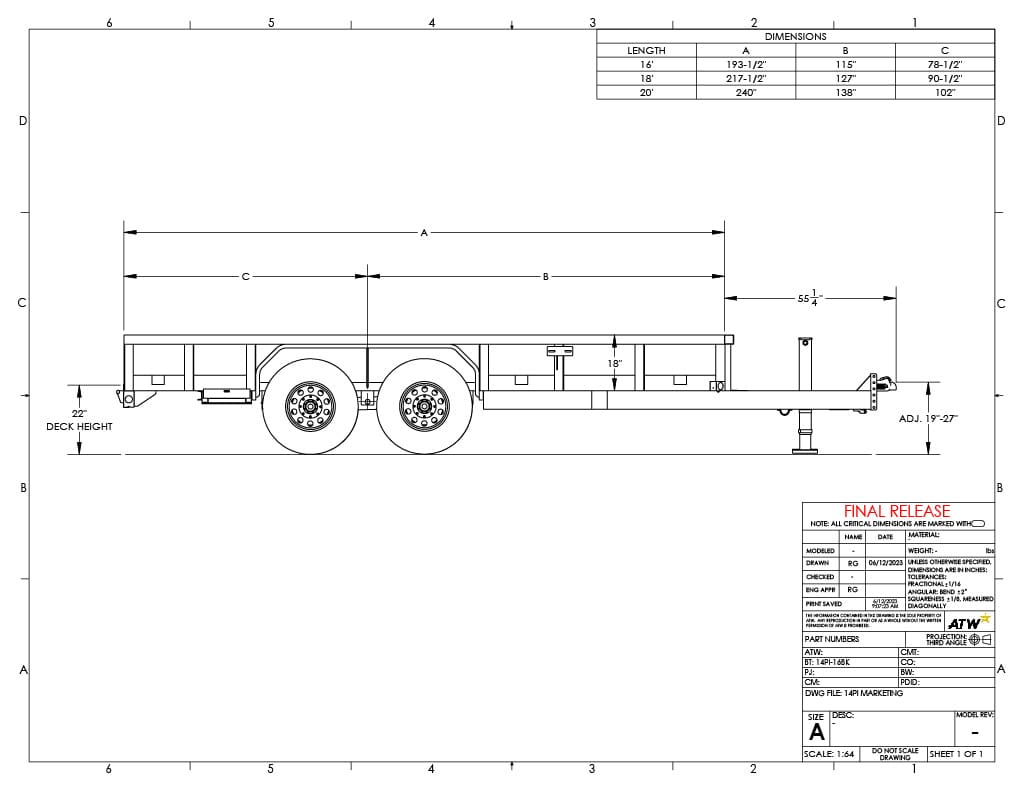

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14PI-20||Bumperpull||14000 lbs||3040 lbs||10960 lbs||20'||83"||240"||138"||102"||42-3/4"|
|14PI-18||Bumperpull||14000 lbs||2890 lbs||11110 lbs||18'||83"||217-1/2"||127"||90-1/2"||42-3/4"|
|14PI-16||Bumperpull||14000 lbs||2740 lbs||11260 lbs||16'||83"||193-1/2"||115"||78-1/2"||42-3/4"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on All Hubs|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Coupler||Adjustable 2-5/16” Demco EZ Latch||Adjustable Pintle in Channel|
|Safety Chains||1/4" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||8,000# Drop-Leg Jack (Side Wind)|
|Frame||5" x 3" x 5/16" Angle|
|Cross-Members||3" Channel on 16" Centers|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9" x 72" 14 Ga. Diamond Plate Double Broke|
|Ramps||4' Slide in Channel Ramps||4' Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist 5’ Stand Up Ramps 5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist|
|Stake Pockets||Outside Frame Stake Pockets||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST235/80 R-16 Load Range E||Tire Upgrade (ST235/80 R-16 LR-G)|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST235/80 R-15 LR-E) Spare Tire & Wheel (ST235/80 R-16 LR-E)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Sides||15" Tall Open sides with 3"x 2”x 3/16" Angle uprights and 3" x 3" Square Tubing Top Rail||2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)|
|Storage||Bolt-On Landscape Box (24" x 24" x 87")|
