30SA 30SA
Big Tex Tube Top Utility Trailer

30SA

Single Axle Utility Trailer

Hauling around the house and garden, unsure about what tasks you’re going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
30SA-8 Bumperpull 2995 lbs 3500 lbs 663 lbs 2332 lbs 8' 60" 97-1/2" 61" 36-1/2" 36-1/8"
30SA-10 Bumperpull 2995 lbs 3500 lbs 723 lbs 2272 lbs 10' 60" 121-1/2” 73” 48-1/2” 36-1/8"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Slipper Spring
Coupler 2" A-Frame 2" Forged Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot 2,000# Fold-Up Jack
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders 9" x 32" Rolled Formed w/ Back

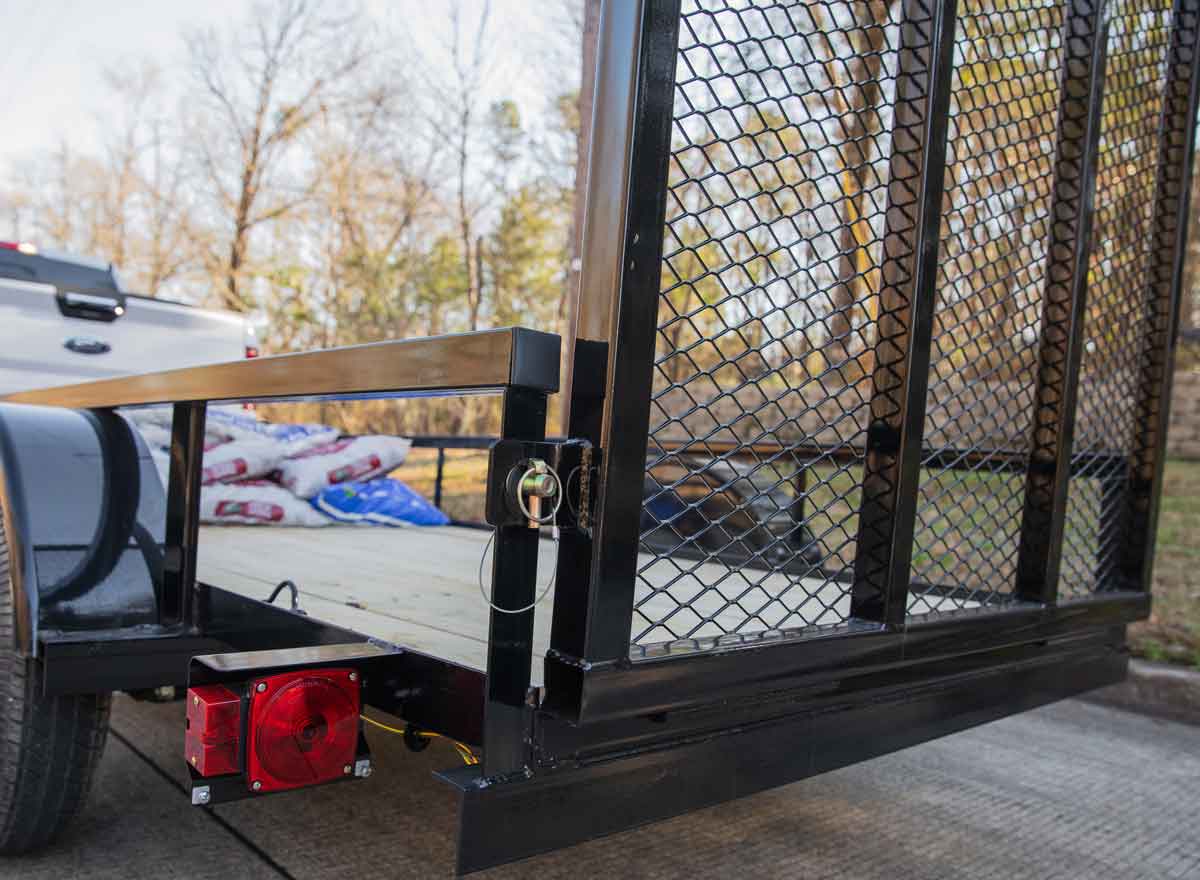

Ramps 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops

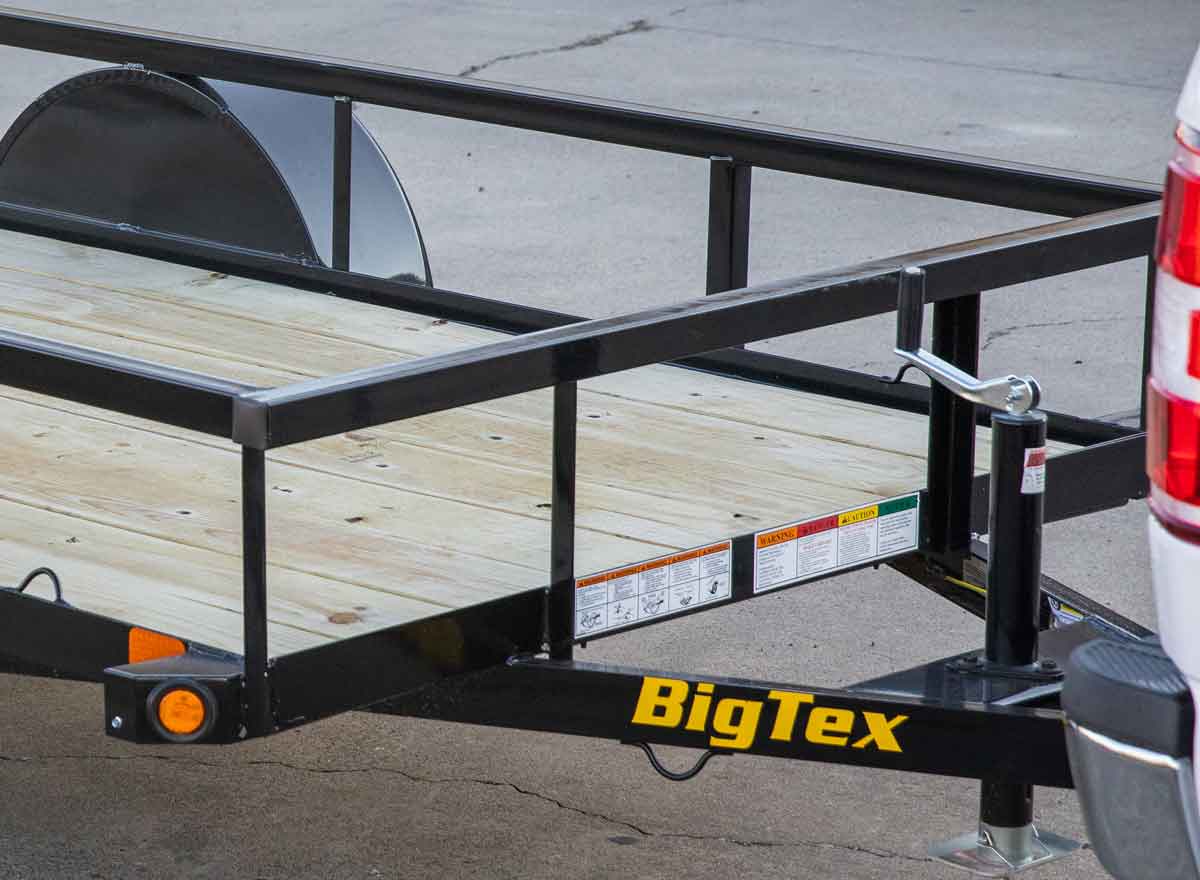

Sides 17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)

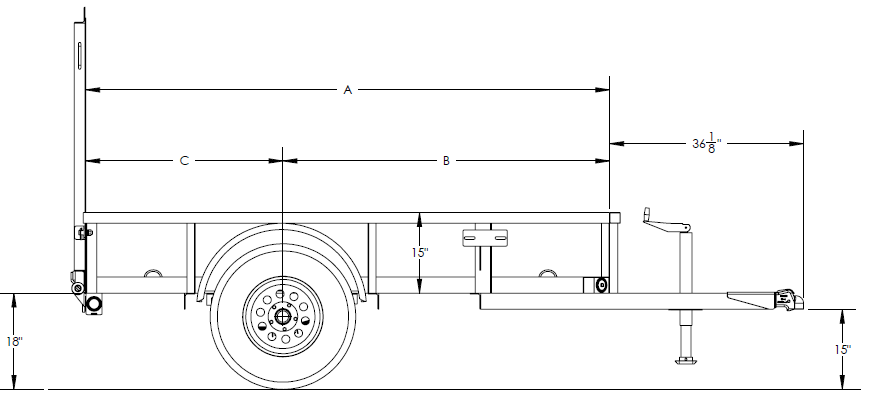

https://www.bigtextrailers.com/wp-content/uploads/2023/07/30sas-35sa_specdiagram.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
