Trailers / Utility & Landscape Trailers / ATV/UTV Haulers

35UT 35UT

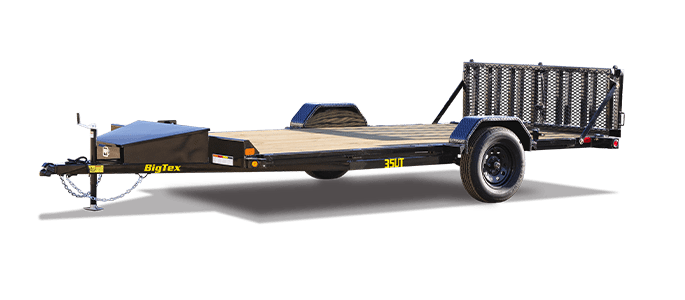

Big Tex Single Axle UTV Hauler

35UT

Single Axle UTV Hauler

Got big toys? Say hello to the 35UT Single Axle UTV Hauler, a 14’ UTV trailer that’s built for efficiency, convenience, and, most importantly, fun. Designed for toy hauling, this 83-inch wide, open-side frame trailer makes loading and unloading ATVs and UTVs faster and easier. And with a 2,995 lbs G.V.W.R., the 35UT has the strength that’s needed to haul your off-road vehicles to wherever the fun is happening.

Model GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width
35UT-14 2995 lbs 3500 lbs 1500 lbs 1495 lbs 14' 83"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Spring
Coupler 2" Demco EZ- Latch
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack
Frame 4" Channel
Cross-Members 2" x 2" Angle
Front Stop Rail Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders Removable Tread Plate Fenders

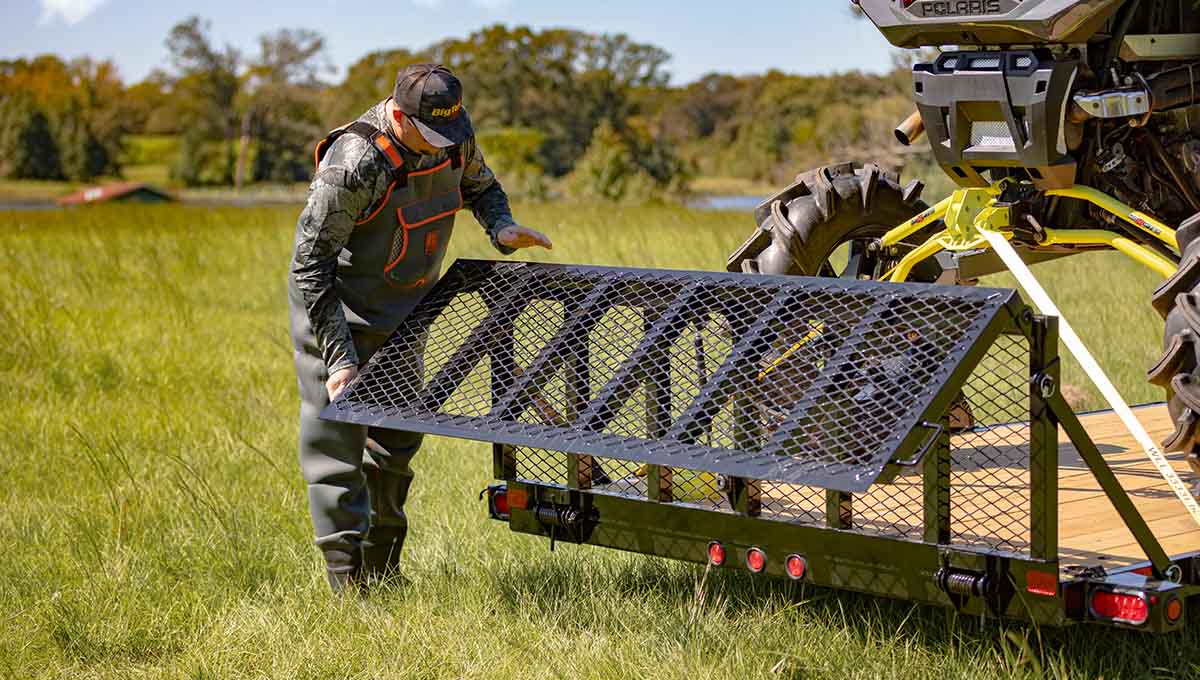

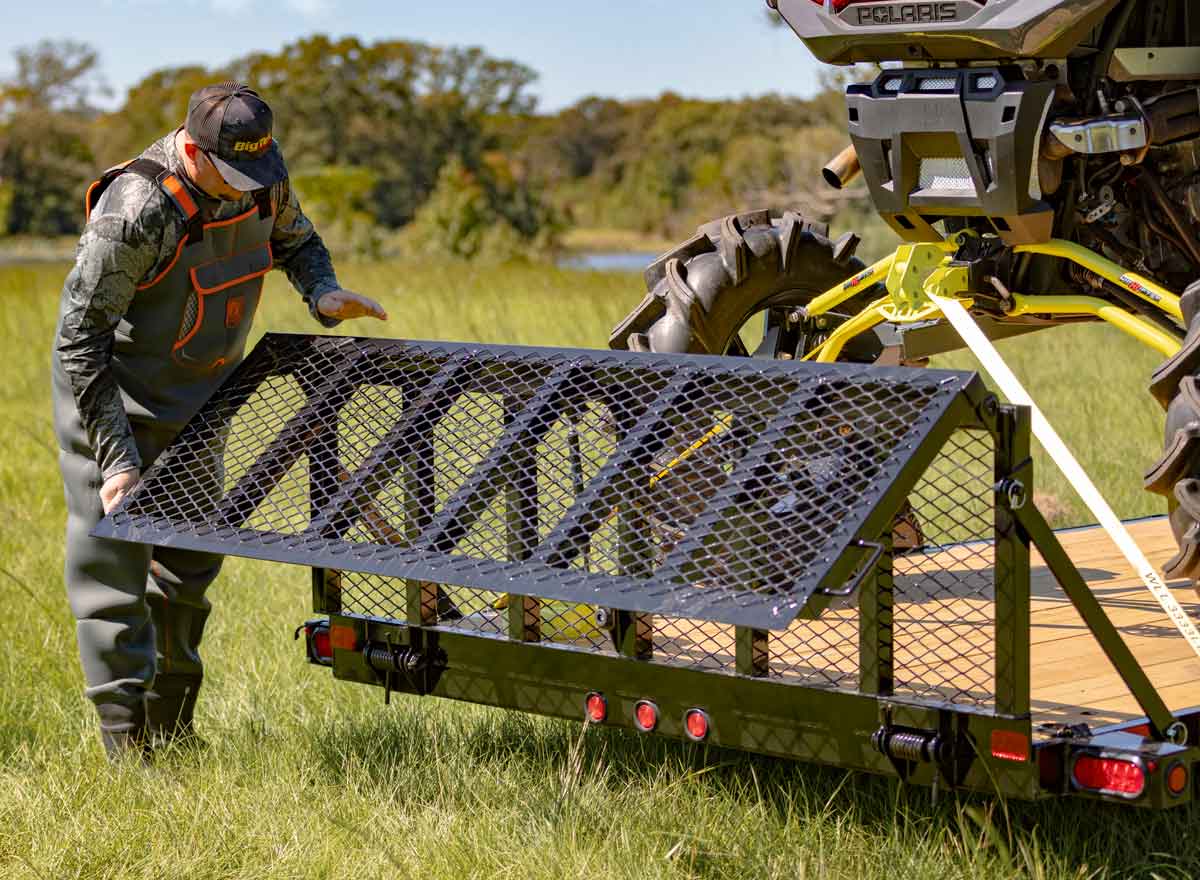

Ramps Bi-Fold Rear Ramp Gate with Spring Coil Assist 4' Slide-In Angle Ramps
Stake Pockets (8) Stake Pockets (4 on each side) Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Wheels Upgrade to Aluminum Wheels w/ Black Trim (ST205/75-15 LR-C)
Spare Mount Side Spare Tire Mount
Spare Tire Spare Upgrade to Alum. Wheels w/ Black Trim (ST205/75-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail Rub Rail Along Both Sides
Tie-Downs (4) D-Rings to secure vehicle

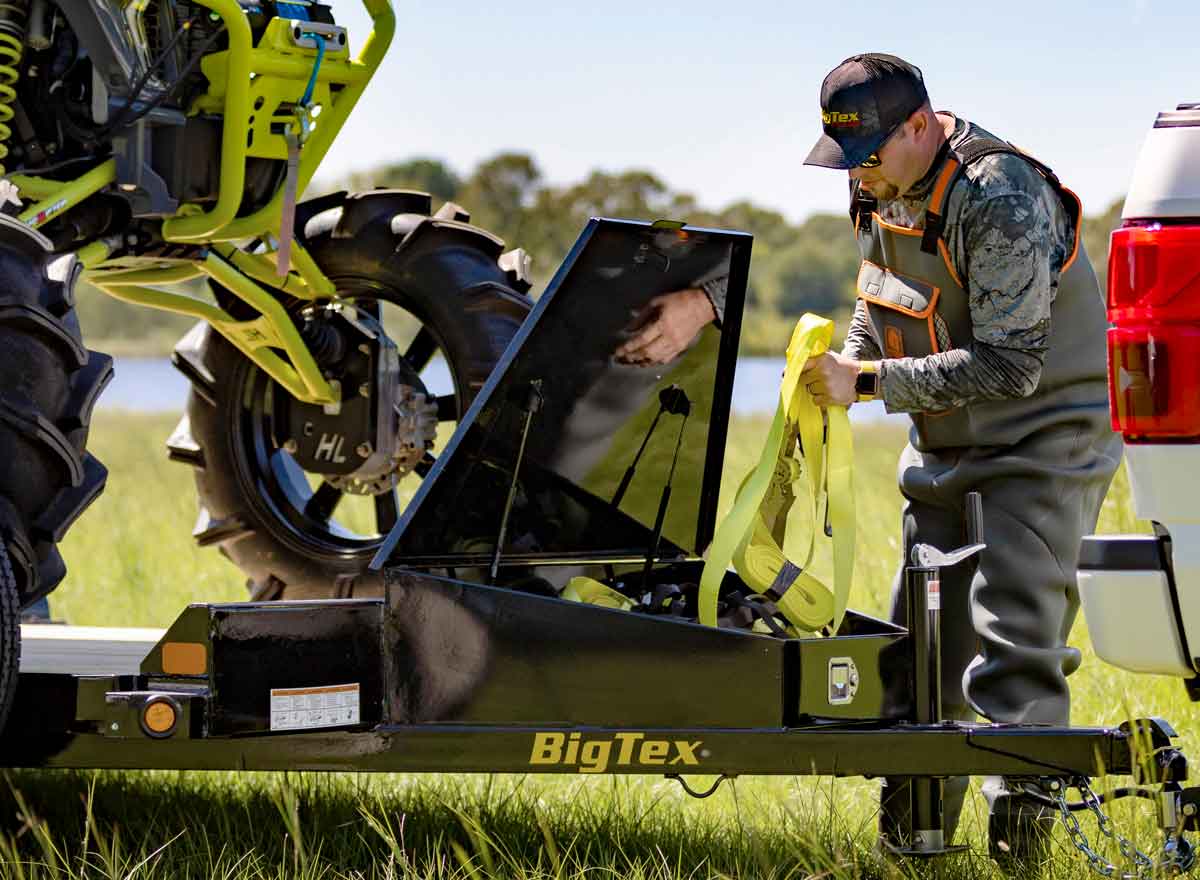

Storage Oversized Tongue Box for Storage
https://www.bigtextrailers.com/wp-content/uploads/2023/07/35UT__specdiagram.png
