Tube Top Utility Trailer from Big Tex

60PI

Tandem Axle Pipe Top Utility Trailer

Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. It’s built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
60PI-16 Bumperpull 6000 lbs 3500 lbs 1535 lbs 4465 lbs 16' 77" 193-1/2" 115" 78-1/2" 37"
60PI-14 Bumperpull 6000 lbs 3500 lbs 1400 lbs 4600 lbs 14' 77" 169-1/2" 103" 72-1/2" 37"
60PI-12 Bumperpull 6000 lbs 3500 lbs 1265 lbs 4735 lbs 12' 77" 145-1/2" 85" 60-1/2" 37"

Standard Feature Available Options
Axles 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Electric Brake on Front Axle Electric Brakes on 2nd Axle
Suspension Multi-Leaf Spring w/ Equalizer
Coupler 2" A-Frame 2" Forged Coupler 2-5/16” Forged Coupler 2-5/16” Stamped Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot 2,000# Fold-Up Jack
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" Rolled Formed w/ Back
Ramps 4' Slide-In Angle Ramps 4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops
Sides 17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)

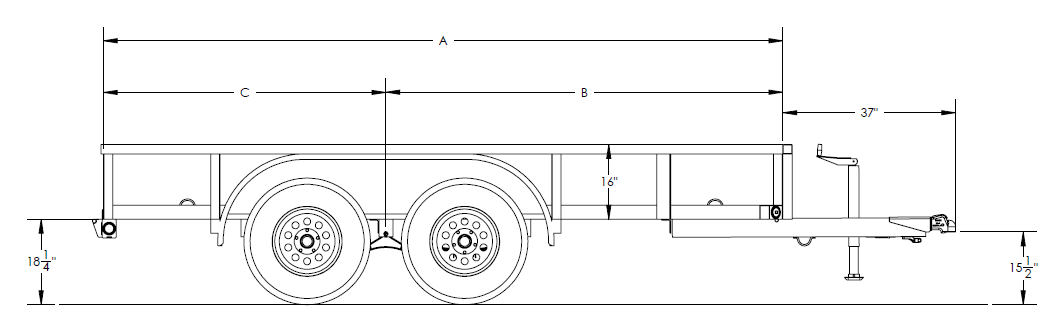

https://www.bigtextrailers.com/wp-content/uploads/2023/07/60PI_specdiagram.png
