Explore The
Flatbed Goosenecks & Deck-Overs

Flatbed Goosenecks
Built for strength and stability during transport, Flatbed Gooseneck Trailers are constructed to haul wide and large equipment, vehicles and palletized material with safety and security.

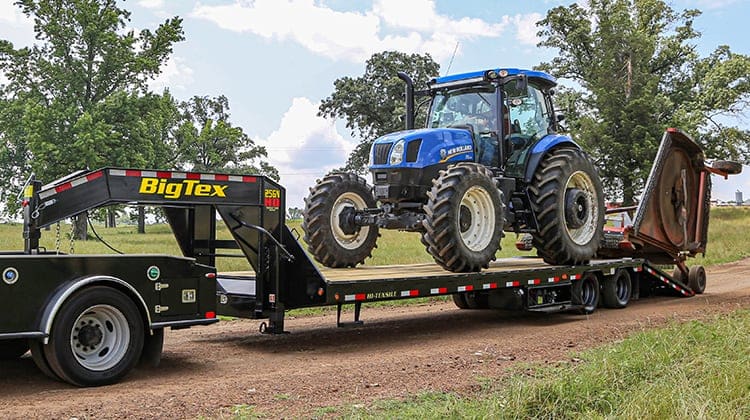

Hydraulic Dovetail Goosenecks
With a hydraulic powered dovetail that makes loading and unloading quick and easy, these trailers safely and securely haul large equipment and palletized material.

Deck-Over Tag-Alongs
Take on the biggest jobs with our Deck-Over Tag-Alongs, heavy-duty trailers equipped with the strength, durability, and safety features to move thousands of pounds of cargo.

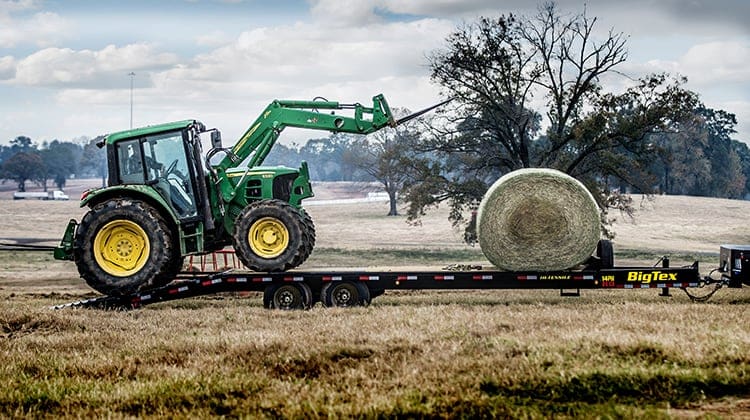

Deck-Over Pintles
With more width available to use for cargo, our rugged and durable Deck-Over Pintle trailers are built to securely haul big and bulky loads across rough and uneven terrain.

14GN
Single Wheel Tandem Axle Gooseneck
Width: 102"
Length: 20', 25', 28', 30', 33'
GVWR: 15,900 lbs
Cargo Capacity: 9,770—15,900 lbs

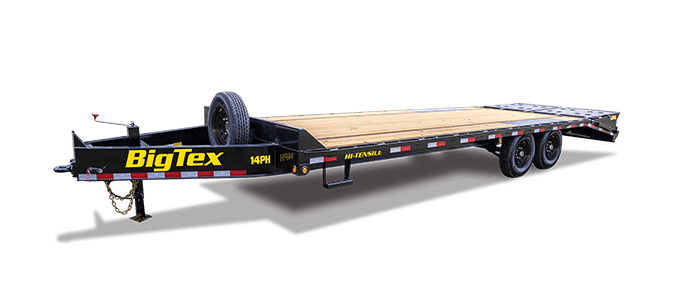

14PH
Single Wheel Tandem Axle Pintle
Width: 102"
Length: 25', 30'
GVWR: 15,900 lbs
Cargo Capacity: 10,820—11,320 lbs

16GN
Super Duty Single Wheel Tandem Axle Gooseneck
Width: 102"
Length: 25', 27', 30', 33', 35', 36', 40'
GVWR: 17,500 lbs
Cargo Capacity: 10,900—17,500 lbs

22GN
Tandem Dual Wheel Gooseneck
Width: 102"
Length: 20', 25', 28', 30', 33', 35', 36', 40'
GVWR: 23,900 lbs
Cargo Capacity: 15,950—18,100 lbs

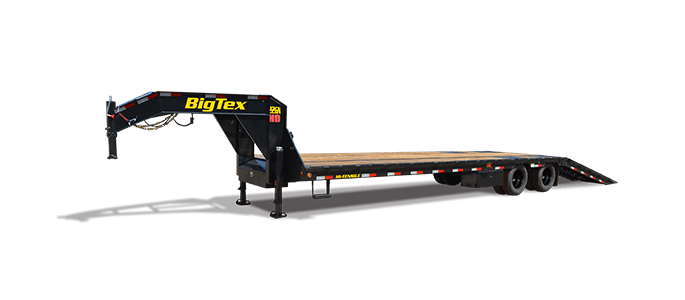

22GN-HDTS
Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
Width: 102"
Length: 35', 40'
GVWR: 23,900 lbs
Cargo Capacity: 15,100—15,950 lbs

22PH
Tandem Dual Wheel Pintle
Width: 102"
Length: 25', 30'
GVWR: 23,900 lbs
Cargo Capacity: 17,800—18,300 lbs

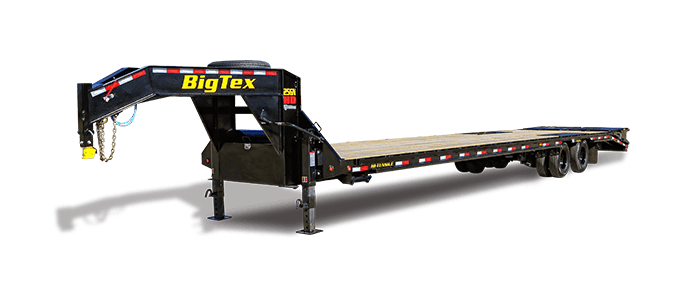

25GN
Heavy Duty Tandem Dual Wheel Gooseneck
Width: 102"
Length: 20', 25', 28', 30', 33', 35', 36', 40'
GVWR: 25,900 lbs
Cargo Capacity: 17,950—20,100 lbs

25GN-HDTS
Heavy Duty Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
Width: 102"
Length: 35', 40'
GVWR: 25,900 lbs
Cargo Capacity: 15,980—16,940 lbs

25PH
Heavy Duty Tandem Dual Wheel Pintle
Width: 102"
Length: 25', 30'
GVWR: 25,900 lbs
Cargo Capacity: 19,600—20,100 lbs

3XGN
Super Duty Tandem Dual Gooseneck
Width: 102"
Length: 25', 30', 33', 35', 36', 40'
GVWR: 30,000 lbs
Cargo Capacity: 19,630—23,020 lbs

3XPH
Super Duty Tandem Dual Wheel Pintle
Width: 102"
Length: 25', 30'
GVWR: 30,000 lbs
Cargo Capacity: 23,700—24,200 lbs
