Trailers / Utility & Landscape Trailers / Vanguard Trailers

70TV 70TV
Big Tex Tandem Axle Vanguard Trailer

70TV

Tandem Axle Vanguard Trailer

Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.

70TV

Tandem Axle Vanguard Trailer

Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.

70TV 70TV
Big Tex Tandem Axle Vanguard Trailer

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
70TV-18 Bumperpull 7000 lbs 3500 lbs 1935 lbs 5065 lbs 18' 83" 217-1/2" 127" 90-1/2" 44-1/2"
70TV-16 Bumperpull 7000 lbs 3500 lbs 1845 lbs 5155 lbs 16' 83" 193-1/2" 115" 78-1/2" 44-1/2"
70TV-14 Bumperpull 7000 lbs 3500 lbs 1755 lbs 5245 lbs 14' 83" 169-1/2" 103" 66-1/2" 44-1/2"
70TV-12 Bumperpull 7000 lbs 3500 lbs 1665 lbs 5335 lbs 12' 83" 145-1/2" 85" 60-1/2" 44-1/2"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Forward Self Adjusting Brakes on Front Axle and Flanges on the Rear Axle Electric Brakes on 2nd Axle
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler 2" Demco EZ- Latch 2-5/16” Forged Coupler 2-5/16” Stamped Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back, Sand Foot Jack 8,000# Drop-Leg Jack 2,000# Fold-Up Jack
Frame 4" x 3" x 1/4" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine or Douglas Fir Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" 16 Ga. Tear Drop Fender
Ramps 4' Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets (4) Stake Pockets on Outside Frame Additional Stake Pockets (Each)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tires ST205/75 R-15 Load Range C Tire Upgrade (ST225/75R-15 LR-D)
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C) Spare Tire (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops
Sides 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
Storage Bolt-On Landscape Box for (24" x 24" x 81-1/2")
Top Rail 2" x 2" Square Tubing

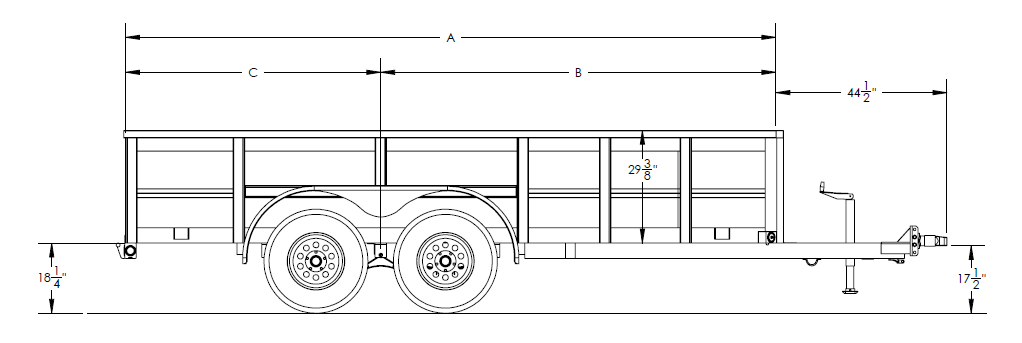

https://www.bigtextrailers.com/wp-content/uploads/2023/07/70TV_specdiagram.png
