Trailers / Utility & Landscape Trailers / Vanguard Trailers

35SV 35SV

35SV

Single Axle Vanguard Trailer

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

35SV

Single Axle Vanguard Trailer

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

35SV 35SV

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
35SV-14 Bumperpull 2995 lbs 1480 lbs 1515 lbs 14' 77" 169-1/2” 97” 72-1/2” 36-1/8"
35SV-12 Bumperpull 2995 lbs 1290 lbs 1705 lbs 12' 77" 145-1/2” 85” 60-1/2” 36-1/8"
35SV-10 Bumperpull 2995 lbs 1100 lbs 1895 lbs 10' 77" 121-1/2" 73" 48-1/2" 36-1/8"

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Slipper Spring
Coupler Demco EZ Latch 2" Forged Coupler
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack 2,000# Fold-Up Jack
Frame 3" x 2" x 3/16" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine or Douglas Fir Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders 9" x 32" Rolled Formed w/ Back
Ramps 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST205/75R-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops
Sides 28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.)
Storage Bolt-On Landscape Box for (24" x 24" x 81-1/2")
Top Rail 2" x 2" Square Tubing

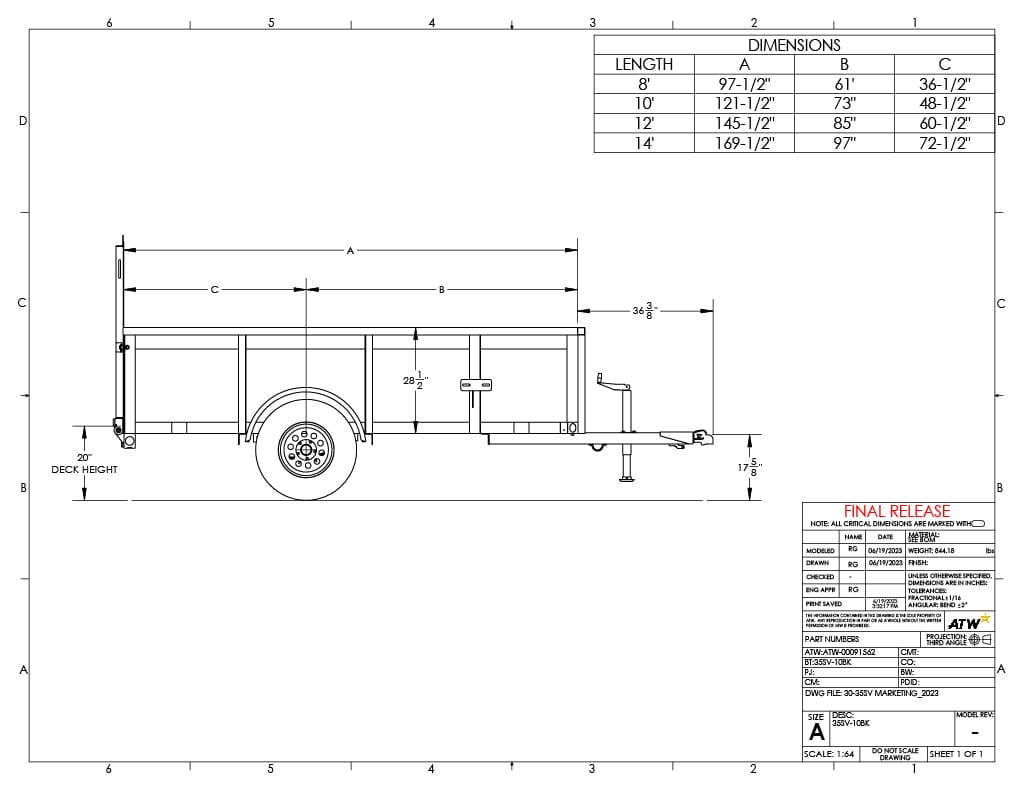

https://www.bigtextrailers.com/wp-content/uploads/2023/07/35sv_specdiagram_v2.jpg
