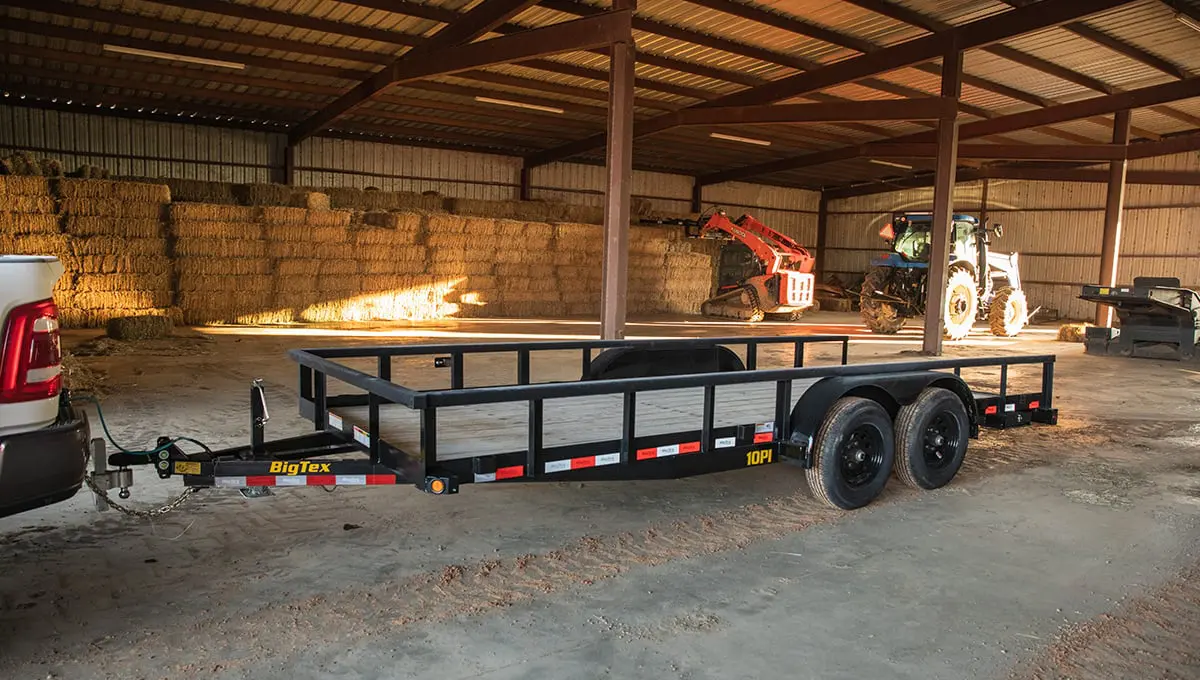

Big Tex Pro Series Tandem Axle Pipe Top Utility Trailer

10PI

Pro Series Tandem Axle Pipe Top Utility Trailer

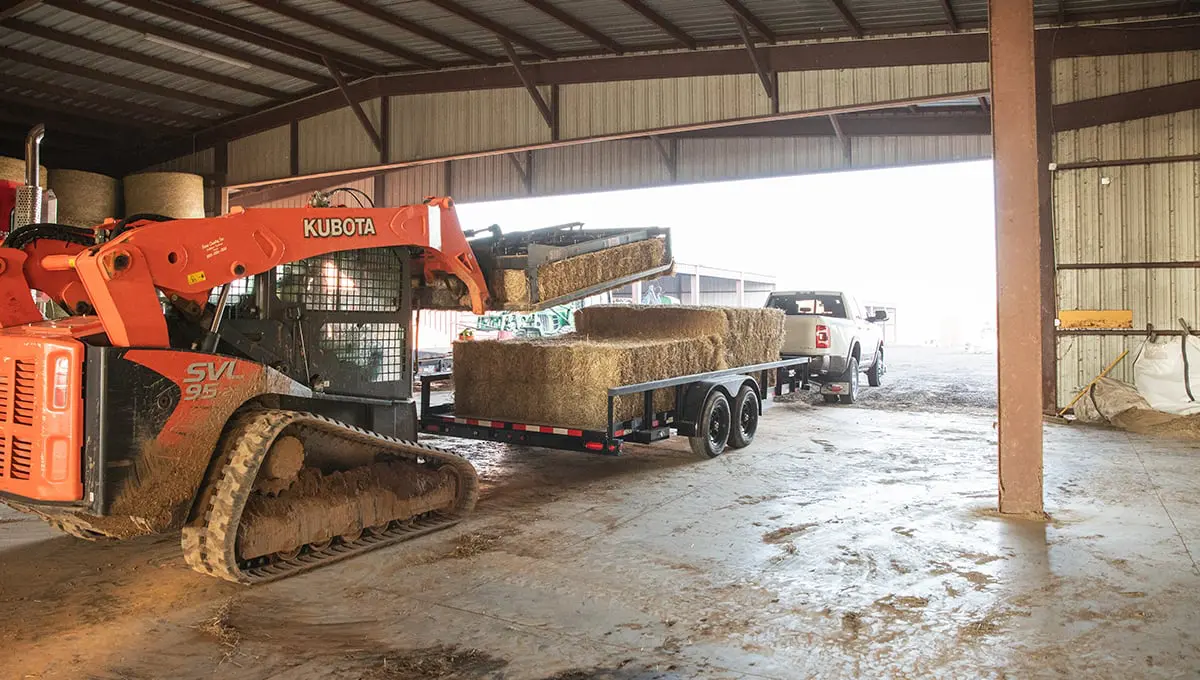

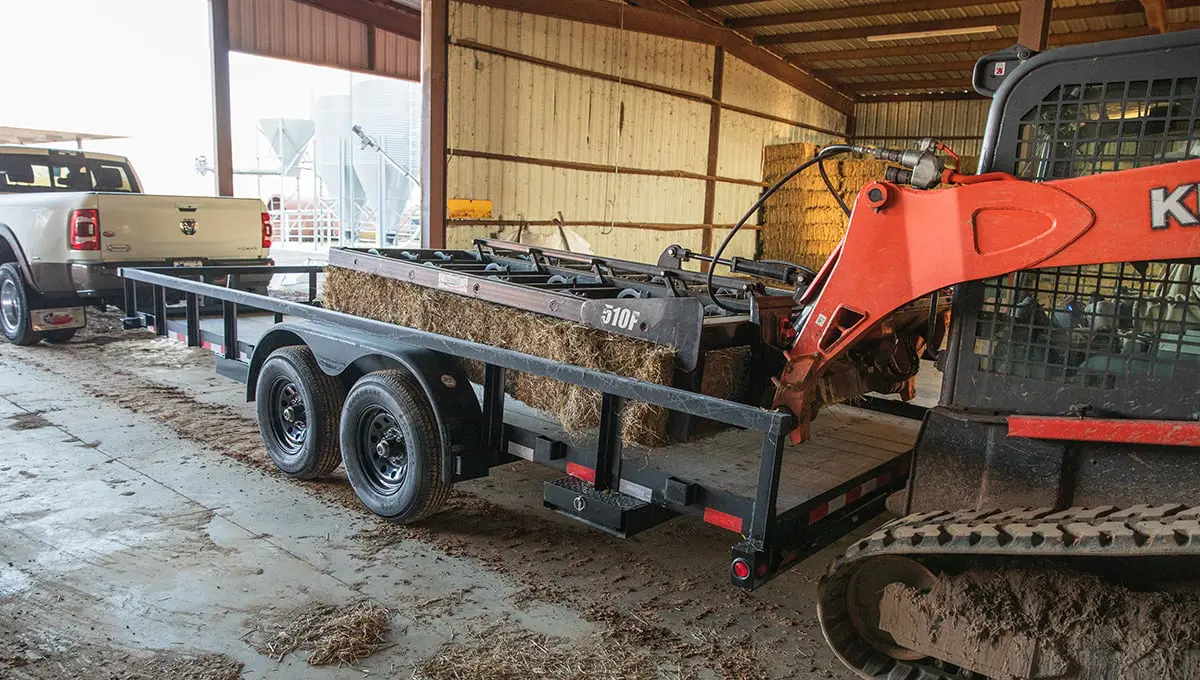

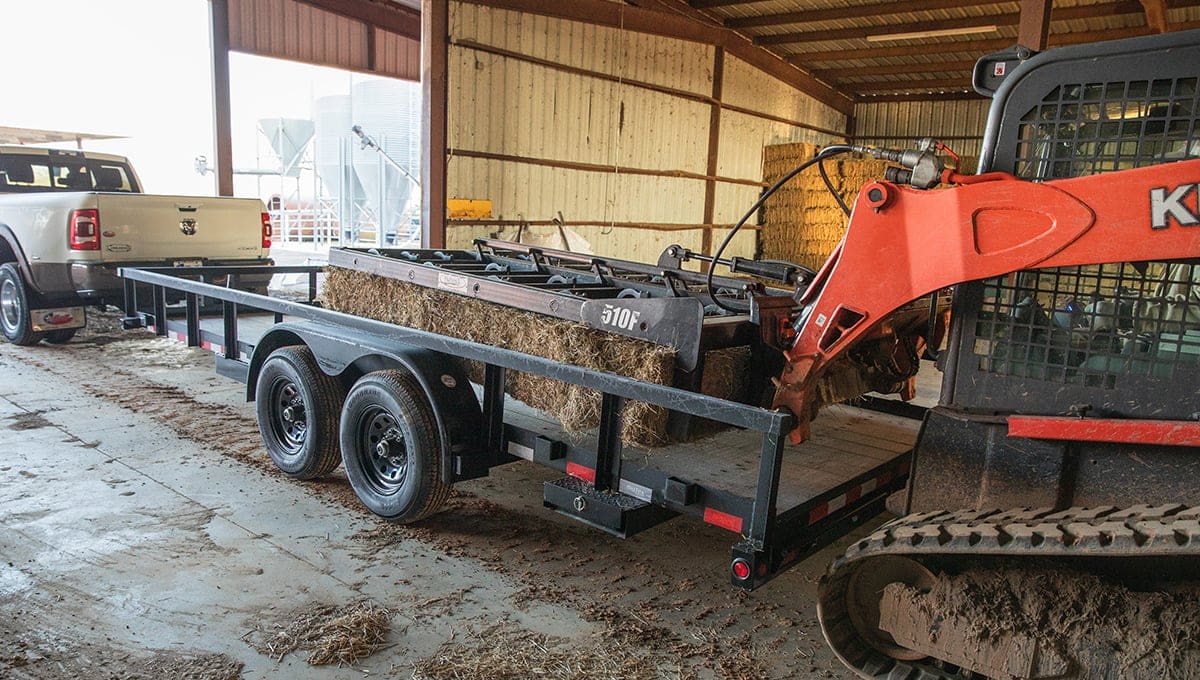

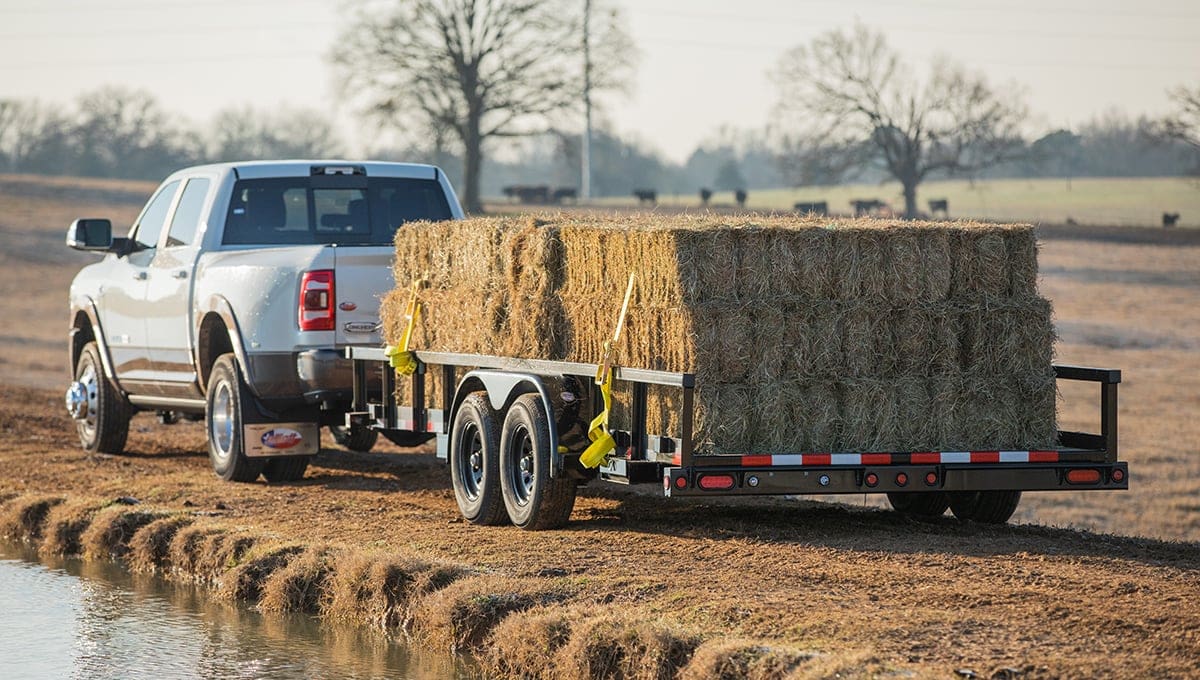

Built for those that need a versatile and durable utility trailer that can handle the demands of a hard day’s work, the 10PI Pro Series Tandem Axle Pipe Top Utility Trailer is ready to get the job done. With a 9,990 lbs G.V.W.R., it hauls everything from small tractors to light- and medium-duty equipment—a professional-level experience that’s constructed to tackle the toughest tasks. And don’t worry about throwing your back trying to secure your haul, and it comes standard with 4’ slide-in ramps to make loading and unloading a breeze.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
10PI-16 Bumperpull 9990 lbs 5200 lbs 2260 lbs 7730 lbs 16' 83" 193-1/2" 115" 78-1/2" 45-1/2"
10PI-18 Bumperpull 9990 lbs 5200 lbs 2320 lbs 7670 lbs 18' 83" 217-1/2" 127" 90-1/2" 45-1/2"
10PI-20 Bumperpull 9990 lbs 5200 lbs 2380 lbs 7610 lbs 20' 83" 240" 138" 102" 45-1/2"

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on All Hubs
Suspension Multi-Leaf Spring w/ Equalizer
Coupler 2" Demco EZ- Latch Adjustable Pintle in Channel 2-5/16” Stamped Coupler in Adjustable Channel
Safety Chains 1/4" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 8,000# Set-Back, Drop-Leg Jack
Frame 5" x 3" x 1/4" Angle
Cross-Members 3” x 2” x 3/16” Angle
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders 9" x 72" Tear Drop, smooth with back

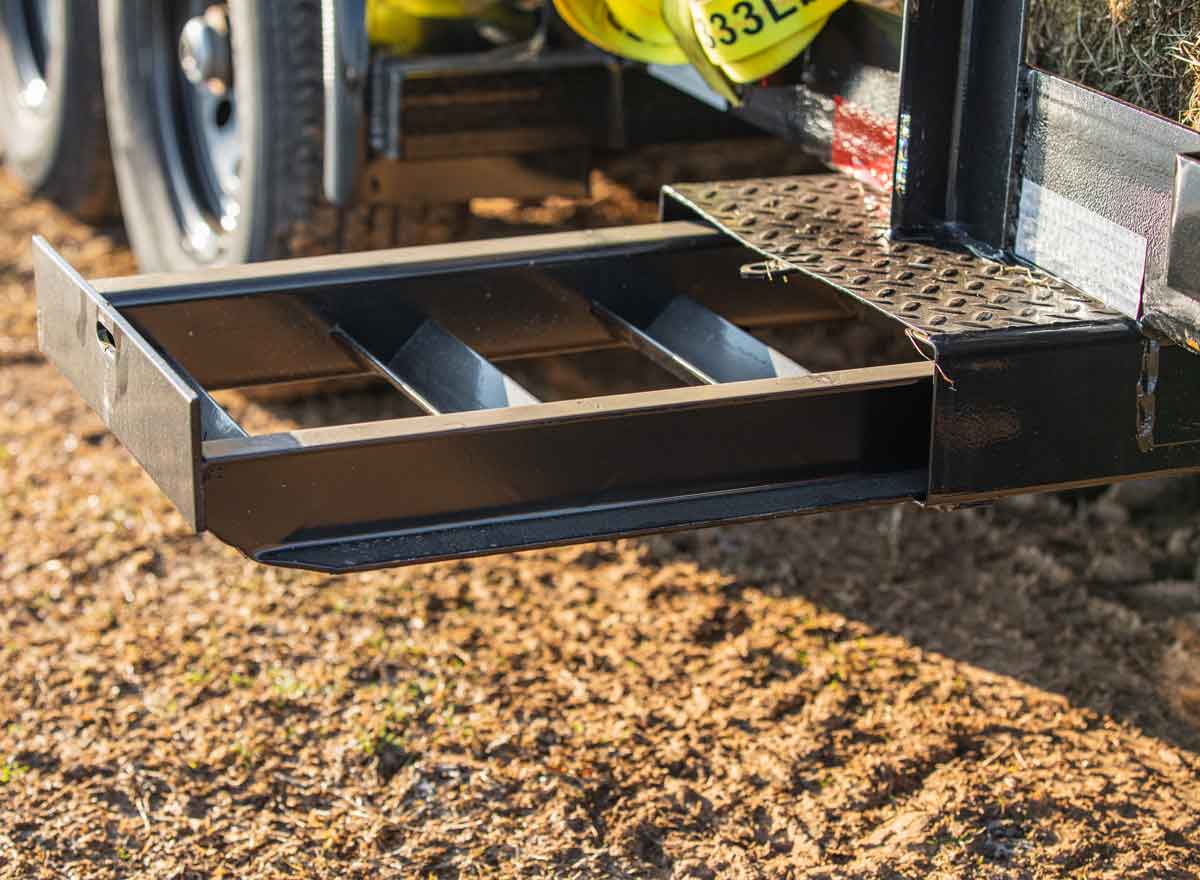

Ramps 4' Slide in Channel Ramps 5' Stand Up Ramps 4' Heavy Duty Integrated Ramp Gate w/ Coil Spring 5' Heavy Duty Integrated Ramp Gate w/ Coil Spring
Stake Pockets Outside Frame Stake Pockets Additional Stake Pockets (Each)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST225/75R-15 Load Range D Tire Upgrade (ST225/75R-15 LR-D)
Bolt Pattern 6 Bolt
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST225/75R-15 LR-D)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow

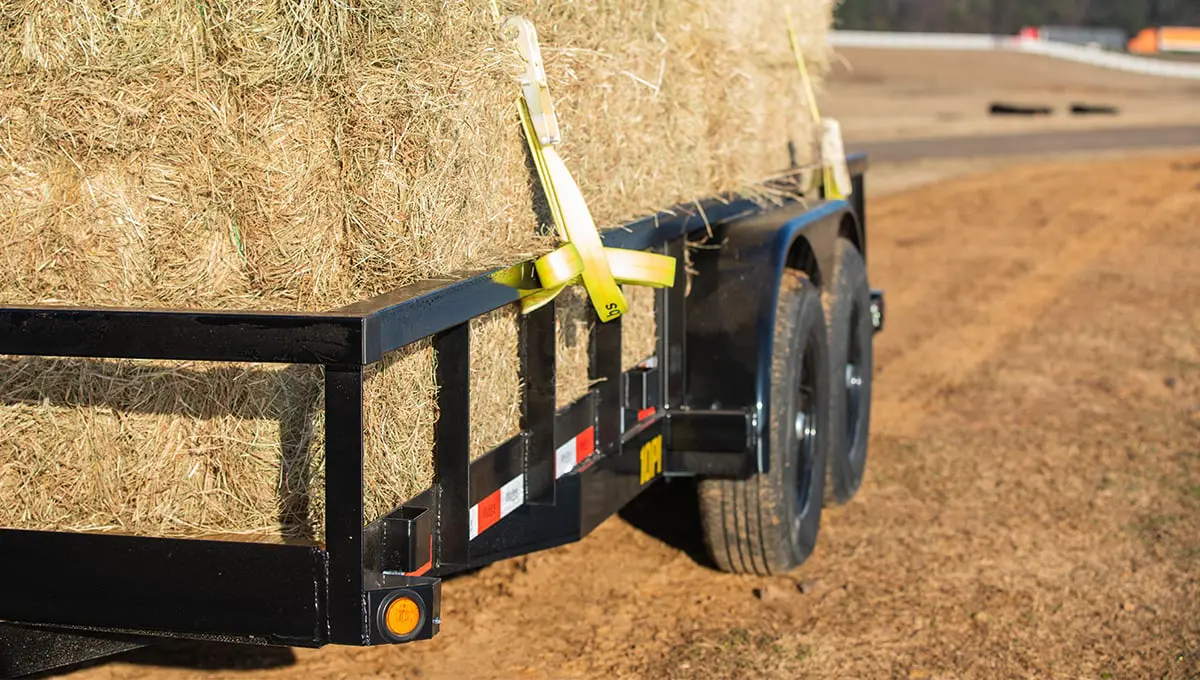

Tie-Downs 5/8" D-Ring

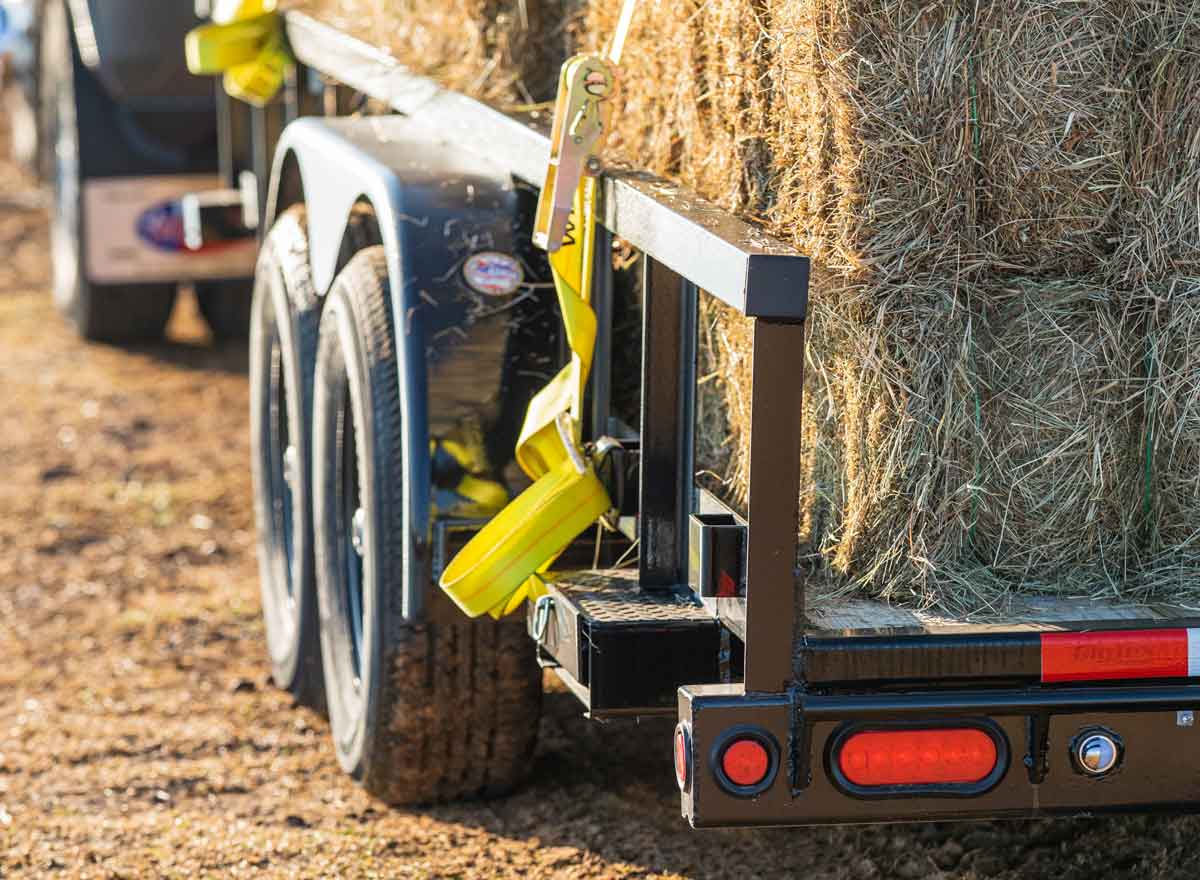

Sides 17.5" Tall Open sides with 3"x 2” Angle uprights and 2-1/2" x 2-1/2" Square Tubing Top Rail 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)
Storage Bolt-On Landscape Box (24" x 24" x 87")

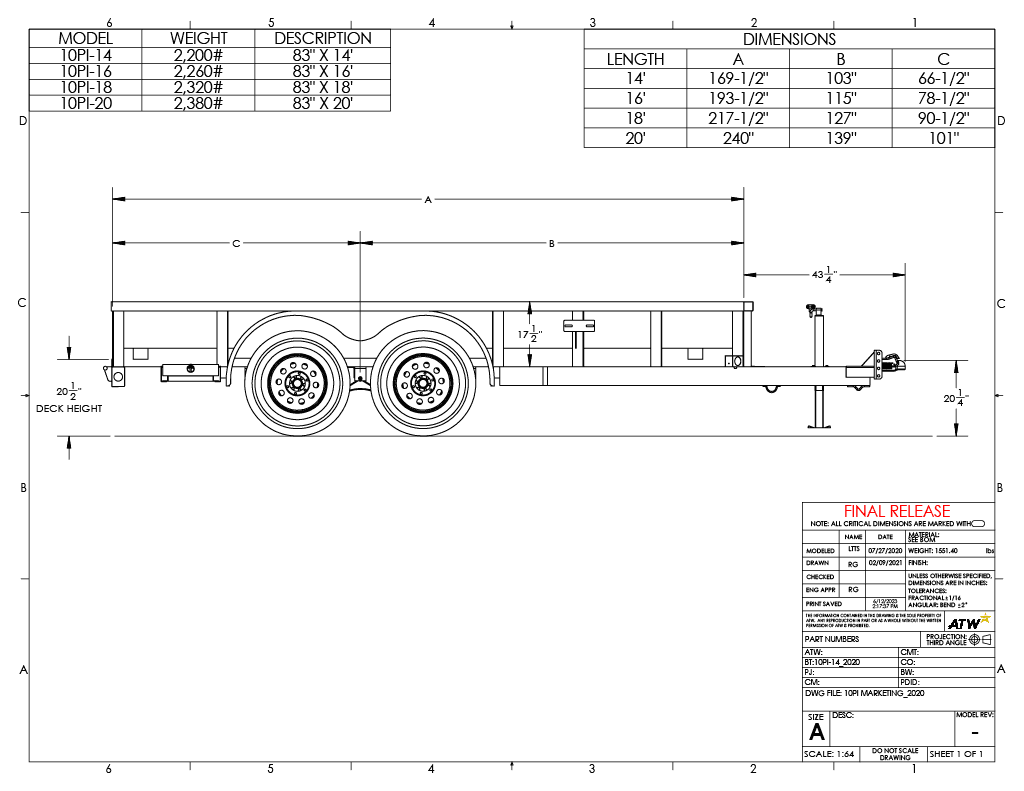

https://www.bigtextrailers.com/wp-content/uploads/2023/07/10PI_specdiagram_v2.png
