14PI

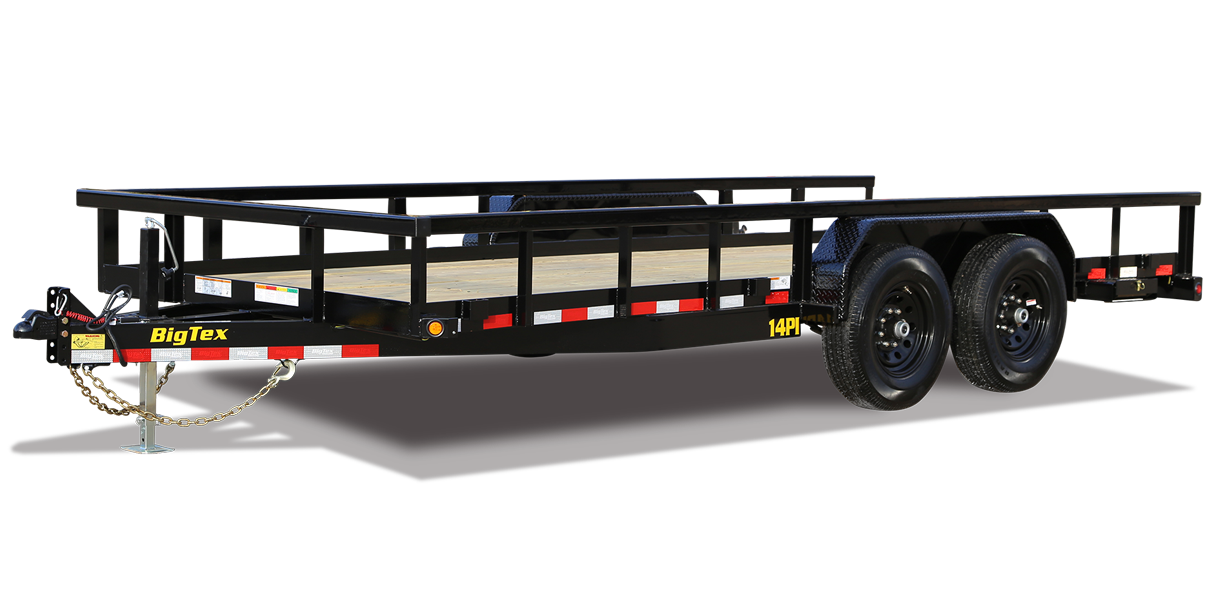

Heavy Duty Tandem Axle Pipe Top Utility Trailer

The 14PI from Big Tex is a heavy-duty, pipe-top equipment trailer. This unit comes standard with an adjustable forged coupler, LED lights and a treated floor for a professional-grade appearance and impressive brawn.

Interested in purchasing this trailer?

Locate a 14PI

Specs...

360°

AXLE (2) 7,000#, EZ Lube w/Electric Brakes
JACK 8,000# Drop Leg Jack (Bolted On)
TIRE ST235/80 R-16 Load Range E
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 5" x 3" x 5/16" Angle
WHEEL 16" x 6"; Heavy Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LiGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 6" Channel Fold Back/Wrap
COUPLER Adjustable 2-5/16" 14,000# Cast
FENDERS 9" x 72" Double Broke Diamond Plate w/Back
G.V.W.R. 14,000#
TOP RAIL 3" Square Tube Square Back
UPRIGHTS 15" Tall - 3" x 2" x 3/16" Angle
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3" Channel on 16" Centers
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 ea)
G.A.W.R. (Ea. Axle) 7,000#

Models

Model Weight Description
14PI-16 2,740# 83" x 16' HD Tandem Axle Pipe Top Utility Trailer
14PI-18 2,890# 83" x 18' HD Tandem Axle Pipe Top Utility Trailer
14PI-20 3,040# 83" x 20' HD Tandem Axle Pipe Top Utility Trailer

& Features

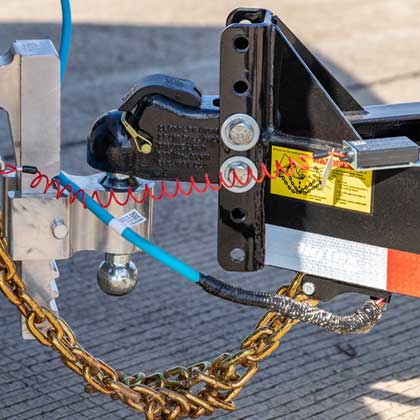

  • Adjustable 14K Cast Coupler

    Adjustable 14K Cast Coupler

    Built for durability and a secure connection to tow vehicle.

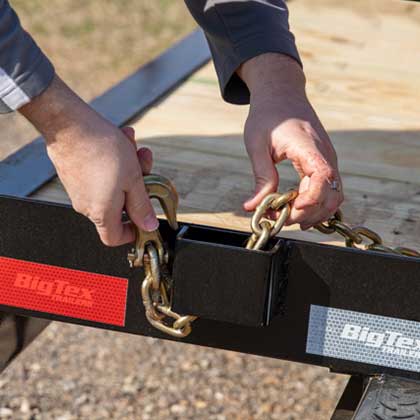

  • 4 Tie-Down Pockets on Frame

    4 Tie-Down Pockets on Frame

    Coated anchor slides help to keep every haul in place and secure.

  • EZ Lube Hubs

    EZ Lube Hubs

    EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.

  • Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Electric Brakes on All Hubs

    Nev-R-Adjust Brakes ensure safety and automatically adjust to proper clearances during travel.

  • Protected Wiring

    Protected Wiring

    Protected wiring, inside the framing or in protected channels, with access to junctures.

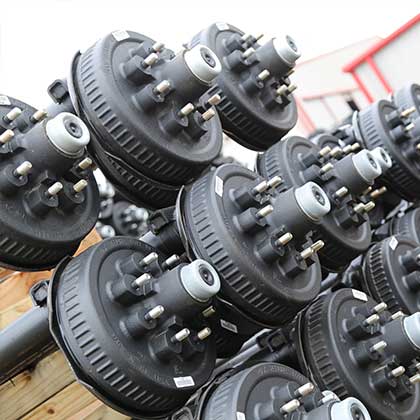

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

The 14PI also comes equipped with:

  • Adjustable 14K Cast Coupler
  • Set-Back, 8,000# Drop Leg Jack
  • Fold Back/Wrap Tongue (14 & Longer)
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered Axles

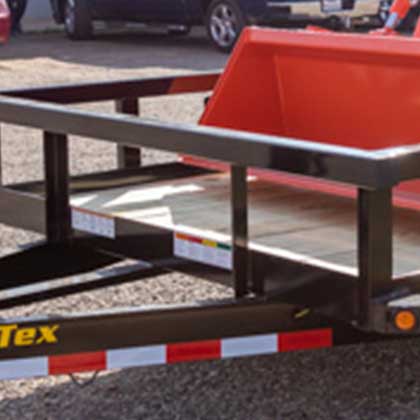

  • Heavy Duty 3" Square Tube Top Rail

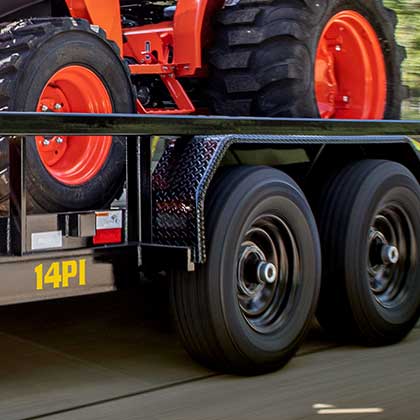

  • Double Broke Diamond Plate Fenders
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Protected Wiring
  • Spare Tire Mount (Side)

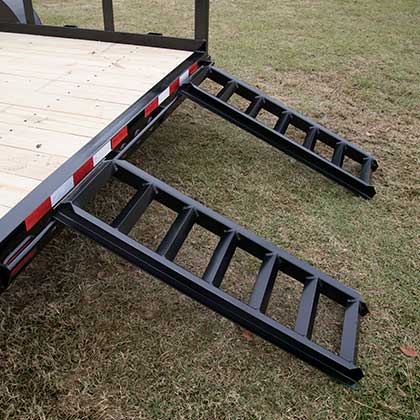

  • 4 Slide-In Ramps (Channel)
  • Complete Break-A-Way System w/Charger

EZ Lube Hubs

Optional Equipment

Category Description
BODY 1/8" Diamond Plate Steel Floor
BODY 2 High Sides (Open)
BODY 3 High Sides (Open)
BODY 4 High Sides (Open)
BODY Blackwood Rubber Infused Floor
BODY Enclose Sides w/ Expanded Metal
BODY Enclose Sides w/ Sheet Metal
BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator
CARGO CONTROL Additional Tie Down Pockets
CARGO CONTROL B40 5/8" D-Ring
CARGO CONTROL Bolt-On Landscape Box- Extra Wide (24" x 24" x 87")
COUPLER Adjustable Pintle in Channel ILO Coupler
JACK 12,000# Drop Leg Jack - Side Wind Against Bed
JACK 12,000# Drop Leg Jack - Top Wind
RAMPS 4 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps
RAMPS 5 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps (Split Gate)
RAMPS 5 Stand up Ramps in Lieu of Slide In
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)
