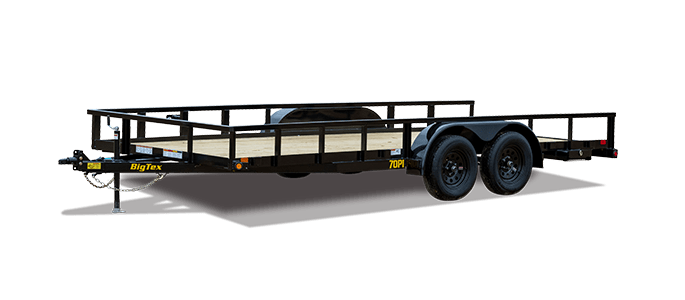

Tandem Axle Pipe Utility Trailer
When it comes to hauling light-duty equipment on the farm or ranch, there’s nothing more versatile than the 70PI-X Tandem Axle Pipe Top Utility Trailer. Coming standard with an extra wide 83’’ wide deck, this trailer is built to transport small equipment and other loads for agricultural applications. It’s sturdy. It’s durable. It’s dependable. It’s everything you need in a cost-effective—yet adaptable—utility trailer that gets the job done from sunrise till sunset.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
Optional Rear Ramp Gate
Expand your hauling capabilities with an optional 4’ tall rear ramp gate—ideal for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
Your Haul, Secured
Safely and conveniently secure your cargo with four tie-down loops inside the bed.
Sturdy 2" x 2" Pipe Top Rail
Constructed from 2"x 2" square tubing, its pipe top rail is built-strong for increased strength that’s perfect for everyday hauling.
0 of 0

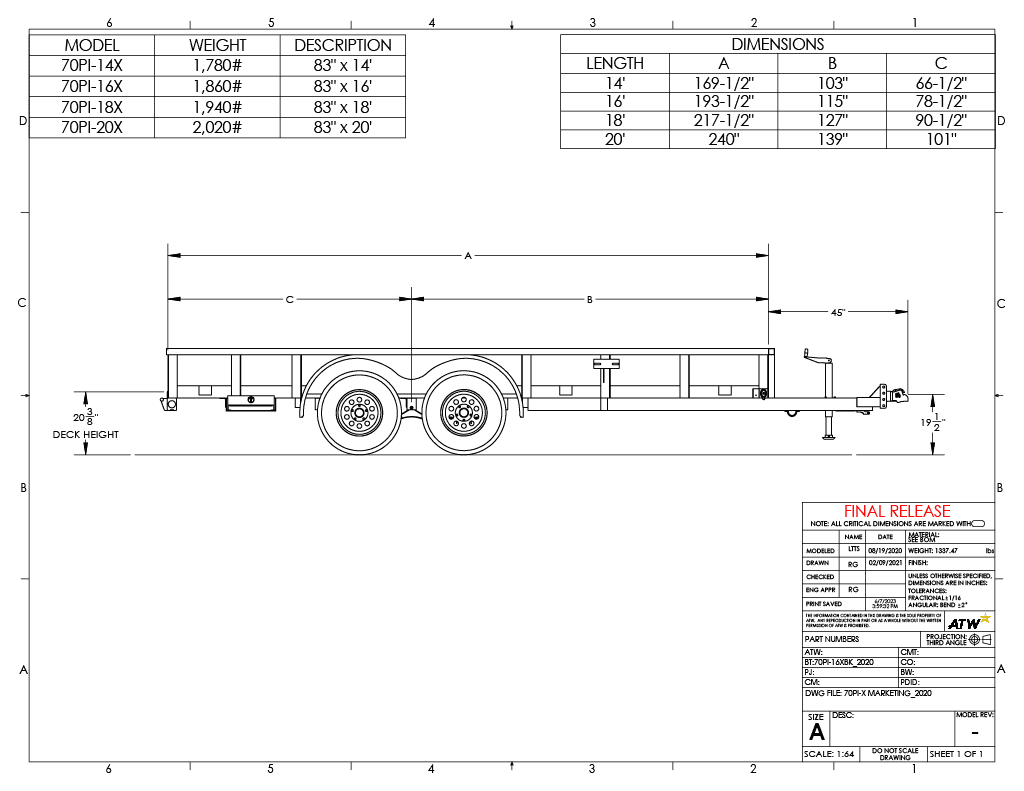

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|70PI-20X||Bumperpull||7000 lbs||2020 lbs||4980 lbs||20||83"||240"||138"||102"||44-1/2"|
|70PI-18X||Bumperpull||7000 lbs||1940 lbs||5060 lbs||18'||83"||217-1/2"||127"||90-1/2"||44-1/2"|
|70PI-16X||Bumperpull||7000 lbs||1860 lbs||5140 lbs||16'||83"||193-1/2"||115"||78-1/2"||44-1/2"|
|70PI-14X||Bumperpull||7000 lbs||1780 lbs||5220 lbs||14'||83"||169-1/2"||103"||72-1/2"||44-1/2"|
|Standard Feature||Available Options|
|Axles||2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Electric Brake on Front Axle||Electric Brakes on 2nd Axle|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Coupler||2" Demco EZ- Latch||2-5/16” Forged Coupler 2-5/16” Stamped Coupler|
|Safety Chains||1/4" Grd. 30 w/ Safety Latch Hook (2 ea)|
|Jack||2,000# Top Wind, Set-Back Jack with Removable Sand Foot||8,000# Drop-Leg Jack 2,000# Fold-Up Jack|
|Frame||4" x 3" x 1/4" Angle|
|Cross-Members||3” x 2” x 3/16” Angle|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9" x 72" Rolled Formed w/ Back|
|Ramps||4' Slide-In Angle Ramps 4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 4' Tall Rear Ramp Gate w/ Coil Spring Assist 5' Stand Up Ramps 5' Tall Rear Ramp Gate w/ Coil Spring Assist 4' Heavy Duty Integrated Ramp Gate w/ Coil Spring 5' Heavy Duty Integrated Ramp Gate w/ Coil Spring|
|Stake Pockets||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST205/75 R-15 Load Range C|
|Bolt Pattern||5 Bolt|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST205/75R-15 LR-C) Spare Tire (ST225/75R-15 LR-D)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Sides||17" Tall Open sides with 3"x 2” Angle uprights and 2" x 2" Square Tubing Top Rail||2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot)|
