Tandem Axle Car Hauler
Work harder and look great while doing it with the 70CH Tandem Axle Car Hauler, a tough and versatile car hauler purpose-built to transport cars, small tractors, ATVs, and side-by-sides. This tandem axle car hauler comes equipped with steel teardrop fenders that are bolted on for easy removal and reinstallation, giving you flexibility during loading and unloading and making maintenance easier. And if you want to make loading and unloading safer, an optional 4’ slide-in angle ramp package does just that. Pack it up. Haul it out. Get it done. The 70CH has your back.

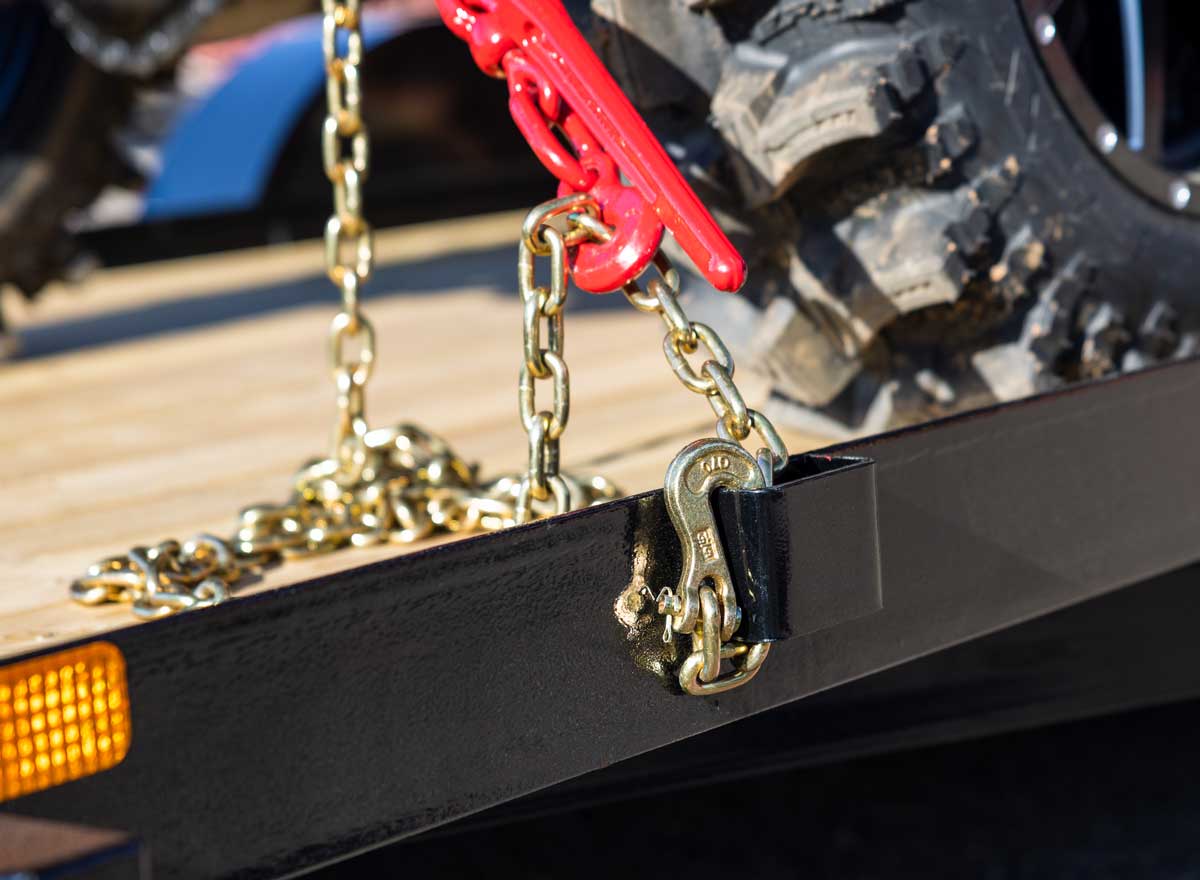

Tie Down Pockets on Front & Side
Coated Anchor Sides help to keep every haul in place and secure

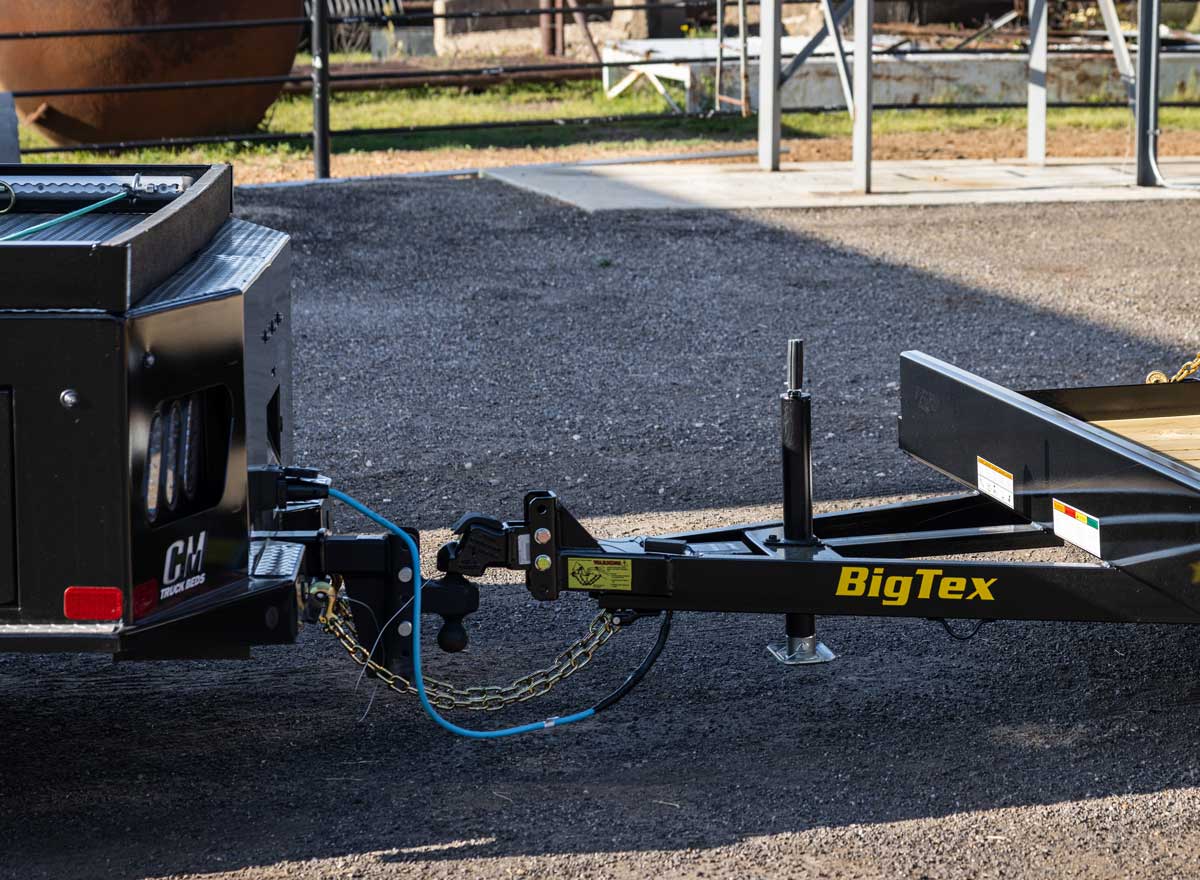

2,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.

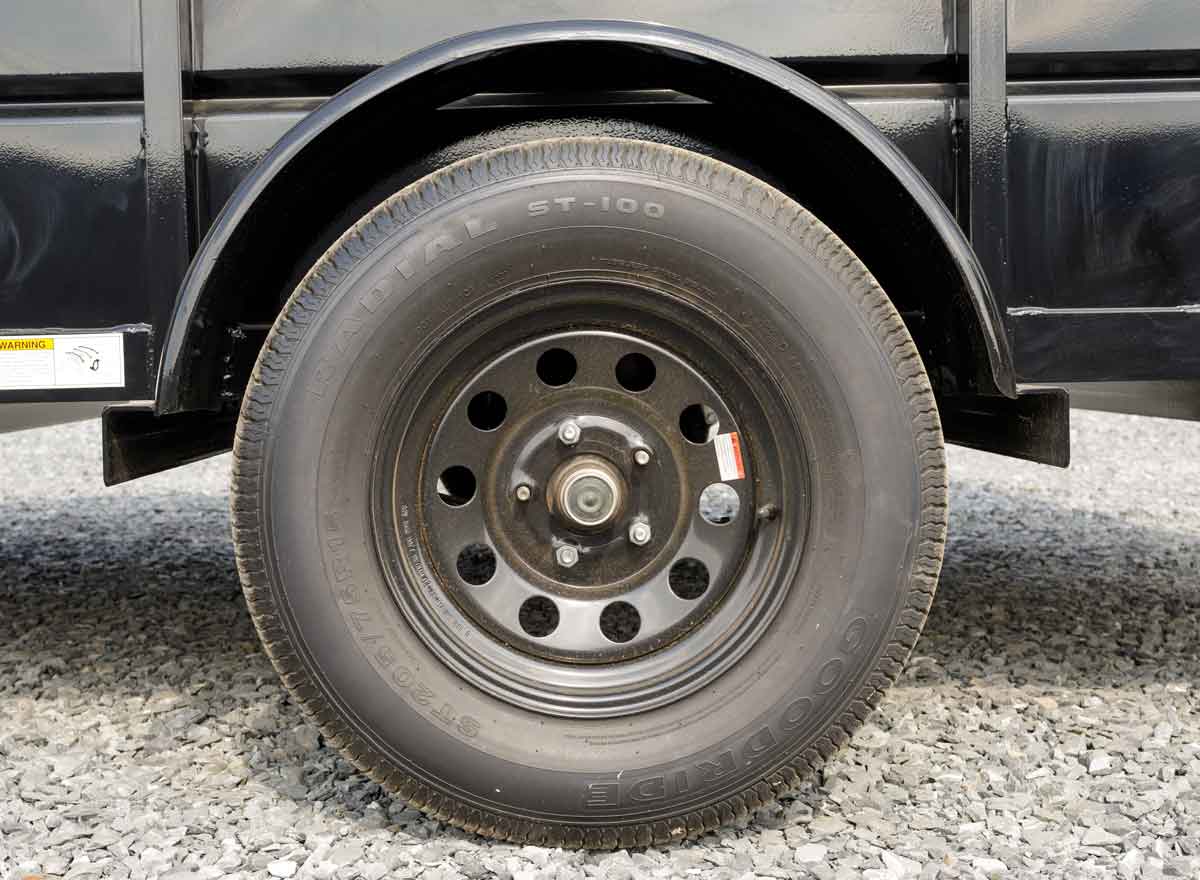

Long lasting tires deliver a smooth ride while also offering superior fuel economy.

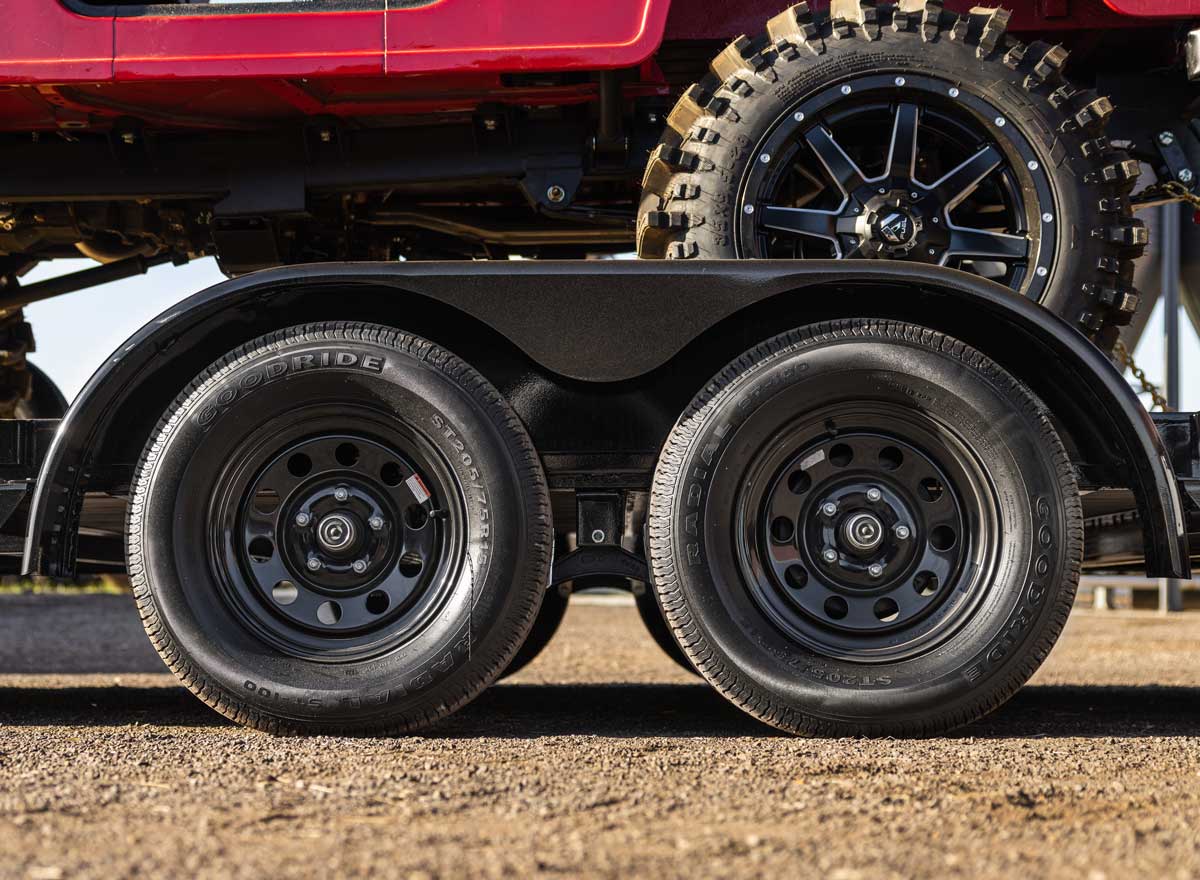

Tear Drop Removable Fenders
Protect your wheels and keep your gear in place with our tear drop fenders, or take them off for a bit more space and flexibility

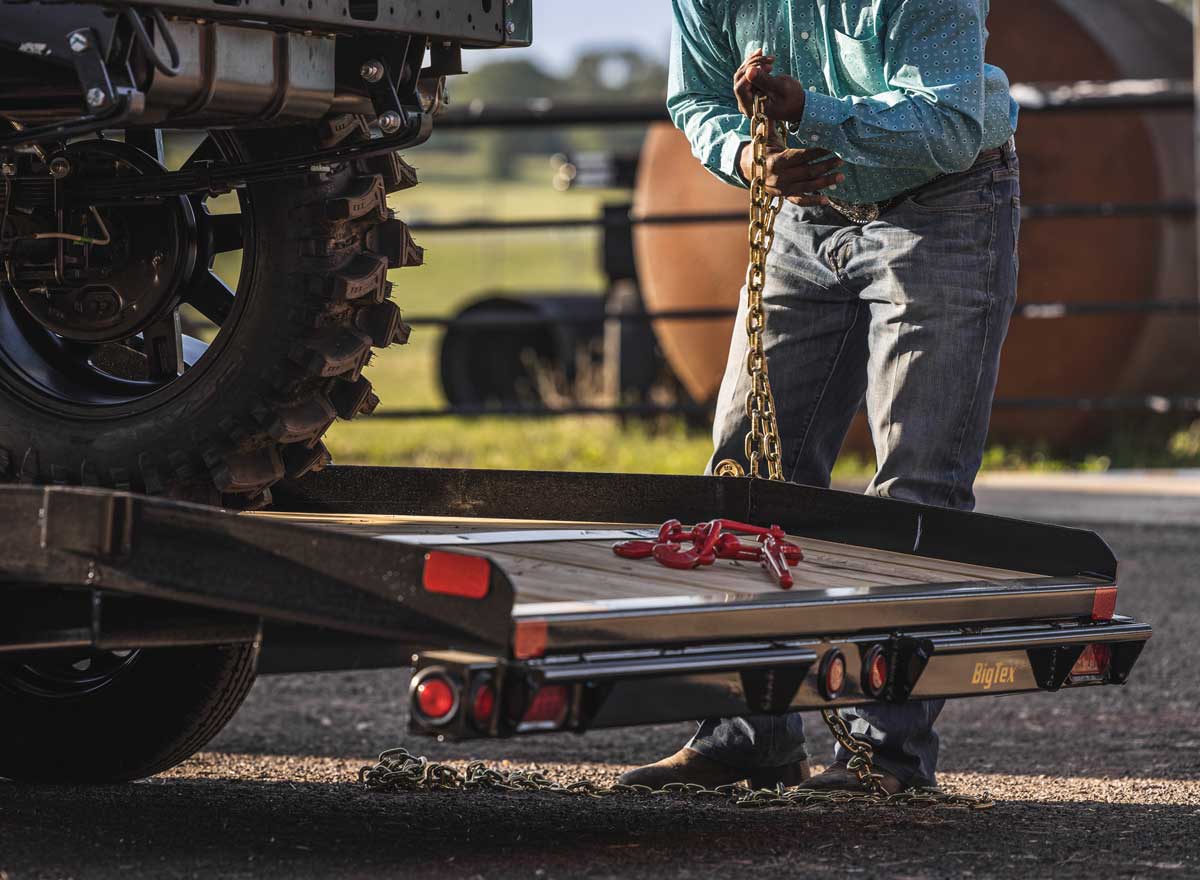

Optional Dovetail Available
This model is available with an optional Dovetail. Adding the dovetail improves the load angle for smoother loading and unloading of cargo.
0 of 0

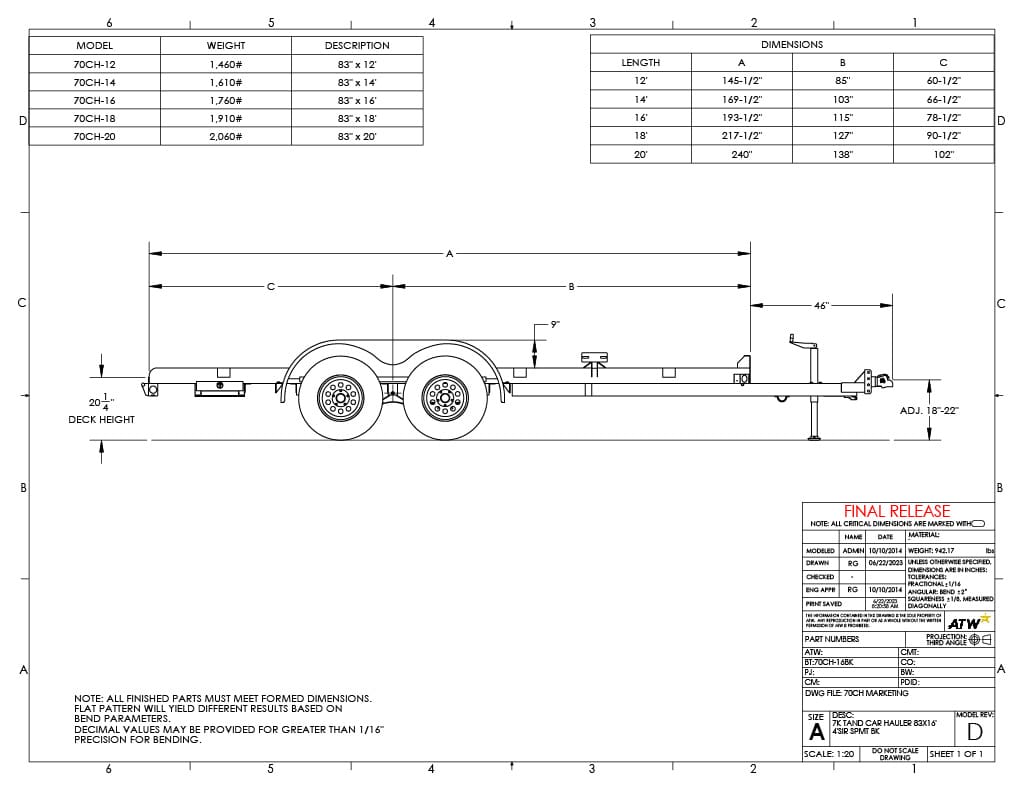

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|70CH-20||Bumperpull||7000 lbs||2060 lbs||4940 lbs||20'||83"||240"||138"||102"||45"|
|70CH-18||Bumperpull||7000 lbs||1910 lbs||5090 lbs||18'||83"||217-1/2"||127"||90-1/2"||45"|
|70CH-16||Bumperpull||7000 lbs||1760 lbs||5240 lbs||16'||83"||193-1/2"||115"||78-1/2"||45"|
|70CH-14||Bumperpull||7000 lbs||1610 lbs||5390 lbs||14'||83"||169-1/2"||103"||72-1/2"||45"|
|Standard Feature||Available Options|
|Axles||2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self Adjusting Electric Brake on Front Axle||Electric Brakes on 2nd Axle|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Tongue||4” Channel Fold Back/Wrap Tongue|
|Coupler||2" Forged, Adjustable||2-5/16” Forged Coupler 2-5/16” Stamped Coupler|
|Safety Chains||1/4” Grd. 70 w/Safety Latch Hook (2 each)|
|Jack||2,000# Top Wind, Set-Back Jack||8,000# Drop-Leg Jack 2,000# Fold-Up Jack|
|Frame||5” x 3” x 5/16" Angle (1/4" on 16')|
|Cross-Members||3” x 2” x 3/16” Angle|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9” x 72” Tear Drop (Removable)|
|Ramps||4' Slide-In Angle Ramps||4' Slide-In Angle Ramps|
|Dovetail||Straight Deck, No Dovetail||Dovetail in Existing Length (16', 18', 20' Only)|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST205/75 R-15 Load Range C||Tire Upgrade (ST225/75R-15 LR-D)|
|Bolt Pattern||5 on 5|
|Spare Tire||Spare Tire (ST205/75R-15 LR-C)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
