Pro Series Steel Floor Car Hauler

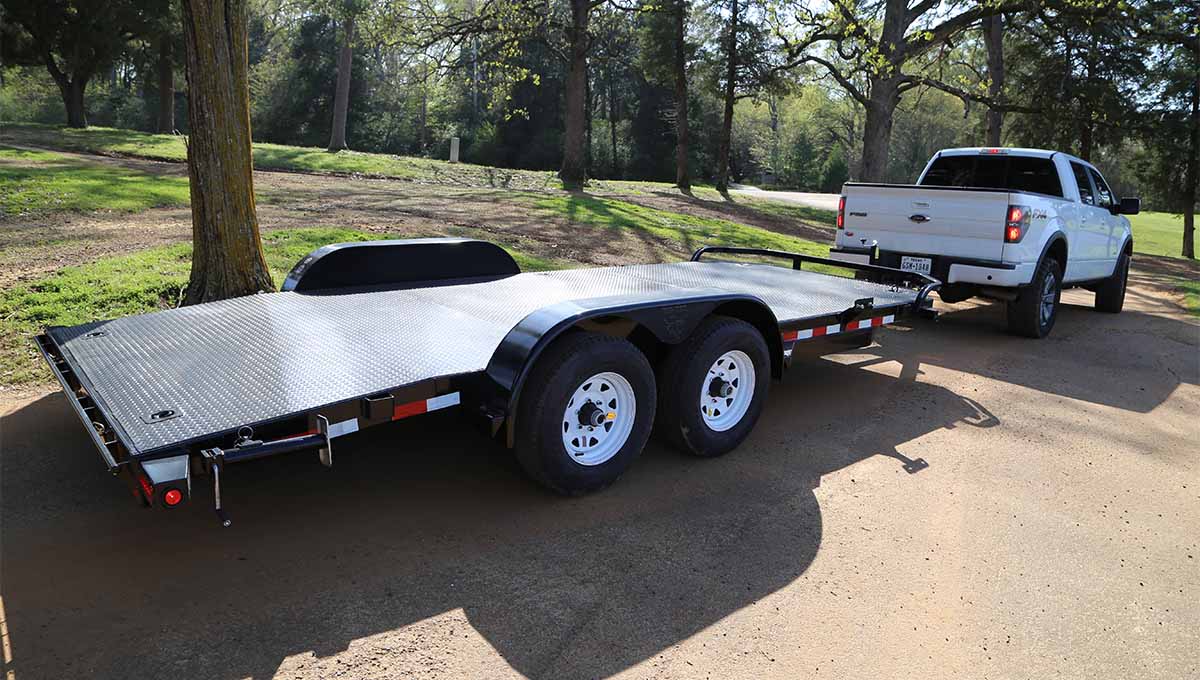

The 10DM Diamond Back Car Hauler is our top-of-the-line, premier car hauler but with a larger G.V.W.R. and more overall cargo capacity. Delivering the hauling capabilities you demand with the eye-catching looks you’ve always wanted, the 10DM the choice to make when you need to haul more. Chrome wheels, steel floor, and diamond-plate rear slide-out ramps make the 10DM both easy to use and easy to look at, and its box tubing frame adds strength and durability. To cut a long story short, the 10DM has it all.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.
Built for the long haul
Stylish and anti-slip, 1/8” diamond plate flooring guarantees maximum durability while hauling vehicles and other cargo.

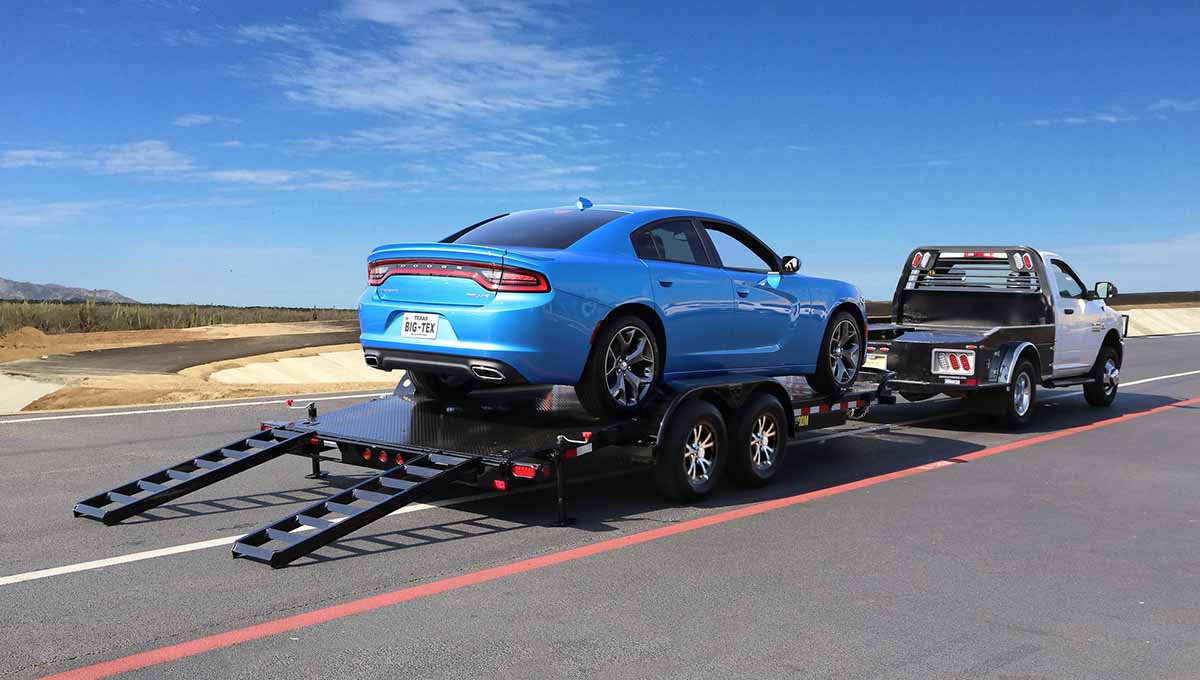

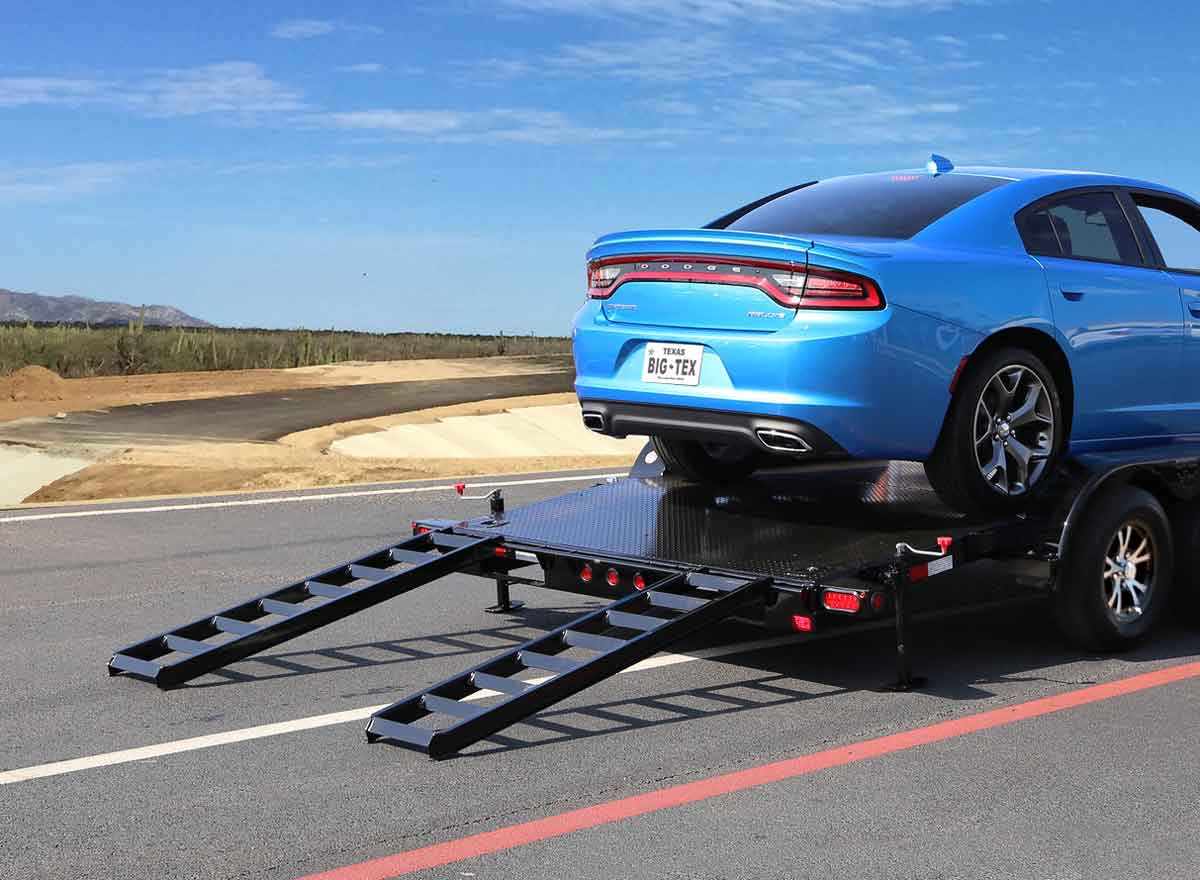

Standard 5' Slide-In Ramps
Comes standard with rear slide-In channel ramps for faster and smoother loading.

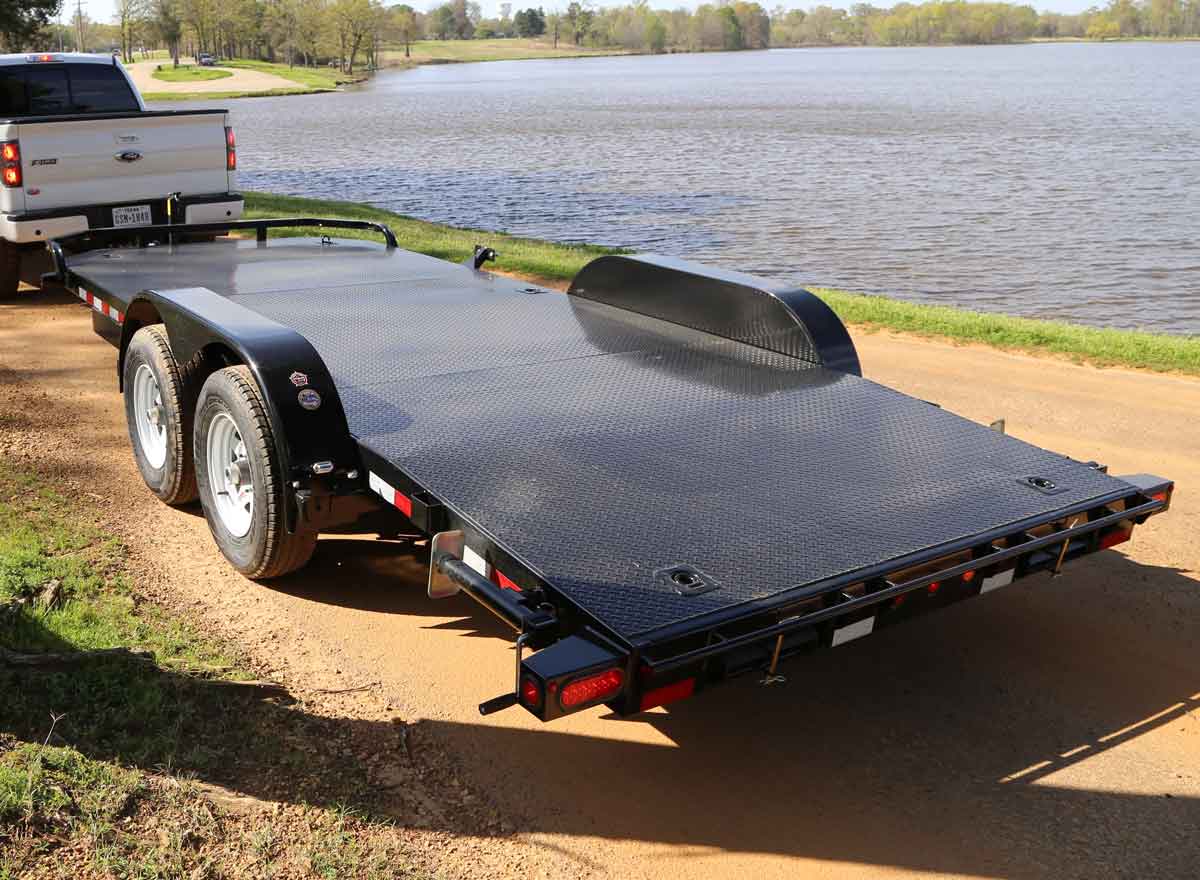

A durable and reliable integrated dovetail that’s ideal for transporting vehicles when combined with rear slide-in ramps.
0 of 0

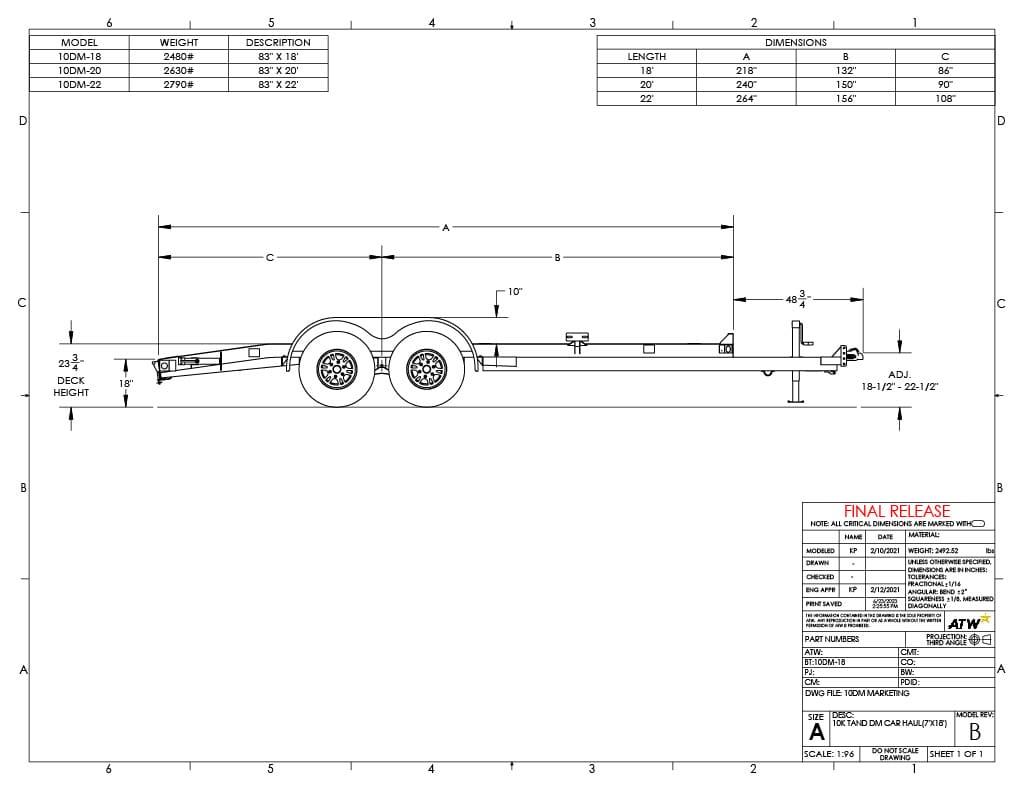

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||D|
|10DM-22||Bumperpull||9990 lbs||2790 lbs||7200 lbs||22'||83"||264"||156"||108"||39-1/4"|
|10DM-20||Bumperpull||9990 lbs||2630 lbs||7360 lbs||20'||83"||240"||150"||90"||39-1/4"|
|10DM-18||Bumperpull||9990 lbs||2480 lbs||7510 lbs||18'||83"||218"||132"||86"||39-1/4"|
|Standard Feature||Available Options|
|Axles||2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Coupler||2-5/16” Demco EZ Latch||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||1/4” Grd. 70 w/Safety Latch Hook (2 each)|
|Jack||8,000# Top Wind, Set-Back Jack (Bolted on)|
|Frame||5” x 2”x .188" Rectangular Tubing|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||1/8" Diamond Plate|
|Ramps||5' Rear Slide-In Channel Ramps with Stabilizers|
|Stake Pockets||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST205/75 R-15 Load Range C|
|Bolt Pattern||5 Bolt|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST225/75 R-15 LR-D, Aluminum w/ Black Trim)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(4) Recessed D-Rings||Additional Recessed D-Rings in Floor|
|Storage||A-Frame Tongue Box (Aluminum Tread Brite) A-Frame Tongue Box (Steel)|
|Front Rock Shield||Front Rockshield (Aluminum Tread Brite)|
