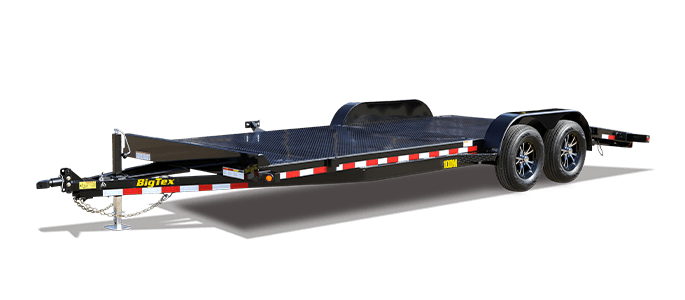

Pro Series Tandem Axle Car Hauler

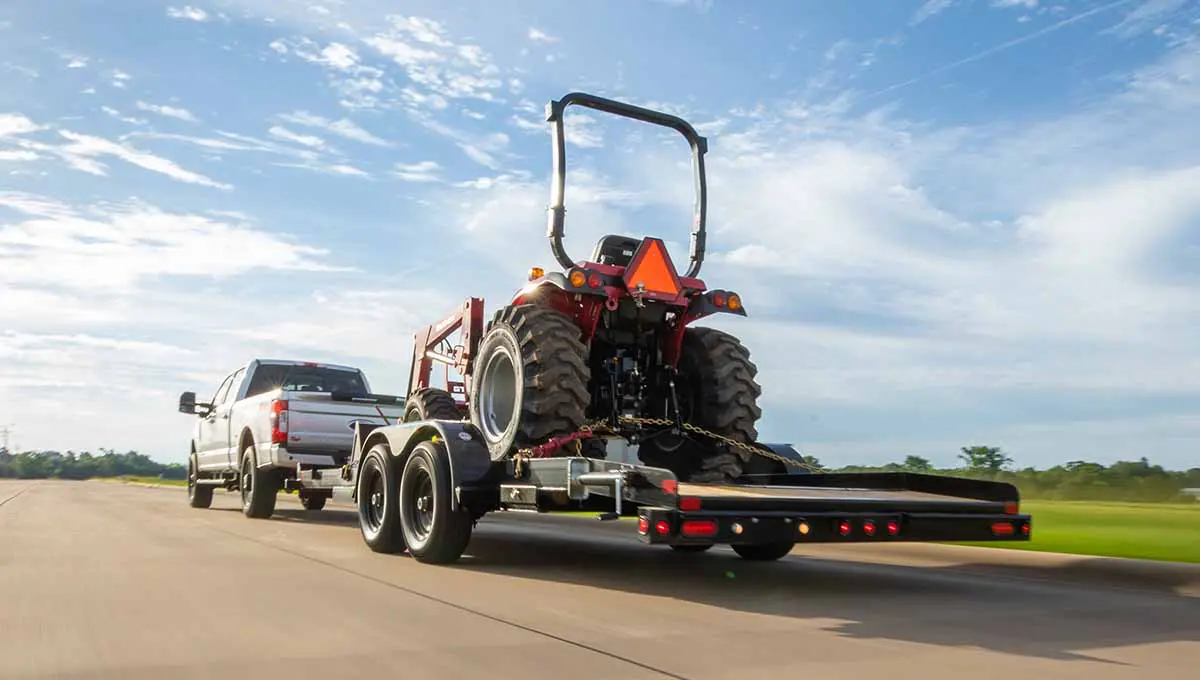

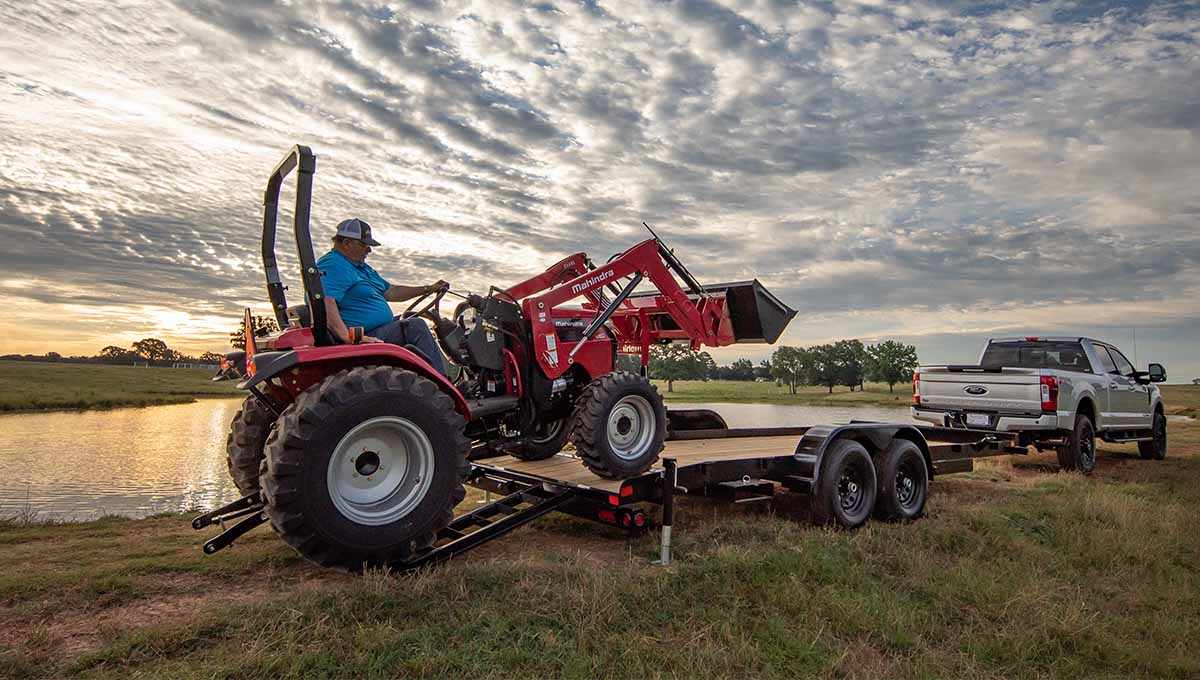

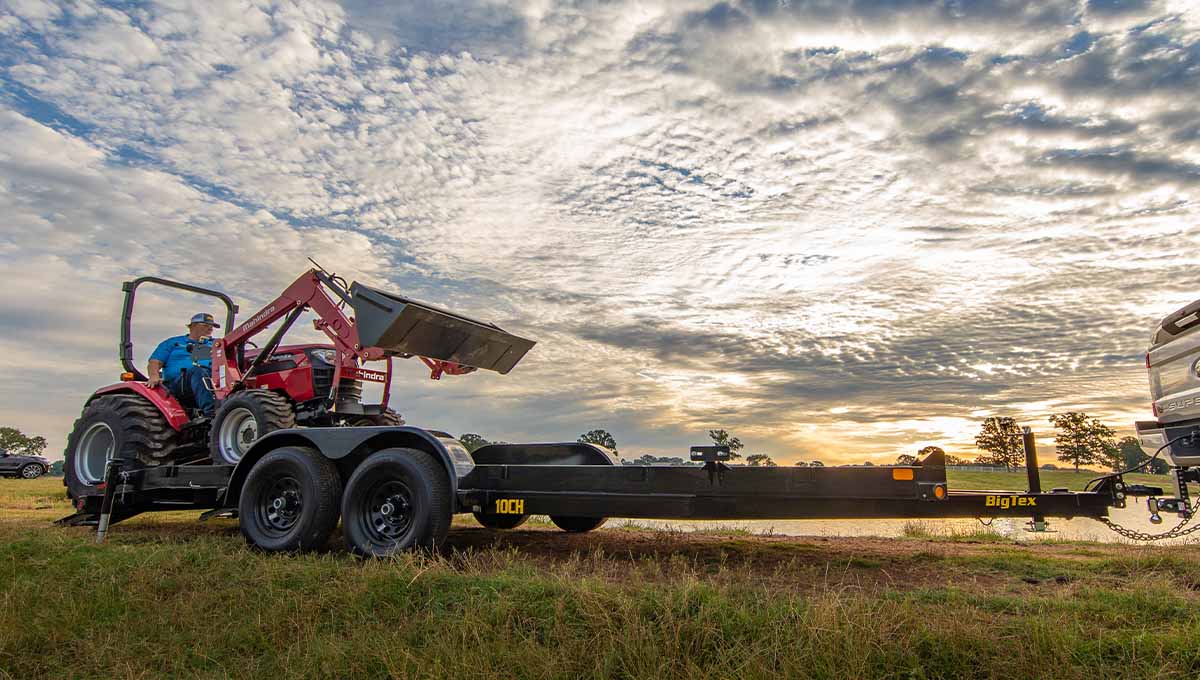

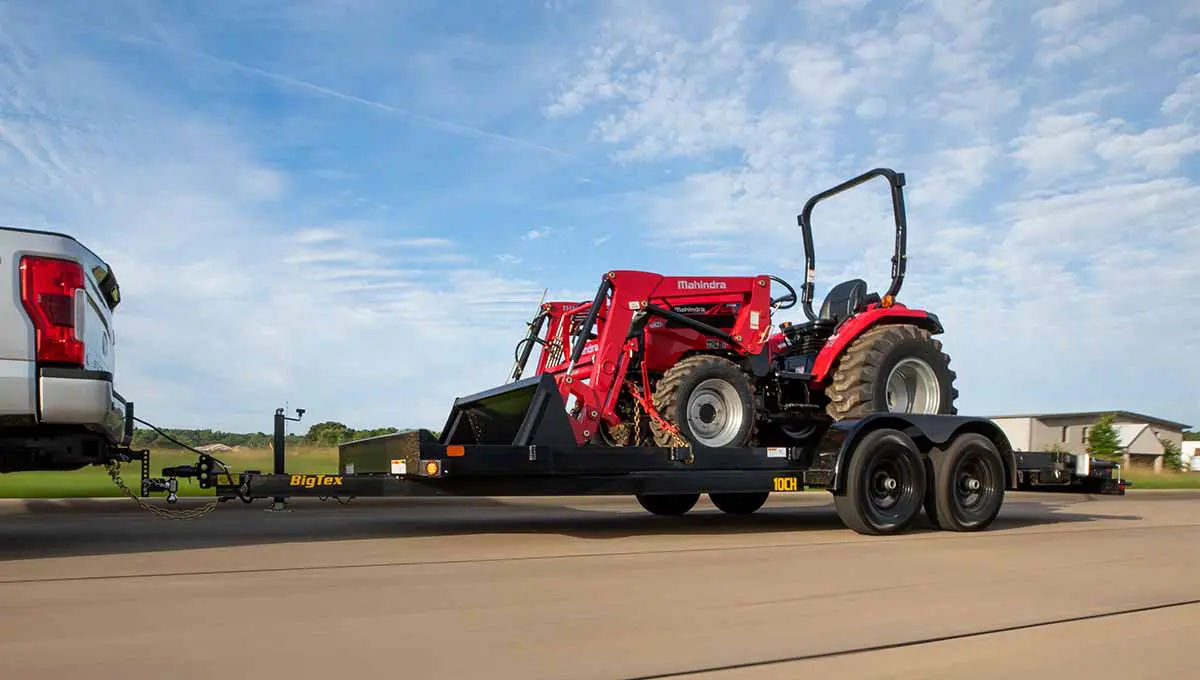

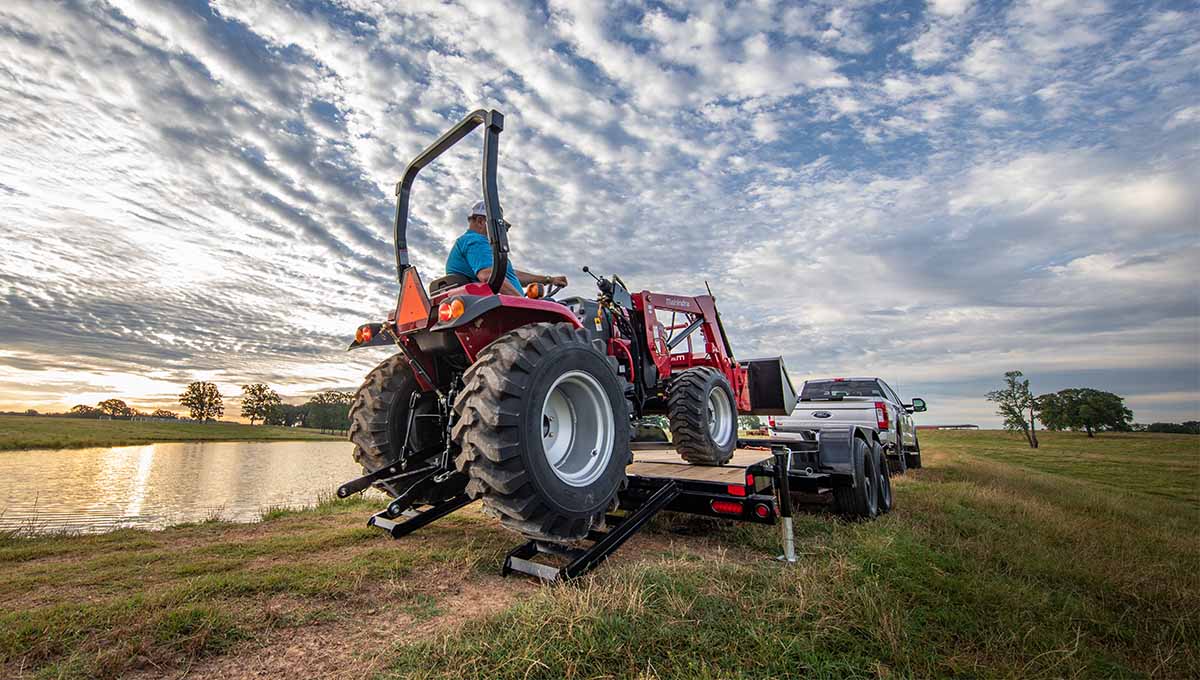

More capacity. More strength. If that’s what you need for your car hauling needs, then the 10CH Pro Series Tandem Axle Car Hauler is your trailer. With a 9,990 lbs G.V.W.R., the 10CH hauls everything from cars and tractors to light- and medium-duty equipment—a professional-grade hauler that’s constructed to tackle tough tasks. Featuring a fabricated front stop rail, easy load angle, and premium axle, this is a heavy-duty car hauler purpose-built for safely and securely transporting vehicles and equipment.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

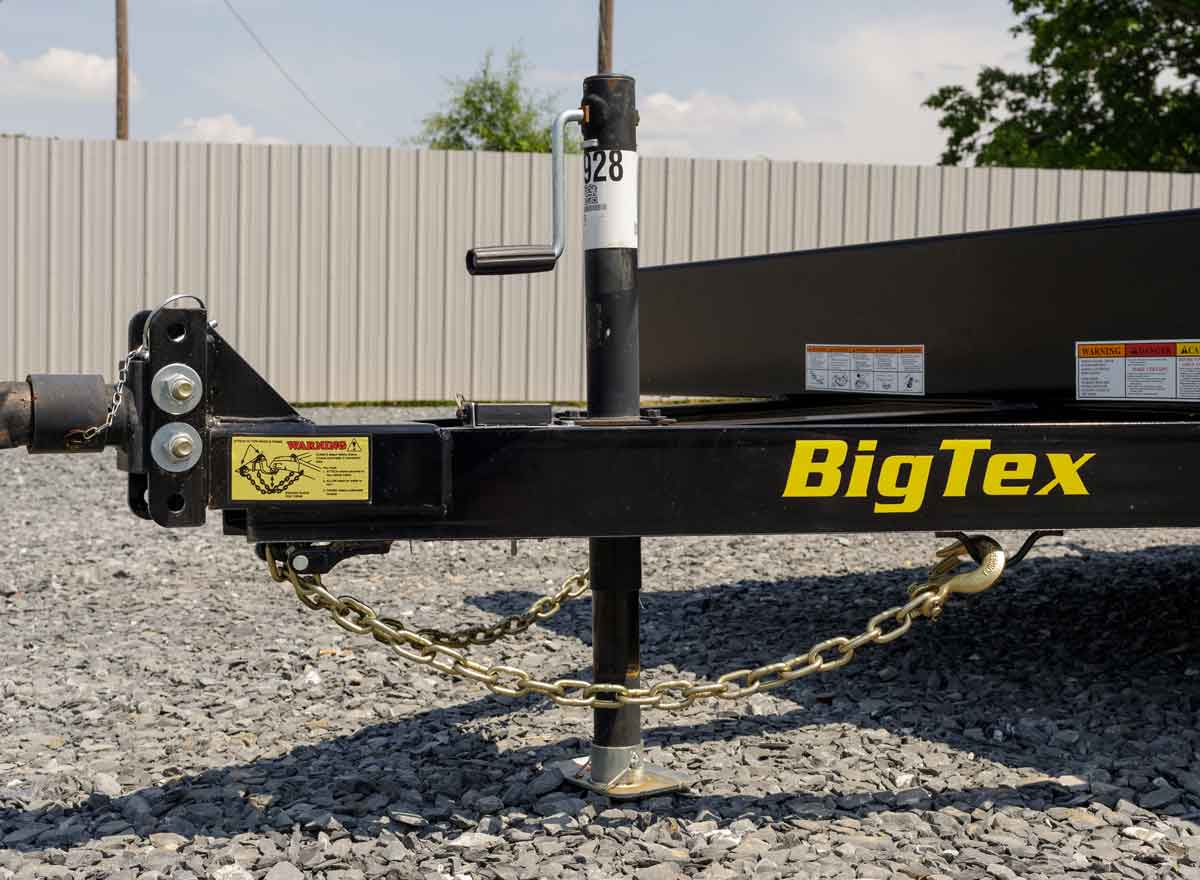

8,000 lbs Set Back Jack
Designed to lower the tailgate of your tow vehicle without the top of the jack damaging it.

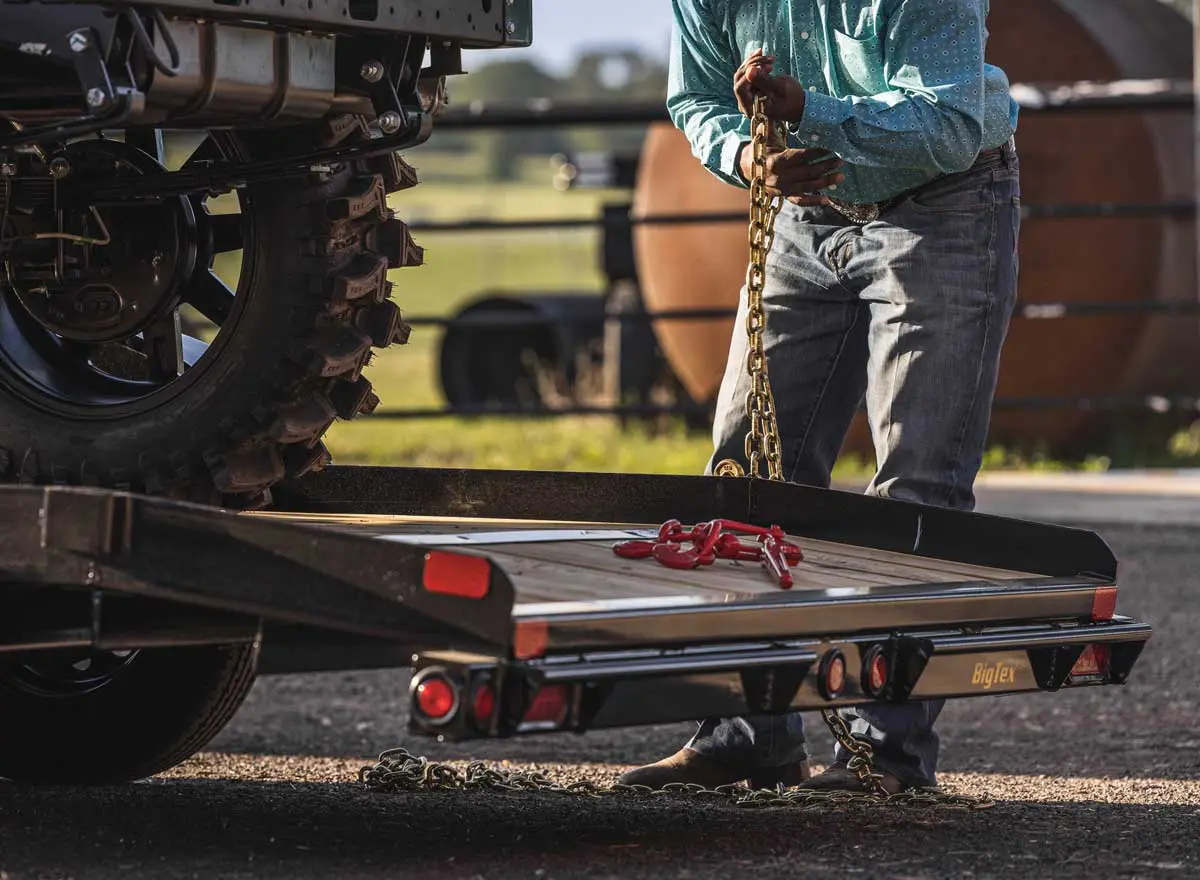

Optional Dovetail Available
This model is available with an optional Dovetail. Adding the dovetail improves the load angle for smoother loading and unloading of cargo.

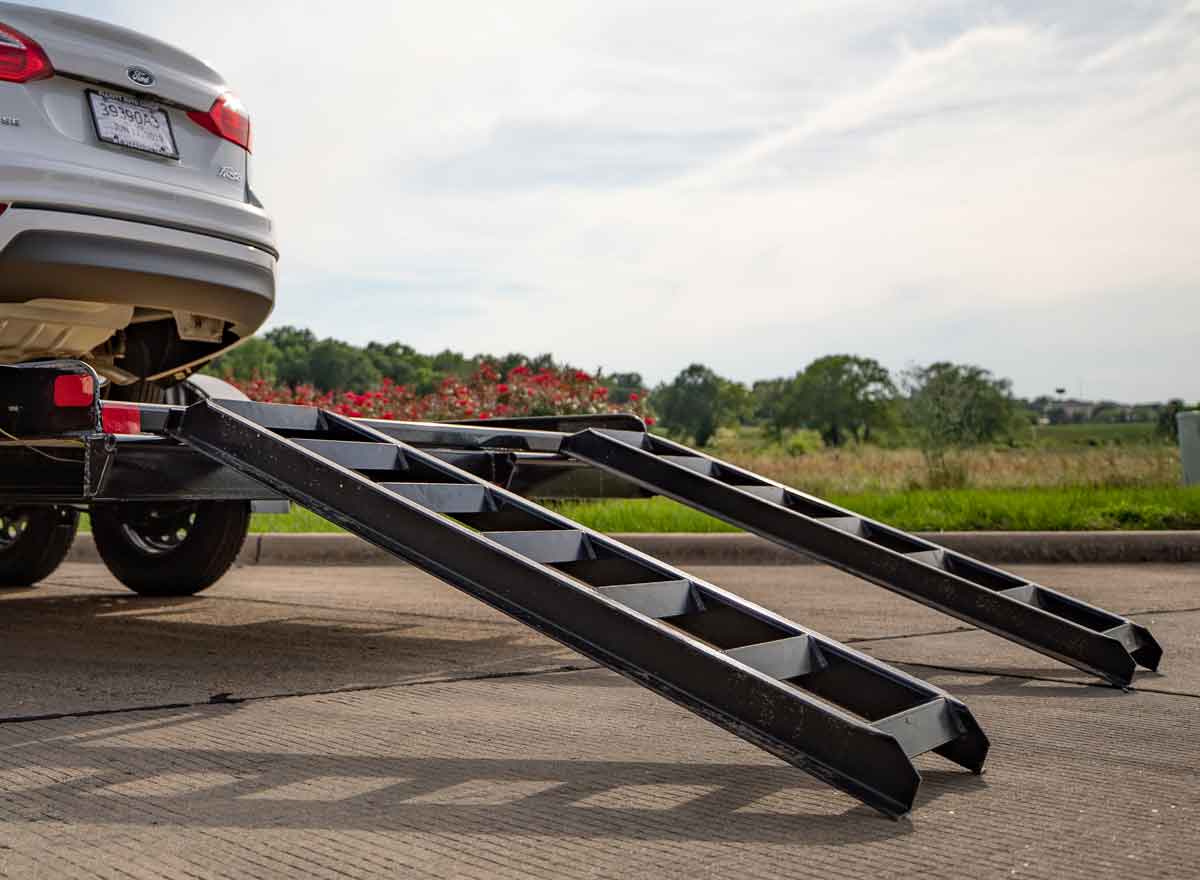

Available with an optional 4’ slide-in angle ramp package, making loading and unloading vehicles safe and easy.
0 of 0

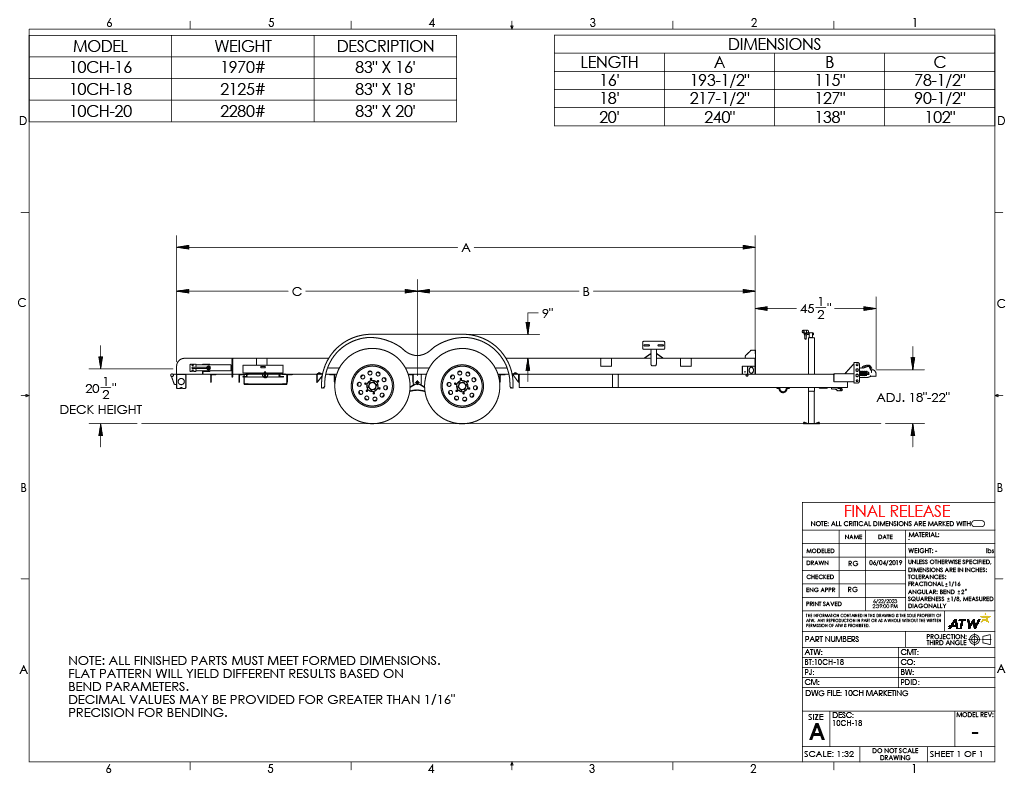

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||D|
|10CH-20||Bumperpull||9900 lbs||2280 lbs||7620 lbs||20'||83"||240"||138"||102"||37"|
|10CH-18||Bumperpull||9900 lbs||2125 lbs||7775 lbs||18'||83"||217-1/2"||127"||90-1/2"||37"|
|10CH-16||Bumperpull||9900 lbs||1970 lbs||7930 lbs||16'||83"||193-1/2"||113||80-1/2"||37"|
|Standard Feature||Available Options|
|Axles||2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes|
|Suspension||Multi-Leaf Spring w/ Equalizer|
|Coupler||Adjustable, Forged 2-5/16” Coupler in Channel||Adjustable Pintle in Channel 2-5/16” Stamped Coupler|
|Safety Chains||1/4” Grd. 70 w/Safety Latch Hook (2 each)|
|Jack||8,000# Top Wind, Set-Back Jack|
|Frame||6” x 3.5” x 5/16" Angle (1/4" on 16')|
|Cross-Members||3” x 2” x 3/16” Angle|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Ramps||Side Slide In Ramps||5’ Stand Up Ramps|
|Dovetail||Dovetail (within Existing Length)|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)||Additional Stake Pockets (Each)|
|Trailer Plug||7-Way RV|
|Lights||L.E.D. D.O.T. Stop, Tail, Turn & Clearance|
|Wiring||Grommet-Mounted Lifetime L.E.D. Lighting|
|Tires||ST225/75R-15 Load Range D|
|Bolt Pattern||6 Bolt|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Spare Tire (ST225/75R-15 LR-D)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
