Triple Axle Pintle Heavy Equipment Transport
This is it, our biggest and toughest solution for those in the trenches hauling extremely heavy equipment and loads. The 5XPH Pintle Heavy Equipment Transport Trailer, a super heavy-duty equipment hauler that’s been built from the ground up to handle the heaviest and largest loads—featuring a 58,000 lbs G.V.W.R. to handle all your heavy equipment hauling needs. And it’s outfitted with an anti-skid braking system, heavy-duty adjustable suspension, spring-assist ramps, and brakes and axles optimized for the heaviest loads, which altogether make for a safer and more efficient hauling experience.
Keep Your Haul Secured
Safeguard cargo with a solid one-piece stop rail and reliable d-ring tie downs, specifically designed to provide maximum security and stability during loading and towing.
Robust Adjustable Pintle Ring
A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
Heavy-Duty Adjustable Suspension
Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.
Anti-Skid Braking System
The anti-skid braking system helps keep your trailer system under control during windy or running wind pressure.
0 of 0

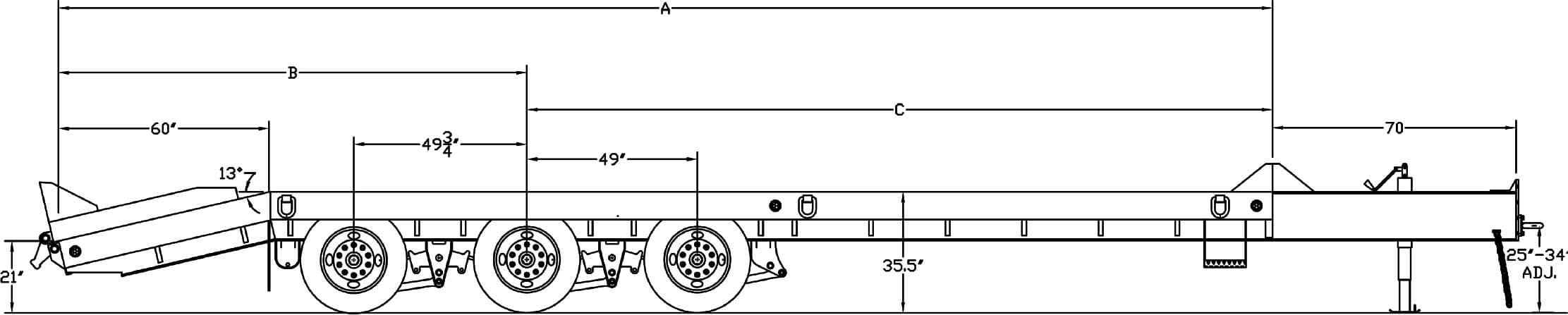

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|5XPH-28+5||Bumperpull||58000 lbs||10850 lbs||47150 lbs||33'||102"||396"||158"||238"||70"|
|5XPH-24+5||Bumperpull||58000 lbs||10350 lbs||47650 lbs||29'||102"||348"||134"||214"||70"|
|Standard Feature||Available Options|
|Axles||3 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath|
|Brakes||Air Brakes on All Axles w/ Anti-Skid System on All Axles|
|Suspension||Heavy-Duty 66,000# w/ Automatic Slack Adjusters|
|Coupler||3" Pintle Ring w/ 3-Position Adjustment Plate|
|Safety Chains||1/2" Grade 80 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Two Speed Drop-Leg Jack (Top Wind)||Dual 2-Speed Landing Gear|
|Frame||14" I-Beam, 26#|
|Cross-Members||6" Jr. I Beam, 16" Centers|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||2" Nominal Oak|
|Ramps||5' Double Hinged, Spring Assisted Flip-Over Ramps|
|Dovetail||5' Cleated Dovetail||Wood Fill Dovetail & Ramps|
|Trailer Plug||7-Way Semi-Style|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST215/75 R-17.5 Load Range H Radial Tires|
|Bolt Pattern||6.75 x 17.5, 10 Bolt Bud|
|Spare Mount||Front Spare Tire Mount||Vertical Spare Mount|
|Spare Tire||ST215/75 R-17.5 Load Range H Radial Tire|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(6) 1" D-Rings to Secure Equipment||1" D-Rings|
|Storage||Storage Tray in Tongue||Lockable Lid Over Tool Storage in Tongue|
|Side Rail||8" Channel|
|Steps & Handles||(2) Side Bed Steps|
