Big Tex Heavy Duty Tandem Dual Wheel Pintle

25PH

Heavy Duty Tandem Dual Wheel Pintle

Putting your nose to the grindstone? Need a trailer that does too? The hardworking 25PH Heavy Duty Tandem Dual Axle Pintle Trailer is here to stand by your side, hauling heavy-duty loads in the most rugged and challenging conditions. This powerful trailer has it all; two 12K axles, a low-profile bed with a pierced-beam frame, and heavy-duty adjustable suspension. It’s a robust, pintle hitch trailer that gets the heavy work done in agricultural, construction, and industrial settings. Ready to take on the heaviest of loads? This trailer is—and so will you.

Model Pull Type GVWR GAWR (Ea. Axle) Tail Type Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
25PH-20+5 Bumperpull 25900 lbs 12000 lbs Dovetail 5800 lbs 20100 lbs 25' 102" 240" 180" 60" 70"
25PH-25+5 Bumperpull 25900 lbs 12000 lbs Dovetail 6300 lbs 19600 lbs 30' 102" 300" 216" 84" 70"

Standard Feature Available Options
Axles 2 - 12,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles Electric Over Hydraulic Brakes (Disc) Electric Over Hydraulic Brakes (Drum)
Suspension Heavy-Duty 30,000#, Adjustable
Coupler 3" ID Pintle Ring
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Top Wind) Dual Single-Speed Drop-Leg Jacks Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Jacks by Stillwell™
Frame 12" I-Beam
Cross-Members 3" Channel
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Ramps 5' Double Hinged, Spring Assisted Flip-Over Ramps 8' Rear Slide-In Ramps (Straight Deck Only) (2) 5' MEGA Ramps
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare Tire Upgrade (ST235/80R-16 LR-G Dual) Includes Spare
Bolt Pattern 8-Lug
Spare Mount Front Spare Tire Mount
Spare Tire ST235/80 R-16 Load Range E Radial Tire
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail 3/8” Heavy Duty Rub Rail
Tie-Downs Extra 5/8" D-Rings
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Mudflaps Standard
Storage Lockable Lid Over Tool Storage in Tongue Low Profile Tool Box 12” x 18” x 36” (Side Mount)
Cargo Winch 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track
Pipe Chain Spools 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets 4" x 30' Strap
Side Rail 8" Channel
Steps & Handles (2) Side Bed Steps

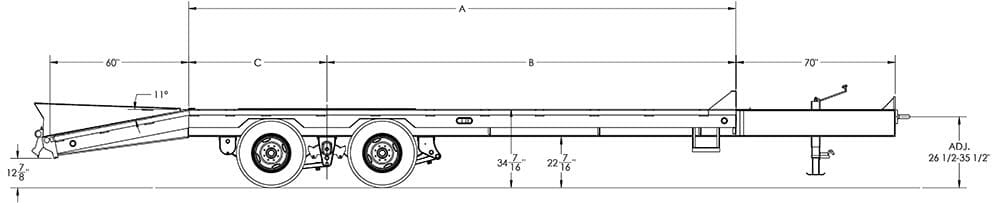

https://www.bigtextrailers.com/wp-content/uploads/2023/07/25ph_specdiagram.jpg
