Pintle Heavy Equipment Transport
The toughest jobs demand the toughest trailer. Built specifically to address the needs of heavy-duty equipment haulers around the world, the 4XPH Pintle Heavy Equipment Transport Trailer is designed from end-to-end for maximum strength, durability, and reliability against the toughest odds. Equipped with a 14" I beam and junior I beam crossmembers, anti-skid braking system, and brakes and axles optimized for the heaviest loads, this heavy-duty pintle hitch trailer is a comprehensive solution for those transporting heavy machinery and construction equipment.
Keep Your Haul Secured
Safeguard cargo with a solid one-piece stop rail and reliable d-ring tie downs, specifically designed to provide maximum security and stability during loading and towing.
Robust Adjustable Pintle Ring
A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
Heavy-Duty Adjustable Suspension
Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.

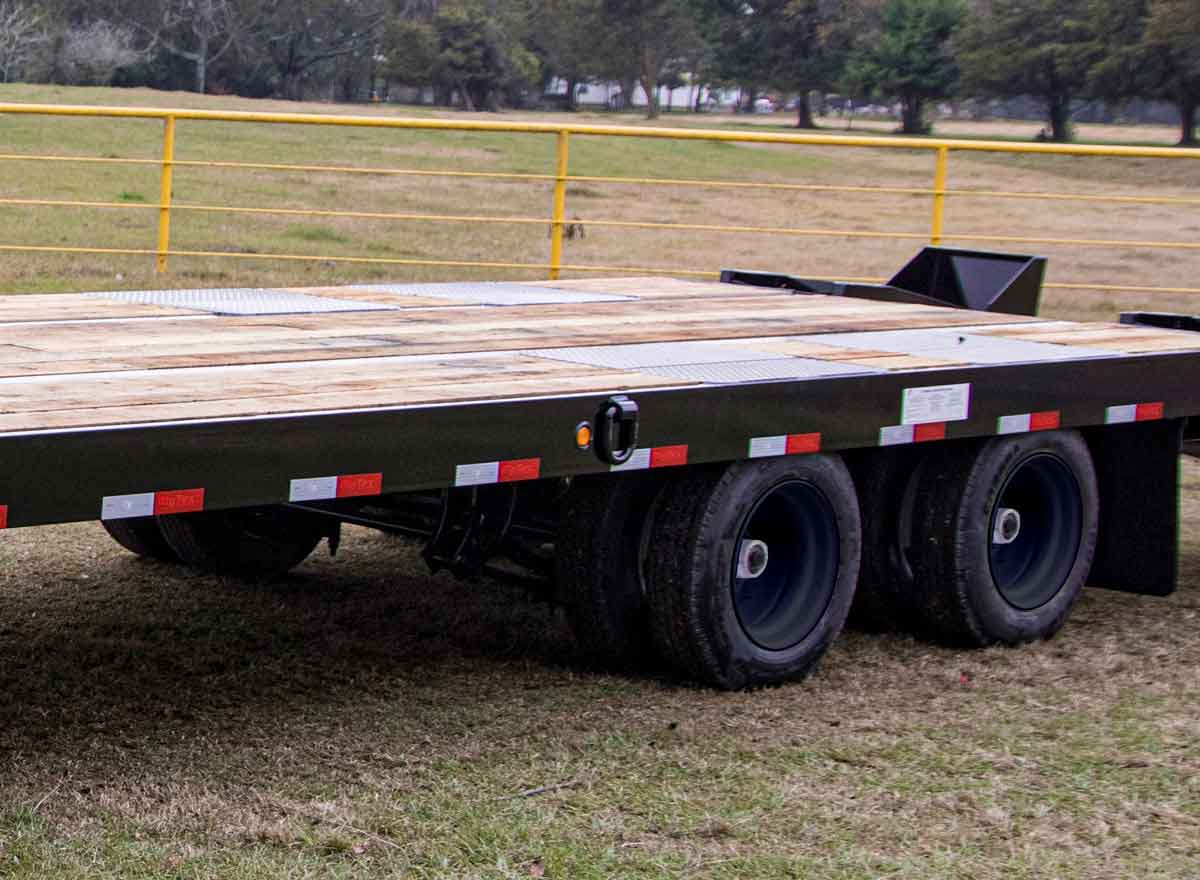

Anti-Skid Braking System
The anti-skid braking system helps keep your trailer system under control during windy or running wind pressure.
0 of 0

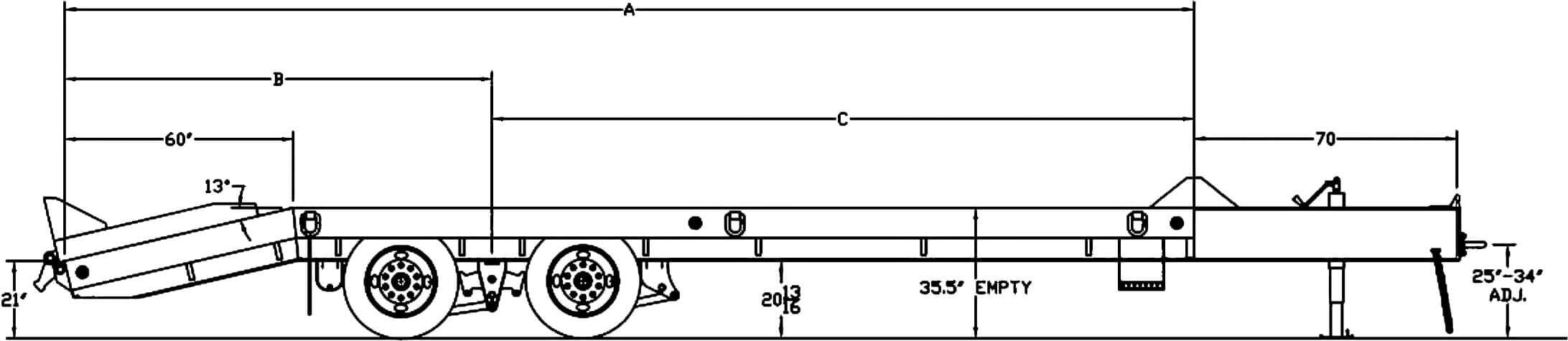

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|4XPH-24+5||Bumperpull||48000 lbs||10150 lbs||37850 lbs||29'||102"||348"||211"||137"||70"|
|4XPH-20+5||Bumperpull||48000 lbs||8950 lbs||39050 lbs||25'||102"||300"||187"||113"||70"|
|Standard Feature||Available Options|
|Axles||2 - 22,500# Premium, Cambered Axles with Heavy-Duty Oil Bath|
|Brakes||Air Brakes on Both Axles w/ Anti-Skid System on Front Axle||ABS on 2nd Axle|
|Suspension||Heavy-Duty 44,000# w/ Automatic Slack Adjusters|
|Coupler||3" Pintle Ring w/ 3-Position Adjustment Plate|
|Safety Chains||1/2" Grade 80 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Two Speed Drop-Leg Jack (Top Wind)||Dual 2-Speed Landing Gear|
|Frame||14" I-Beam, 26#|
|Cross-Members||6" Jr. I Beam, 16" Centers|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||2" Nominal Oak|
|Ramps||5' Double Hinged, Spring Assisted Flip-Over Ramps|
|Dovetail||5' Cleated Dovetail||Wood Fill Dovetail & Ramps|
|Trailer Plug||7-Way Semi-Style|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST215/75 R-17.5 Load Range H Radial Tires|
|Bolt Pattern||6.75 x 17.5, 10 Bolt Bud|
|Spare Mount||Front Spare Tire Mount||Vertical Spare Mount|
|Spare Tire||ST215/75 R-17.5 Load Range H Radial Tire|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tie-Downs||(6) 1" D-Rings to Secure Equipment||1" D-Rings|
|Storage||Storage Tray in Tongue||Lockable Lid Over Tool Storage in Tongue|
|Side Rail||8" Channel|
|Steps & Handles||(2) Side Bed Steps|
Tandem Dual Wheel Gooseneck w/ Hydraulic Dovetail
Length: 35', 40'
GVWR: 23,900 lbs
Cargo Capacity: 15,100—15,950 lbs
Tandem Dual Wheel Pintle
Length: 25', 30'
GVWR: 23,900 lbs
Cargo Capacity: 17,800—18,300 lbs
Triple Axle Pintle Heavy Equipment Transport
Length: 29', 33'
GVWR: 58,000 lbs
Cargo Capacity: 47,150—47,650 lbs
