Tandem Dual Wheel Pintle

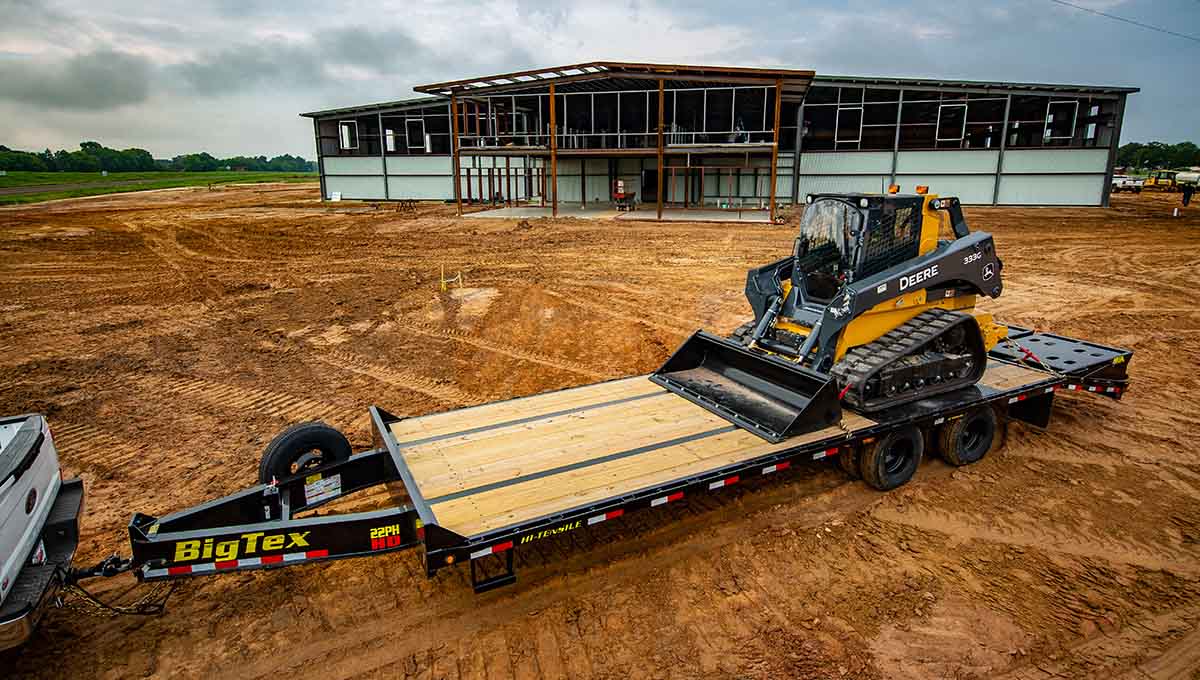

Are you taking on heavy-duty towing jobs with a pintle hitch, but you need more strength? Upgrade to the big and strong 22PH Tandem Dual Wheel Pintle Trailer, a hauler that’s ready to work hard all day long. Perfect for agricultural, construction, and landscaping, the 22PH performs in tough and rugged conditions with standard features such as two 10K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. And with 23,900 lbs G.V.W.R., it’s purpose-built to haul substantial loads and heavy-duty equipment. Hard work pays off; and so does the 22PH.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

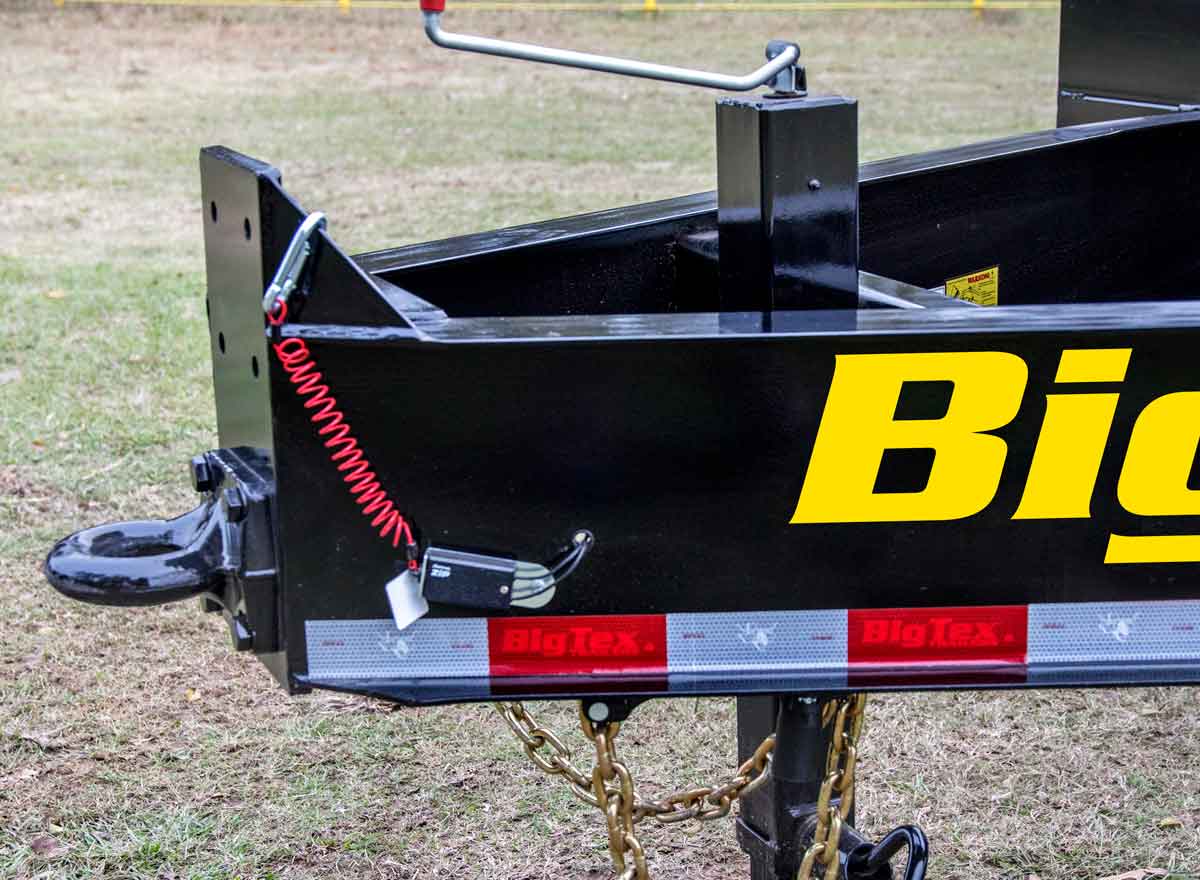

Robust Adjustable Pintle Ring
A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.

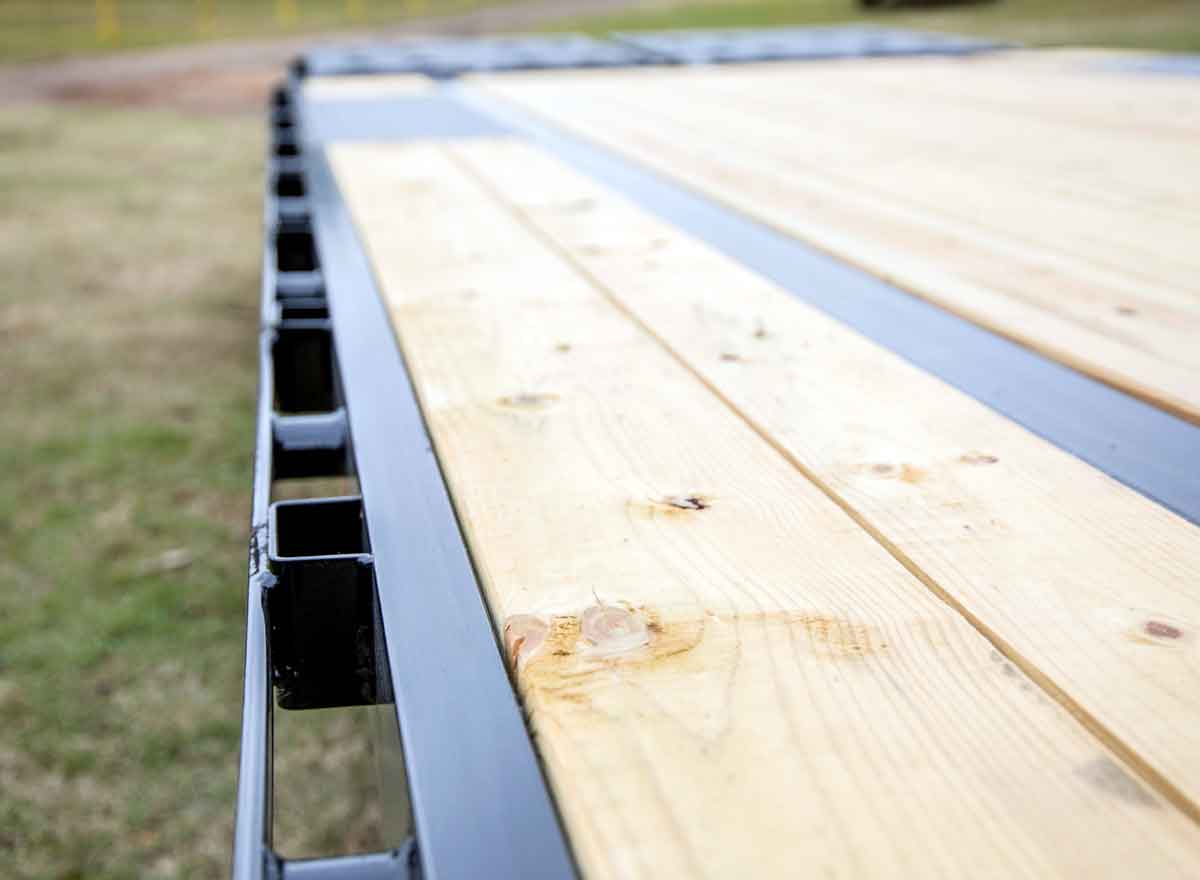

Comprehensive Load Securement

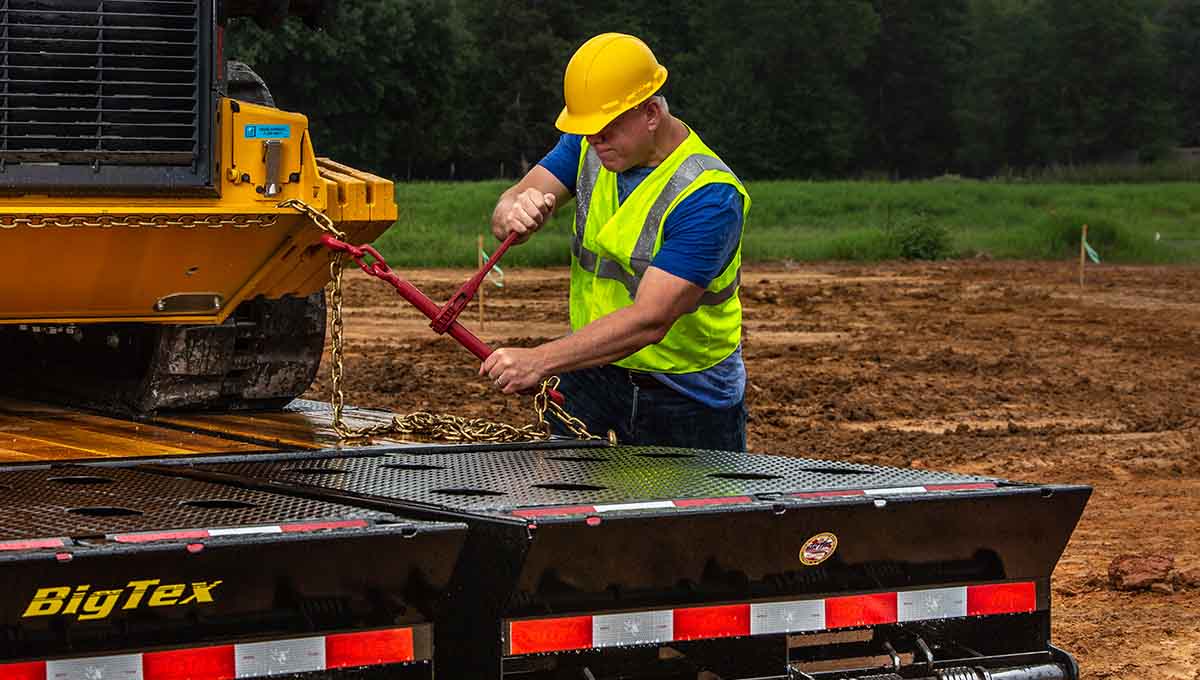

A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.

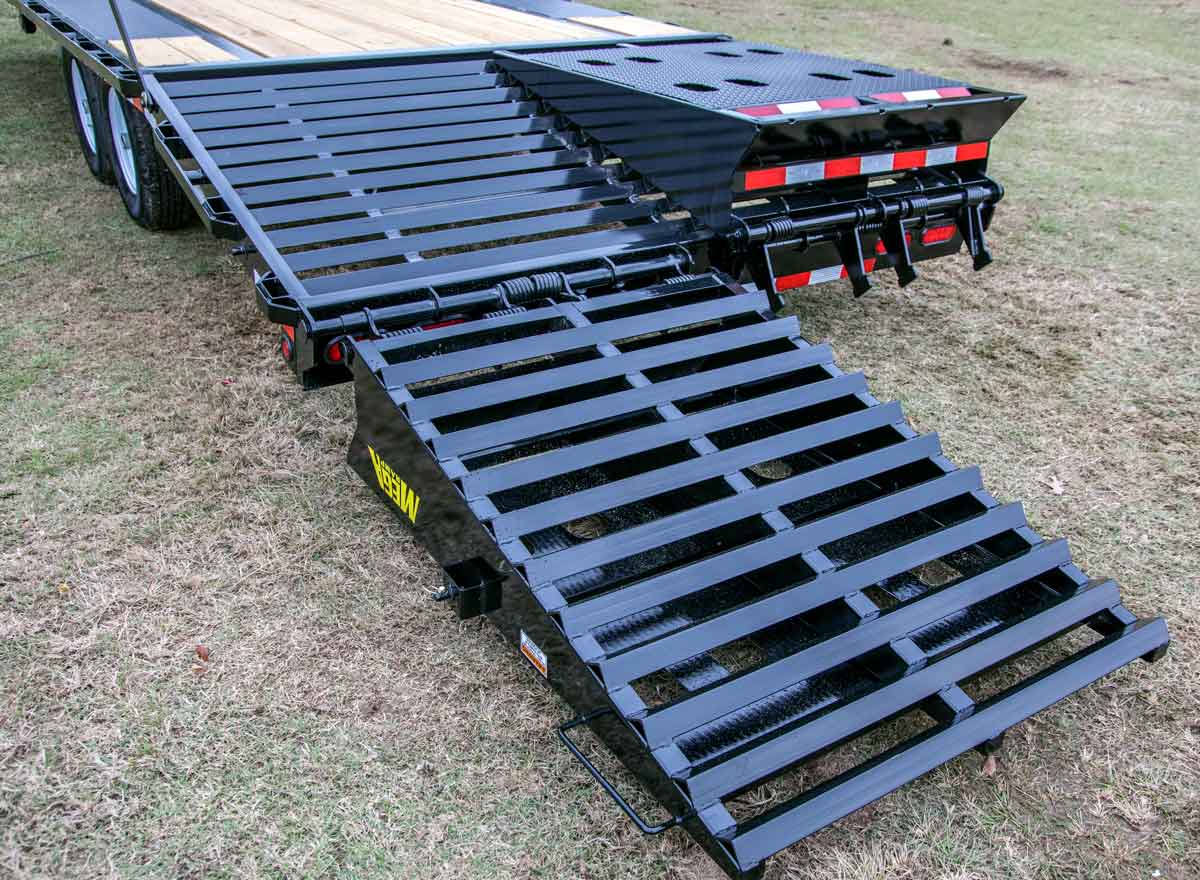

Optional Powerhouse Mega Ramps
Optimize your loading experience with heavy-duty, extra-wide ramps, designed to handle the demands of loading various types of equipment with ease.
0 of 0

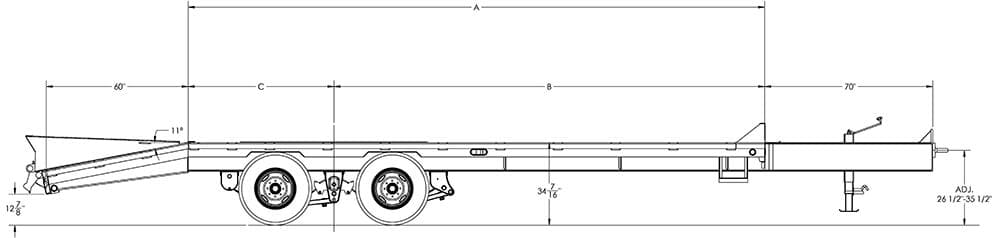

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|22PH-25+5||Bumperpull||23900 lbs||6100 lbs||17800 lbs||30'||102"||300"||216"||84"||70"|
|22PH-20+5||Bumperpull||23900 lbs||5600 lbs||18300 lbs||25'||102"||240"||180"||60"||70"|
|Standard Feature||Available Options|
|Axles||2 - 10,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles||Electric Over Hydraulic Brakes (Disc) Electric Over Hydraulic Brakes (Drum)|
|Suspension||Heavy-Duty 30,000#, Adjustable|
|Coupler||3" ID Pintle Ring|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Top Wind)||Dual Single-Speed Drop-Leg Jacks Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Jacks by Stillwell™|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||Treated Pine Floor||Blackwood Pro Rubber Infused Lumber Floor (per linear foot)|
|Ramps||5' Double Hinged, Spring Assisted Flip-Over Ramps||8' Rear Slide-In Ramps (Straight Deck Only) (2) 5' MEGA Ramps|
|Dovetail||5' Cleated Dovetail|
|Stake Pockets||Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||ST235/80 R-16 Load Range E Radial Tire|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Rubrail||3/8” Heavy Duty Rub Rail|
|Tie-Downs||Extra 5/8" D-Rings|
|Break-Away Kit||Complete Breakaway System w/ Zip Breakaway Cable|
|Storage||Lockable Lid Over Tool Storage in Tongue Low Profile Tool Box 12” x 18” x 36” (Side Mount)|
|Cargo Winch||4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track|
|Pipe Chain Spools||1-1/4” Pipe Chain Spools Between Stake Pockets Pockets||4" x 30' Strap|
|Side Rail||6" Channel|
|Steps & Handles||(2) Side Bed Steps|
