14GN
Single Wheel Tandem Axle Gooseneck
For those who pour blood, sweat, and tears into their work every day of the week, the low-profile 14GN Single Wheel Tandem Axle Gooseneck Trailer is here to make your job a little easier. A medium-duty, single-wheel gooseneck trailer that’s built for strength and durability, the 14GN delivers reliable performance for a wide range of needs for contractors, farmers, and equipment haulers. From its LED lights, treated floor, dual jacks, and adjustable coupler, this is a professional-grade trailer that’s outfitted with the features that hardworking individuals demand to get the job done.
With you for the long haul

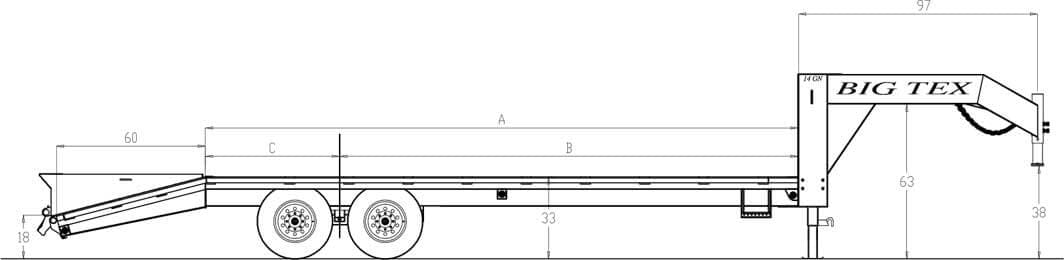

Model | Pull Type | GVWR | GAWR (Ea. Axle) | Tail Type | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|
14GN-20STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4270 lbs | 11630 lbs | 20' | 102" | 240" | 160" | 80" | 97" |
14GN-25D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 5310 lbs | 10590 lbs | 20' | 102" | 300" | 186" | 114" | 97" |
14GN-22STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4520 lbs | 11380 lbs | 22' | 102" | 264" | 177" | 87" | 97" |
14GN-25STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4890 lbs | 11010 lbs | 25' | 102" | 300" | 186" | 144" | 97" |
14GN-27D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 5630 lbs | 10270 lbs | 27' | 102" | 324" | 210" | 114" | 97" |
14GN-28STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 5260 lbs | 10640 lbs | 28' | 102" | 336" | 218" | 118" | 97" |
14GN-30D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6000 lbs | 9900 lbs | 30' | 102" | 360" | 240" | 120" | 97" |
14GN-30STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 5510 lbs | 10390 lbs | 30' | 102" | 360" | 240" | 120" | 97" |
14GN-33D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6500 lbs | 9400 lbs | 33' | 102" | 396" | 264" | 132" | 97" |
14GN-35D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6620 lbs | 9280 lbs | 35' | 102" | 420" | 280" | 140" | 97" |
14GN-35STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 6140 lbs | 9760 lbs | 35' | 102" | 420" | 280" | 140" | 97" |
14GN-40D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 7190 lbs | 8710 lbs | 40' | 102" | 480" | 320" | 160" | 97" |
14GN-40STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 7000 lbs | 8900 lbs | 40' | 102" | 480" | 320" | 160" | 97" |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 7,000# Premium, with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Drum) |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler | |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle | Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
Frame | 12" I-Beam, 14# (16# I-Beam for 28' and longer) | |
Cross-Members | 3" Channel | |
Floor | Treated Pine Floor | |

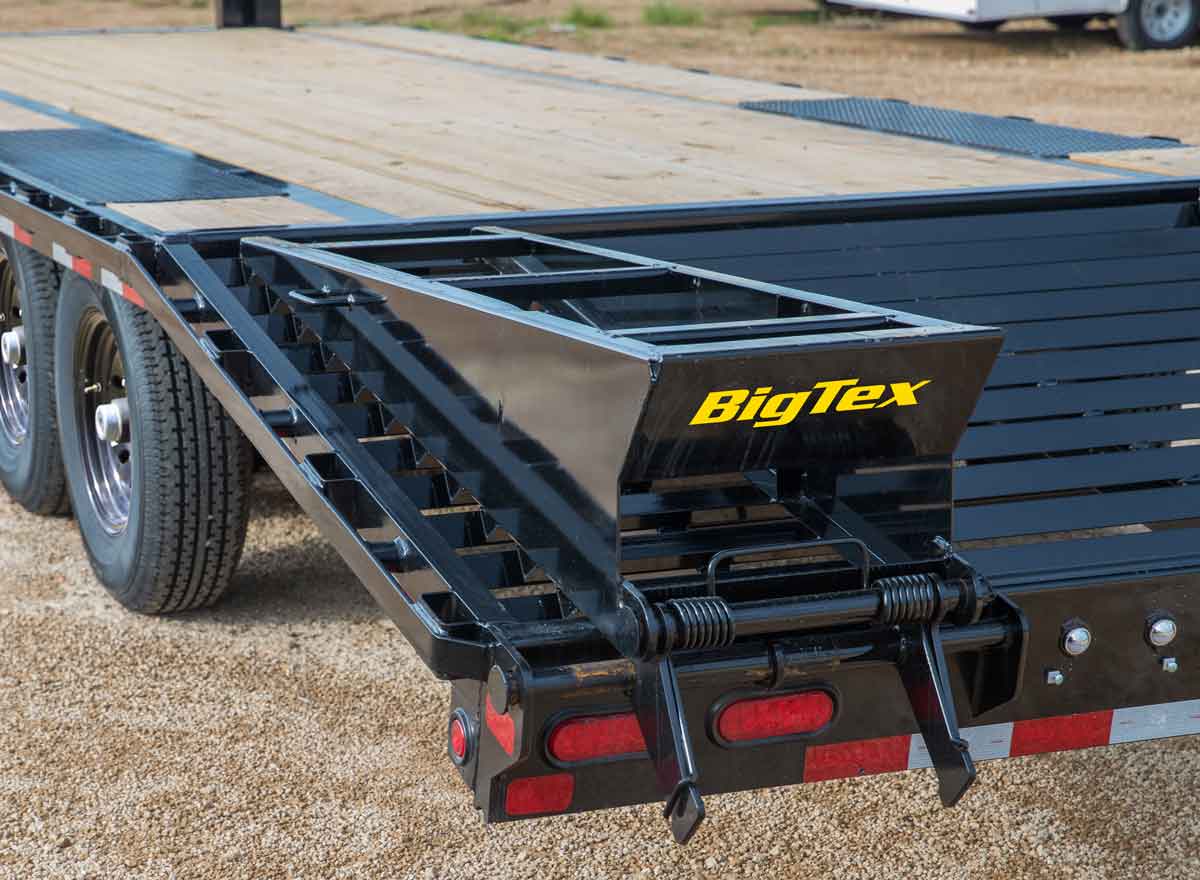

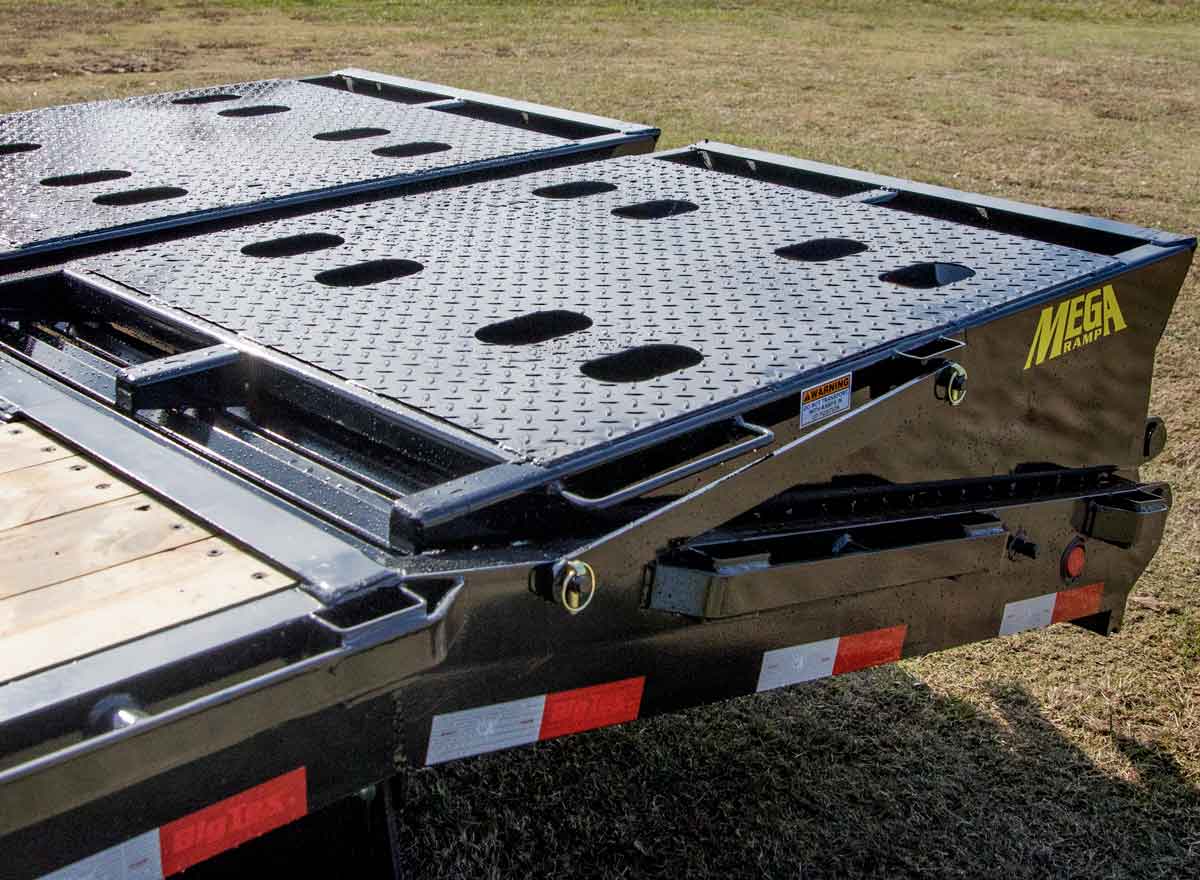

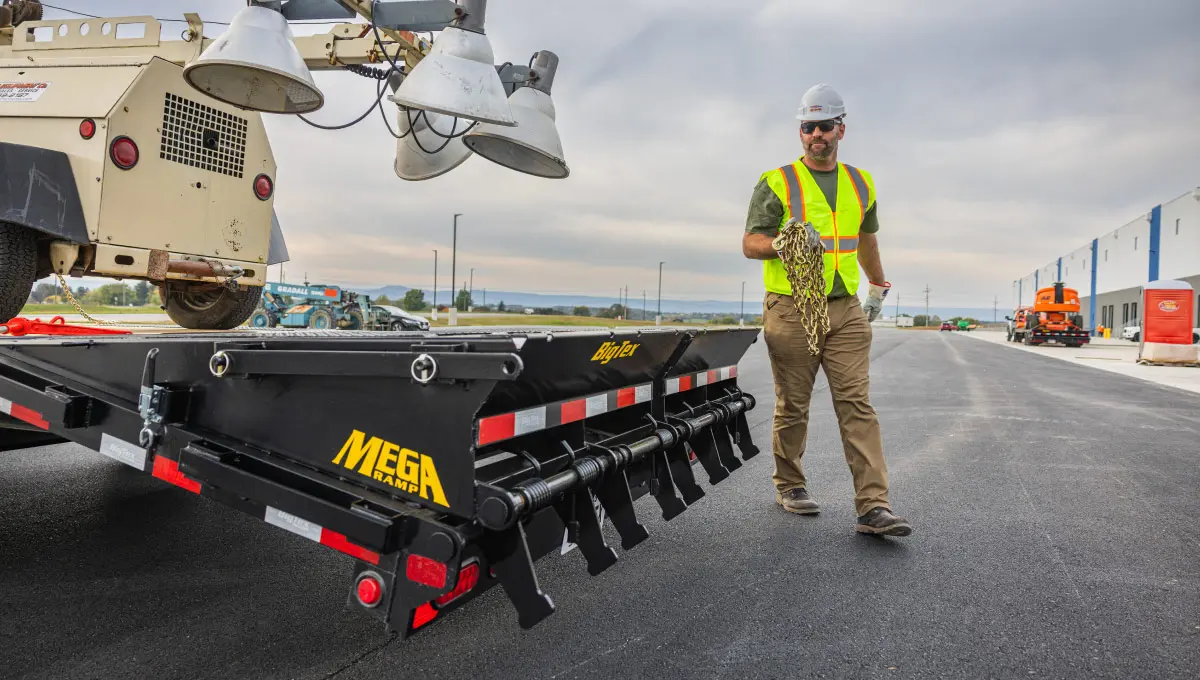

Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | 8' Rear Slide-In Ramps (STA Models Only) (2) 5' MEGA Ramps |
Dovetail | 5' Cleated Dovetail (Standard on D5A Models) Straight Deck | |
Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range E | Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare |
Bolt Pattern | 8-Bolt | |
Spare Mount | Top of Neck Spare Tire Mount | |
Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |

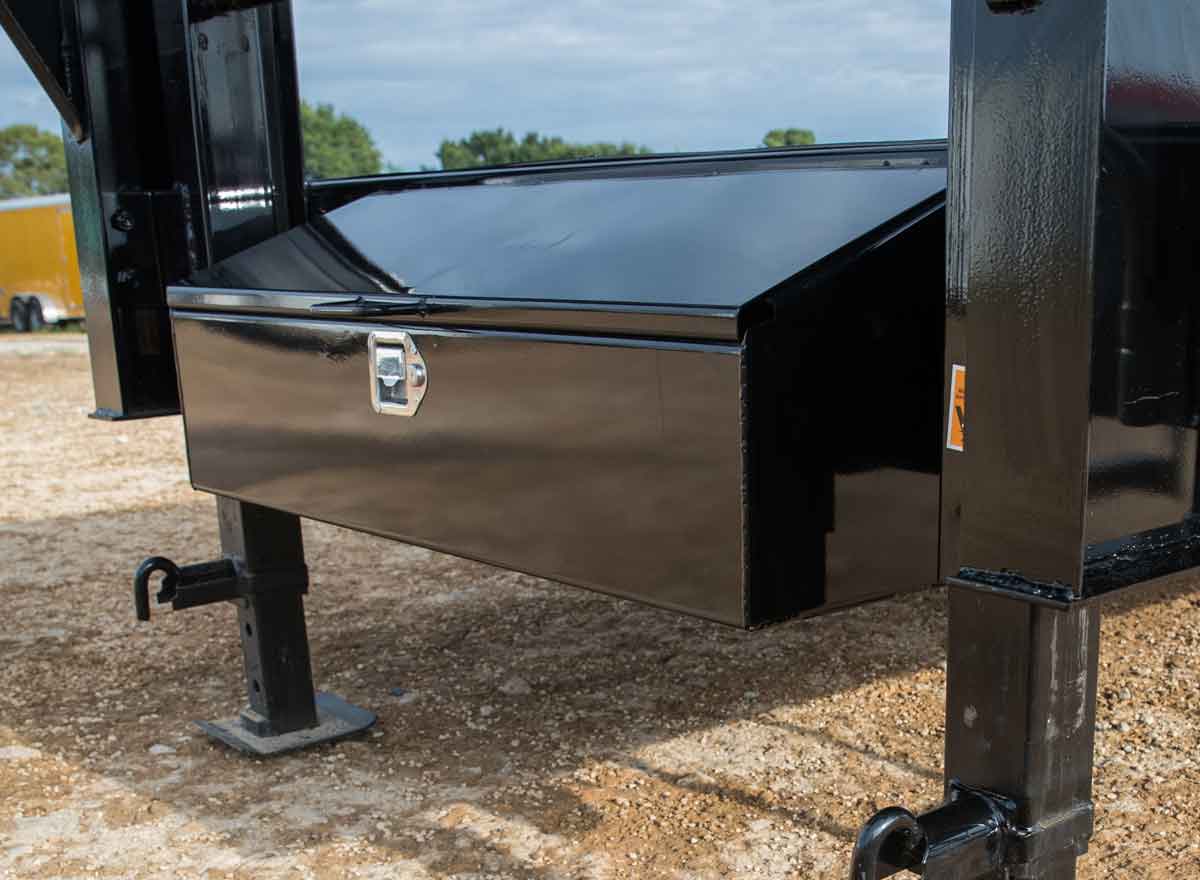

Storage | Front Lockable Toolbox Uprights w/ Chain Holder | Low Profile Tool Box 15” x 15” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
Cargo Winch | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long | |
Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
Steps & Handles | (2) Side Bed Steps + Handles | |
Work Light | Deck Work Light Package w/ Step Illumination |
