Trailers / Flatbed Goosenecks & Deck-Overs / Deck-Over Pintles

3XPH 3XPH

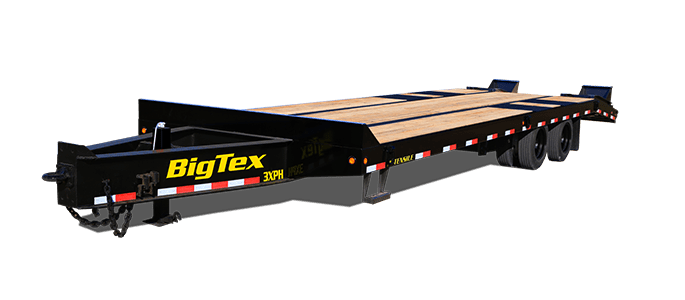

Super Duty Tandem Dual Wheel Pintle

3XPH

Super Duty Tandem Dual Wheel Pintle

The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension it’s built to tackle the most heavy-duty and high-capacity jobs. It’s ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you won’t have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs don’t stand a chance.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
3XPH-25+5 Bumperpull 30000 lbs 15000 lbs 6300 lbs 23700 lbs 30' 102" 288" 232" 96" 70"
3XPH-20+5 Bumperpull 30000 lbs 15000 lbs 5800 lbs 24200 lbs 25' 102" 240" 186" 80" 70"

Standard Feature Available Options
Axles 2 - 15,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks Electric Over Hydraulic Brakes (Drum)
Suspension Heavy Duty 44,000# Adjustable
Coupler 3" ID Pintle Ring
Safety Chains 1/2" Grade 80 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Top Wind) Dual Single-Speed Drop-Leg Jacks Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Jacks by Stillwell™
Frame 12" I-Beam, 22#
Cross-Members 6" Jr. I Beam, 16" Centers
Front Stop Rail 3/16" Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Ramps 5' Double Hinged, Spring Assisted Flip-Over Ramps 8' Rear Slide-In Ramps (Straight Deck Only) (2) 5' MEGA Ramps
Dovetail 5' Cleated Dovetail
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern 8x275 MM BC Hub
Spare Mount Front Spare Tire Mount
Spare Tire ST215/75 R-17.5 Load Range H Radial Tire
Paint Type Professional Finish w/ Primer Standard
Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail 3/8” Heavy Duty Rub Rail
Tie-Downs Extra 5/8" D-Rings
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Mudflaps Standard
Storage Lockable Lid Over Tool Storage in Tongue Low Profile Tool Box 12” x 18” x 36” (Side Mount)
Cargo Winch 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track
Pipe Chain Spools 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets 4" x 30' Strap
Side Rail 8" Channel
Steps & Handles (2) Side Bed Steps

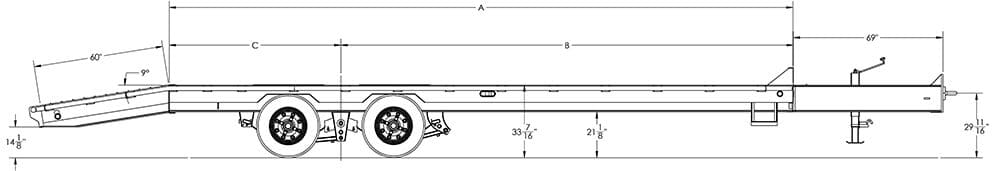

https://www.bigtextrailers.com/wp-content/uploads/2023/07/3xph_specdiagram.jpg

Similar Products

Big Tex Triple Axle Pintle Heavy Equipment Transport Trailer

5XPH

Triple Axle Pintle Heavy Equipment Transport

Width: 102"

Length: 29', 33'

GVWR: 58,000 lbs

Cargo Capacity: 47,150—47,650 lbs


View

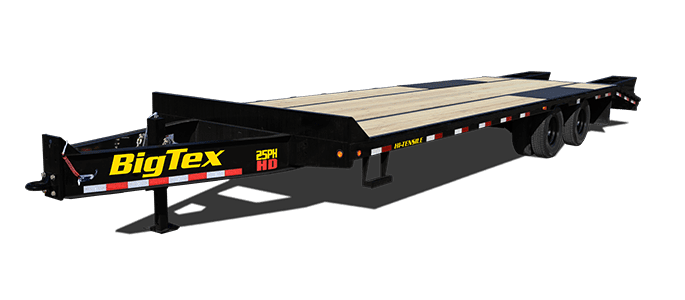

Big Tex Heavy Duty Tandem Dual Wheel Pintle
