Trailers / Flatbed Goosenecks & Deck-Overs / Flatbed Goosenecks

25GN

Heavy Duty Tandem Dual Wheel Gooseneck

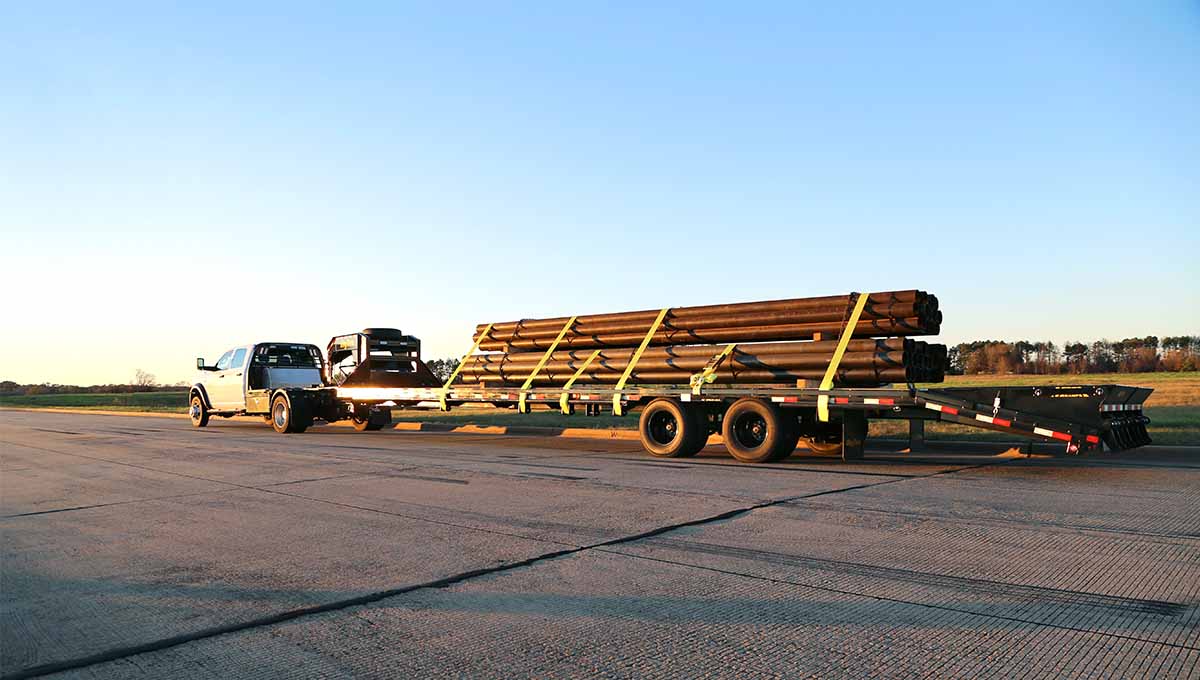

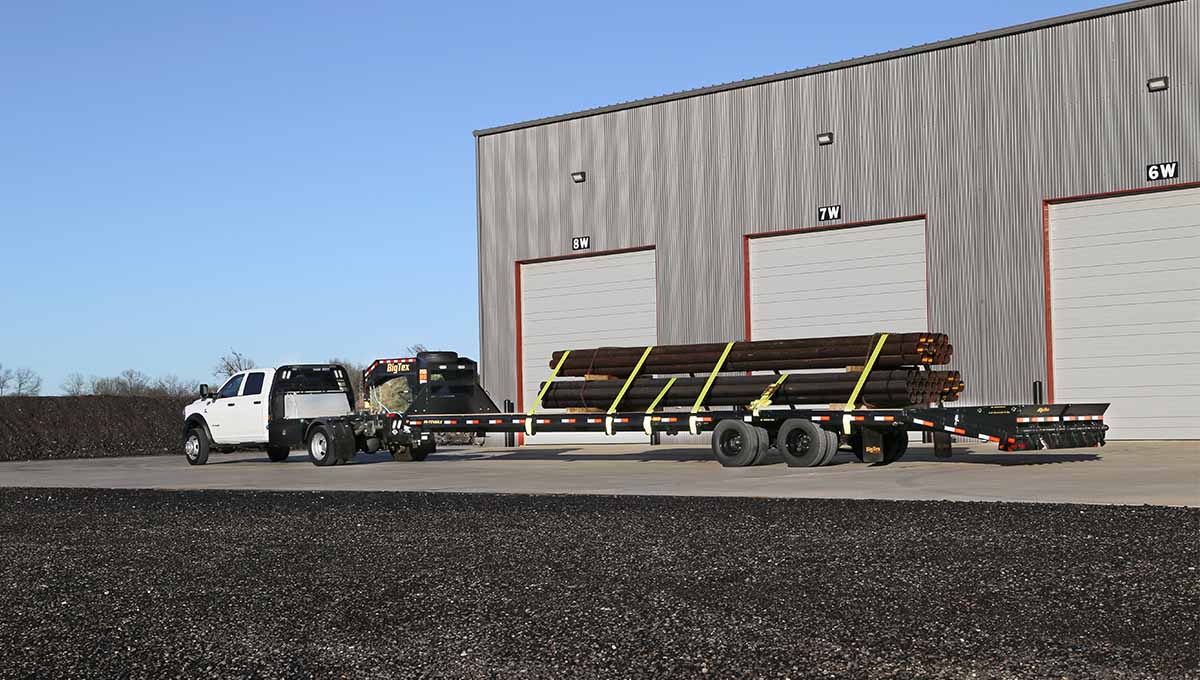

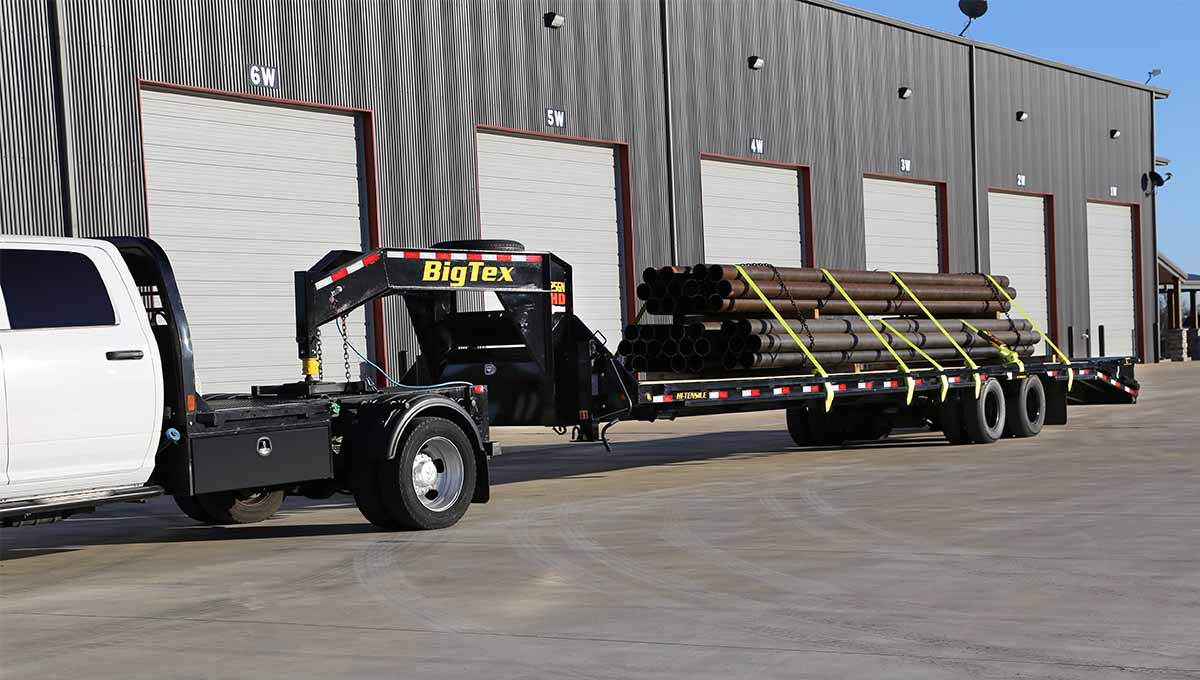

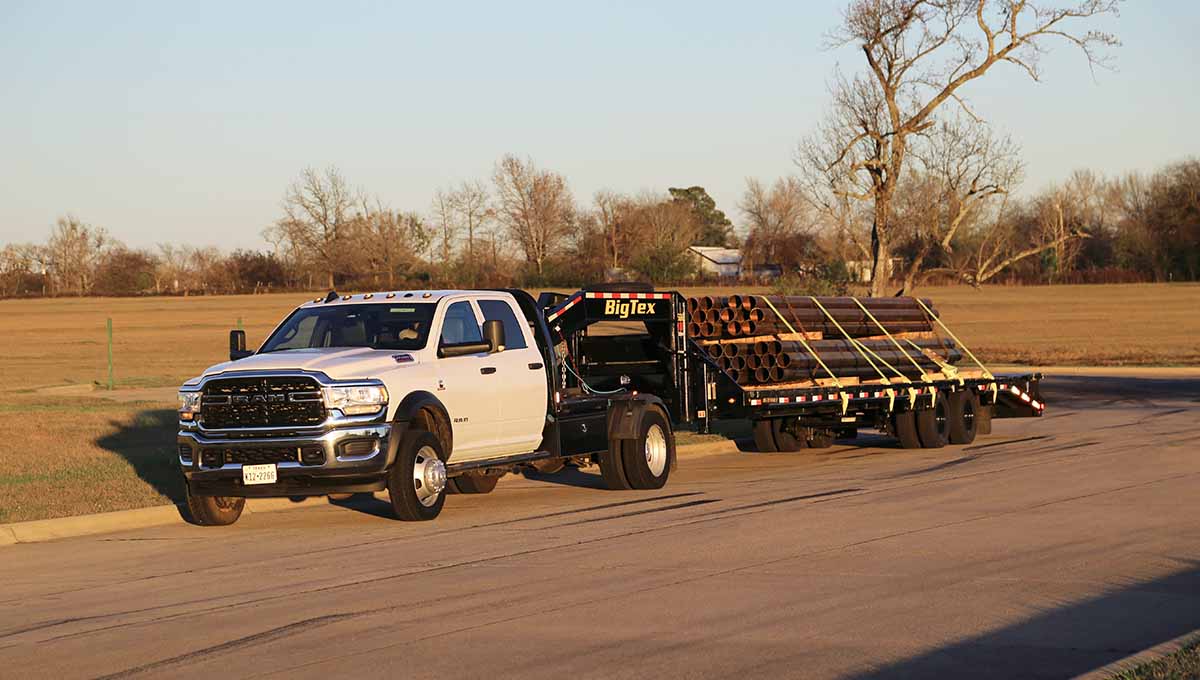

Featuring 12K heavy-duty axles and standard equipped with a heavy-duty adjustable suspension, the 25GN Heavy Duty Tandem Dual Gooseneck Trailer is built from the ground up to handle the heaviest of loads in construction and hotshotting—day-and-night, 24/7. This robust and durable gooseneck trailer comes outfitted with all the features you demand: from a low-profile pierced-beam frame, LED lights, and adjustable dual jacks to a chain box and crank-style adjustable coupler. It’s heavy-duty. It’s hardworking. It’s built to last. The 25GN is here to help you get the job done.

25GN 25GN

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width Tongue Length
25GN-40STA Gooseneck 25900 lbs 7800 lbs 18100 lbs 40' 102" 97"
25GN-40D5A Gooseneck 25900 lbs 7950 lbs 17950 lbs 40' 102" 97"
25GN-36STA Gooseneck 25900 lbs 7200 lbs 18700 lbs 36' 102" 97"
25GN-35STA Gooseneck 25900 lbs 35' 102" 97"
25GN-35D5A Gooseneck 25900 lbs 7200 lbs 18700 lbs 35' 102" 97"
25GN-33STA Gooseneck 25900 lbs 33' 102" 97"
25GN-33D5A Gooseneck 25900 lbs 6900 lbs 19000 lbs 33' 102" 97"
25GN-30STA Gooseneck 25900 lbs 30' 102" 97"
25GN-30D5A Gooseneck 25900 lbs 30' 102" 97"
25GN-28STA Gooseneck 25900 lbs 6300 lbs 19600 lbs 28' 102" 97"
25GN-25STA Gooseneck 25900 lbs 25' 102" 97"
25GN-25D5A Gooseneck 25900 lbs 5800 lbs 20100 lbs 25' 102" 97"
25GN-20STA Gooseneck 25900 lbs 20' 102" 97"

Standard Feature Available Options
Axles 2 - 12,000# Dual Wheel w/ Oil Bath & Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles Electric Over Hydraulic Brakes (Disc)
Suspension Heavy-Duty 30,000#, Adjustable
Coupler 2-5/16” Demco EZ Latch Gooseneck Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Landing Gear by Stillwell™
Frame 12" I-Beam, 14# (16# I-Beam for 28' and longer)
Cross-Members 3" Channel
Floor Treated Pine or Douglas Fir

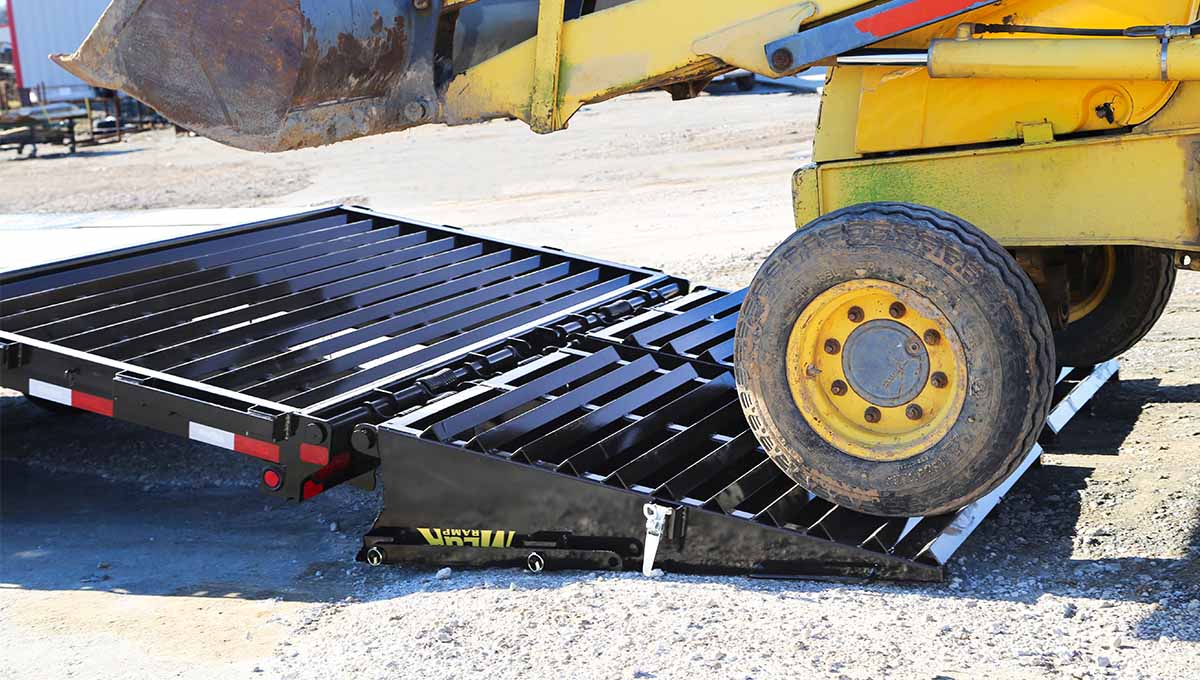

Ramps 5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps) Flip-Over Ramps (Standard Configuration on "D5" Models) (2) 5' MEGA Ramps 8' Rear Slide-In Ramps (Available on ST models Only) No Ramps (Standard Configuration on "ST" models)
Dovetail 5' Cleated Dovetail (standard on +5 Models) Straight Deck
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E (Dual) Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare
Bolt Pattern 8-Bolt
Spare Mount Top of Neck Spare Tire Mount
Spare Tire ST235/80 R-16 Load Range E (Included)`
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Rubrail 3/8” Heavy Duty Rub Rail on Both Sides
Break-Away Kit Complete Breakaway System w/ Zip™ Breakaway Cable and Charger
Mudflaps Standard
Storage Front Lockable Toolbox Uprights w/ Chain Holder Low Profile Tool Box 12” x 18” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L)
Cargo Winch Sliding Winch Track (standard on Trailer 33' or Longer ) 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long
Pipe Chain Spools 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets 4" x 30' Strap Extra 5/8" D-Rings
Steps & Handles (2) Retractable Side Bed Steps + Handles Helping Hand Riser Step
Twist Guard™ Included on trailers 33' and Longer
Work Light Deck Work Light Package w/ Step Illumination
