16GN Gooseneck Trailer

16GN

Super Duty Single Wheel Tandem Axle Gooseneck

Need more power? The low-profile 16GN Single Wheel Tandem Axle Gooseneck Trailer has you covered. The 16GN is our super-duty, single-wheel gooseneck that delivers a whole lot more cargo capacity, all without the need for dual-wheel axles. For construction, equipment rental companies, and agricultural operations, this heavy-duty, hardworking trailer has all the features you’d expect; from a pierced beam, high tensile steel frame, and dual drop-leg jacks to an integrated toolbox and premium axles. Because for the job that you do from morning until night, you deserve a professional-grade trailer that packs the muscle you need—at a cost that doesn’t blow your budget.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
16GN-20STA Gooseneck 17500 lbs 8000 lbs 4553 lbs 12947 lbs 20' 102" 240" 160" 80" 97"
16GN-22STA Gooseneck 17500 lbs 8000 lbs 4726 lbs 12774 lbs 22' 102" 264" 177" 87" 97"
16GN-25D5A Gooseneck 17500 lbs 8000 lbs 5670 lbs 11830 lbs 25' 102" 300" 186" 114 97"
16GN-25STA Gooseneck 17500 lbs 8000 lbs 5000 lbs 12500 lbs 25' 102" 300" 186" 114" 97"
16GN-27D5A Gooseneck 17500 lbs 8000 lbs 6144 lbs 11356 lbs 27' 102" 324" 210" 114" 97"
16GN-28STA Gooseneck 17500 lbs 8000 lbs 5090 lbs 12410 lbs 28' 102" 336" 218" 118" 97"
16GN-30D5A Gooseneck 17500 lbs 8000 lbs 6144 lbs 11356 lbs 30' 102" 360" 240" 120" 97"
16GN-30STA Gooseneck 17500 lbs 8000 lbs 5447 lbs 12053 lbs 30' 102" 360" 240" 120" 97"
16GN-33D5A Gooseneck 17500 lbs 8000 lbs 6338 lbs 11112 lbs 33' 102" 396" 264" 132" 97"
16GN-35D5A Gooseneck 17500 lbs 8000 lbs 6589 lbs 10911 lbs 35' 102" 420" 280" 140" 97"
16GN-35STA Gooseneck 17500 lbs 8000 lbs 5923 lbs 11577 lbs 35' 102" 420" 280" 140" 97"
16GN-40D5A Gooseneck 17500 lbs 8000 lbs 7035 lbs 10465 lbs 40' 102" 480" 320" 160" 97"
16GN-40STA Gooseneck 17500 lbs 8000 lbs 6428 lbs 11072 lbs 40' 102" 480" 320" 160" 97"

Standard Feature Available Options
Axles 2 - 8,000# Dual Wheel w/ Quick Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on Both Axles Electric Over Hydraulic Brakes (Drum)
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler 2-5/16” Ball Adjustable Pipe
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Landing Gear by Stillwell™
Frame 12" I-Beam, 14# (16# I-Beam for 28' and longer)
Cross-Members 3" Channel
Floor Treated Pine Floor

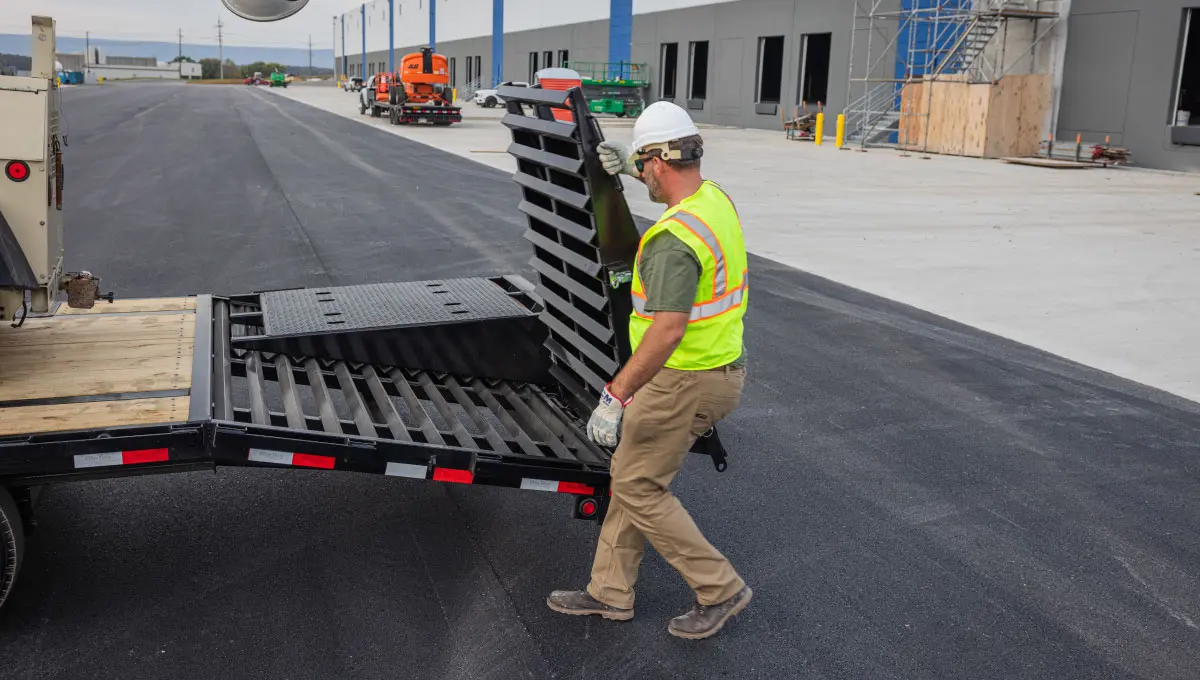

Ramps 5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps) 8' Rear Slide-In Ramps (Straight Deck Only) (2) 5' MEGA Ramps
Dovetail 5' Cleated Dovetail (standard on +5 Models) Straight Deck
Stake Pockets Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H
Bolt Pattern 8-Bolt
Spare Mount Top of Neck Spare Tire Mount
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Rubrail 3/8” Heavy Duty Rub Rail on Both Sides
Break-Away Kit Complete Breakaway System w/ Zip™ Breakaway Cable and Charger
Storage Front Lockable Toolbox Uprights w/ Chain Holder Low Profile Tool Box 15” x 15” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L)
Cargo Winch 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long

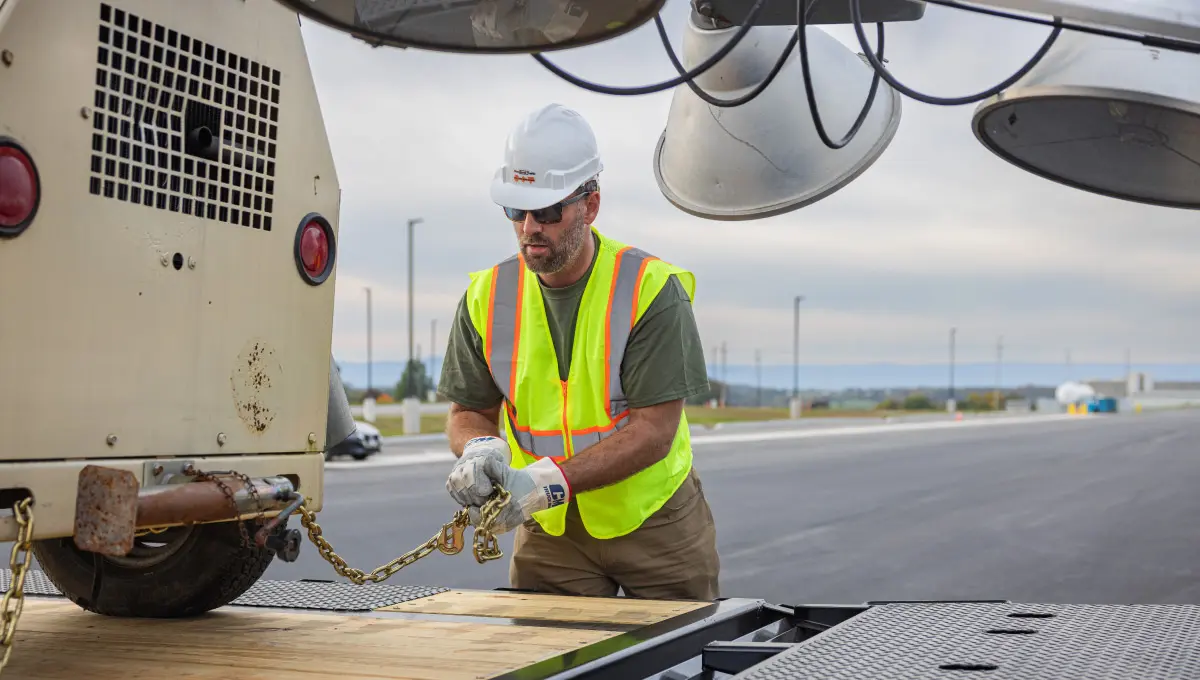

Pipe Chain Spools 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets 4" x 30' Strap Extra 5/8" D-Rings
Steps & Handles (2) Side Bed Steps + Handles
Work Light Deck Work Light Package w/ Step Illumination

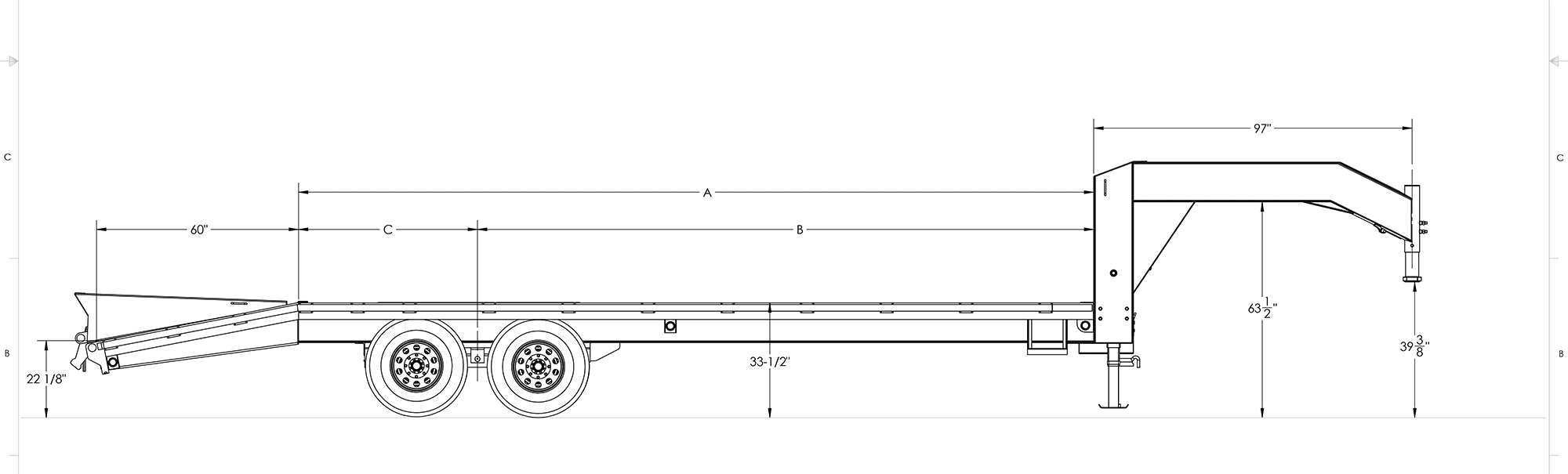

https://www.bigtextrailers.com/wp-content/uploads/2024/03/16gn_specdiagram.jpg
