20GX 20GX
Commercial Grade Dump Trailer from Big Tex

20GX

Mega Duty Tandem Axle Goosneck Dump

Need a trailer with muscle? Built to take on heavy-duty, hefty loads, the 20GX Mega Duty Tandem Axle Gooseneck Dump has the power you need. Tough enough for the most demanding industries and environments, this trailer is packing 10,000 lbs. Torsion Axles with Super Single Wheels for big hauls. And you won’t have to worry about space because the 20GX has a rugged dump box with high sides that add cubic capacity for larger loads. Best of all, its user-friendly low-profile design and optional slide-in ramp package make loading and unloading heavy equipment a quick and easy job for anyone. Next time the going gets tough, put some muscle into it.

20GX

Mega Duty Tandem Axle Goosneck Dump

Need a trailer with muscle? Built to take on heavy-duty, hefty loads, the 20GX Mega Duty Tandem Axle Gooseneck Dump has the power you need. Tough enough for the most demanding industries and environments, this trailer is packing 10,000 lbs. Torsion Axles with Super Single Wheels for big hauls. And you won’t have to worry about space because the 20GX has a rugged dump box with high sides that add cubic capacity for larger loads. Best of all, its user-friendly low-profile design and optional slide-in ramp package make loading and unloading heavy equipment a quick and easy job for anyone. Next time the going gets tough, put some muscle into it.

20GX 20GX
Commercial Grade Dump Trailer from Big Tex

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
20GX-16 Gooseneck 22000 lbs 10000 lbs 6550 lbs 15450 lbs 16' 83" 192" 115-1/4" 76-3/4" 92

Standard Feature Available Options
Axles 2 - 10,000# cambered axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Torsion Axles
Tongue 10" I-Beam
Coupler Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack Dual 12,000# Drop-Leg Jack (Side Wind) Dual 2-Speed Landing Gear
Frame 10" I-Beam
Cross-Members 3" Channel on 16" Centers
Floor 7 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps Not Included 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern 8-Lug
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Deck On Neck Not Included Removable Deck on the Neck- Bolt On (8' W x 6' L)
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote
Ram Self-Contained Scissor
Sides 36" Tall (10 Ga) with formed Channel Supports
Stabilizers Rear Stabilizer Stands
Steps Convenient Side-Step to Access Top Rail
Storage Lockable Pump and Battery Box mounted between front Jacks
Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail 3"x 2" Rectangular Tubing
Steps & Handles Convenient Side-Step to Access Top Rail

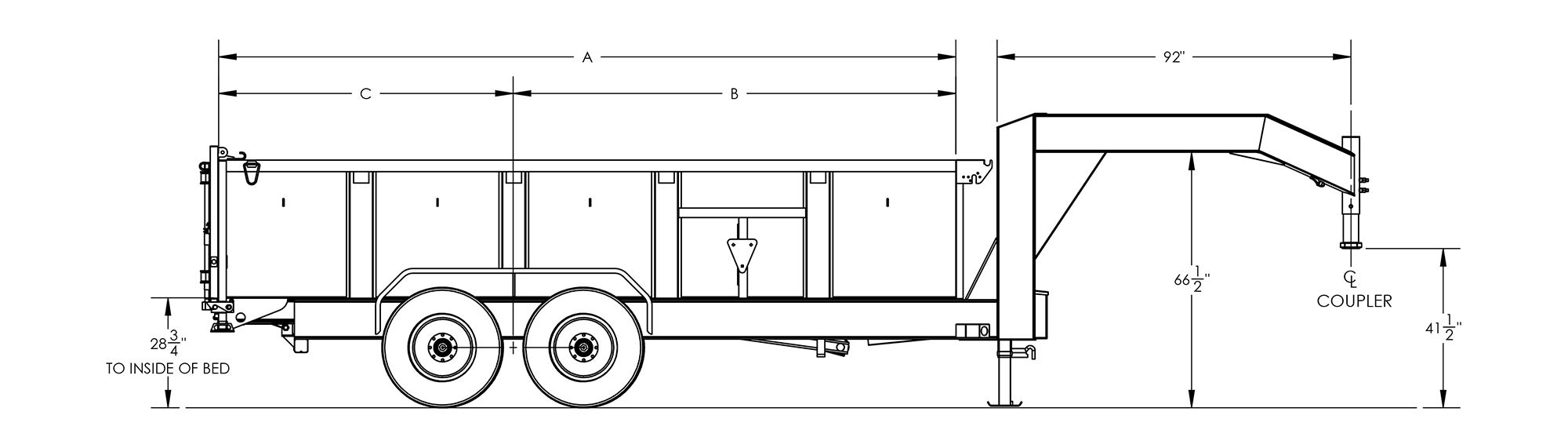

https://www.bigtextrailers.com/wp-content/uploads/2023/07/20GX_specdiagram.png
