Commercial Grade Dump Trailer Big Tex

20LP

Mega Duty Tandem Axle Dump

The biggest jobs demand the toughest trailers. With a mega-duty GVWR of 20,000 lbs, the 20LP Mega Duty Tandem Axle Dump has the strength, durability, and power required to perform in the most challenging industries. Equipped with 10,000 lbs. Torsion Axles with Super Single Wheels for heavy-weight hauling tasks, this trailer delivers peak performance when the going gets tough. 7-Gauge steel floor? Yup. 10’’ I-beam frame? Of course. 3’ high sides? Absolutely. And that all makes the 20LP one of the strongest single wheel tandem axle dump trailers on the market. Better yet, a low-profile design and optional slide-in ramps make it easier to use when loading and unloading heavy equipment, and it’s fully loaded with extras such as a tarp kit, rear stabilizer stands, and scissor hoist to help you tackle any job.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
20LP-16 Bumperpull 20000 lbs 10000 lbs 6130 lbs 13870 lbs 16' 83" 192" 115-1/4" 76-3/4" 59-3/4"

Standard Feature Available Options
Axles 2 - 10,000# cambered axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Torsion Axles
Tongue 12" I-Beam, 14#
Coupler 2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Top Wind
Frame 10" I-Beam
Cross-Members 3" Channel on 16" Centers
Floor 7 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke

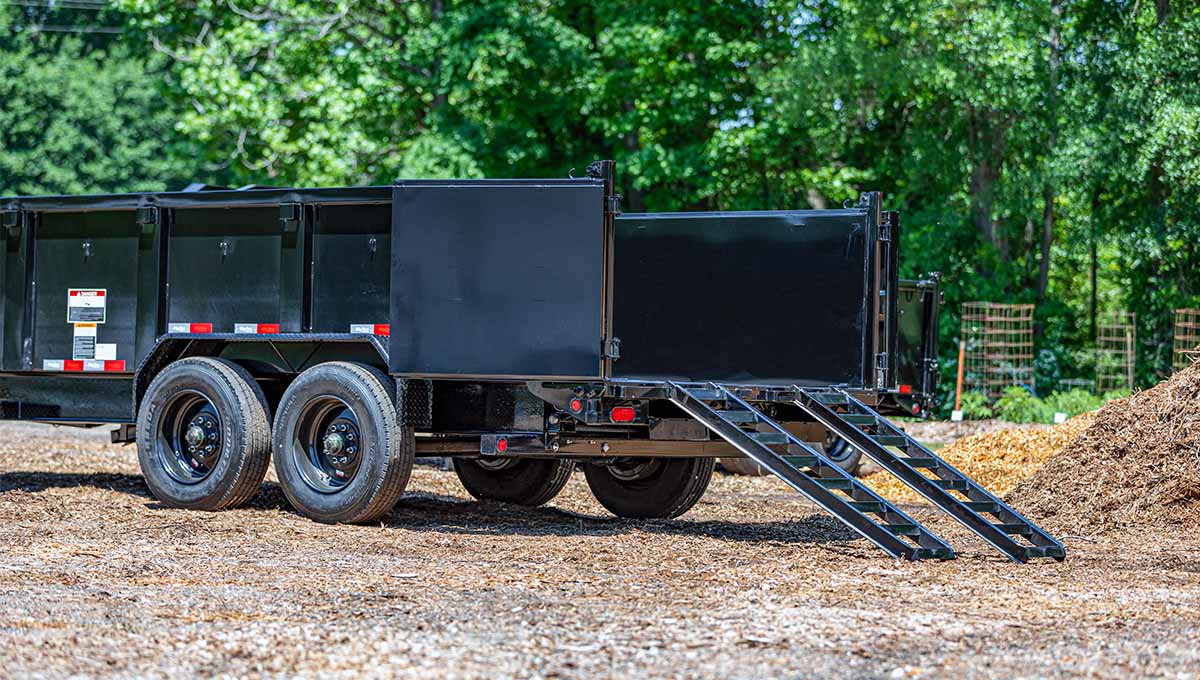

Ramps 7' Rear Slide-In Ramps 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness

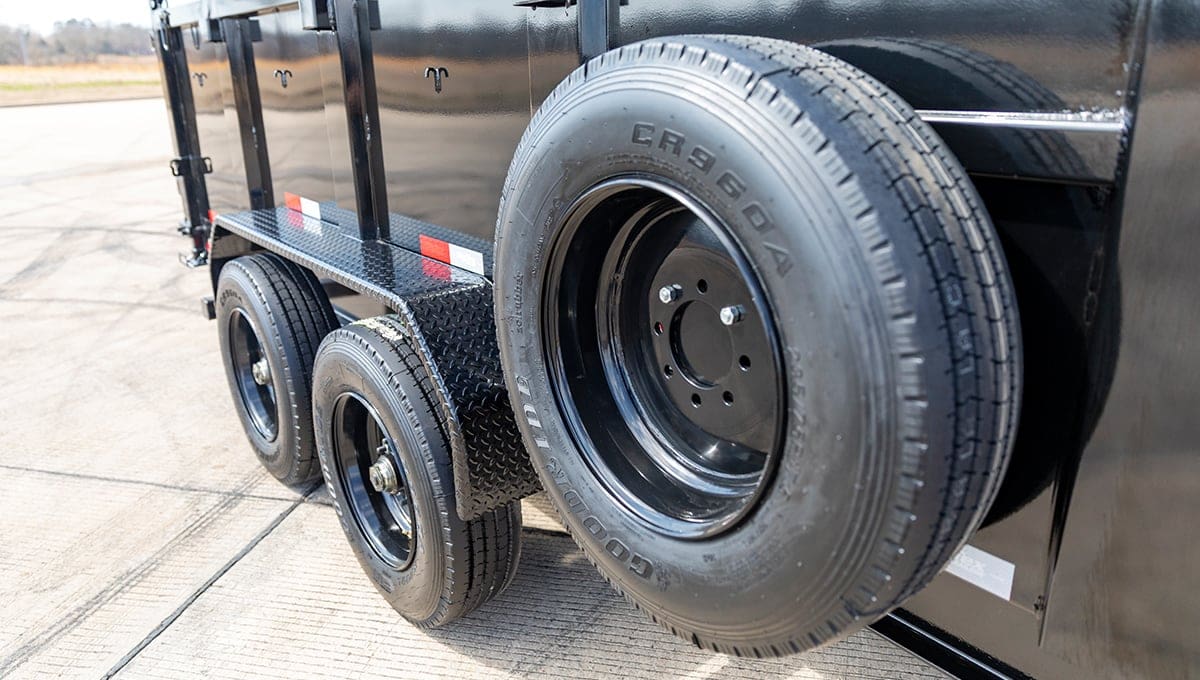

Tires ST235/75 R-17.5 Load Range J Radial Tires
Bolt Pattern 8-Lug
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire & Wheel (ST235/75 R-17.5 LR-J)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote
Ram Self-Contained Scissor
Sides 36" Tall (10 Ga) with formed Channel Supports 4' Solid Sheet Metal Sides
Stabilizers Rear Stabilizer Stands
Storage Lockable Pump and Battery Box mounted between front Jacks
Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail 3"x 2" Rectangular Tubing
Steps & Handles Convenient Side-Step to Access Top Rail

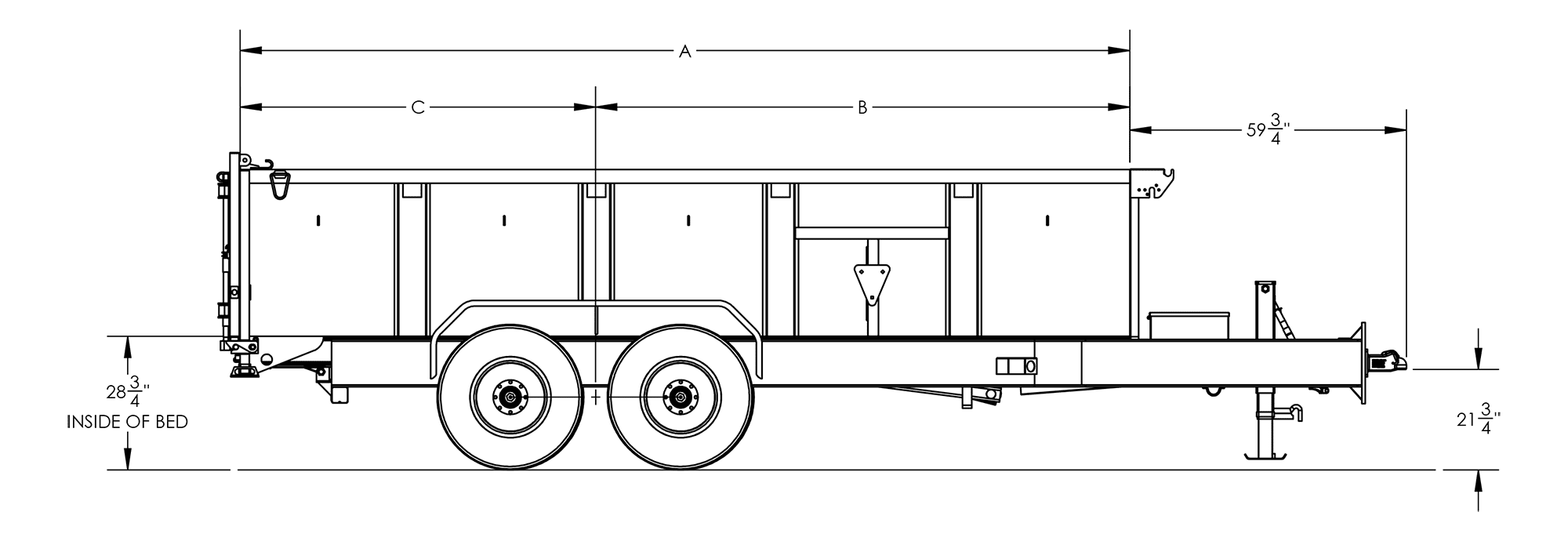

https://www.bigtextrailers.com/wp-content/uploads/2023/07/20LP_specdiagram.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
