Heavy Duty Telescopic Gooseneck Dump
Delivering rock-solid hauling performance for professionals in construction and landscaping, the 14GT Heavy Duty Telescopic Gooseneck Dump is built from the ground up to offer superior (and smoother) lift for any load. How? With its heavy-duty gooseneck and 12-ton, 3-stage telescopic hydraulic cylinder, that’s how. This trailer handles large, bulky cargo and debris—even uneven or loose materials—with ease, thanks to its advanced engineering and design. A feature-packed dump box comes loaded with an integrated crank-style tarp shroud and tarp, D-ring tie downs, and a rear combo gate to make sure heavy-duty haulers are equipped for whatever the workday brings.
Adaptable Dumping and Loading/Unloading

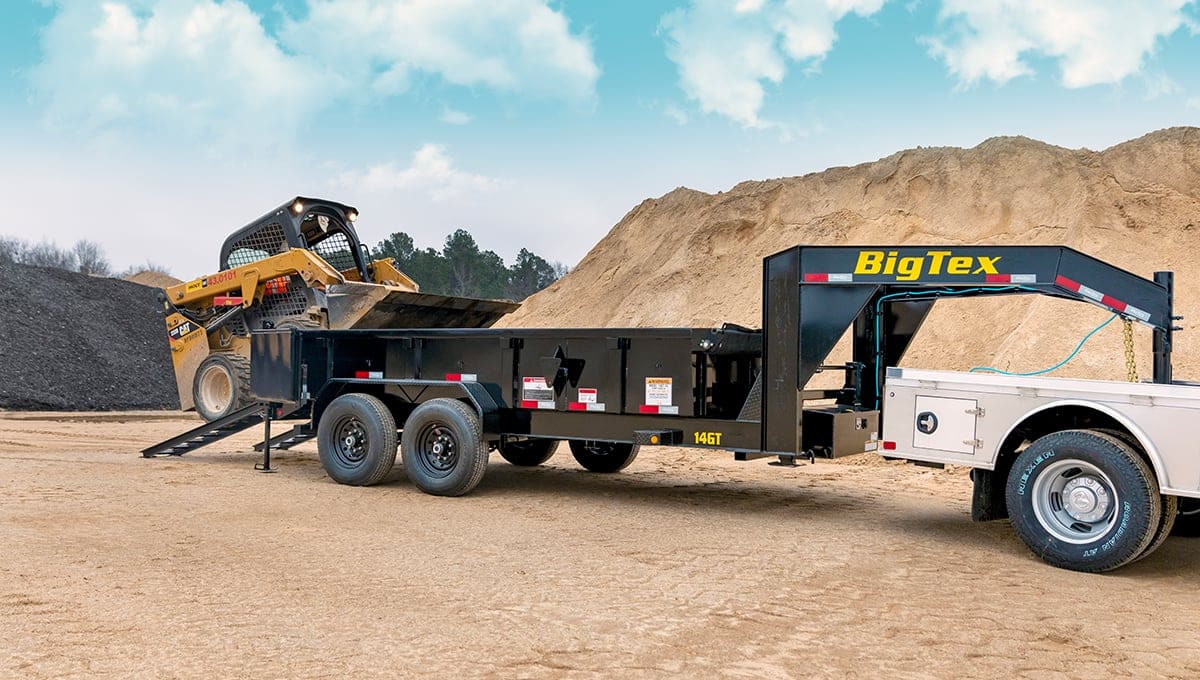

Built standard with rear combo gates, making loading and dumping an easier task.
Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
This model come standard with all the essentials, including a 12K Jack, Side Steps, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates, giving you a well-rounded hauling experience.

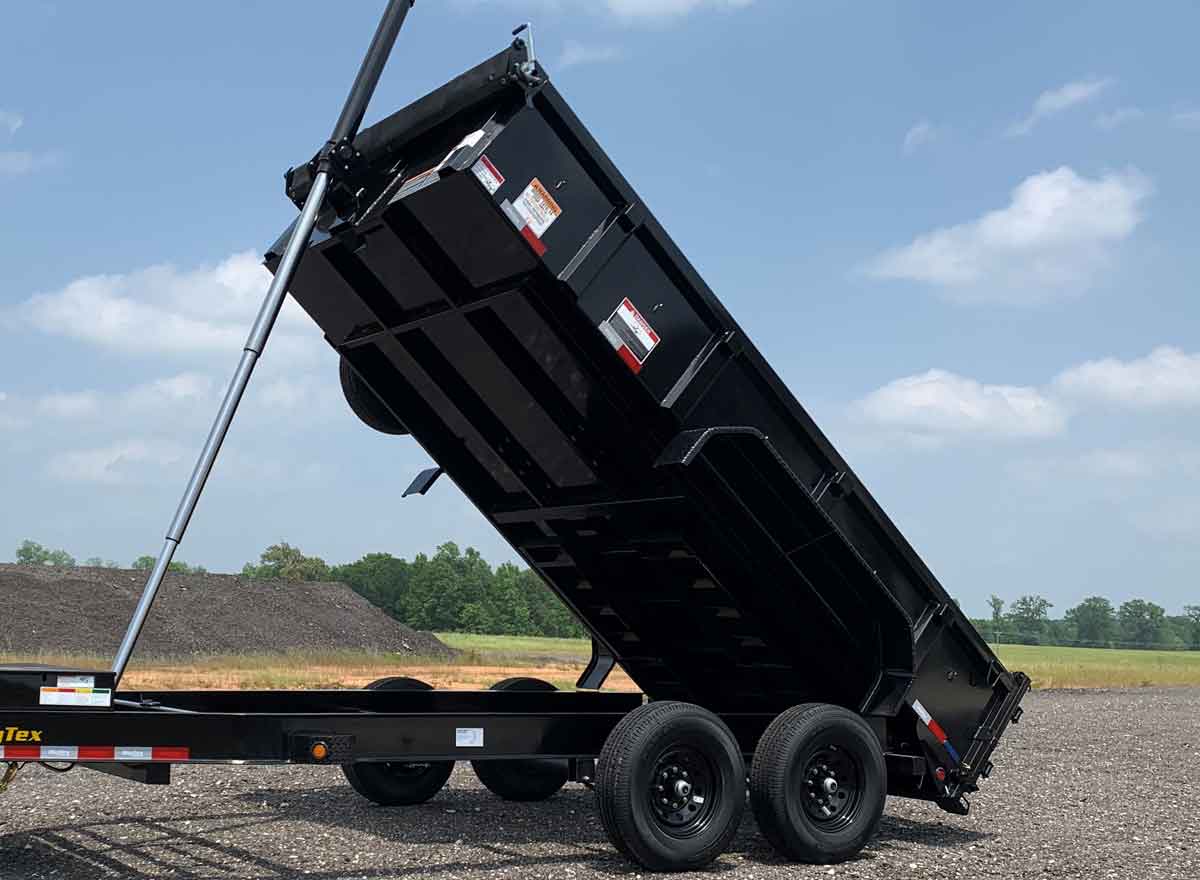

12-Ton 3-Stage Electric/Hydraulic Cylinder Lift
This telescopic hoist cylinder creates the leverage needed to provide you with a smoother, more effective lift without having to worry about leveling the load.
0 of 0

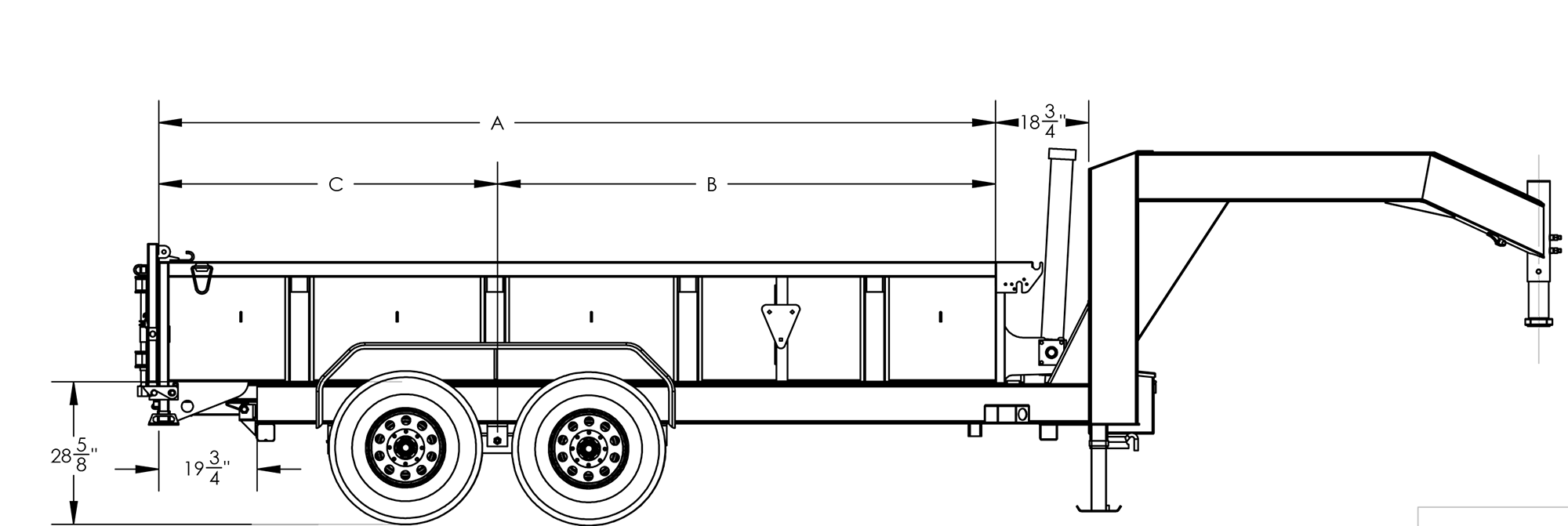

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14GT-16||Gooseneck||15900 lbs||5110 lbs||8.2 lbs||16'||83"||192"||115-3/4"||76-1/4"||51-1/8"|
|14GT-14||Gooseneck||15900 lbs||4650 lbs||7.2 lbs||14'||83"||168"||100"||68"||51-1/8"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs||Drop Axles (Lowers Deck Height to 24" from Ground)|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Tongue||10" I-Beam Neck|
|Coupler||Round Adjustable Pin 2-5/16” Gooseneck Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||Dual 12,000# Drop-Leg Jack (Side Wind)||Dual 2-Speed Landing Gear|
|Frame||8" I-Beam (13#)|
|Cross-Members||3" Channel on 16" Centers|
|Floor||10 Gauge Smooth Steel||Upgrade Floor to 7-Gauge Steel|
|Fenders||9" x 72" 14 Ga. Diamond Plate Double Broke|
|Ramps||Not Included||6.5’ Slide In Ramp Package|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST235/80 R-16 LR-G)|
|Wheels||Black Mod Steel|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)|
|Paint Type||Professional Finish w/ Primer Standard|
|Tie-Downs||(4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control|
|Break-Away Kit||Complete Breakaway System w/ Zip Breakaway Cable|
|Battery||12V Deep Cycle|
|Charger||5A 110V on Board Battery Charger|
|Deck On Neck||Not Included||Removable Deck on the Neck- Bolt On (8' W x 6' L)|
|Gate||Rear Combo Gate (Barn Doors & Spreader Gate)|
|J-Hooks||Along sides and rear for Cargo Control|
|Power||Power Up/Gravity Down Movement||5 Watt Solar Charger Wireless Remote|
|Ram||12-Ton 3- Stage Telescopic Cylinder|
|Sides||24" Tall (10 Ga) with formed Channel Supports||24" Expanded Metal Side Extensions 3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides|
|Stabilizers||Rear Stabilizer Stands|
|Steps||Convenient Side-Step to Access Top Rail|
|Storage||Lockable Pump and Battery Box mounted between front Jacks|
|Tarp||Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders|

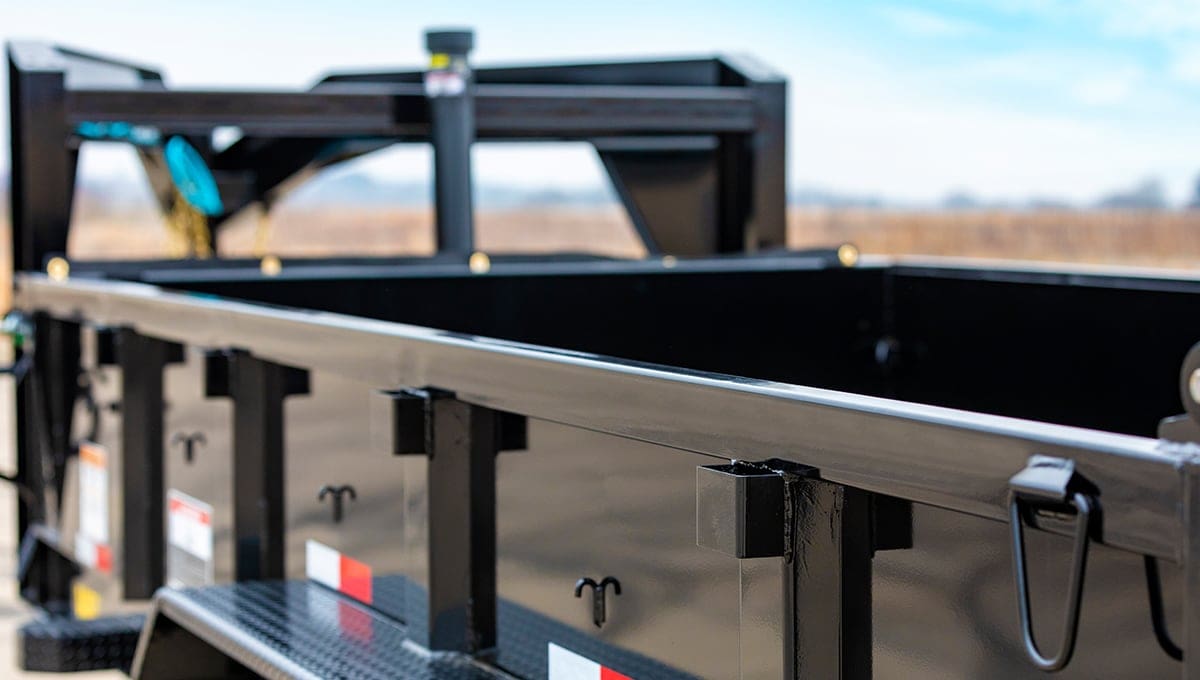

|Top Rail||3"x 2" Rectangular Tubing|
|Steps & Handles||Convenient Side-Step to Access Top Rail|
