14TD
Heavy Duty Telescopic Dump
Deal with big, dirty jobs? Bring it on. Professionals in construction, landscaping, and waste management need a trailer that handles heavy-duty, bulky cargo and debris without breaking a sweat. They need the 14TD Heavy Duty Telescopic Dump, a powerful dump trailer that features a class-leading 12-ton telescopic cylinder to make unloading and loading effortless—even when dealing with uneven or loose materials. Plus, its construction has been informed by advanced engineering for enhanced durability and reliability.

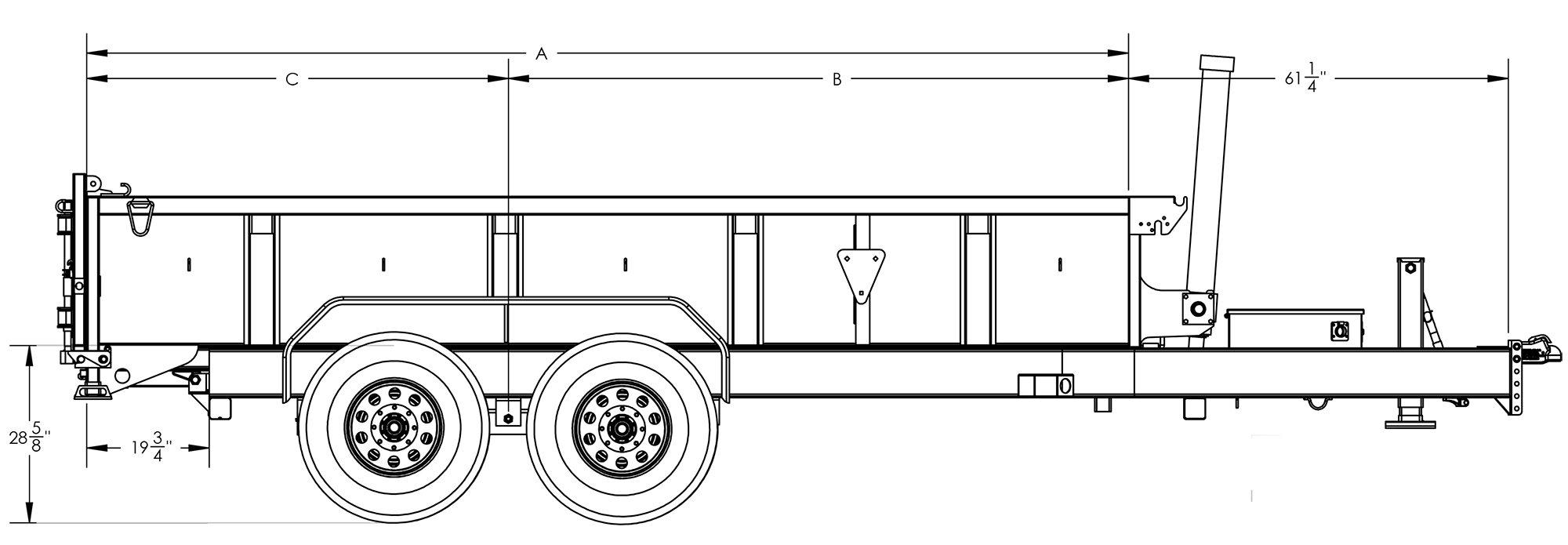

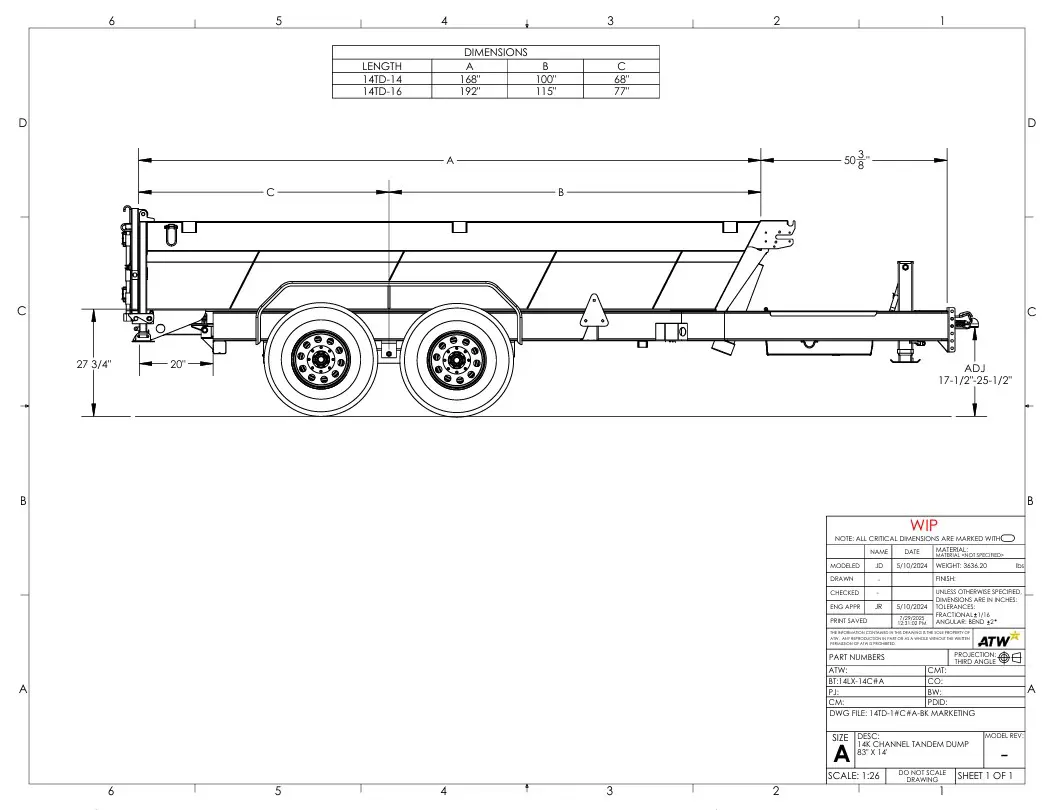

| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14TD-14 | Bumperpull | 14000 lbs | 7000 lbs | 3970 lbs | 10030 lbs | 14' | 83" | 168" | 100" | 68" | 61-1/4" |
| 14TD-16 | Bumperpull | 14000 lbs | 7000 lbs | 4430 lbs | 9570 lbs | 16' | 83" | 192" | 115-3/4" | 76-1/4" | 61-1/4" |
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | Drop Axles (Lowers Deck Height to 24" from Ground) |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Tongue | 10" I-Beam Neck | |
| Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8" Seamless I-Beam (13#) | |
| Cross-Members | 3" Channel on 16" Centers | |
| Floor | 10 Gauge Smooth Steel | Upgrade Floor to 7-Gauge Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |

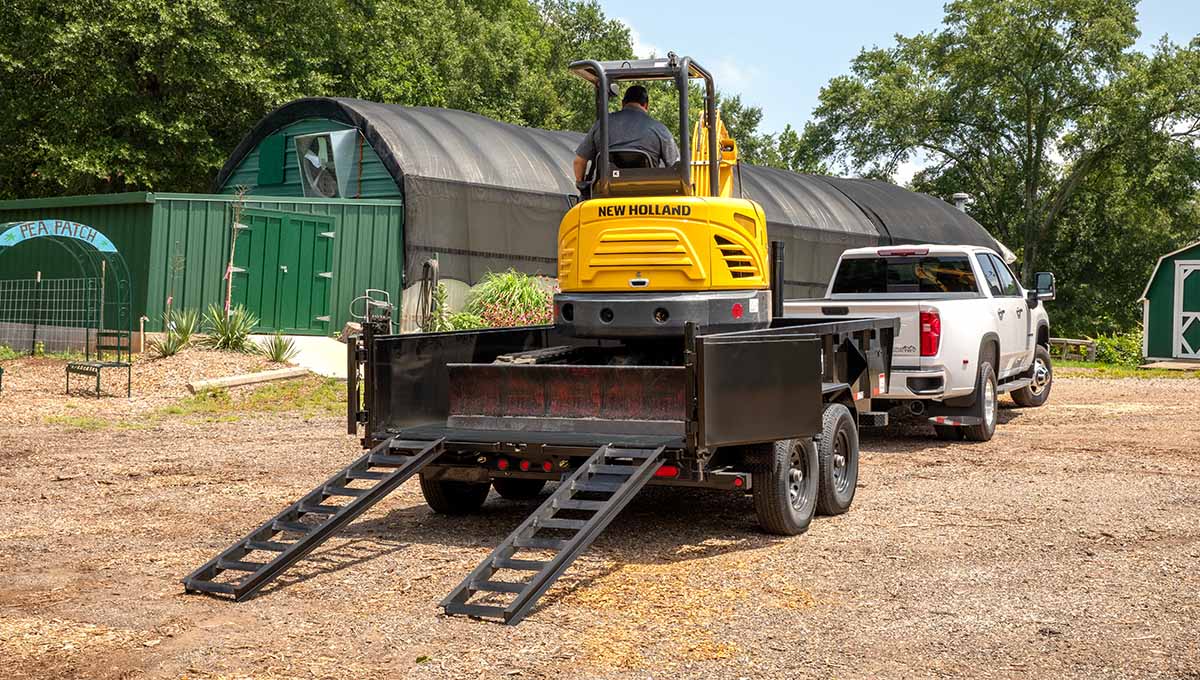

| Ramps | Not Included | 6.5’ Slide In Ramp Package |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Lug | |
| Wheels | Black Mod Steel | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Battery | 12V Deep Cycle | |
| Charger | 5A 110V on Board Battery Charger | |
| Deck On Neck | Not Included | |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
| J-Hooks | Along sides and rear for Cargo Control | |
| Power | Power Up/Gravity Down Movement | 5 Watt Solar Charger Wireless Remote |
| Ram | 12-Ton 3- Stage Telescopic Cylinder | |
| Sides | 24" Tall (10 Ga) with formed Channel Supports | 24" Expanded Metal Side Extensions 3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides |
| Stabilizers | Rear Stabilizer Stands | |
| Steps | Convenient Side-Step to Access Top Rail | |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
| Top Rail | 3"x 2" Rectangular Tubing | |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
