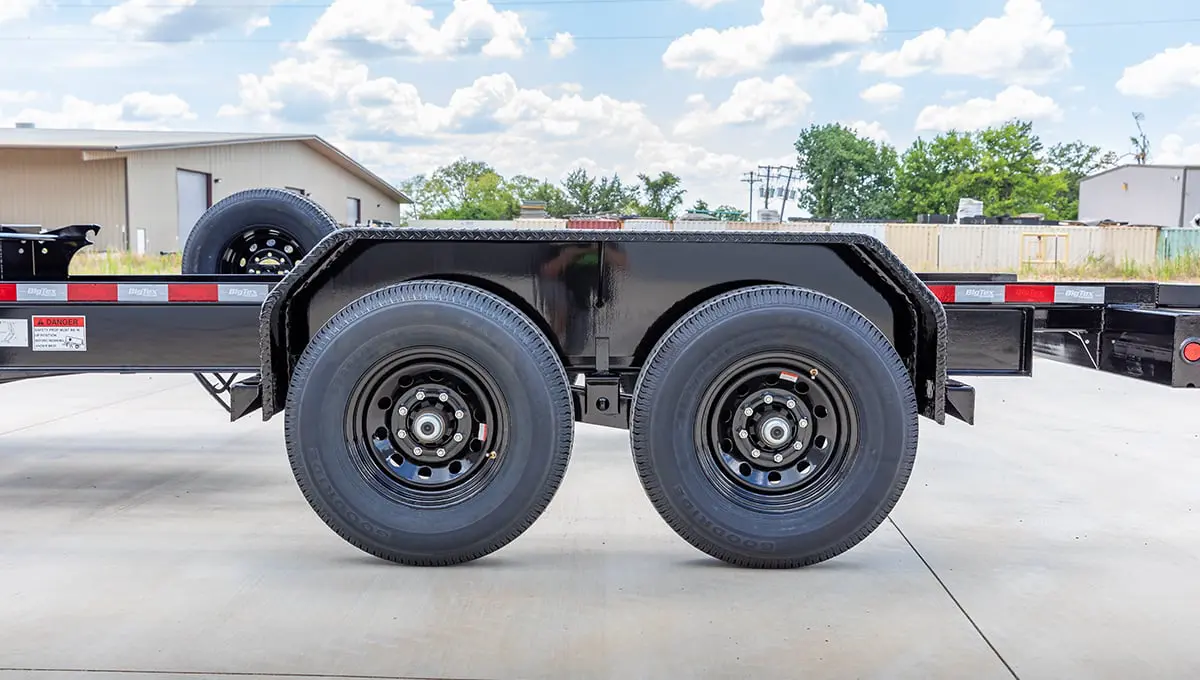

Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
|
|
Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles
|
|
Suspension |
Multi-Leaf Slipper Spring w/ Equalizer
|
|
Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
|
Adjustable Pintle in Channel in Lieu of Coupler
|
Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
|
|
Jack |
12,000# Drop-Leg Jack (Side Wind)
|
12,000# Elec/Hyd. Jack BY Stillwell™
|
Frame |
8" Seamless I-Beam (10#)
|
|
Cross-Members |
3" Channel on 16" Centers
|
|
Floor |
10 Gauge Smooth Steel
|
|

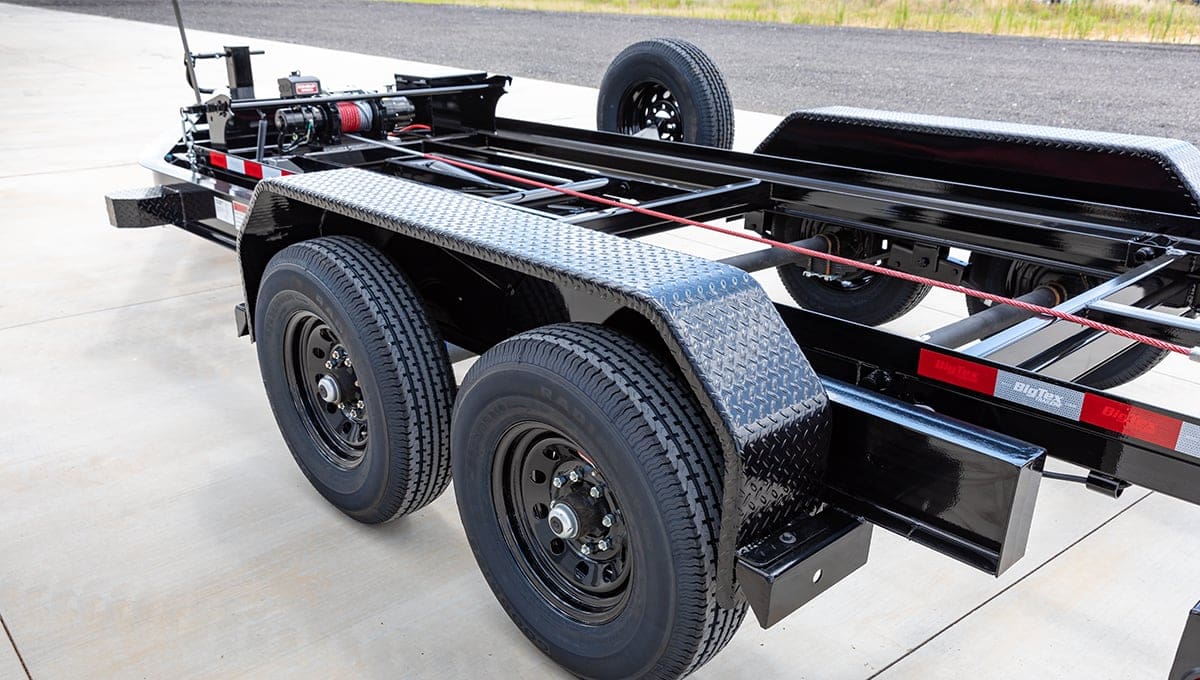

Fenders |
9" x 72" 14 Ga. Diamond Plate Double Broke
|
|
Trailer Plug |
7-Way RV
|
|
Lights |
Recessed, Grommet-Mounted L.E.D. Lighting
|
|
Wiring |
Sealed, Modular Cold-Weather Wiring Harness
|
|

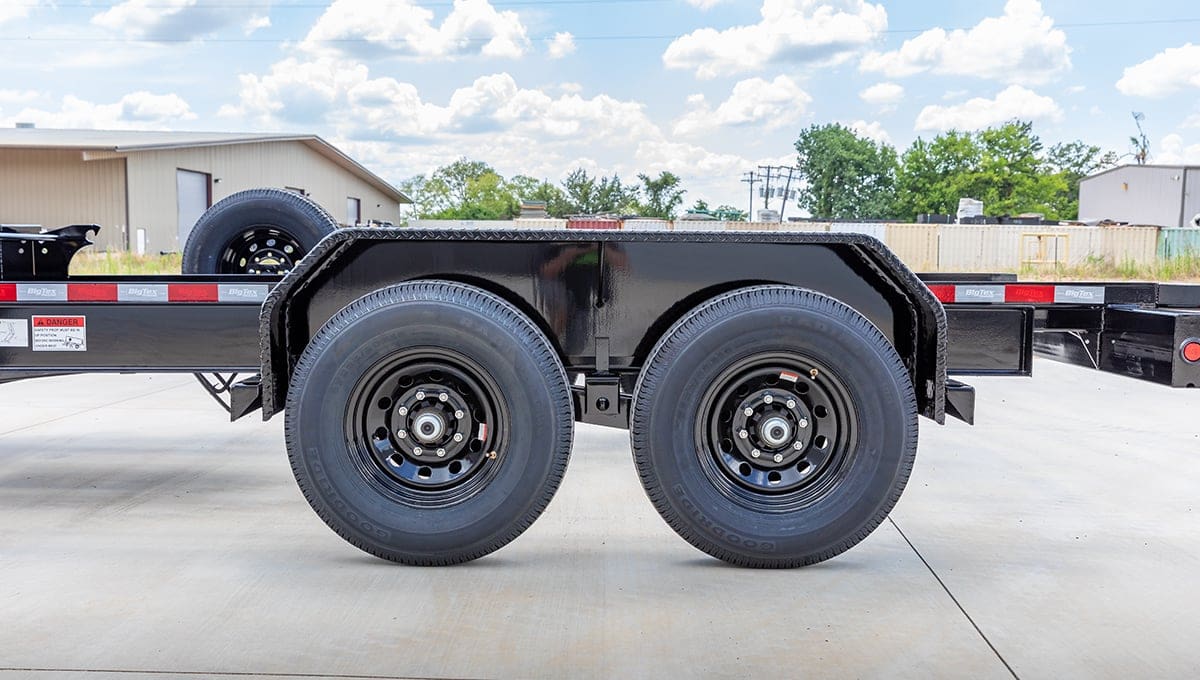

Tires |
ST235/80 R-16 Load Range E Radial Tires
|
Tire Upgrade (ST235/80 R-16 LR-G)
|
Bolt Pattern |
8-Lug
|
|
Spare Mount |
Side Spare Tire Mount
|
|
Spare Tire |
|
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
|
Paint Type |
Professional Finish w/ Primer Standard
|
|
Paint Color |
Black
|
|
Tie-Downs |
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Along Sides and Rear for Cargo Control
|
|
Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable
|
|
Battery |
12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch
|
|
Charger |
(2) 5A 110V on Board Battery Charger for Hydraulic System and Winch
|
|
Gate |
Barn Doors
|
|
Power |
Power Up/Power Down Movement
|
Wireless Remote for Hoist
Wireless Remote for Winch
|
Ram |
Self-Contained Scissor
|
|

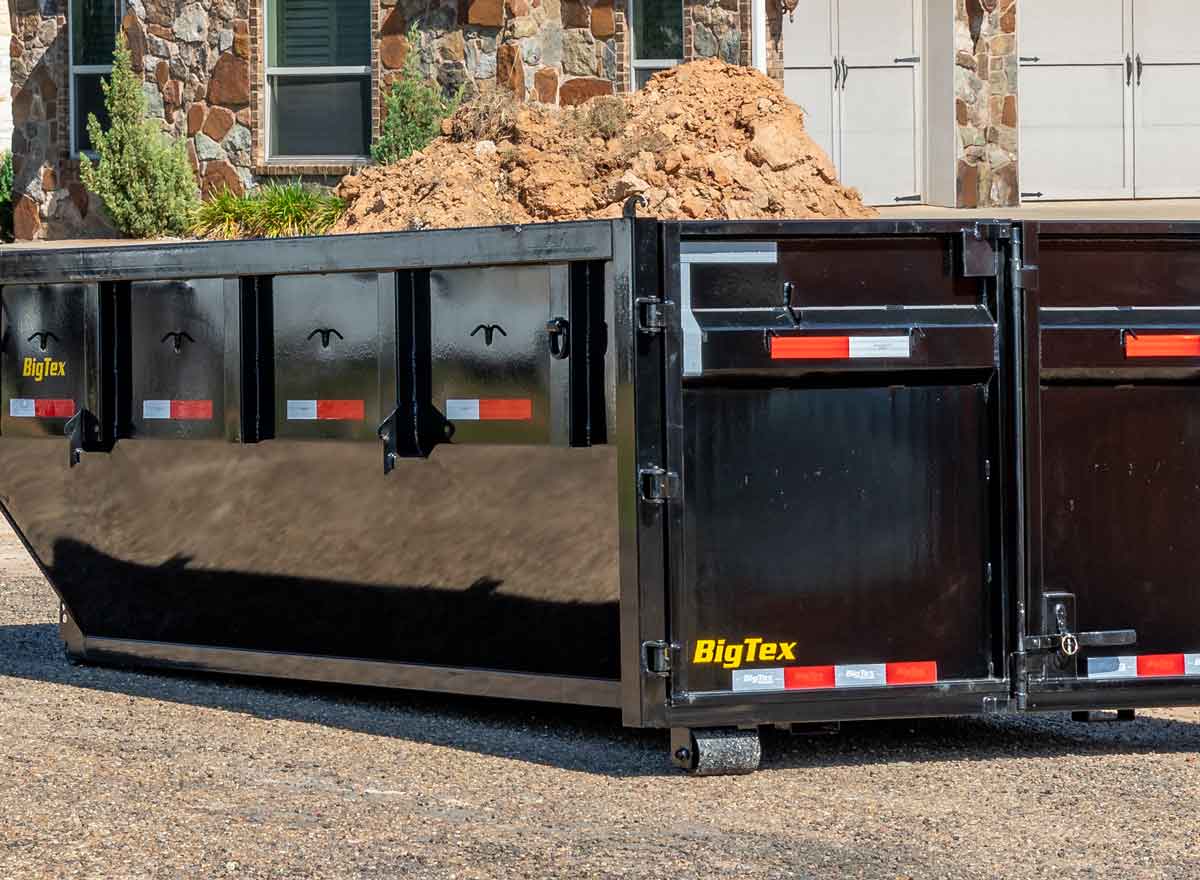

Sides |
48" Tall (12 Ga) with formed Channel Supports
|
|
Storage |
Lockable Pump and Battery Box mounted in Front of Bed
|
|
Tarp |
Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders
|
|
Top Rail |
4"x 3" Rectangular Tubing
|
|
Battery Box |
Tilt Bed mounted Battery Box for Independently wired Winch Power System
|
|
Rollers |
Greaseable Rollers
|
|
Steps & Handles |
Convenient Side-Step to Access Top Rail
|
|

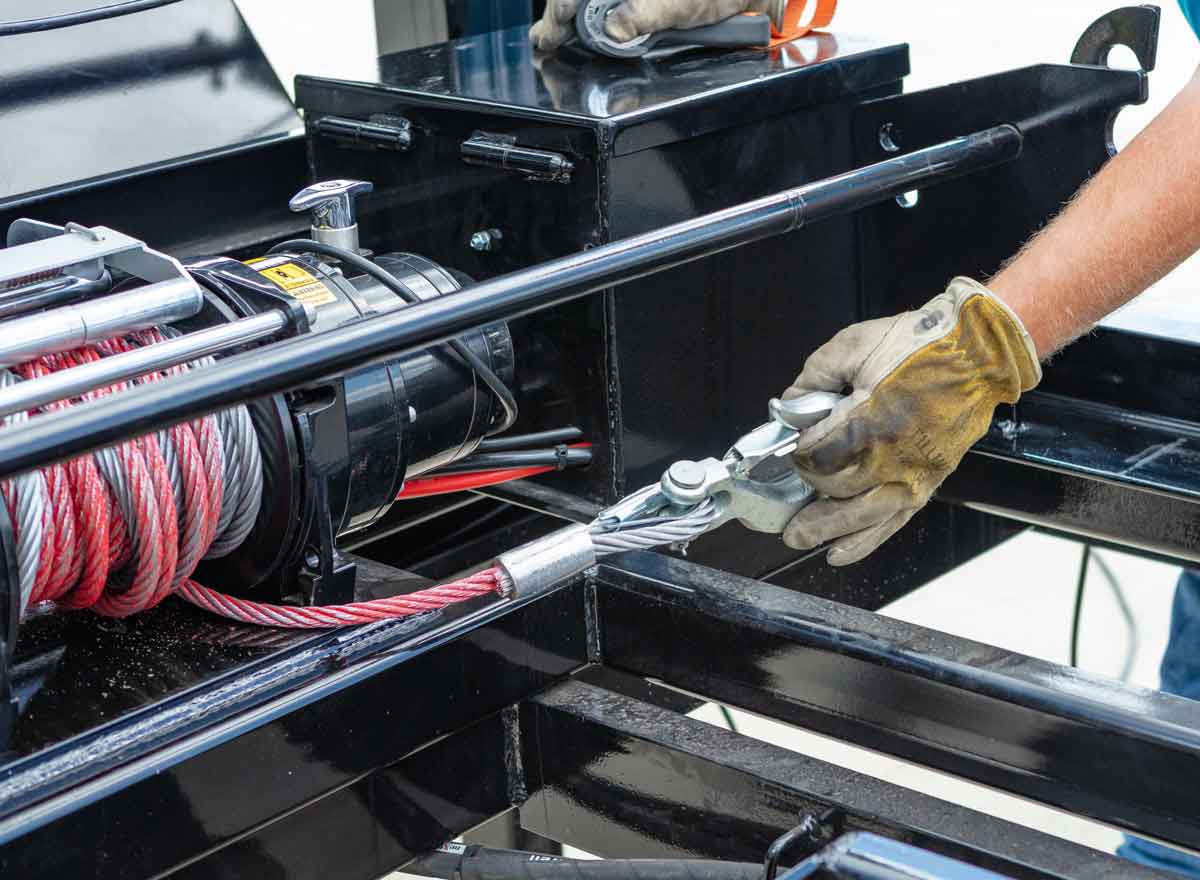

Winch |
Specially Designed High Duty Cycle 15K Winch
|
|
