14XD
14XD Heavy Duty Low Profile Dump Trailer
Part of the all-new X-Series, the 14XD Heavy Duty Low Profile Dump Trailer stands as the pinnacle of professional-grade hauling. Engineered with a seamless 8" I-beam frame and tongue, this dump trailer delivers unmatched strength for the heaviest loads, while a Mega-Sized Toolbox gives you space for all your essential gear. Topped with practical features like a Spring-Loaded Swing Arm Tarp, robust board brackets, and an advanced Scissor-Lift Hydraulic System with power-up, power-down, and gravity-down options, the 14XD will help you tackle the toughest jobs with confidence and efficiency.
14XD
14XD Heavy Duty Low Profile Dump Trailer
Part of the all-new X-Series, the 14XD Heavy Duty Low Profile Dump Trailer stands as the pinnacle of professional-grade hauling. Engineered with a seamless 8" I-beam frame and tongue, this dump trailer delivers unmatched strength for the heaviest loads, while a Mega-Sized Toolbox gives you space for all your essential gear. Topped with practical features like a Spring-Loaded Swing Arm Tarp, robust board brackets, and an advanced Scissor-Lift Hydraulic System with power-up, power-down, and gravity-down options, the 14XD will help you tackle the toughest jobs with confidence and efficiency.

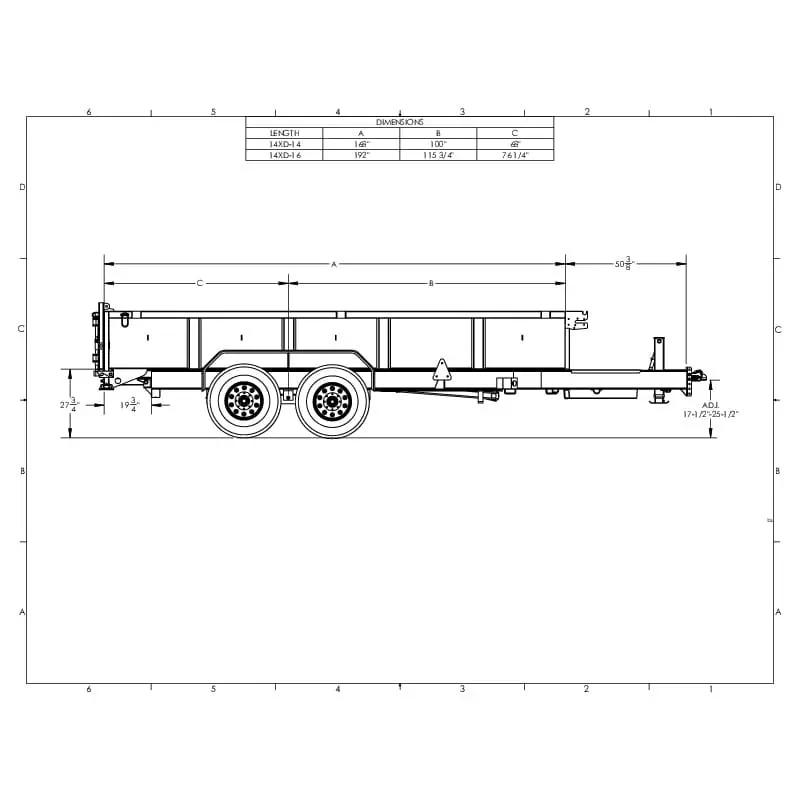

Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width |
---|---|---|---|---|---|---|---|
14XD-14 | Bumperpull | 15400 lbs | 7000 lbs | 4180 lbs | 11220 lbs | 14' | 83" |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
Suspension | Multi-Leaf Spring w/ Equalizer | |
Tongue | 8" I-Beam (10#), Integral with Frame | |
Coupler | Adjustable 2-5/16” 18,000# Demco EZ Latch | Adjustable Pintle in Channel in Lieu of Coupler |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | 12,000# Drop-Leg Jack (Side Wind) | 12,000# Elec/Hyd. Jack BY Stillwell™ |

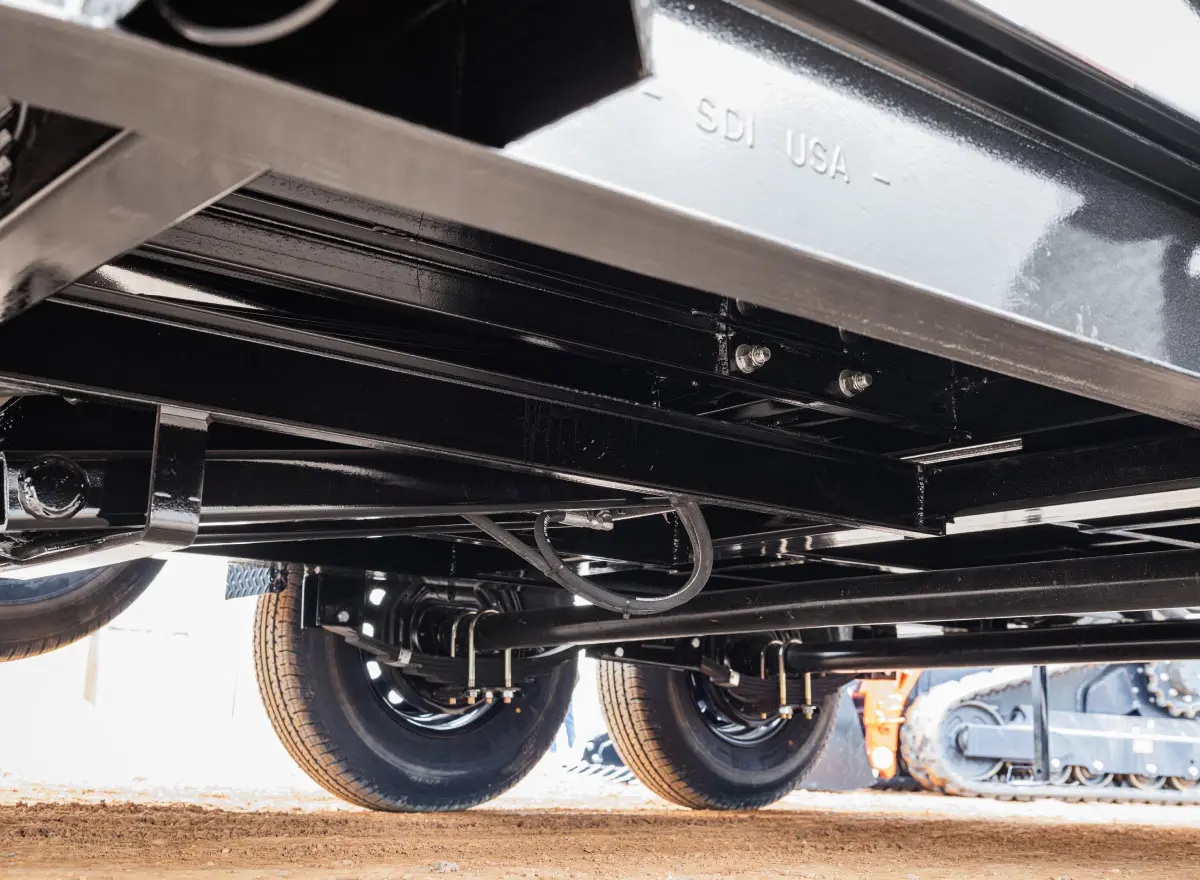

Frame | 8" I-Beam (10#) | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 7 Gauge Smooth Steel | |
Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke | |

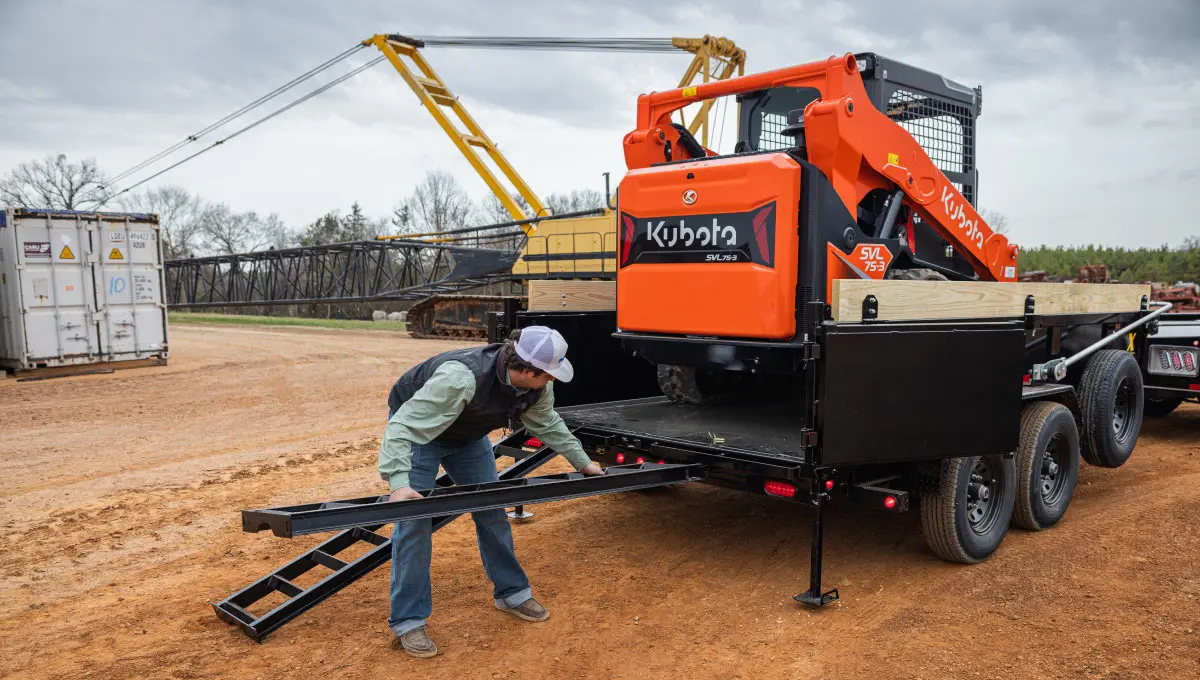

Ramps | 6' Slide in Ramps with integrated Ramp Door | |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range G, Oracle | |
Bolt Pattern | 8-Lug | |
Wheels | Black Mod Steel | |
Spare Mount | Side Spare Tire Mount | |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 5/8" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
J-Hooks | Along sides and rear for Cargo Control | |

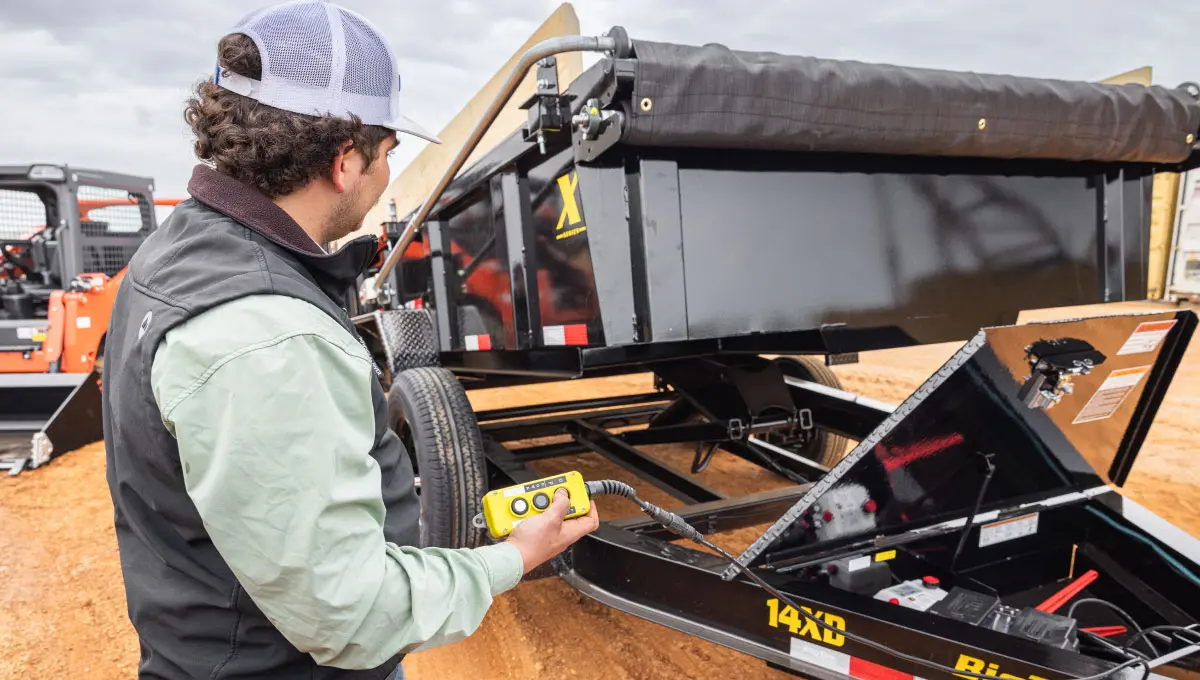

Power | Power Up/Power Down & Gravity Down Hydraulic Pump | |

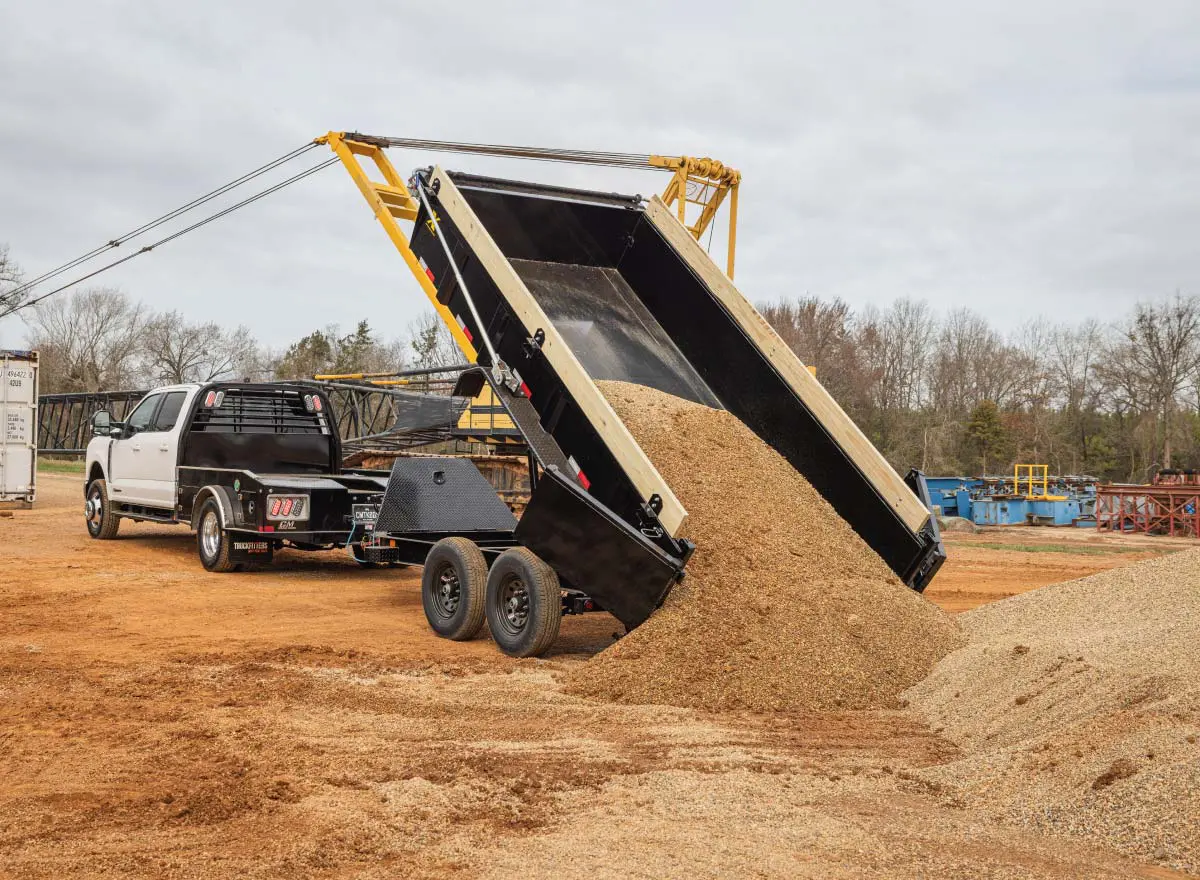

Ram | Self-Contained Scissor | |
Sides | 24" Tall (10 Ga) with formed Channel Supports | |
Stabilizers | Rear Stabilizer Stands | |

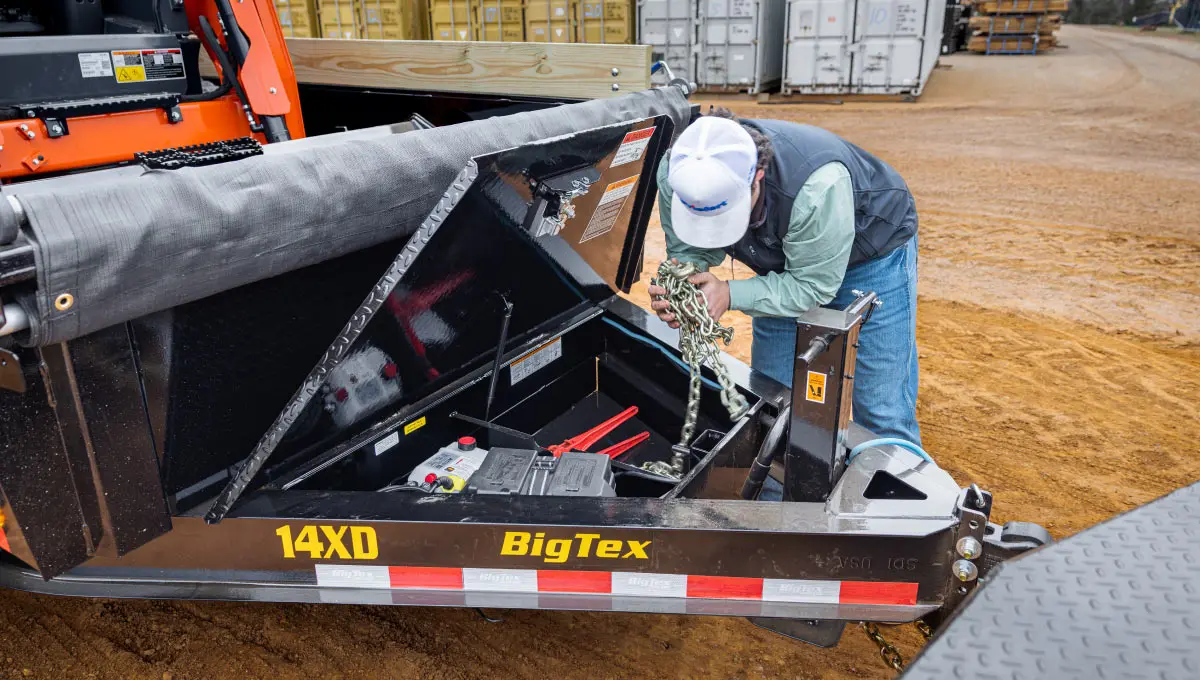

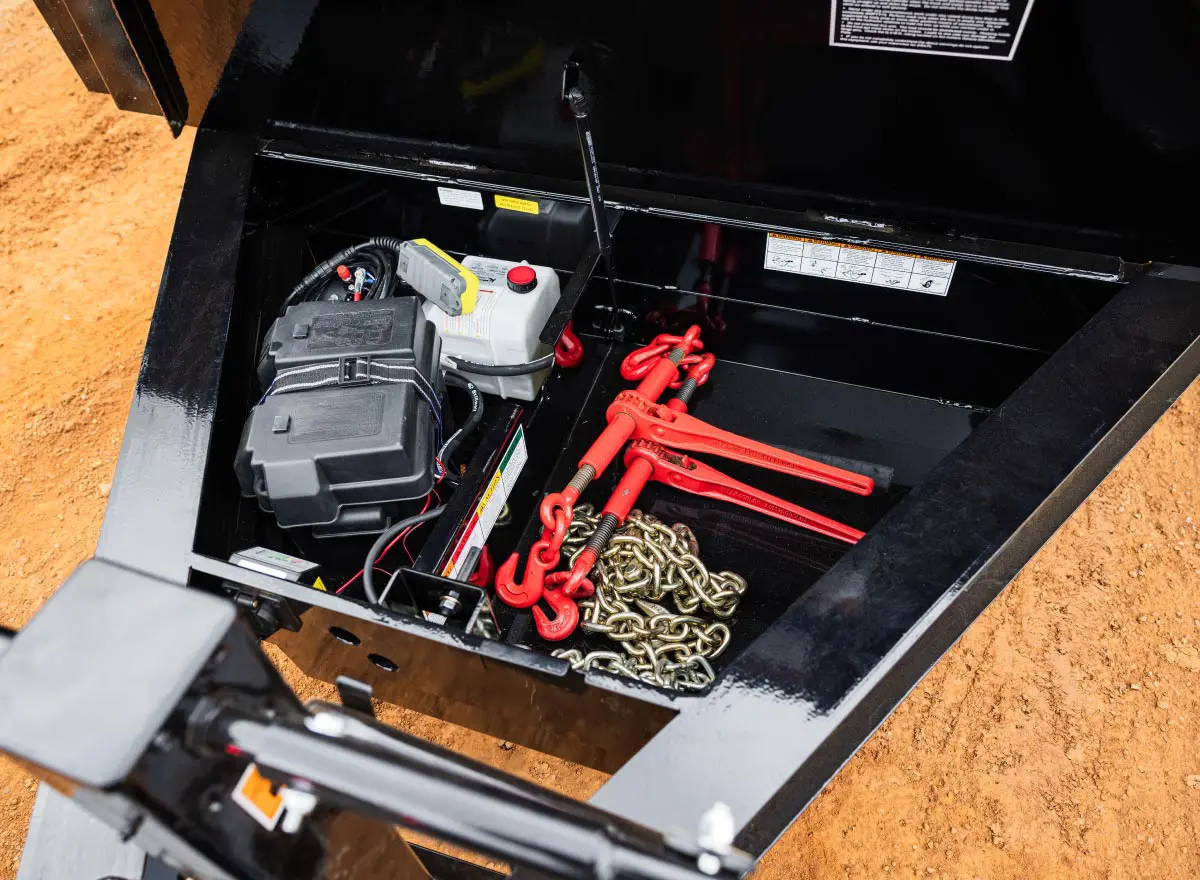

Storage | Full Tongue Tool Box with Locking Lid | |

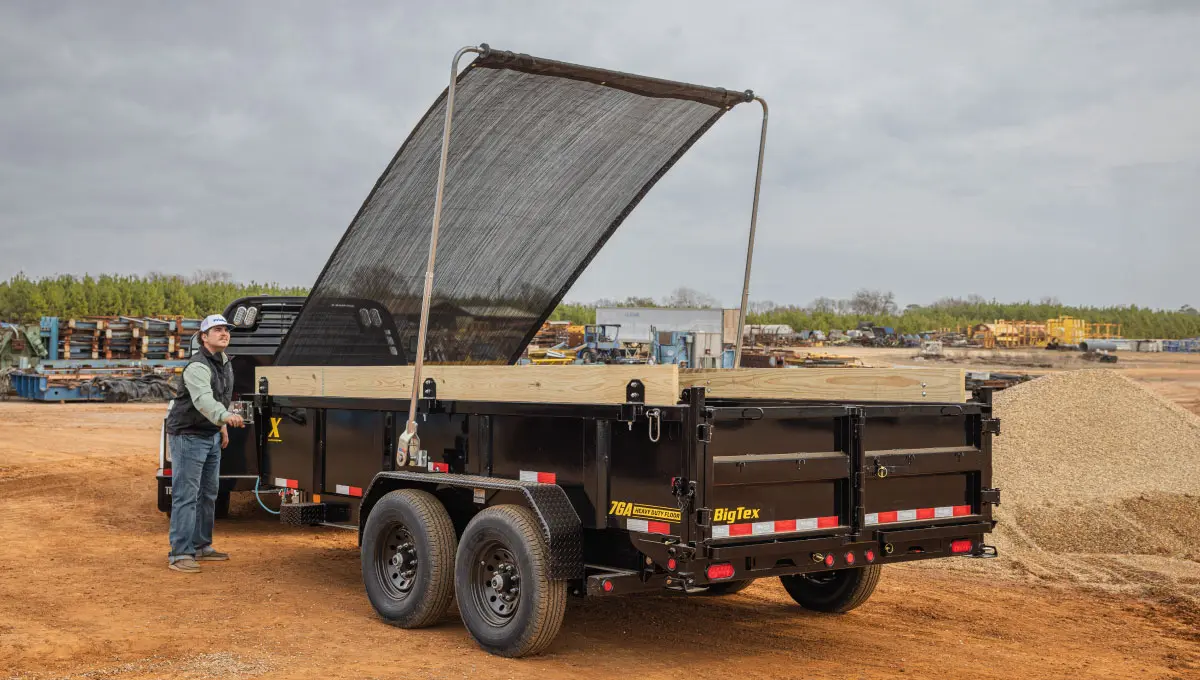

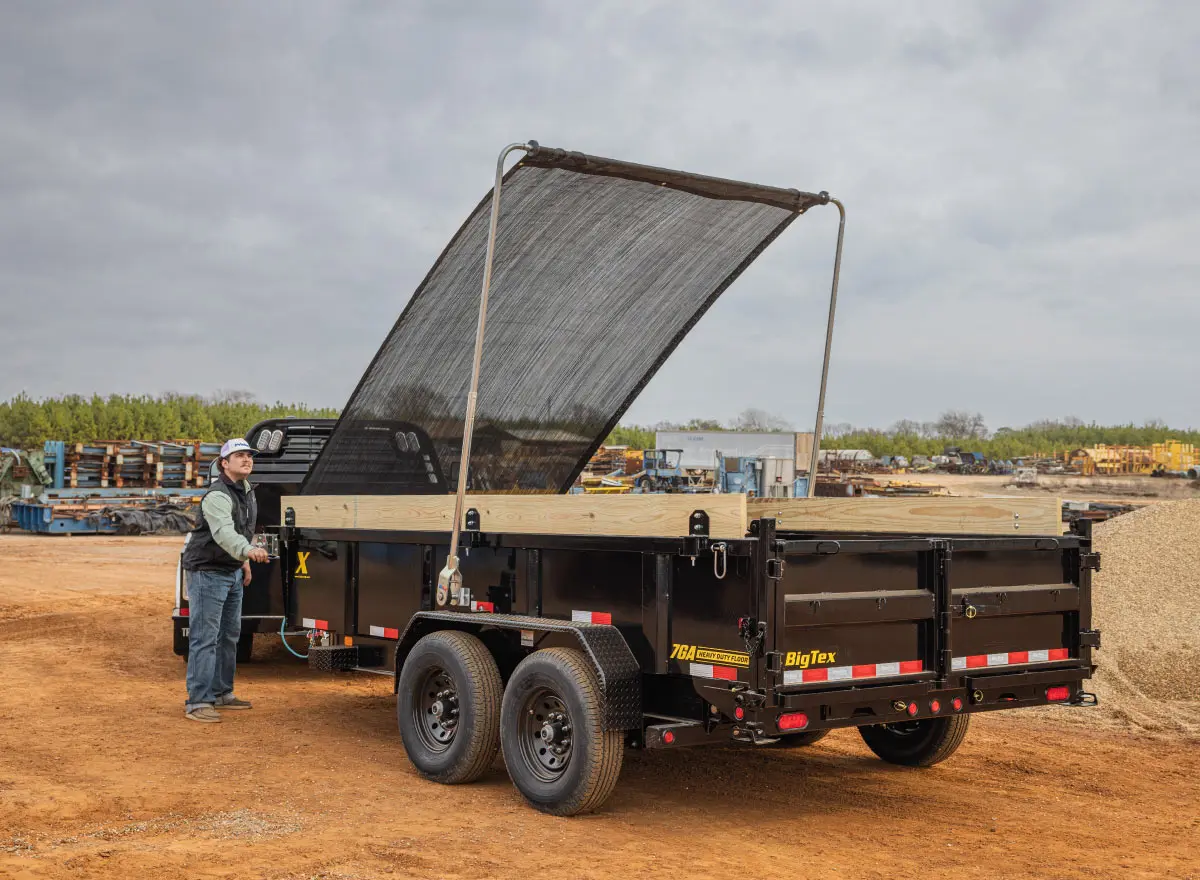

Tarp | Spring Loaded Swing Arm Tarp | |
Top Rail | 3"x 2" Rectangular Tubing |
