Big Tex Heavy Duty Tandem Axle Gooseneck Dump Trailer

14GX

Heavy Duty Tandem Axle Gooseneck Dump

For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer—from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.

14GX

Heavy Duty Tandem Axle Gooseneck Dump

For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer—from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.

14GX 14GX
Big Tex Heavy Duty Tandem Axle Gooseneck Dump Trailer

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
14GX-14 Gooseneck 15900 lbs 7000 lbs 4640 lbs 11260 lbs 14' 83" 168" 100" 68" 51-1/8"
14GX-16 Gooseneck 15900 lbs 7000 lbs 5000 lbs 10900 lbs 16' 83" 192" 115-3/4" 76-1/4" 51-1/8"

Standard Feature Available Options
Axles 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs Drop Axles (Lowers Deck Height to 24" from Ground)
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 8" Seamless I-Beam Integrated w/ Frame (10#)
Coupler Round Adjustable Pin 2-5/16” Gooseneck Coupler Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack Dual 12,000# Drop-Leg Jack (Side Wind) Dual 2-Speed Landing Gear
Frame 8" I-Beam (10#)
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps Not Included 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 8-Lug
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Deck On Neck Removable Deck on the Neck- Bolt On (8' W x 6' L)
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote
Ram Self-Contained Scissor
Sides 24" Tall (10 Ga) with formed Channel Supports 24" Expanded Metal Side Extensions 3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides
Stabilizers Rear Stabilizer Stands
Steps Convenient Side-Step to Access Top Rail
Storage Lockable Pump and Battery Box mounted between front Jacks
Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail 3"x 2" Rectangular Tubing
Steps & Handles Convenient Side-Step to Access Top Rail

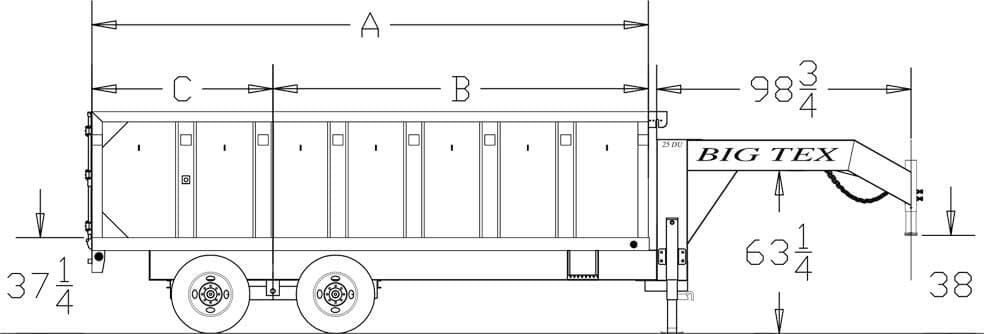

https://www.bigtextrailers.com/wp-content/uploads/2023/07/14gx_specdiagram.jpg
