10LX

Pro Series Tandem Axle Extra Wide Dump

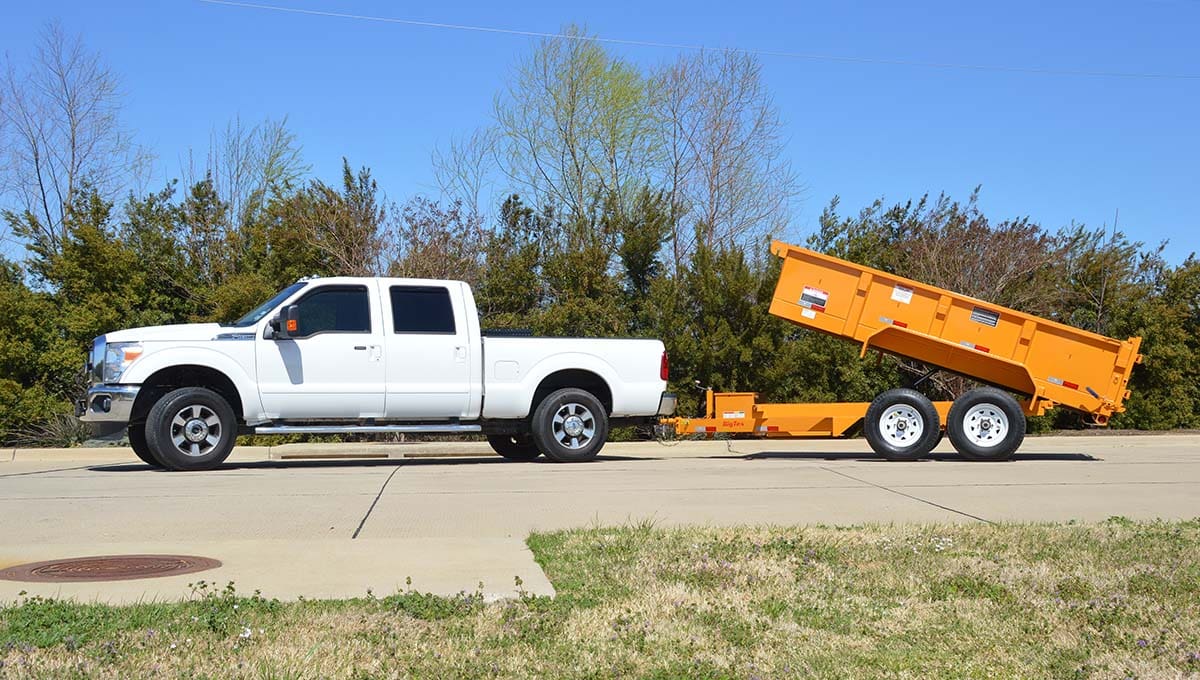

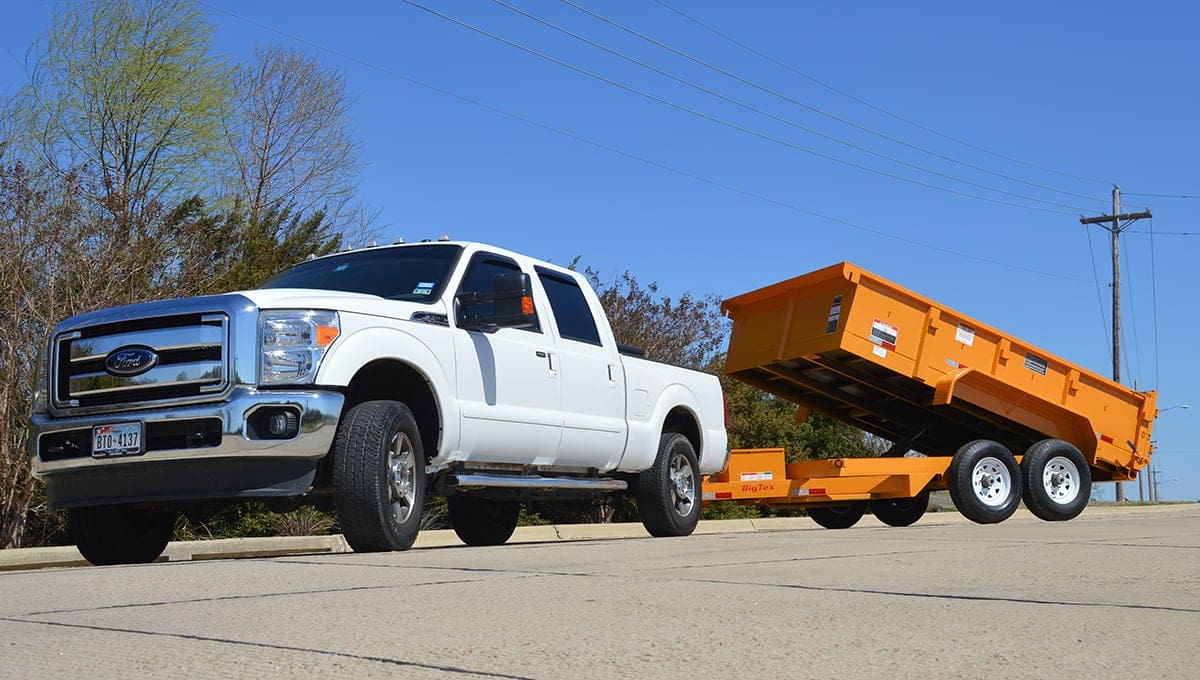

Need an extra-wide trailer for medium loads and larger equipment? Then the 10LX Pro Series Tandem Axle Extra Wide Dump Trailer is for you. A medium-duty dump trailer, the 10LX comes with an 83’’ wide bed, giving you extra cargo width for bigger loads. Plus, it’s equipped with a self-contained electric and hydraulic scissor hoist that’s purpose-built to make dumping and spreading agregates (such as sand, gravel, crushed stone, and slag) an easier task than ever before.

10LX

Pro Series Tandem Axle Extra Wide Dump

Need an extra-wide trailer for medium loads and larger equipment? Then the 10LX Pro Series Tandem Axle Extra Wide Dump Trailer is for you. A medium-duty dump trailer, the 10LX comes with an 83’’ wide bed, giving you extra cargo width for bigger loads. Plus, it’s equipped with a self-contained electric and hydraulic scissor hoist that’s purpose-built to make dumping and spreading agregates (such as sand, gravel, crushed stone, and slag) an easier task than ever before.

10LX 10LX

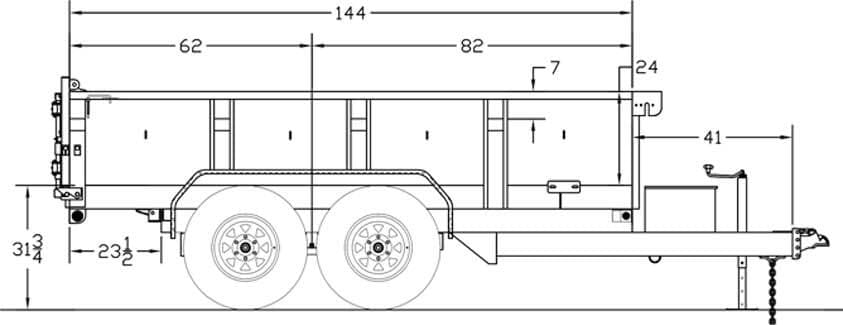

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
10LX-12 Bumperpull 9990 lbs 3500 lbs 6830 lbs 12' 83" 144 82 62 41
10LX-10 Bumperpull 9990 lbs 3160 lbs 6490 lbs 10' 83" 120 41

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler Adjustable Forged 2-5/16”
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 8,000# Top Wind Drop Leg
Frame 6" Channel
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke

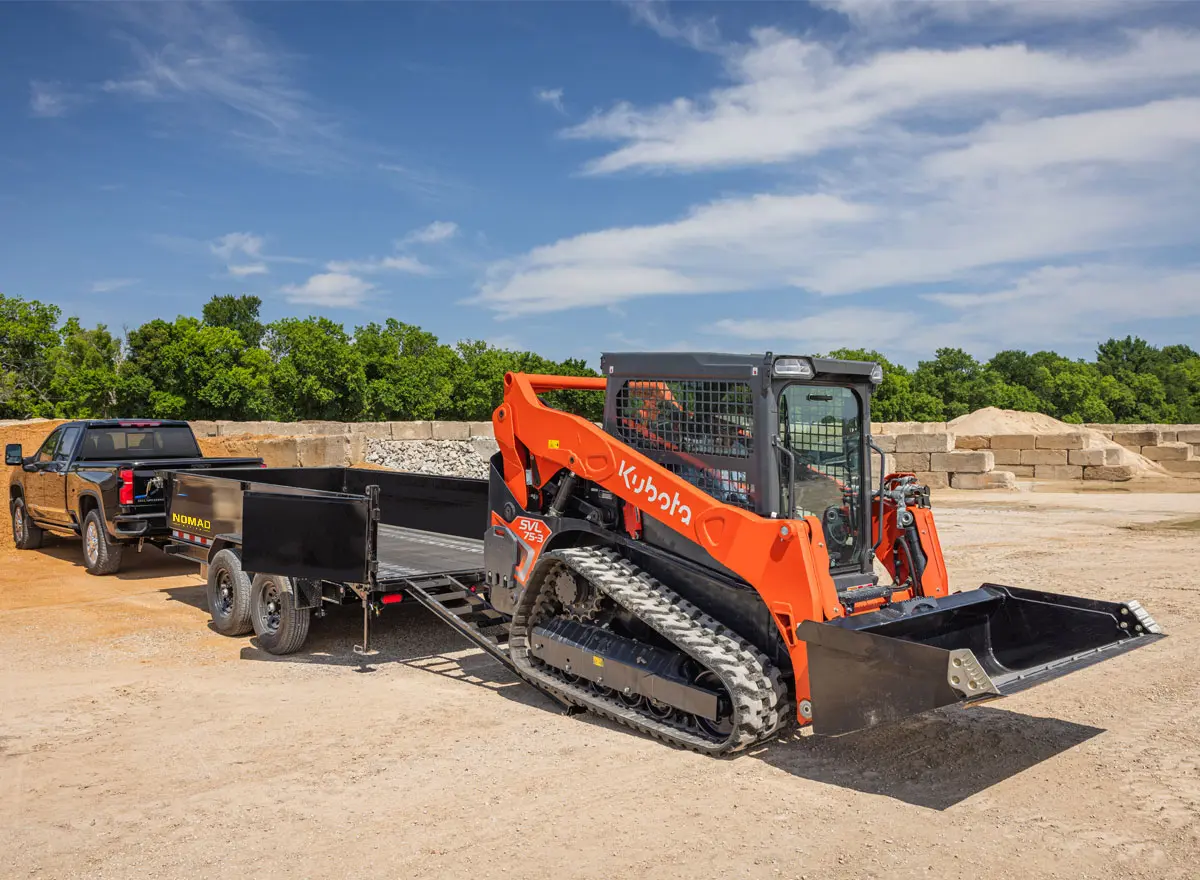

Ramps 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 6-Lug
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire (ST235/80 R-15 LR-E)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black

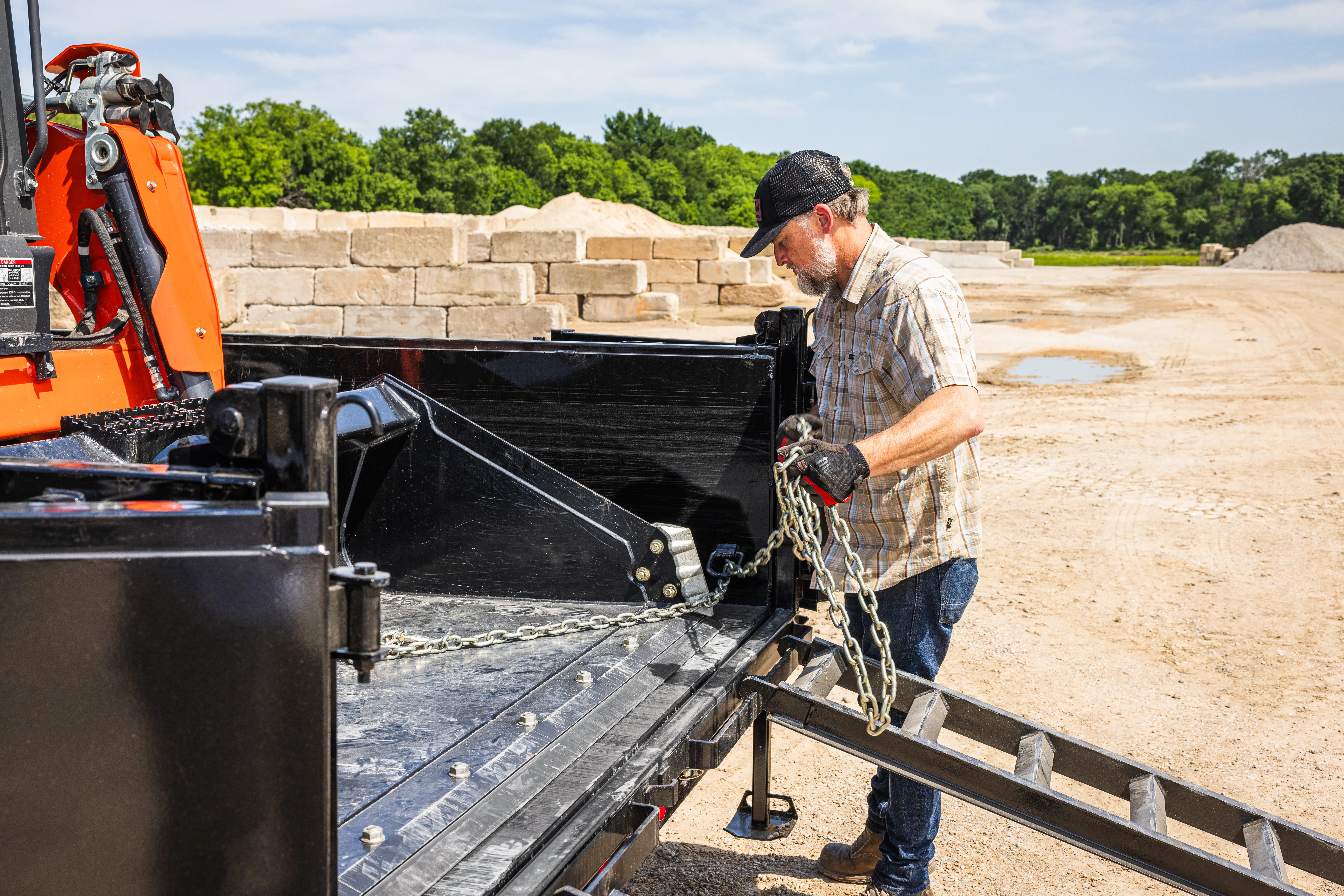

Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger

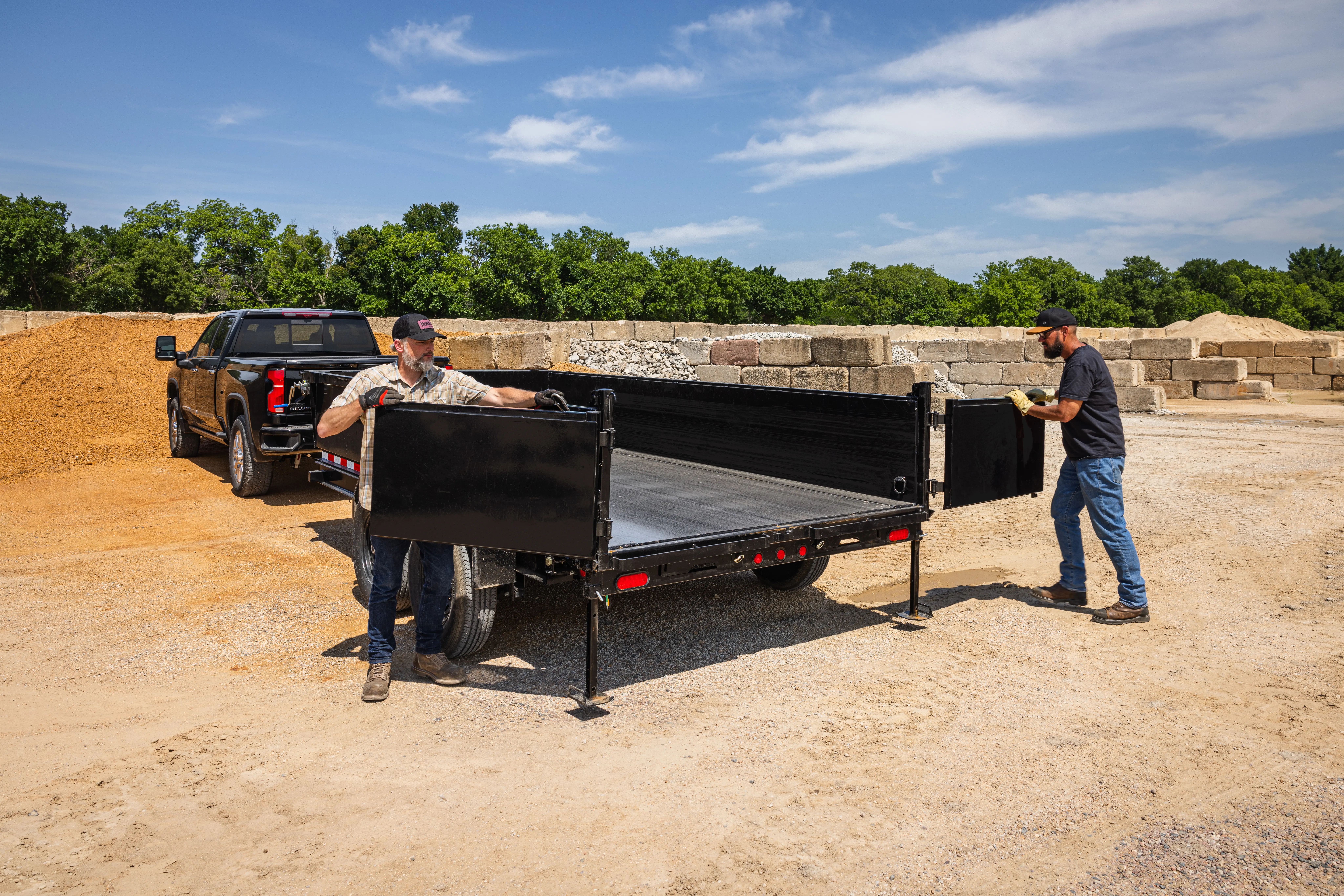

Gate Rear Combo Gate (Barn Doors & Spreader Gate)

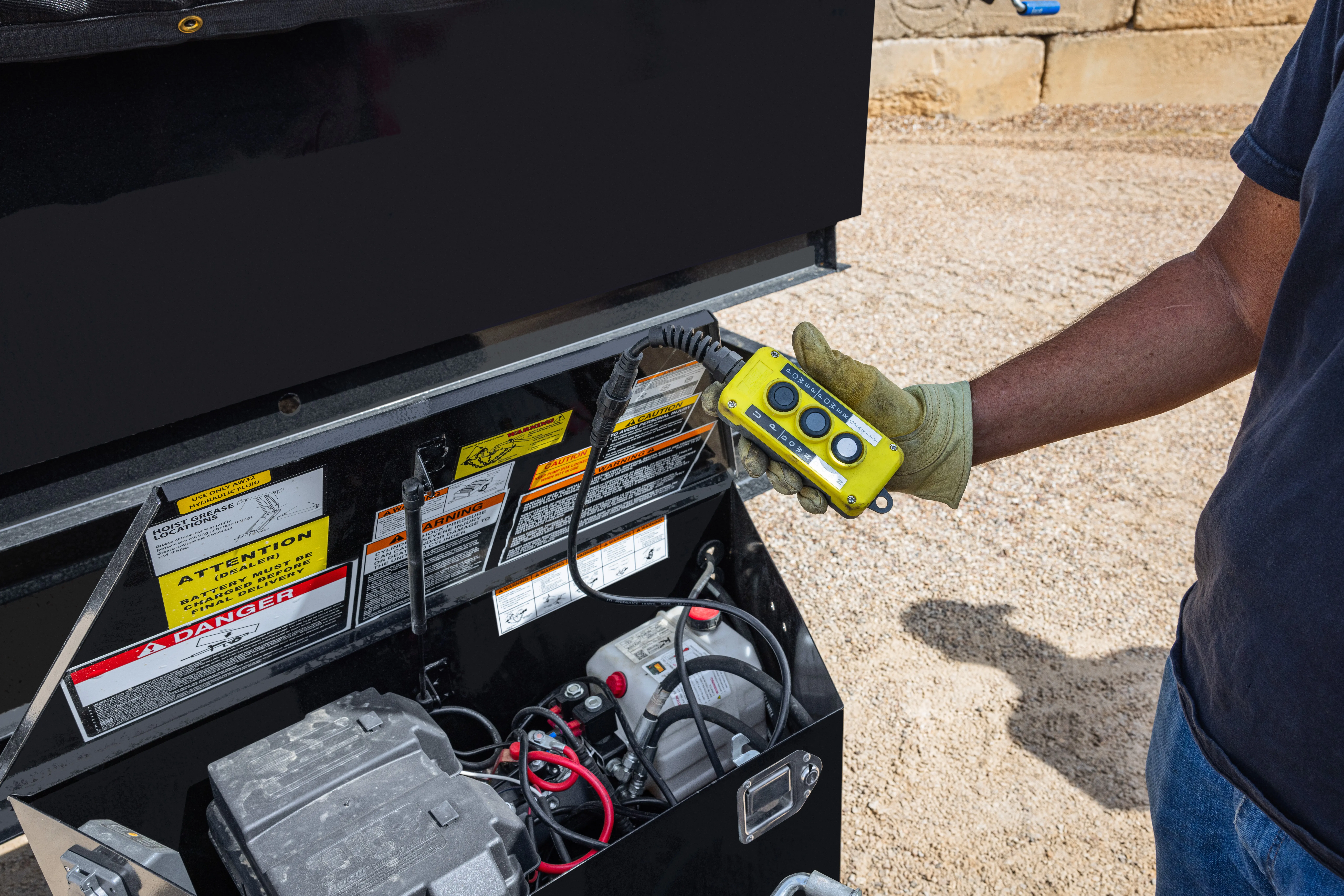

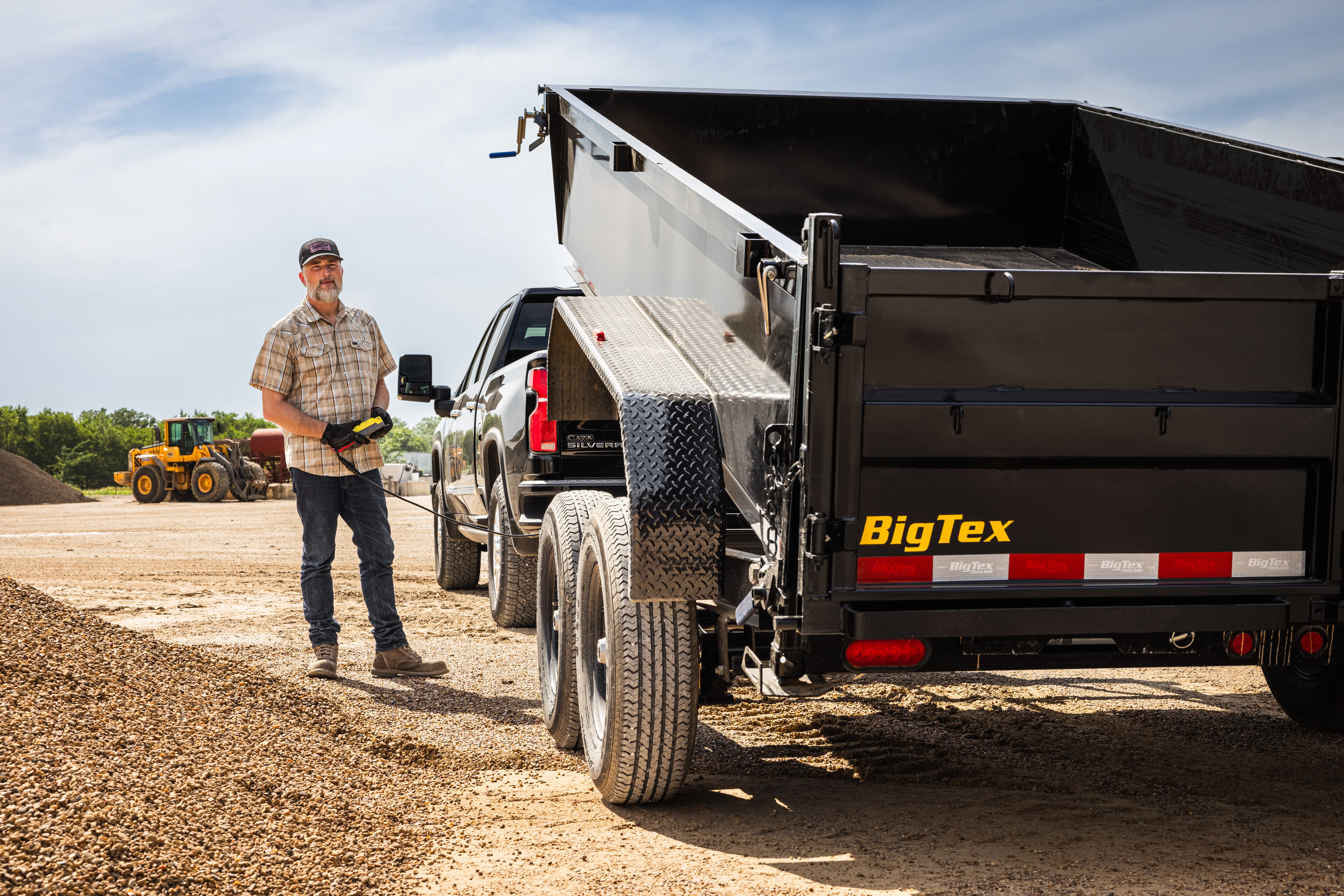

Power Power Up/Gravity Down Movement 5 Watt Solar Charger Wireless Remote

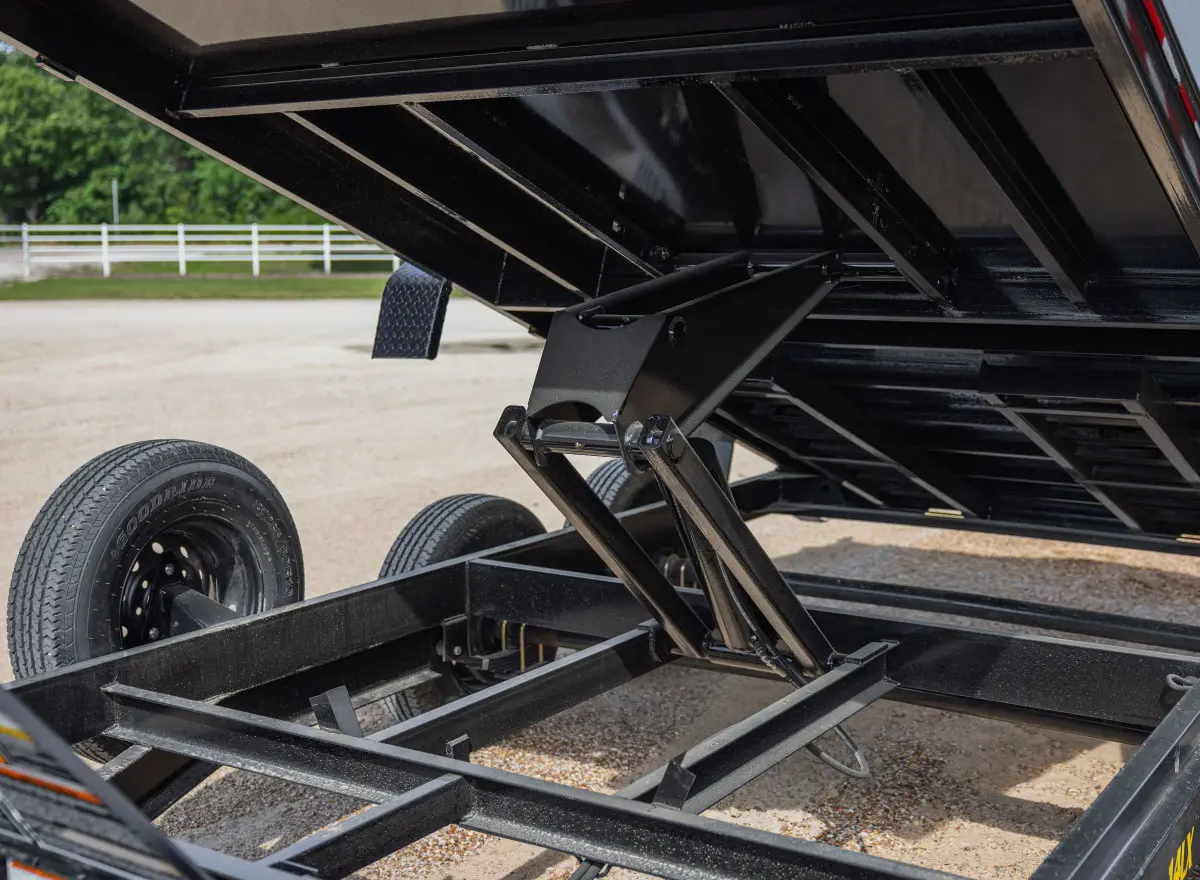

Ram Self-Contained Single Cylinder Lift
Sides 24" Tall Sides (12-Gauge) 24" Expanded Metal Side Extensions 3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Tarp Mounting Brackets on Front of Bed Crank Style Roll Tarp
Top Rail 2" x 2" Square Tubing
https://www.bigtextrailers.com/wp-content/uploads/2023/07/10lx_specdiagram.jpg
