Trailers / Dump Trailers / Roll-Off Dump Trailers

16RD 16RD
Big Tex Roll-Off Gooseneck Dump Trailer (and Bin)

16RD

Roll-Off Gooseneck Dump Trailer (and Bin)

Featuring heavier-weight axles (for additional load capacity) and a gooseneck configuration for superior stability, the 16RD Roll-Off Gooseneck Dump Trailer is ready to work hard—from morning till night, 24/7. Specifically designed to meet the needs of those in the construction and clean-up businesses, the 16RD is tailored for professionals requiring efficient dump trailer solutions that last for the long haul. That’s why this heavy-duty trailer comes standard with dump bins built tough with durable 10-gauge steel and durable I-beam frame design to hold up to the rigors of your work. Plus, its industry-leading heavy-duty winch is designed for longevity—helping you keep your operations going for years to come.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width
13BN (16RD) 2280 lbs
16RD-14 Gooseneck 17500 lbs 8000 lbs 3760 lbs 11460 lbs 14' 83"

Standard Feature Available Options
Axles 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Side Wind)
Frame 8" I-Beam (10#)
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range E Radial Tires
Bolt Pattern 8-Lug
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST215/75 R-17.5 LR-H)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch
Charger (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch
Gate Barn Doors
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote for Hoist Wireless Remote for Winch
Ram Self-Contained Scissor
Sides 48" Tall (12 Ga) with formed Channel Supports
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders
Top Rail 4"x 3" Rectangular Tubing
Battery Box Tilt Bed mounted Battery Box for Independently wired Winch Power System
Rollers Greaseable Rollers
Steps & Handles Convenient Side-Step to Access Top Rail
Winch Specially Designed High Duty Cycle 15K Winch

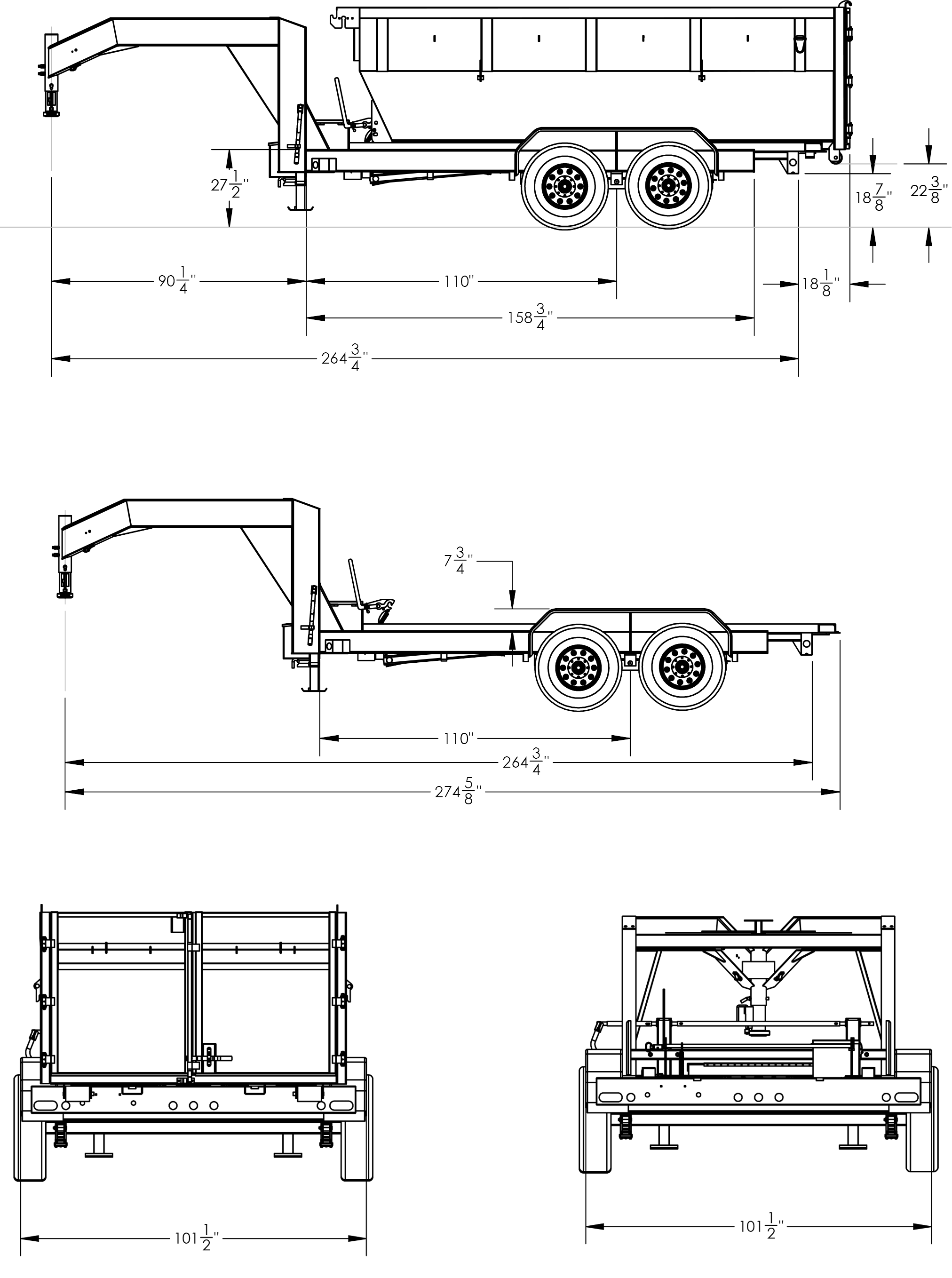

https://www.bigtextrailers.com/wp-content/uploads/2023/07/16RD_specdiagram.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
