Trailers / Dump Trailers / Roll-Off Dump Trailers

16RB 16RB

16RB

Roll-Off Dump Trailer (and Bin)

For those in the construction, junk removal, and dumpster rental business that need a bumper pull roll-off trailer with a more carrying capacity, you’ve come to the right place. With heavier-weight axles that give additional load capacity, the 16RB Roll-Off Bumper Pull Dump is what you’ve been waiting for. It’s fully featured and designed from the ground up with professional-grade parts to meet the challenging demands of day-to-day use. The 16RB combines a durable and strong I-beam frame design, scissor-hoist lifting system, and industry-leading heavy-duty winch to provide an efficient solution that gets more done—all with a single bumper pull roll-off trailer.

16RB

Roll-Off Dump Trailer (and Bin)

For those in the construction, junk removal, and dumpster rental business that need a bumper pull roll-off trailer with a more carrying capacity, you’ve come to the right place. With heavier-weight axles that give additional load capacity, the 16RB Roll-Off Bumper Pull Dump is what you’ve been waiting for. It’s fully featured and designed from the ground up with professional-grade parts to meet the challenging demands of day-to-day use. The 16RB combines a durable and strong I-beam frame design, scissor-hoist lifting system, and industry-leading heavy-duty winch to provide an efficient solution that gets more done—all with a single bumper pull roll-off trailer.

16RB 16RB

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width
13BN (16RB) 2280 lbs 13 lbs
16RB-14 Bumperpull 17500 lbs 3310 lbs 14' 83"

Standard Feature Available Options
Axles 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler 2-5/16" Ball, Adjustable Demco EZ Latch Coupler Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Side Wind) 12,000# Elec/Hyd. Jack BY Stillwell™
Frame 8" Seamless I-Beam (10#)
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range E Radial Tires
Bolt Pattern 8-Lug
Spare Mount Side Spare Tire Mount
Spare Tire Spare Tire (ST215/75 R-17.5 LR-H)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch
Charger (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch
Gate Barn Doors
Power Power Up/Power Down Movement Wireless Remote for Hoist Wireless Remote for Winch
Ram Self-Contained Scissor
Sides 48" Tall (12 Ga) with formed Channel Supports
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders
Top Rail 4"x 3" Rectangular Tubing
Battery Box Tilt Bed mounted Battery Box for Independently wired Winch Power System
Rollers Greaseable Rollers
Steps & Handles Convenient Side-Step to Access Top Rail
Winch Specially Designed High Duty Cycle 15K Winch

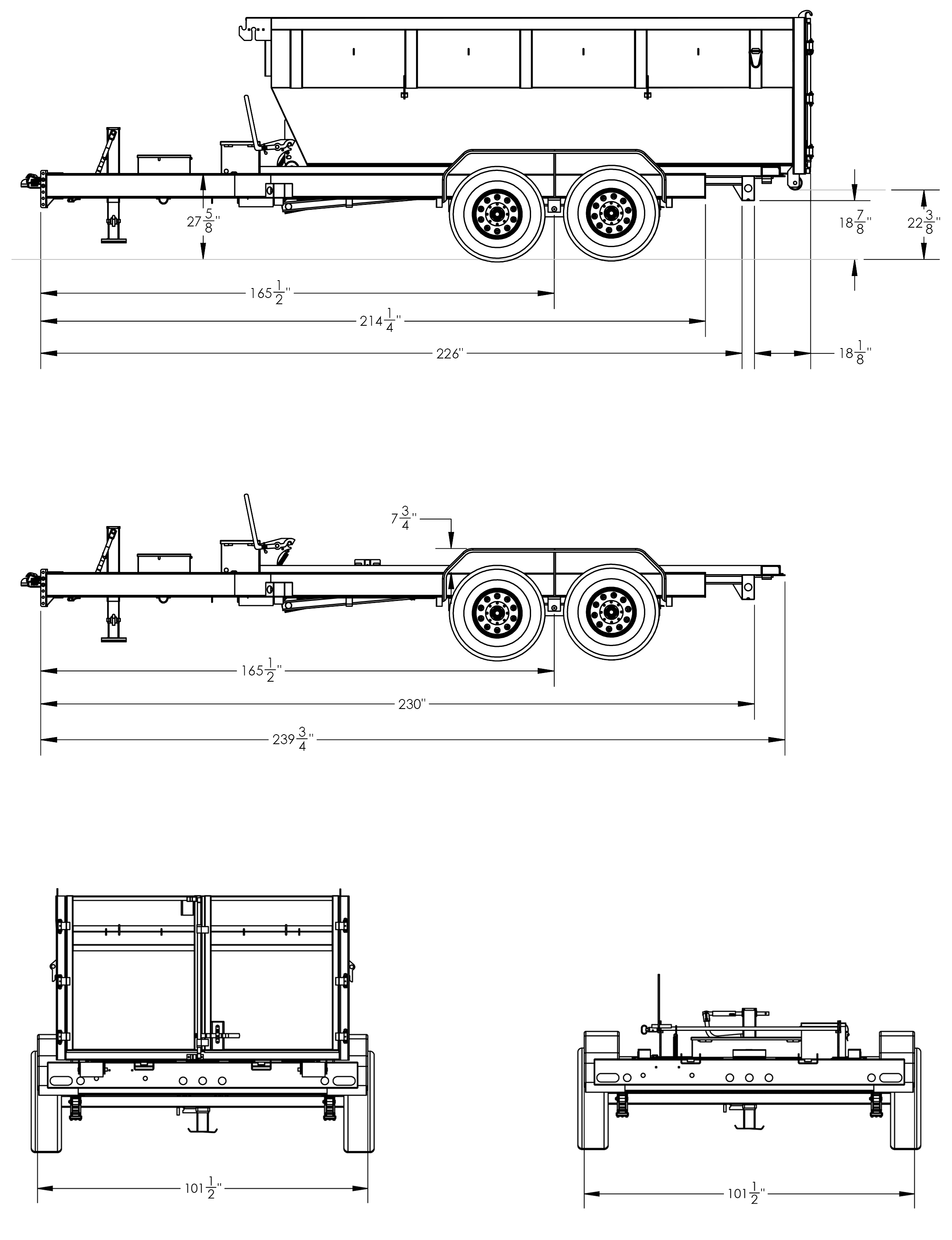

https://www.bigtextrailers.com/wp-content/uploads/2023/07/16RB_specdiagram.png
