![Big Tex Gooseneck Roll Off Dump Trailer](https://www.bigtextrailers.com/wp-content/uploads/2023/07/14RD-Roll-Off-Dump-Trailer.png)
14RD
Roll-Off Gooseneck Dump Trailer (and Bin)
Gooseneck configured for superior stability and carrying weight, the 14RD Roll-Off Gooseneck Dump Trailer features a 15,900 lbs. G.V.W.R. to meet the demands of the construction, junk removal, and the dumpster rental business. Built to service multiple job sites with a single trailer, it’s designed with professional-grade parts to hold up against the challenges of day-to-day use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the gooseneck configured 14RD gets the job done when the going gets tough.
Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width |
---|---|---|---|---|---|---|---|
13BN (14RD) | 2280 lbs | ||||||
14RD-14 | Gooseneck | 15900 lbs | 7000 lbs | 3760 lbs | 9860 lbs | 14' | 83" |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Coupler | Round Adjustable Pin 2-5/16” Gooseneck Coupler | |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | 12,000# Drop-Leg Jack (Side Wind) | |
Frame | 8" I-Beam (10#) | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 10 Gauge Smooth Steel | |
Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
Bolt Pattern | 8-Lug | |
Spare Mount | Side Spare Tire Mount | |
Spare Tire | Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) | |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
Battery | 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch | |
Charger | (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch | |
Gate | Barn Doors | |
Power | Power Up/Power Down & Gravity Down Hydraulic Pump | Wireless Remote for Hoist Wireless Remote for Winch |
Ram | Self-Contained Scissor | |
Sides | 48" Tall (12 Ga) with formed Channel Supports | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders | |
Top Rail | 4"x 3" Rectangular Tubing | |
Battery Box | Tilt Bed mounted Battery Box for Independently wired Winch Power System | |
Rollers | Greaseable Rollers | |
Steps & Handles | Convenient Side-Step to Access Top Rail | |
Winch | Specially Designed High Duty Cycle 15K Winch |

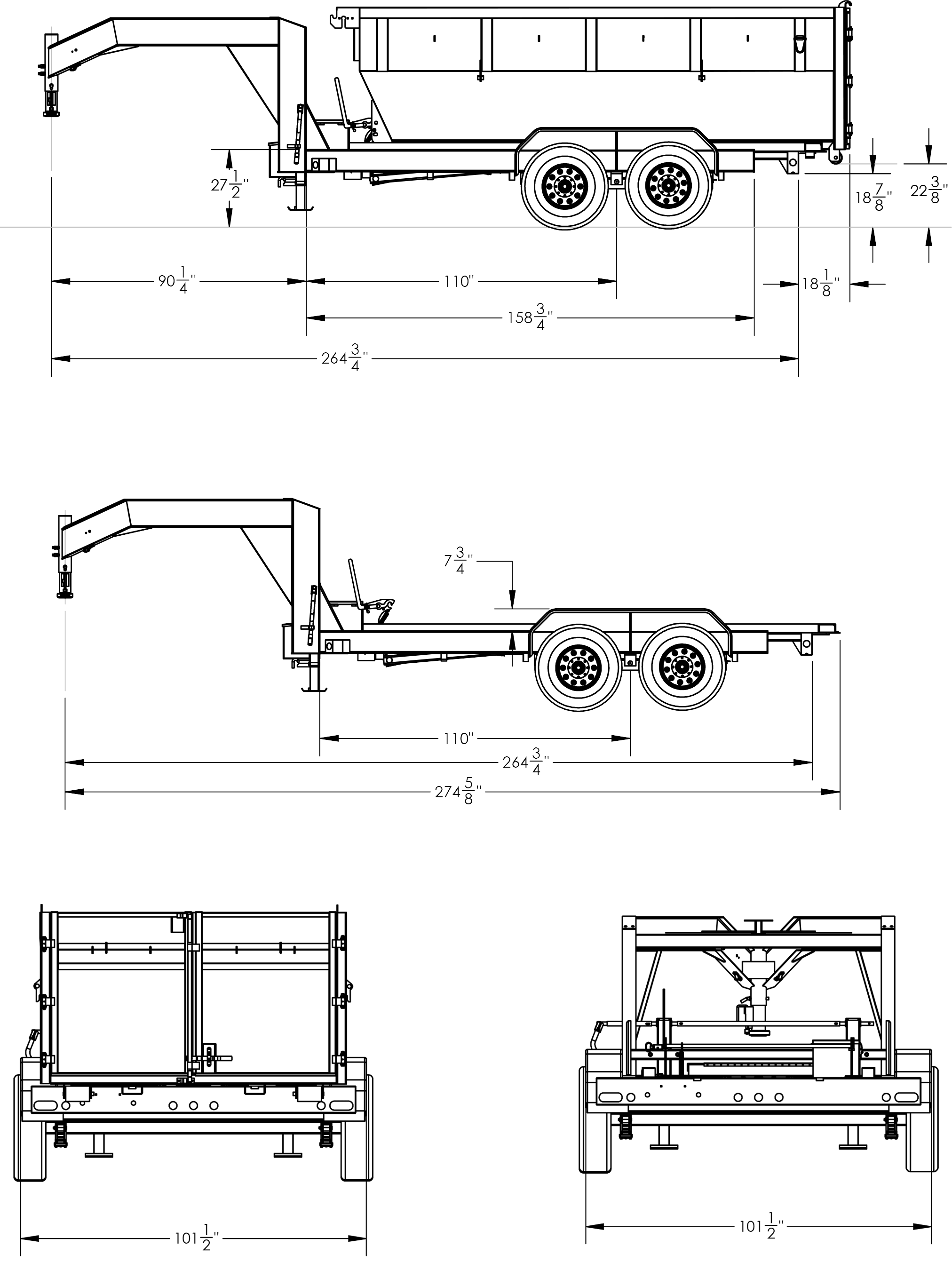

![https://www.bigtextrailers.com/wp-content/uploads/2023/07/14RD__specdiagram.png](https://www.bigtextrailers.com/wp-content/uploads/2023/07/14RD__specdiagram.png)
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
