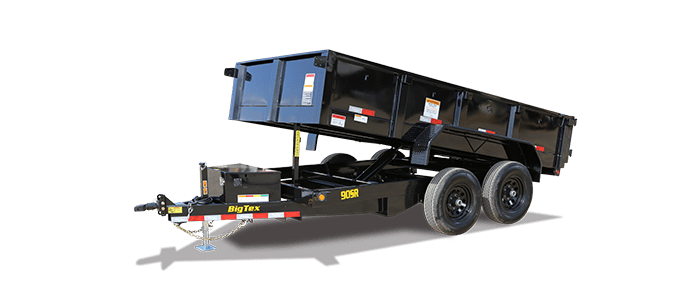

90SR
Tandem Axle Single Ram Dump
Give your back a break with the 90SR Tandem Axle Single Ram Dump Trailer, a light-duty compact dump trailer equipped with a straight ram hydraulic lifting system that makes dump outs easier than ever before. With the strength and durability needed for hauling and dumping mulch, dirt, and gravel, this reliable trailer is built to get the job done for those at home or on a farm. And if you need to haul small equipment, say no more. An optional slide-in ramp package allows you to easily transport a piece of smaller equipment to wherever needed.
With you for the long haul

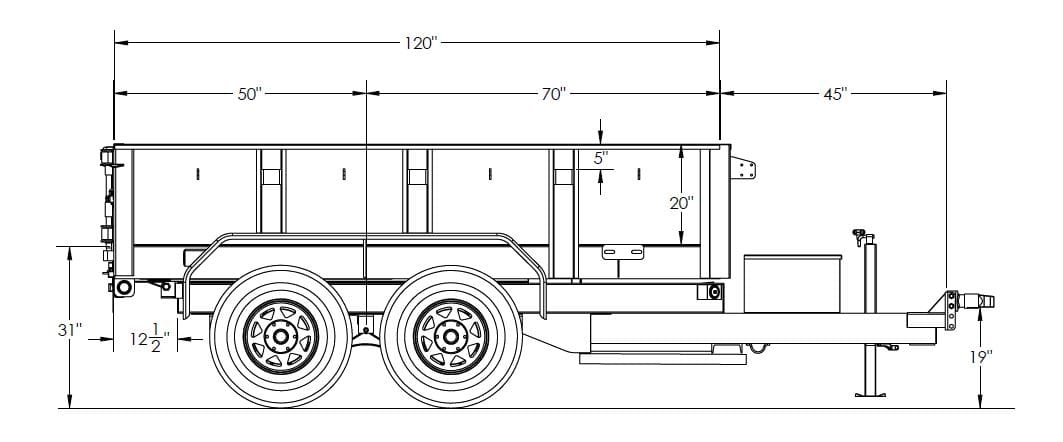

Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
---|---|---|---|---|---|---|---|---|---|---|---|
90SR-10 | Bumperpull | 9990 lbs | 5200 lbs | 2570 lbs | 7420 lbs | 10' | 72" | 120 | 70 | 50 | 45 |
90SR-12 | Bumperpull | 9990 lbs | 5200 lbs | 2930 lbs | 7060 lbs | 12' | 72" | 120 | 70 | 50 | 45 |
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Tongue | 6" Channel | |
Coupler | Adjustable Forged | |
Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) | |
Jack | 8,000# Top Wind | |
Frame | 6x2 Rectangular Tubing ILO 6" channel | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 12 Gauge Smooth Steel | |
Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke | |
Ramps | Not Included | 6.5’ Slide In Ramp Package |
Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST225/75 R-15 Load Range D Radial Tires | |
Bolt Pattern | 6-Lug | |
Wheels | Black Mod Steel | |
Spare Mount | Side Spare Tire Mount | |
Spare Tire | Not Included | Spare Tire (ST225/75R-15 LR-D) |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete System with Breakaway Cable | |
Battery | 12V Deep Cycle | |
Charger | 5A 110V on Board Battery Charger | |
Gate | Double Rear Doors | |
J-Hooks | Along sides and rear for Cargo Control | |
Power | Power Up/Power Down & Gravity Down Hydraulic Pump | |
Ram | Self-Contained Single Cylinder Lift | |
Sides | 20" Tall Sides (12-Gauge) | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Not Included | Crank Style Roll Tarp |
Top Rail | 2" x 2" Square Tubing |
