Trailers / Dump Trailers / Commercial-Grade Dump Trailers

16GX 16GX
Commercial Grade Dump Trailer from Big Tex

16GX

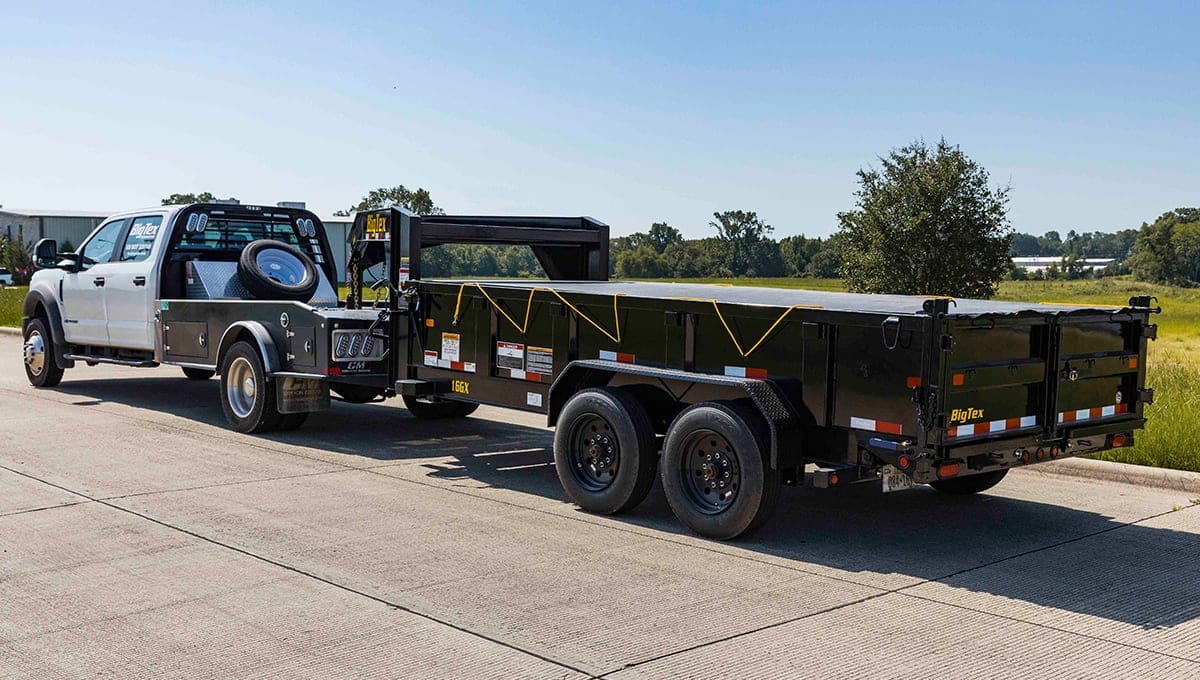

Super Duty Tandem Axle Gooseneck Dump

The 16GX Super Duty Tandem Axle Gooseneck Dump takes strength and durability to the next level. A heavy-weight hauler featuring a robust and long-lasting structure and frame, it’s built for heavy-duty hauling with 12,220 lbs of load capacity. And all that strength is matched together with a user-friendly experience; the 16GX is packed with a feature-rich dump box that makes loading, securing, and unloading easier than ever before. For professionals working in challenging working conditions, it’s a match made in heaven—a tough trailer made for tough jobs.

16GX

Super Duty Tandem Axle Gooseneck Dump

The 16GX Super Duty Tandem Axle Gooseneck Dump takes strength and durability to the next level. A heavy-weight hauler featuring a robust and long-lasting structure and frame, it’s built for heavy-duty hauling with 12,220 lbs of load capacity. And all that strength is matched together with a user-friendly experience; the 16GX is packed with a feature-rich dump box that makes loading, securing, and unloading easier than ever before. For professionals working in challenging working conditions, it’s a match made in heaven—a tough trailer made for tough jobs.

16GX 16GX
Commercial Grade Dump Trailer from Big Tex

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
16GX-14 Gooseneck 17500 lbs 8000 lbs 4980 lbs 12520 lbs 14' 83" 168" 100" 68" 51-1/8"
16GX-16 Gooseneck 17500 lbs 8000 lbs 5280 lbs 12220 lbs 16' 83" 192" 115-3/4" 76-1/4" 51-1/8"

Standard Feature Available Options
Axles 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on Both Axles
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 10" I-Beam Neck
Coupler Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack Dual 12,000# Drop-Leg Jack (Side Wind) Dual 2-Speed Landing Gear
Frame 8" I-Beam (10#)
Cross-Members 3" Channel on 16" Centers
Floor 7 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps Not Included 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern 8-Lug
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST215/75 R-17.5 LR-H)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Deck On Neck Not Included Removable Deck on the Neck- Bolt On (8' W x 6' L)
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote
Ram Self-Contained Scissor

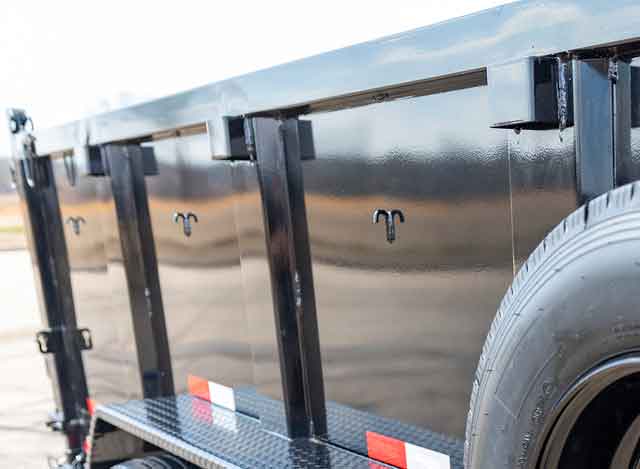

Sides 24" Tall (10 Ga) with formed Channel Supports 3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides
Stabilizers Rear Stabilizer Stands
Steps Convenient Side-Step to Access Top Rail
Storage Lockable Pump and Battery Box mounted between front Jacks
Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail 3"x 2" Rectangular Tubing
Steps & Handles Convenient Side-Step to Access Top Rail
https://www.bigtextrailers.com/wp-content/uploads/2023/07/16GX_specdiagram.png
