Trailers / Dump Trailers / Commercial-Grade Dump Trailers

14LX 14LX

14LX

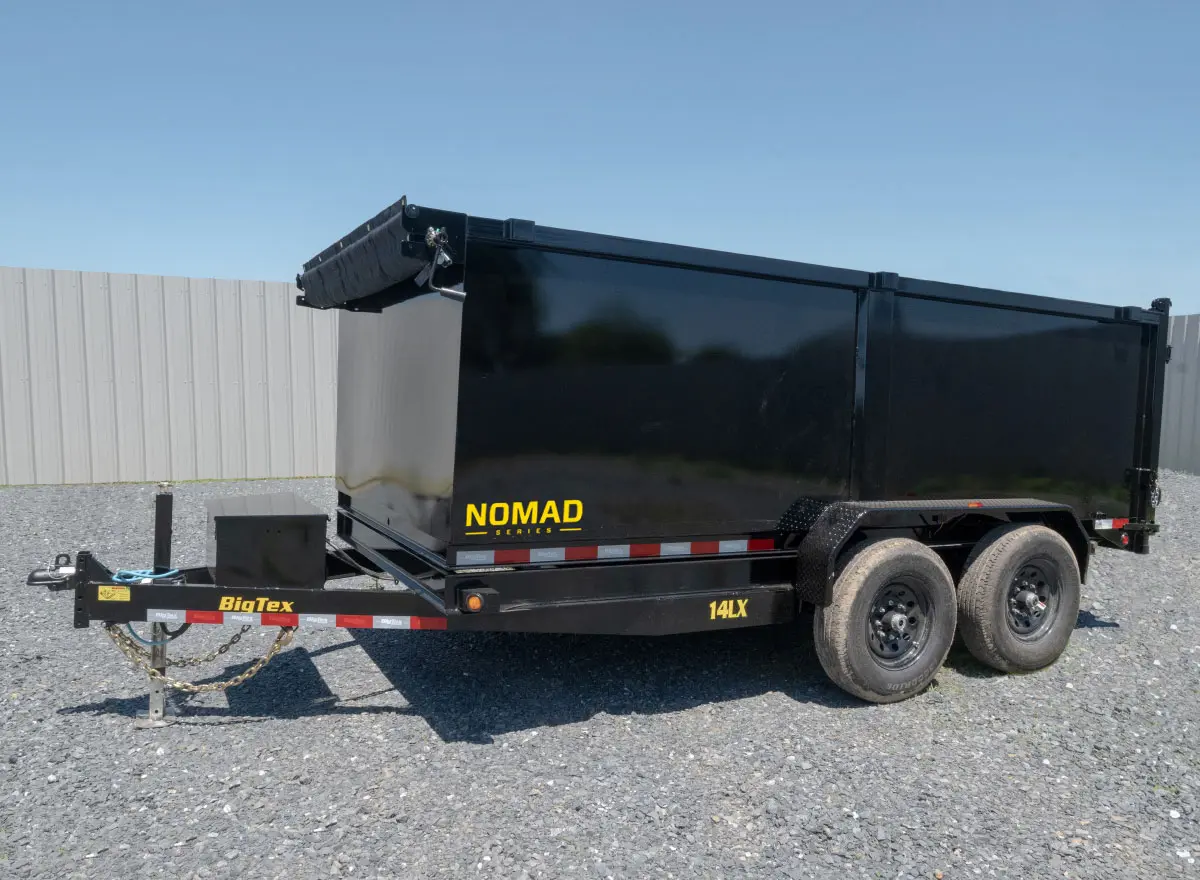

Channel Tandem Axle Dump Trailer

Tested Big Tex Tough. Value Guaranteed. The 14LX offers unbeatable value without sacrificing quality. Designed with a robust 6-inch channel frame and tongue, it ensures exceptional strength and durability. Its affordable price point includes essential features such as a hydraulic scissor lift system with power up, power down, and gravity down capabilities, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Perfect for hauling both equipment and loose materials, the 14LX guarantees reliable performance for the toughest jobs. Discover the value-driven 14LX and experience premium quality at an economical price.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
14LX-14 Bumperpull 14000 lbs 7000 lbs 3660 lbs 10340 lbs 14' 83" 168" 100" 68" 51-1/8"

Standard Feature Available Options
Axles 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes on All Hubs
Suspension Multi-Leaf Spring w/ Equalizer
Tongue 6" Channel
Coupler Adjustable 2-5/16" Coupler Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains 3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack 7,000# Top Wind Drop Leg Jack
Frame 6" Channel
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke
Ramps 6.5' Slide in Ramps with Integrated Ramp Door
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range-E 10 Ply Radial Tires
Bolt Pattern 6 Bolt
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E 10 Ply)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump 5 Watt Solar Charger Wireless Remote
Ram Self-Contained Scissor
Sides 24" Tall (10 Ga) with formed Channel Supports 4' Solid Sheet Metal Sides Board Bracket Kit (6)
Stabilizers Rear Stabilizer Stands
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail 3"x 2" Rectangular Tubing
