Heavy Duty Ultra Low Profile Dump
It’s time for a trailer that makes the heaviest hauls easier to handle—it’s time for the 16LP Super Duty Ultra Low Profile Dump Trailer. Bringing together a heavy-duty frame and durable construction with an ultra-low profile for easy loading, unloading, and transporting, the 16LP delivers the strength and premium features that construction and landscaping professionals require for their daily grind. And with an integrated frame and tongue, this trailer is a robust, long-lasting that’s ready for the toughest tasks you can throw at it.

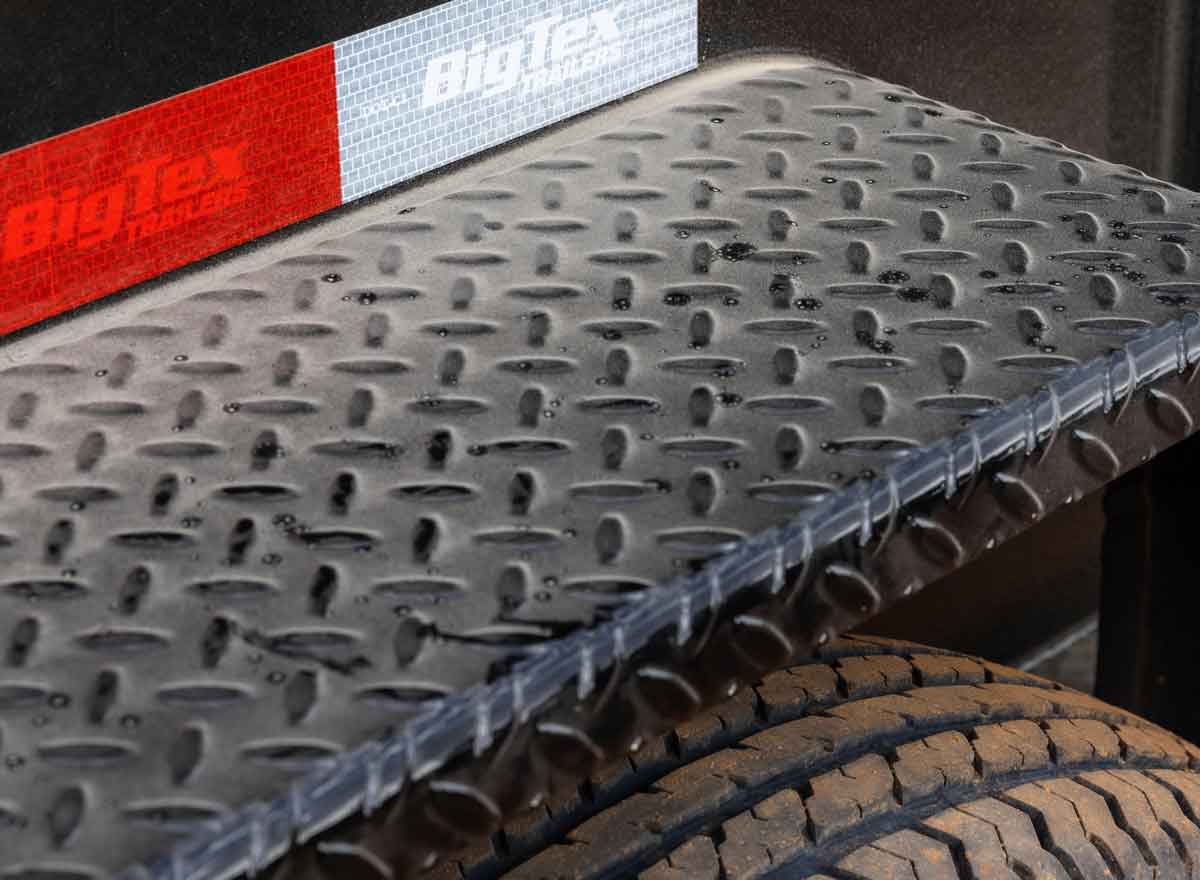

Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.

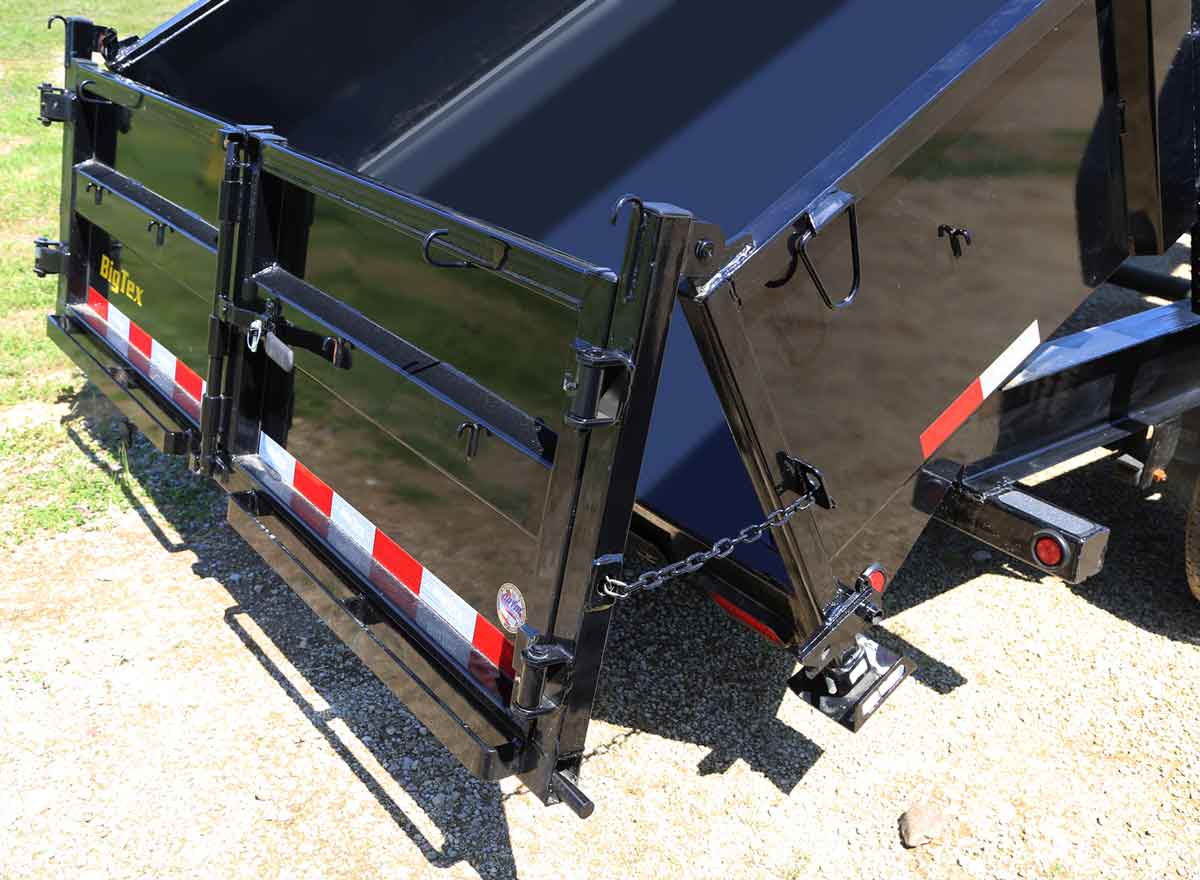

Adaptable Dumping and Loading/Unloading
Built standard with rear combo gates, making loading and dumping an easier task.

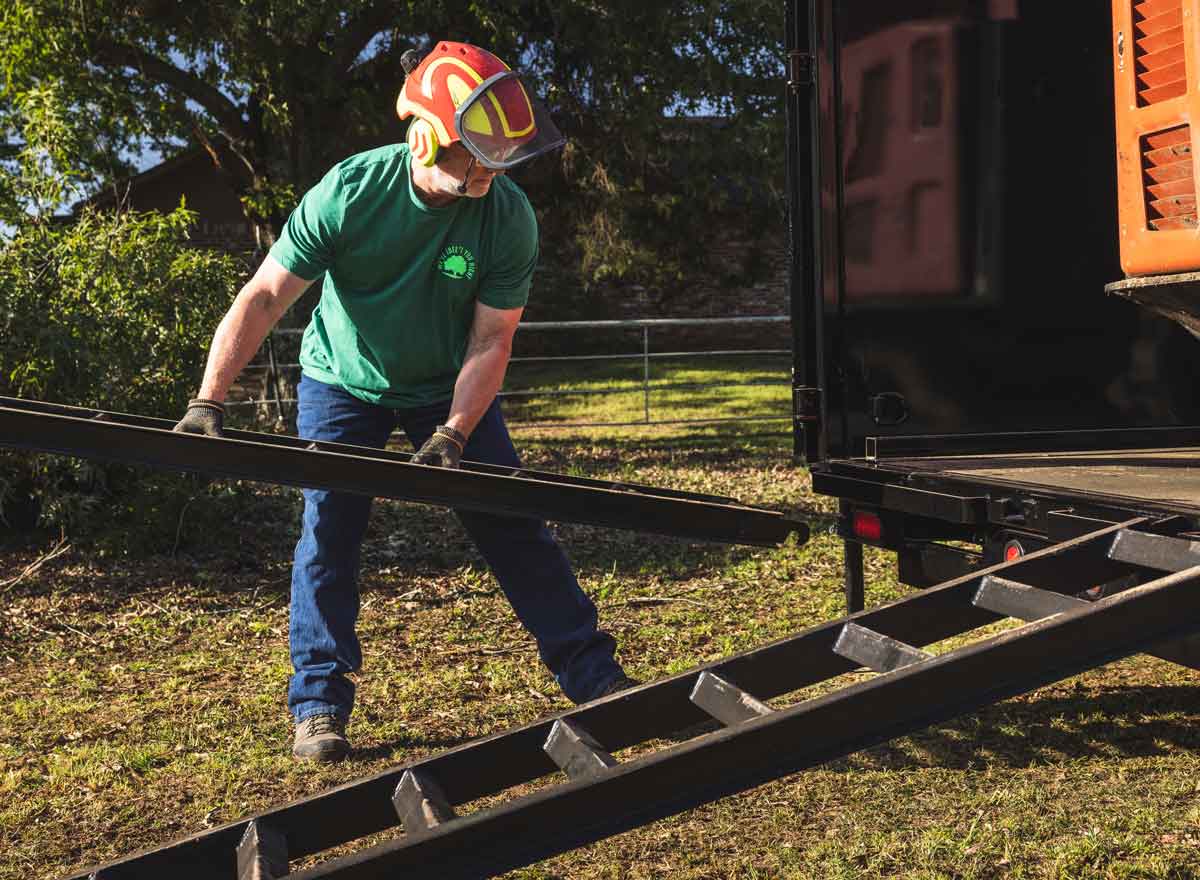

Comes standard with 4 D-rings to secure equipment and available ramps, ready to get your heavy equipment to the big job
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

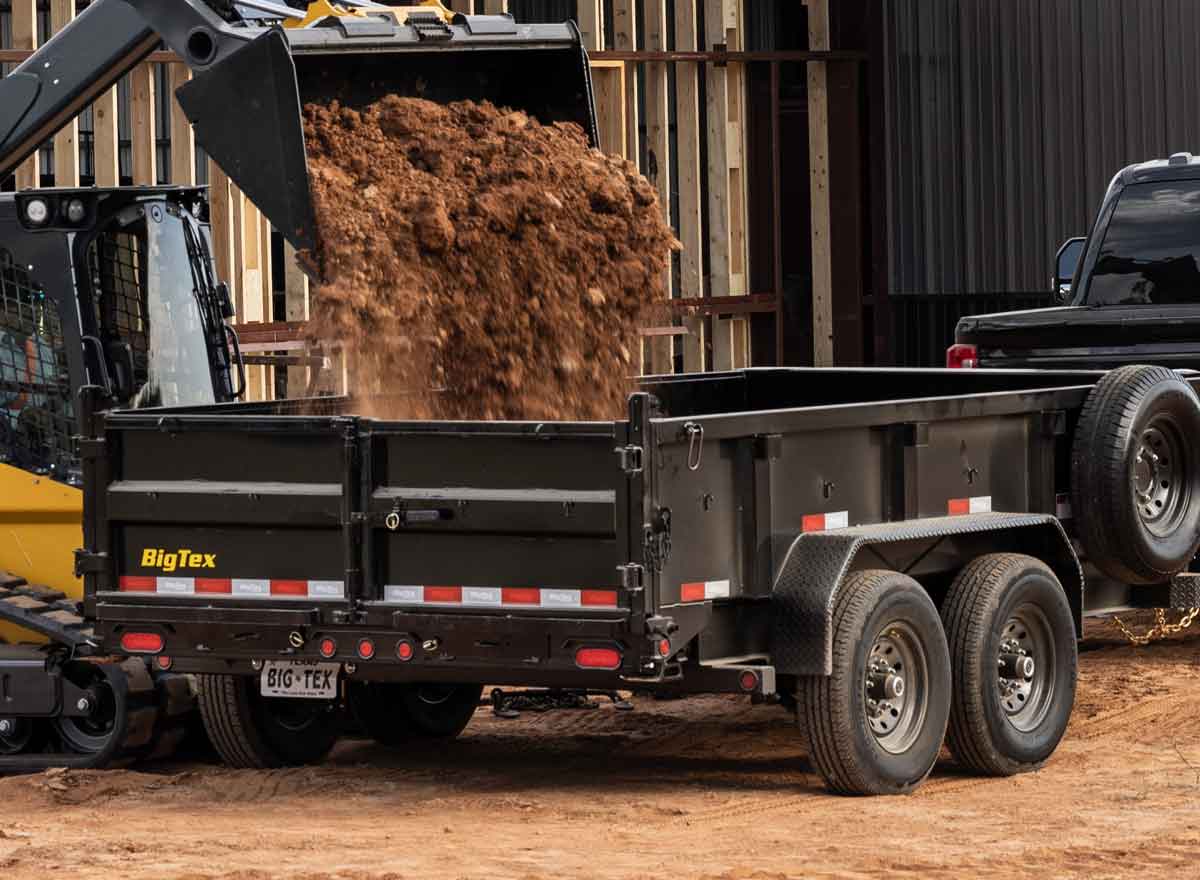

This model come standard with all the essentials, including a 12K Jack, Side Steps, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates, giving you a well-rounded hauling experience.

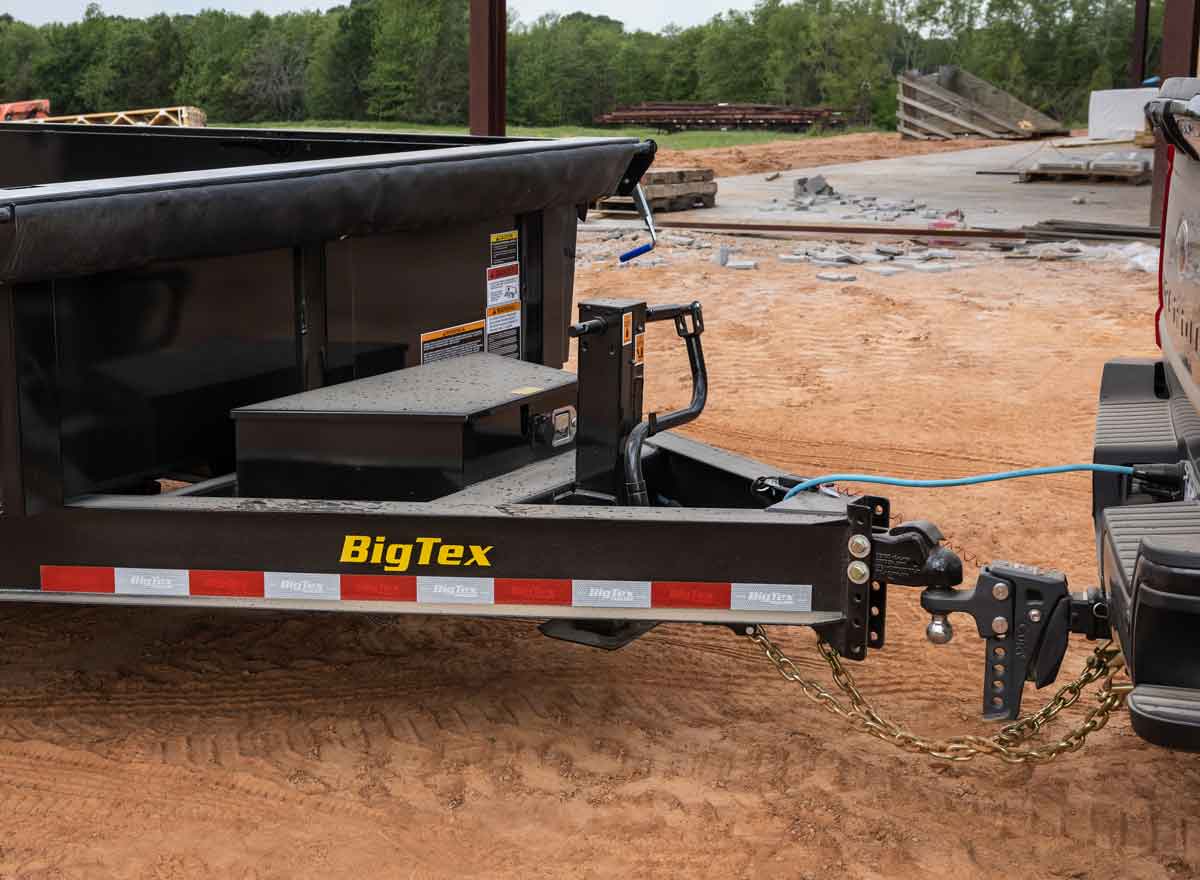

8” Seamless I-Beam Frame & Tongue
Seamless tongue integration provides additional strength and durability to a fully capable I-Beam frame design—all with no cuts or fishplates.
0 of 0

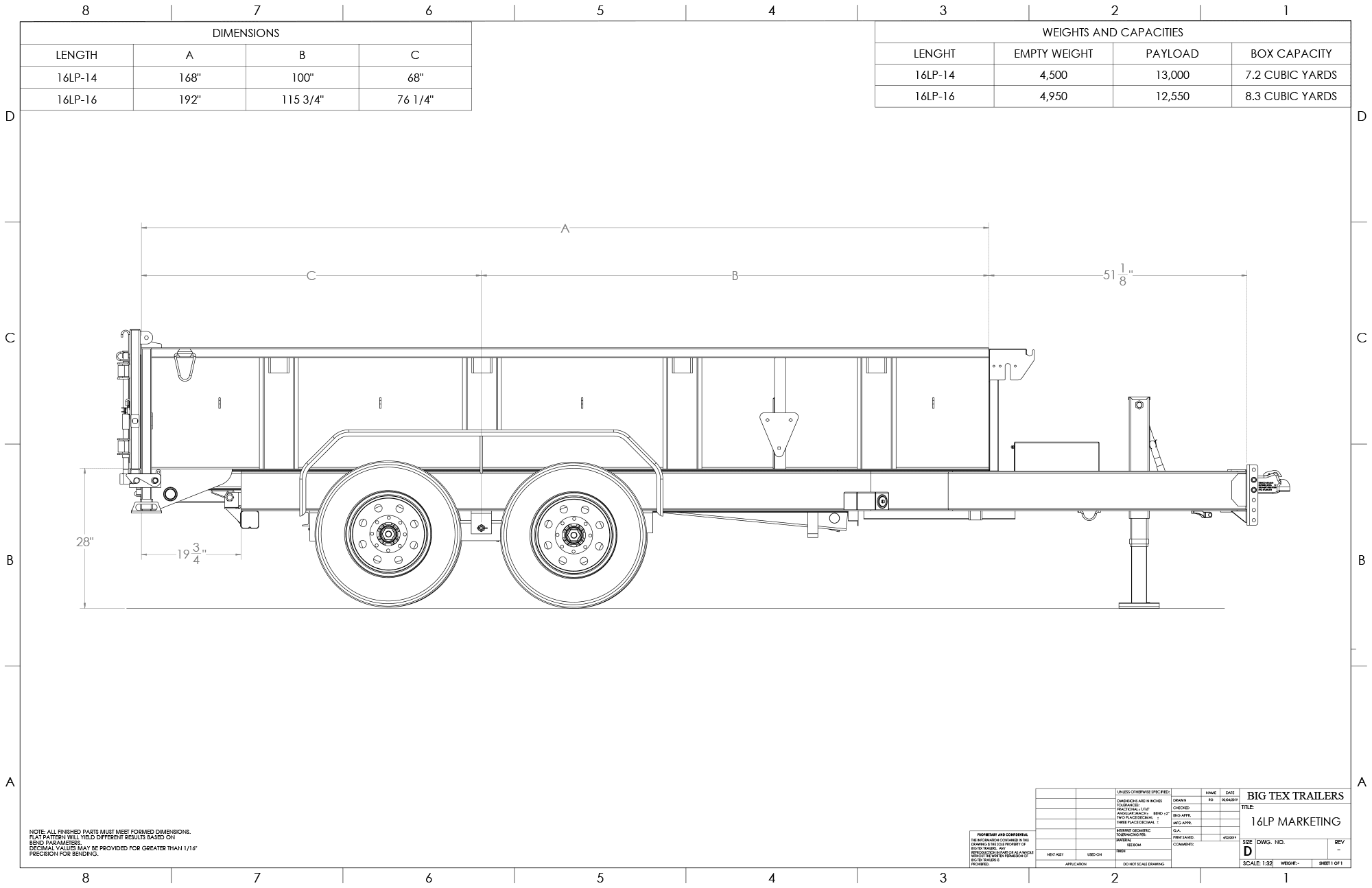

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|16LP-16||Bumperpull||17500 lbs||4950 lbs||8.3 lbs||16'||83"||192"||115-3/4"||76-1/4"||51-1/8"|
|16LP-14||Bumperpull||17500 lbs||4500 lbs||7.2 lbs||14'||83"||168"||100"||68"||51-1/8"|
|Standard Feature||Available Options|
|Axles||2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Tongue||8" Seamless I-Beam Integrated w/ Frame (10#)|
|Coupler||2-5/16" Ball, Adjustable Demco EZ Latch Coupler||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind)||12,000# Elec/Hyd. Jack BY Stillwell™|
|Frame||8" Seamless I-Beam (10#)|
|Cross-Members||3" Channel on 16" Centers|
|Floor||7 Gauge Smooth Steel|
|Fenders||9" x 72" 14 Ga. Diamond Plate Double Broke|
|Ramps||Not Included||6.5’ Slide In Ramp Package|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST215/75 R-17.5 Load Range H Radial Tires|
|Wheels||Black Mod Steel|
|Spare Mount||Side Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST215/75 R-16 LR-H)|
|Paint Type||Professional Finish w/ Primer Standard|
|Tie-Downs||(4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control|
|Break-Away Kit||Complete Breakaway System w/ Zip Breakaway Cable|
|Battery||12V Deep Cycle|
|Charger||5A 110V on Board Battery Charger|
|Gate||Rear Combo Gate (Barn Doors & Spreader Gate)|
|J-Hooks||Along sides and rear for Cargo Control|
|Power||Power Up/Power Down Movement||5 Watt Solar Charger Wireless Remote|
|Sides||24" Tall (10 Ga) with formed Channel Supports||3' Solid Sheet Metal Sides 4' Solid Sheet Metal Sides|
|Stabilizers||Rear Stabilizer Stands|
|Steps||Convenient Side-Step to Access Top Rail|
|Storage||Lockable Pump and Battery Box mounted in Front of Bed|
|Tarp||Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders|
|Top Rail||3"x 2" Rectangular Tubing|
|Steps & Handles||Convenient Side-Step to Access Top Rail|
