10SR 10SR
Big Tex Light Commercial Dump Trailer

10SR

Pro Series Tandem Axle Single Ram Dump

Designed, built, and powdercoated for the long haul, the 10SR Pro Series Tandem Axle Single Ram Dump Trailer is a medium-duty workhorse that has your back. Hauling dirt, gravel, mulch, or even manure? No problem. The 10SR is equipped with a straight ram hydraulic lifting system that makes dump outs a smoother and more productive experience. From homeowners and ranchers to construction workers, it’s time to let the 10SR do the hard work and save your back—keeping you ready for tomorrow and every day after.

Model Pull Type GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
10SR-12XL Bumperpull 9990 lbs 5200 lbs 3160 lbs 6660 lbs 12' 83" 144 82 62 41

Standard Feature Available Options
Axles 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 6" Channel
Coupler Adjustable Forged 2-5/16”
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 8,000# Top Wind
Frame 6" Channel
Cross-Members 3" Channel on 16" Centers

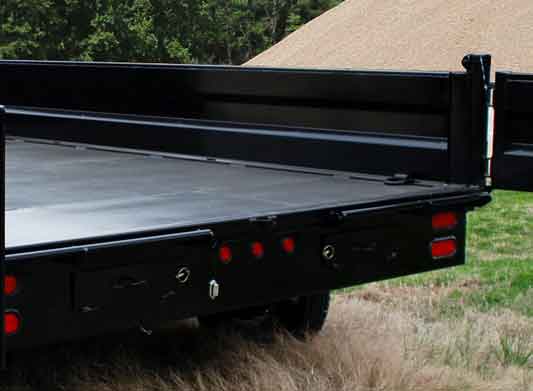

Floor 10 Gauge Smooth Steel
Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke

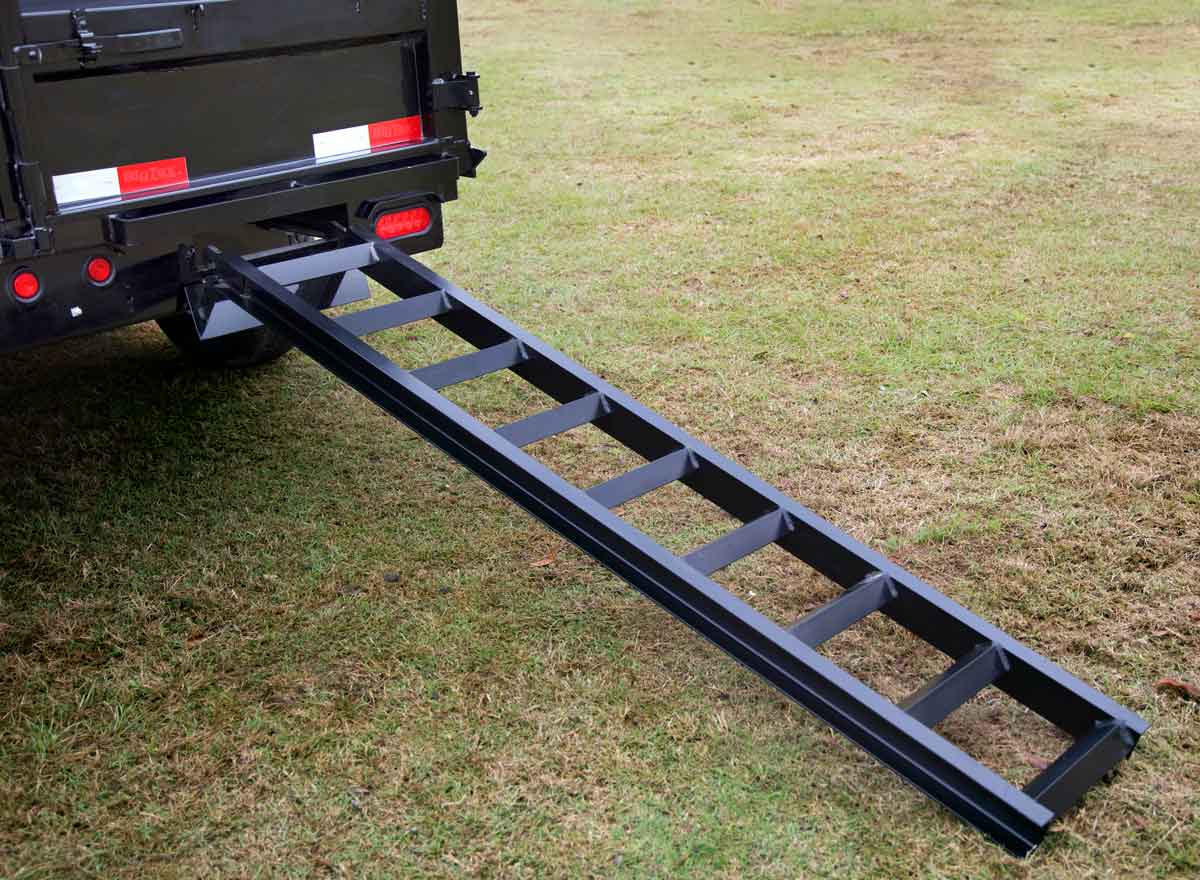

Ramps Not Included 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 6-Lug
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire (ST235/80 R-15 LR-E)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger

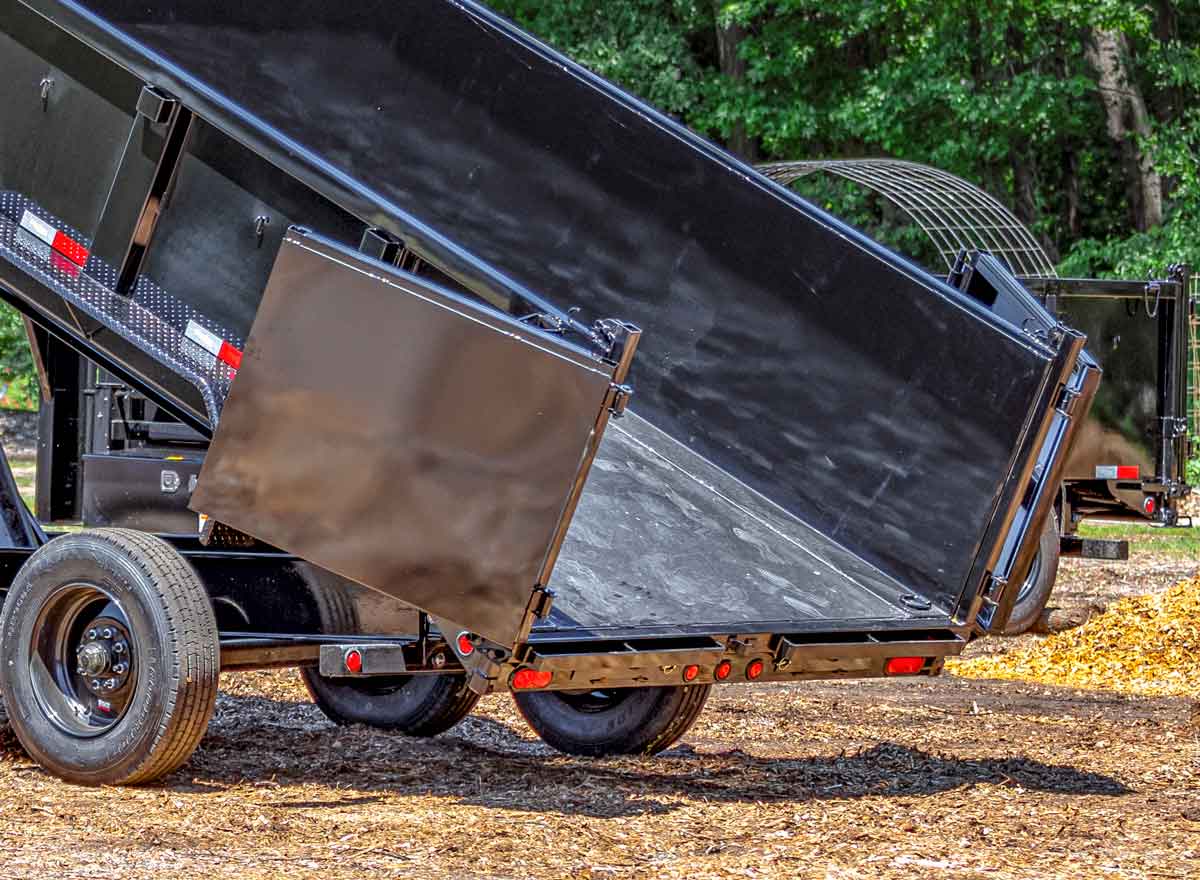

Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down & Gravity Down Hydraulic Pump
Ram Self-Contained Single Cylinder Lift
Sides 24" Tall Sides (12-Gauge)
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Tarp Mounting Brackets on Front of Bed Crank Style Roll Tarp

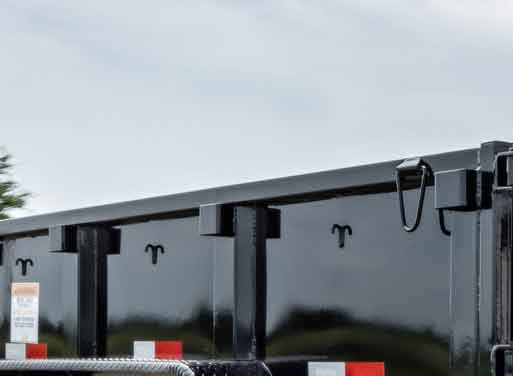

Top Rail 2" x 2" Square Tubing

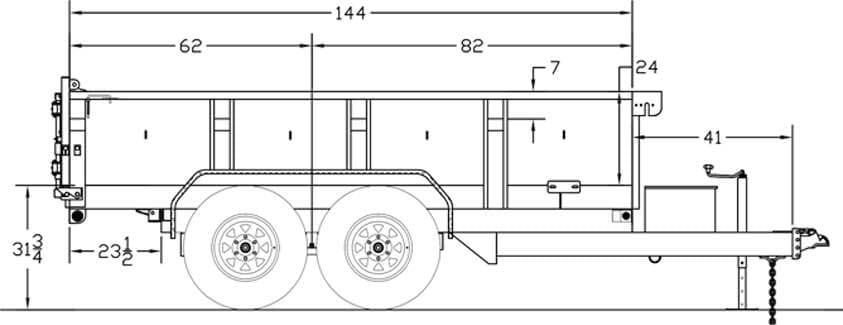

https://www.bigtextrailers.com/wp-content/uploads/2023/07/10sr_specdiagram.jpg
