60PI

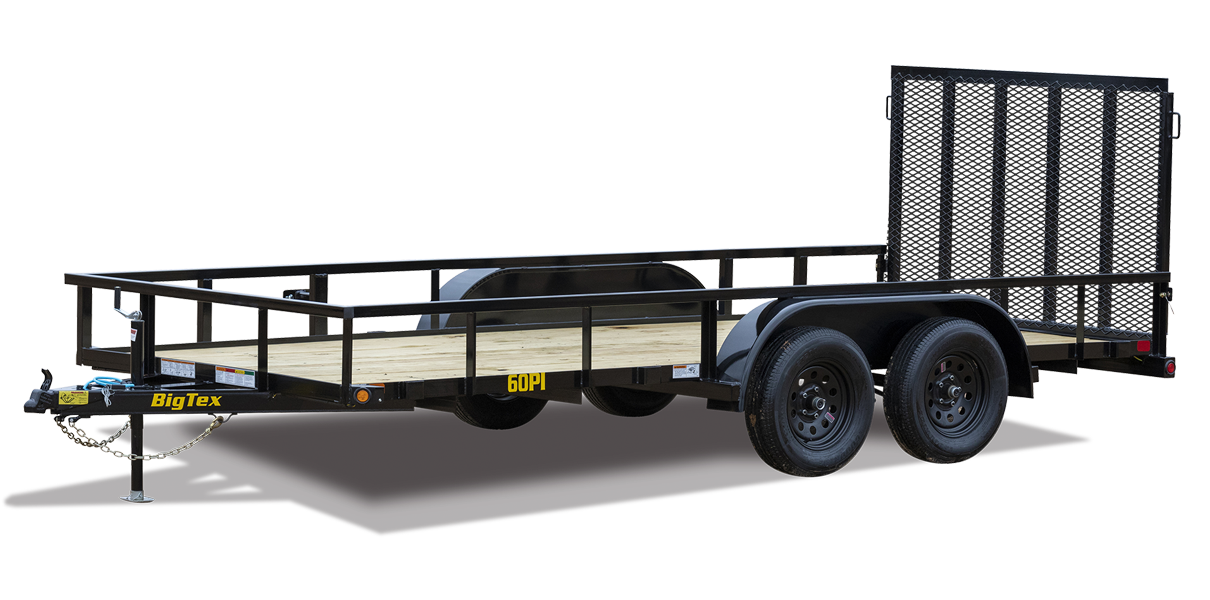

Tandem Axle Pipe Top Utility Trailer

The 60PI Tandem Axle Pipe Top Utility Trailer from Big Tex is perfect for hauling light equipment. Optional slide-in ramps allow for easy loading and unloading of equipment.

Interested in purchasing this trailer?

Locate a 60PI

Specs...

AXLE (2) 3,500# EZ Lube w/ (1) Elec. Brake
JACK 2,000# Top Wind, Set-Back Jack (Bolted On)
TIRE ST205/75R-15 Load Range C
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 3" x 2" x 3/16" Angle
WHEEL 15" x 5"; Black Mod, 5 on 5 Bolt Pattern
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 4" Channel
COUPLER 2" A-Frame
FENDERS 9" x 72" Rolled Formed w/Back
G.V.W.R. 6,000#
TOP RAIL 2-3/8" Pipe
UPRIGHTS 2" x 2" x 1/8" Angle
ELEC. PLUG 7-Way RV
SUSPENSION Multi-Leaf Spring w/ Equalizer
CROSSMEMBERS 3" x 2" x 3/16" Angle
FINISH (Prep) Steel is Cleaned to Ensure a Professional, Smooth Finish
SAFETY CHAINS 1/4" Grd. 30 w/Safety Latch Hook (2 ea)
G.A.W.R. (Ea. Axle) 3,500#

Models

Model Weight Description
60PI-12 1,265# 77” x 12' Tandem Axle Pipe Top Utility Trailer
60PI-14 1,400# 77” x 14' Tandem Axle Pipe Top Utility Trailer
60PI-16 1,535# 77” x 16' Tandem Axle Pipe Top Utility Trailer

& Features

  • Optional Spare Tire Mount

    Optional Spare Tire Mount

    Keeps your spare secure.

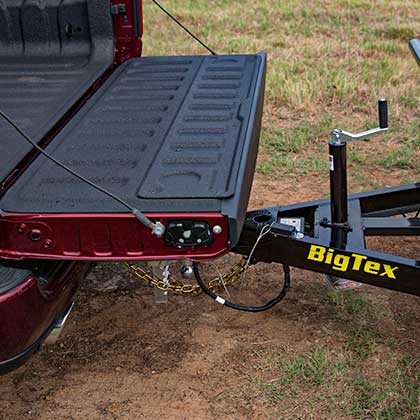

  • Set Back Jack

    Set Back Jack

    Extend your tailgate fully, without causing damage from the jack.

  • Optional 4' Tall Rampgate with Coil-Spring Assist

    Optional 4' Tall Rampgate with Coil-Spring Assist

    Loading and unloading is a breeze with the optional rampgate, and spring assist.

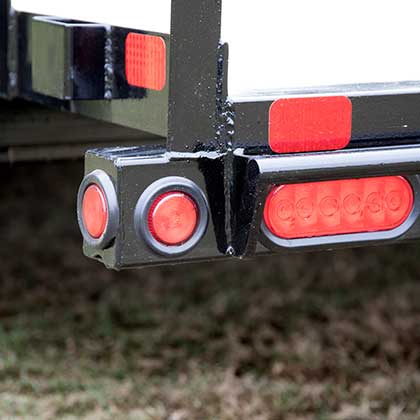

  • Recessed, Grommet Mount Lifetime LED Lighting

    Recessed, Grommet Mount Lifetime LED Lighting

    Long-lasting LED lights stay free of water and other hazards.

  • EZ Lube Hub

    EZ Lube Hub

    EZ Lube hubs are simple to maintain and completely submersible with no disassembly required.

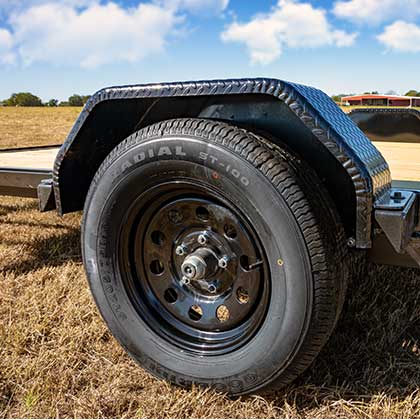

  • 15" Radial Tires on Black Mod Wheels

    15" Radial Tires on Black Mod Wheels

    The reduced tread wear of radial tires meets the durability and sophisticated looks of the black mod wheels.

The 60PI also comes equipped with:

  • (4) Tie Down Loops Inside Bed
  • Set-Back Jack
  • EZ Lube Hubs

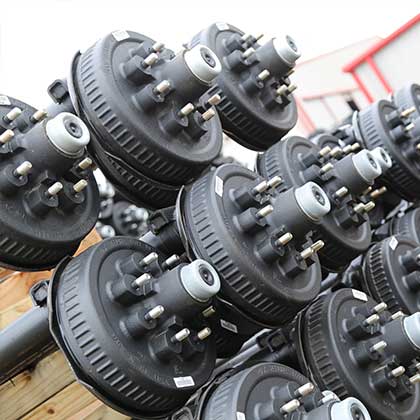

  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes
  • Cambered Axles
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Protected Wiring
  • Removable Sand Foot on Jack
  • Complete Break-A-Way System w/Charger
  • Radial Tires

Optional Equipment

Category Description
BODY 1/8" Diamond Plate Steel Floor (Per Square Foot)
BODY 2 High Sides (Open)
BODY 3 High Sides (Open)
BODY 4 High Sides (Open)
BODY Blackwood Rubber Infused Floor (X Length of Trailer)
BODY Enclose Sides w/ Expanded Metal (Per Square Foot )
BODY Enclose Sides w/ Sheet Metal (Per Square Foot )
BRAKES Electric Brakes on 2nd Axle
BRAKES Hydraulic Surge Brakes 1 Axle w/Atwood Actuator
BRAKES Hydraulic Surge Brakes 2 Axles w/Atwood Actuator
CARGO CONTROL Additional Tie Loops (Each)
CARGO CONTROL Tie Down Pockets (Each)

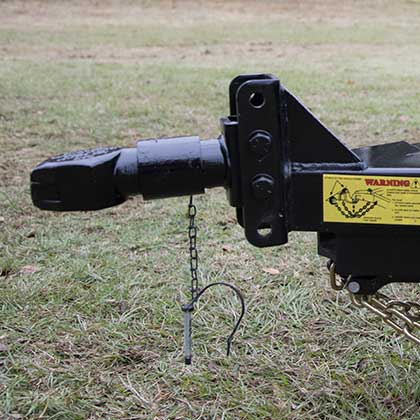

COUPLERS 2" Forged Coupler
COUPLERS 2-5/16" Forged Coupler
COUPLERS 2-5/16" Stamped Coupler
JACKS 2,000# Fold-Up Jack
RAMPS 4 Slide-In Angle Ramps
RAMPS 4 Tall Rear Rampgate w/ Coil Spring Assist
RAMPS 5 Tall Rear Rampgate W/ Coil Spring Assist
TIRE/WHEEL Spare Tire (ST205/75R-15 LR-C)
TIRE/WHEEL Spare Tire Mount (Side)
