3XPH

Super Duty Tandem Dual Axle Pintle Trailer

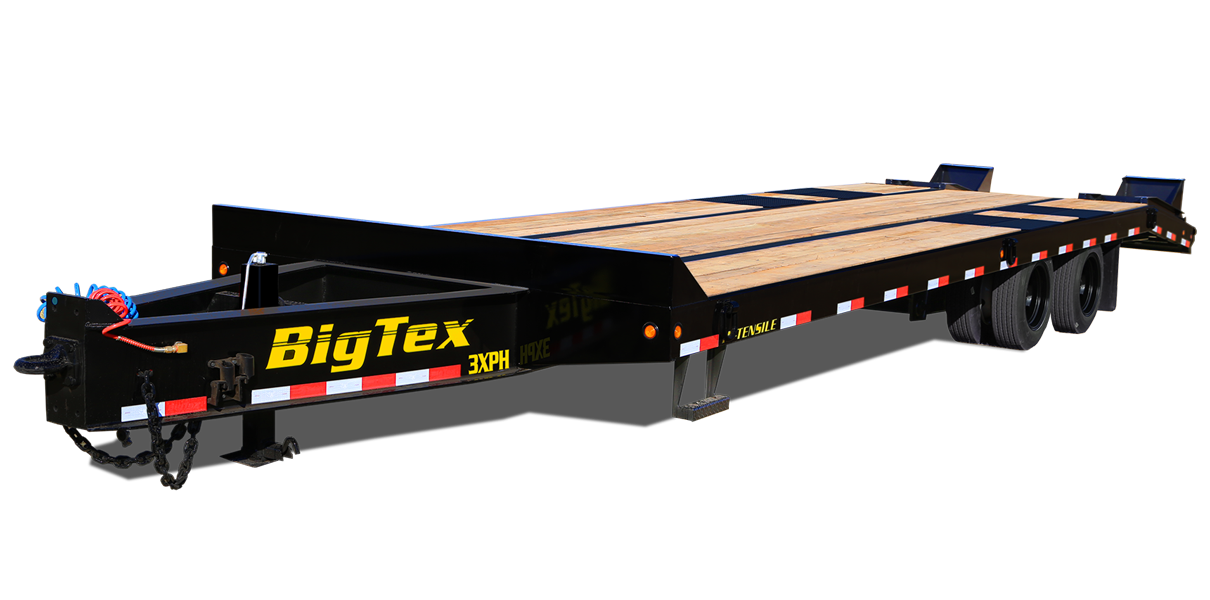

The 3XPH from Big Tex is our super-duty pintle trailer. This exceptional unit comes equipped with 15K axles with premium adjustable suspension, plus a low-profile pierced-beam frame, LED lights, side bed steps and a 3-inch ID Pintle Ring.

Interested in purchasing this trailer?

Locate a 3XPH

3XPH

Specs...

AXLE (2) HD 15,000# Dual Wheel w/ Electric Brakes (Oil Bath)
JACK 12,000# Drop Leg Jack- Top Wind
TIRE 215/75 R-17.5 Load Range H Dual
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I-Beam, 22#
WHEEL 17.5" HC x 6.75", 8x275 MM BC Hub Pilot; Dual Wheel
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral with Frame (12" I-Beam, 22#)
COUPLER 3" ID Pintle Ring
DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 30,000#
ELEC. PLUG 7-Way RV
HITCH TYPE Pintle Hitch
SIDE RAILS 8" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION Heavy Duty 44,000# Adjustable
CROSSMEMBERS 6" Jr. I-Beam,16" Centers
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/2" Grd. 80 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 15,000#

Models

Model Weight Description
3XPH-20+5 5,800# 102" x 20' + 5' Super Duty Tandem Dual Wheel Pintle
3XPH-25+5 6,300# 102" x 25' + 5' Super Duty Tandem Dual Wheel Pintle

& Features

  • Forward Self-Adjusting Electric Brakes

    Forward Self-Adjusting Electric Brakes

    Ensure safety and automatically adjust to proper clearances during travel.

  • Quick Lubricating Hubs

    Quick Lubricating Hubs

    Simple to maintain and completely submersible with no disassembly required.

  • Premium Brand Axles

    Premium Brand Axles

    Industry-leading axles with a smooth, reliable ride.

  • LED Lighting Package

    LED Lighting Package

    LED lighting is brighter and lasts longer.

  • Grommet Mount Sealed Lighting

    Grommet Mount Sealed Lighting

    Protected wiring, inside the framing or in protected channels, with access to junctures.

  • Tie Down Pockets Along Sides, 24" On Center

    Tie Down Pockets Along Sides, 24" On Center

    Coated anchor slides help to keep every haul in place and secure.

The 3XPH also comes equipped with:

  • 3" ID Pintle Ring
  • 12,000# Drop Leg Jack- Top Wind
  • 102" Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • (2) Side Bed Steps
  • 3/8" Heavy Duty Rub Rail
  • Stake Pockets Along Sides, 24" On Center
  • 1-1/4" Pipe Chain Spools Between Tie Down Pockets
  • Premium Brand Axles
  • Oil Bath Hubs
  • Forward Self Adjusting Brakes
  • Heavy Duty 44,000# Adjustable Suspension
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount
  • 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Zip Breakaway Cable
  • Radial Tires
  • Mudflaps
  • Spare Tire & Wheel- Standard Equipped

Optional Equipment

Category Description
BODY Blackwood Rubber Infused Floor
BODY Lockable Lid Over Tool Storage In Tongue
BRAKES Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks
BRAKES Electric Over Hydraulic Brakes (Drum)
CARGO CONTROL 4" Sliding Winch
CARGO CONTROL 4" Weld-On Winch
CARGO CONTROL 4" x 30 Strap
CARGO CONTROL B40 5/8" D-Ring
CARGO CONTROL Low Profile Tool Box 15" x 15" x 36" (Side Mount)
CARGO CONTROL Sliding Winch Track (Per 6 Section)
JACK Dual 2-Speed Landing Gear
JACK Dual Electric Over Hydraulic Jacks by Stillwell
JACK Dual Single-Speed Drop-Leg Jacks
RAMPS (2) 5 MEGA Ramps
RAMPS No Dovetail Option (Deletes Dovetail & Ramps)


Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
