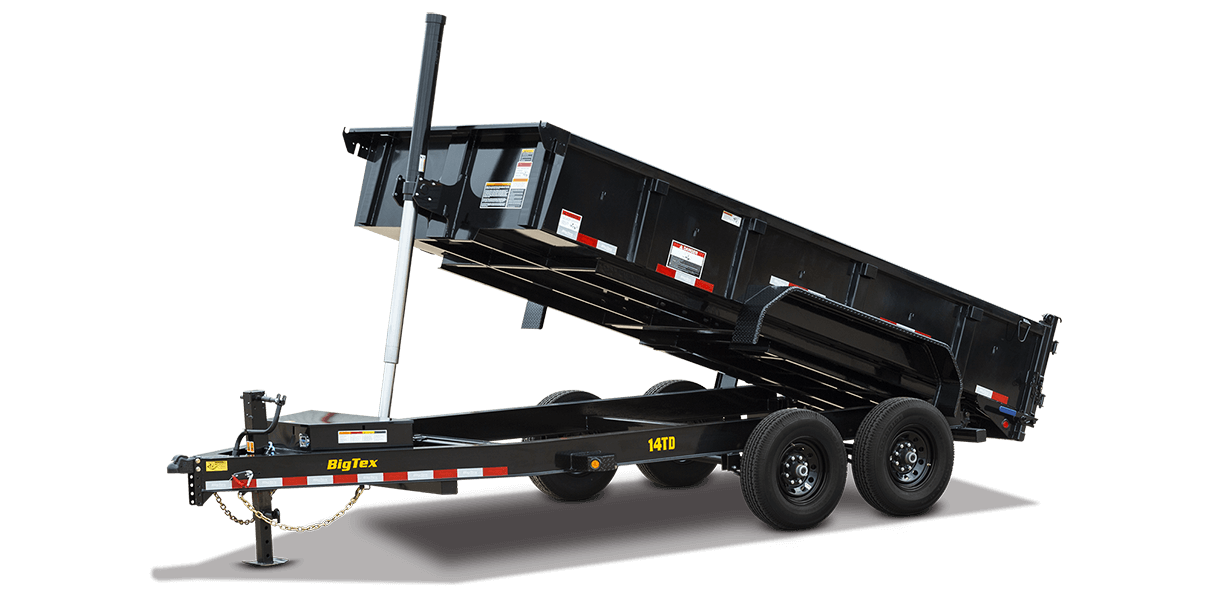

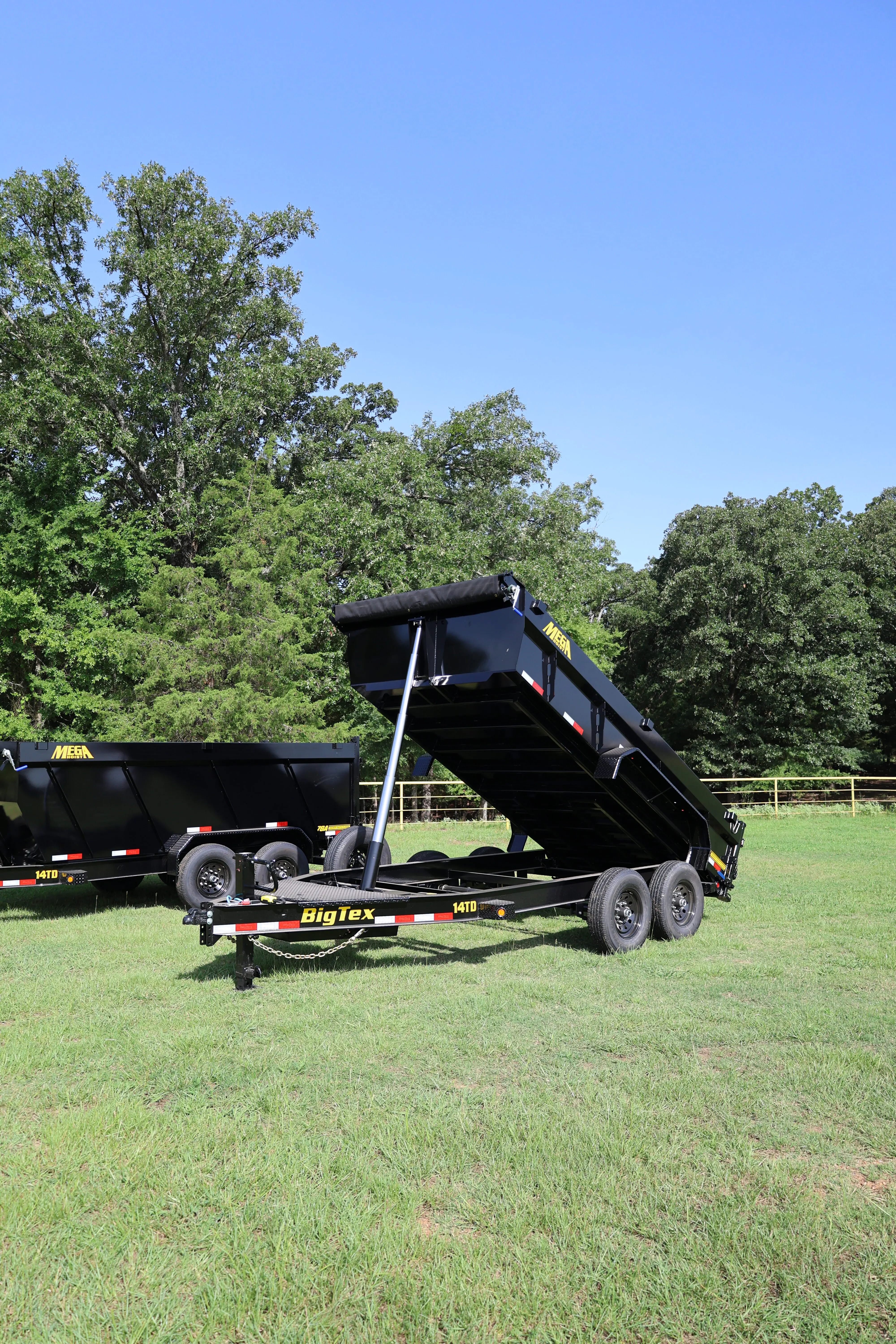

14TD

Heavy Duty Telescopic Dump

The 14TD makes unloading large, bulky cargo or debris a snap. Advanced engineering and a class-leading 12-ton telescopic cylinder make the lift smoother and more efficient.

Interested in purchasing this trailer?

Locate a 14TD

Specs...

14TD
AXLE (2) 7,000# Axles w/ Quick Lubricating Hubs and Elec. Brakes
JACK 12,000# Side Wind Drop Leg
TIRE ST235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Mod, 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
TONGUE Integral with Frame (8" I-Beam, 13#)
COUPLER Adjustable 2-5/16" 18,000# Demco EZ Latch
FENDERS 9" x 72" 14 Ga. Diamond Plate Double Square Broke
G.V.W.R. 14,000#
ELEC. PLUG 7-Way RV
MAIN FRAME 8" I-Beam, 13#
SUSPENSION Multi-Leaf Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 24" Tall Sides (10 Gauge)
BED CROSSMEMBERS 3" Channel, 16" Centers
DUMP BODY TOP RAIL 3" x 2" Rectangular Tubing
G.A.W.R. (Ea. Axle) 7,000#

Models

Model Weight Description
14TD-14 3,970# 83" x 14' Heavy Duty Telescopic Dump
14TD-16 4,430# 83" x 16' Heavy Duty Telescopic Dump

& Features

  • Telescopic Hoist Cylinder

    Telescopic Hoist Cylinder

    The 12-ton cylinder creates more leverage for a smoother, more efficient lift.

  • Formed I-Beam Frame & Tongue

    Formed I-Beam Frame & Tongue

    Heavy duty strength durability with no cuts and no fishplate on the frame and tongue.

  • 10 Gauge 24" Sides

    10 Gauge 24" Sides

    Heavy duty steel sides with 24" height for ideal cargo containment.

  • Heavy Duty Steel Floor

    Heavy Duty Steel Floor

    10 Gauge steel floor

  • Rear Combo Gate

    Rear Combo Gate

    Multi-functional rear gate that can be used as a spreader gate or open as barn doors.

  • Premium Cambered Axles

    Premium Cambered Axles

    Premium brand axles with forward self-adjusting electric brakes.

The 14TD also comes equipped with:

  • Adjustable 2-5/16" Demco EZ Latch Coupler
  • 8" I-Beam Frame w/ Fold Back Wrap Tongue
  • 12,000# Side Wind Drop-Leg Jack
  • (4) D-Rings Inside Bed to Secure Equipment
  • 24" Tall Sides
  • 10 Gauge Steel Floor and Sides
  • Fully Formed Tarp Shroud on Front
  • Crank Style Roll Tarp- Standard Equipped
  • Tarp Rod Included to Secure Tarp on Rear
  • Power Up/Gravity down Hydraulic Pump
  • 12-Ton 3-stage Telescopic Cylinder
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger (5 Amp)
  • Cambered Axles w/ EZ Lube Hubs
  • Forward Self Adjusting Electric Brakes on All Hubs
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Diamond Plate Fenders
  • 3" x 2" Rectangular Tubing Top Rail on Dump Bed
  • Rear Stabilizer Stands
  • Spare Tire Mount
  • Radial Tires

Optional Equipment

Category Description
AXLES Drop Axles (Lowers Deck Height to 24" from Ground)
BODY 24" Expanded Metal Side Extensions
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
BODY Upgrade Floor to 7-Gauge Steel
COUPLER Adjustable Pintle in Channel ILO Coupler
POWER 5 WATT SOLAR CHARGER
POWER Wireless Remote
RAMPS 6.5 Slide In Ramp Package
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-G)


Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
