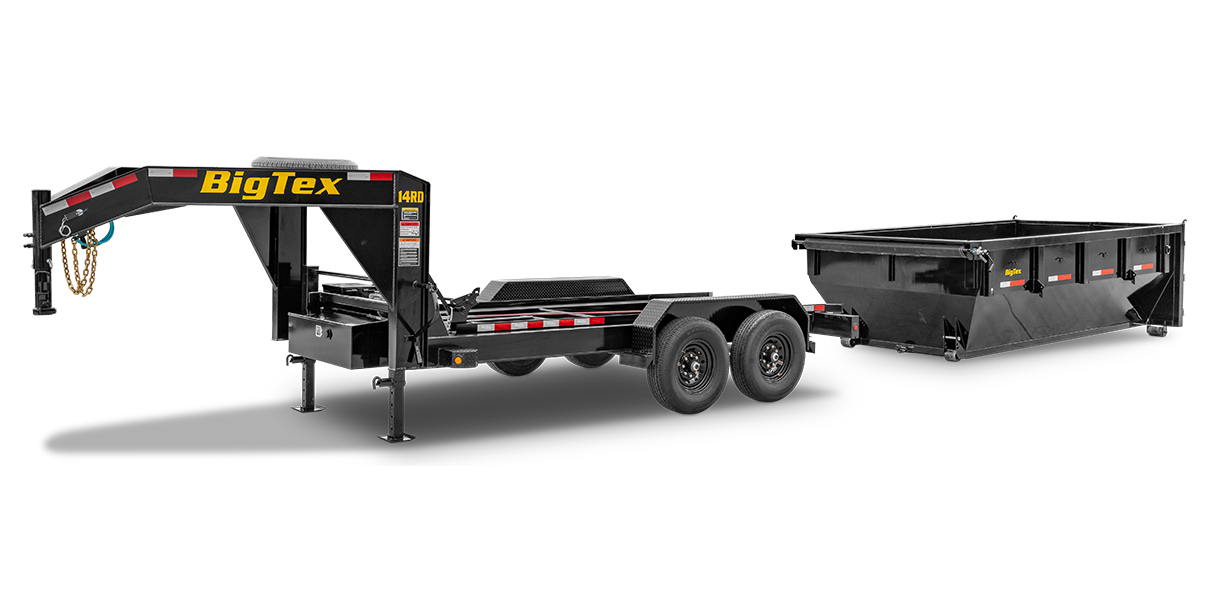

Roll-Off Gooseneck Dump Trailer

This gooseneck configured Roll-Off Dump trailer is made to support the demands of the construction, junk removal, and even the dumpster rental business.

Interested in purchasing this trailer?

Locate a 14RD



JACK Dual 12,000# Drop Leg- Side Wind
NECK 10" I-Beam
TIRE ST235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Mod, 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. Stop, Turn, and Tail Clearance
COUPLER 2-5/16" Round Adj. Pin (25K)
FENDERS 10" x 72" 14 Ga. Diamond Plate Double Square Broke
G.V.W.R. 15,900#
MAIN FRAME 8" I-Beam, 10#
SUSPENSION Multi-Leaf Slipper Spring w/ Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2ea)
DUMP BODY TOP RAIL 4" x 3" Rectangular Tubing
G.A.W.R. (Ea. Axle) 7,000#
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers


Model Weight Description
14RD-14 6,040# 83" x 14' Roll-Off Gooseneck Dump Trailer

& Features

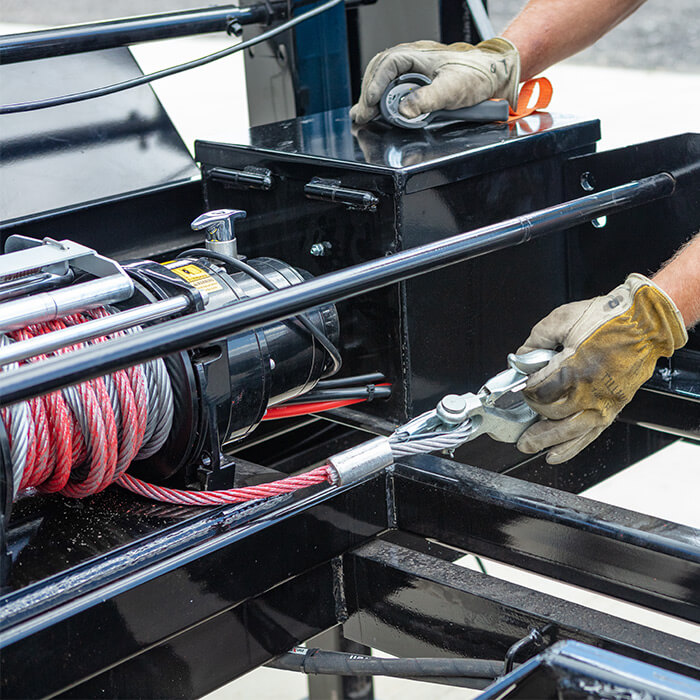

  • High-Duty Cycle ComeUp Winch

    High-Duty Cycle ComeUp Winch

    Designed for longevity and multiple cycles each day.

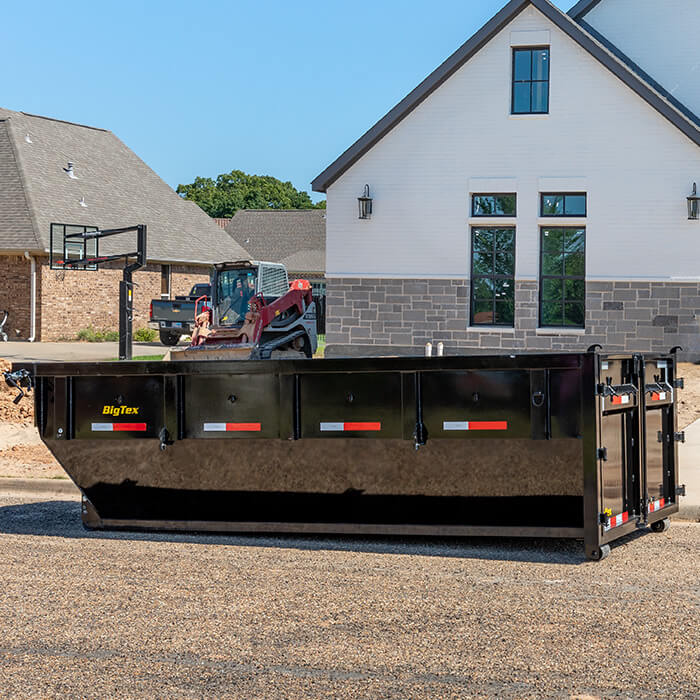

  • 10 Gauge 4' Sides

    10 Gauge 4' Sides

    Heavy duty steel sides with 4' height for ideal cargo containment.

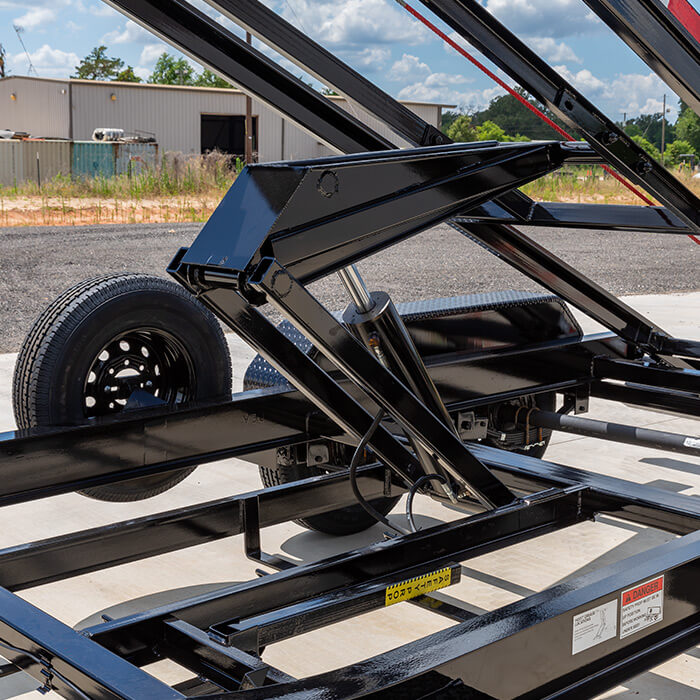

  • Scissor Hoist

    Scissor Hoist

    Strong and capable dumping power.

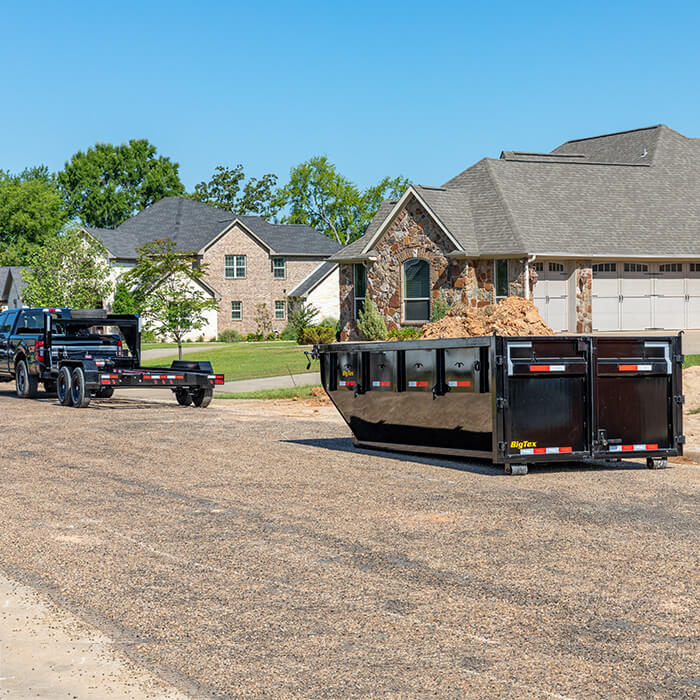

  • Multiple Jobs w/ Single Trailer

    Multiple Jobs w/ Single Trailer

    You can't be everywhere at once, but your dump bins can!

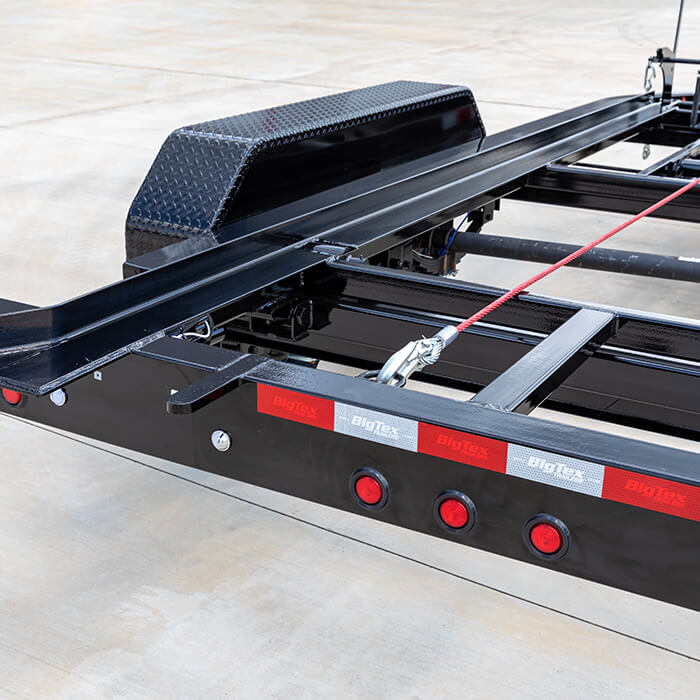

  • 8" I-Beam Frame

    8" I-Beam Frame

    Provides extra strength.

  • Premium Brand Axles

    Premium Brand Axles

    Industry-leading axles with a smooth, reliable ride.

The 14RD also comes equipped with:

  • Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
  • 8" I-Beam Frame and 10" I-Beam Neck
  • Dual 12,000# Drop-Leg Jacks (Side Wind)
  • Lockable Pump and Battery Box Mounted on front of Bed
  • Side Steps
  • Power Up/Power Down Hydraulic Pump
  • Bin Securement Safety Chain
  • Greasable Rollers on Frame
  • 12V Interstate Deep Cycle Battery to Power Hoist
  • Self-Contained and Independently Wired Winch Power Station
  • Specially Designed High Duty Cycle 15K Winch
  • Group 24 AGM Deep Cycle Battery for Winch
  • (2) 110V on-board Battery chargers (5 Amp) One for Hoist, One for Winch
  • Premium Brand Axles

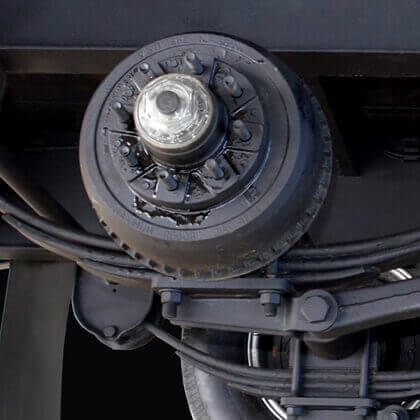

  • Cambered Axles w/ Quick Lubricating Hubs

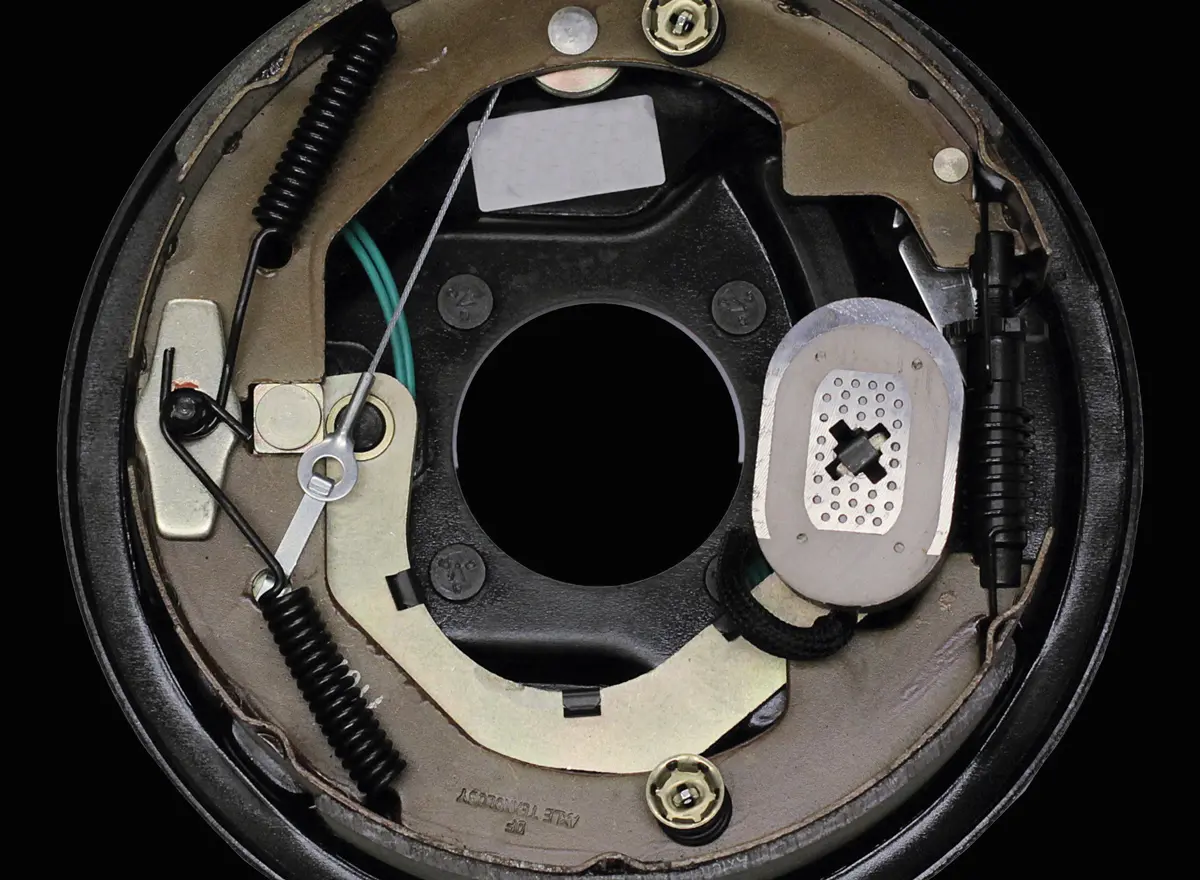

  • Forward Self-Adjusting Electric Brakes on all Hubs
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Complete Break-A-Way System
  • Zip Breakaway Cable
  • Diamond Plate Fenders
  • Spare Tire Mount
  • Radial Tires3
  • 48" tall, 12 Gauge sides
  • 10 gauge steel floor
  • 4" x 3" Rectangular Tubing Top Rail
  • 13 Cubic Yard Aggregate Capacity
  • Crank Style Roll Tarp- Standard equippped
  • Tarp Rod included to secure Tarp on Rear
  • J-hooks on sides and rear for Tarp Control
  • (4) D-Rings mounted on inside side walls
  • Barn Door Rear Gates
  • Greasable Rollers on Bin

Optional Equipment

Category Description
JACKS Dual Elec/Hyd 12,000# Jacks by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote for Hoist
POWER Wireless Remote for Winch
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-G)

Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.
