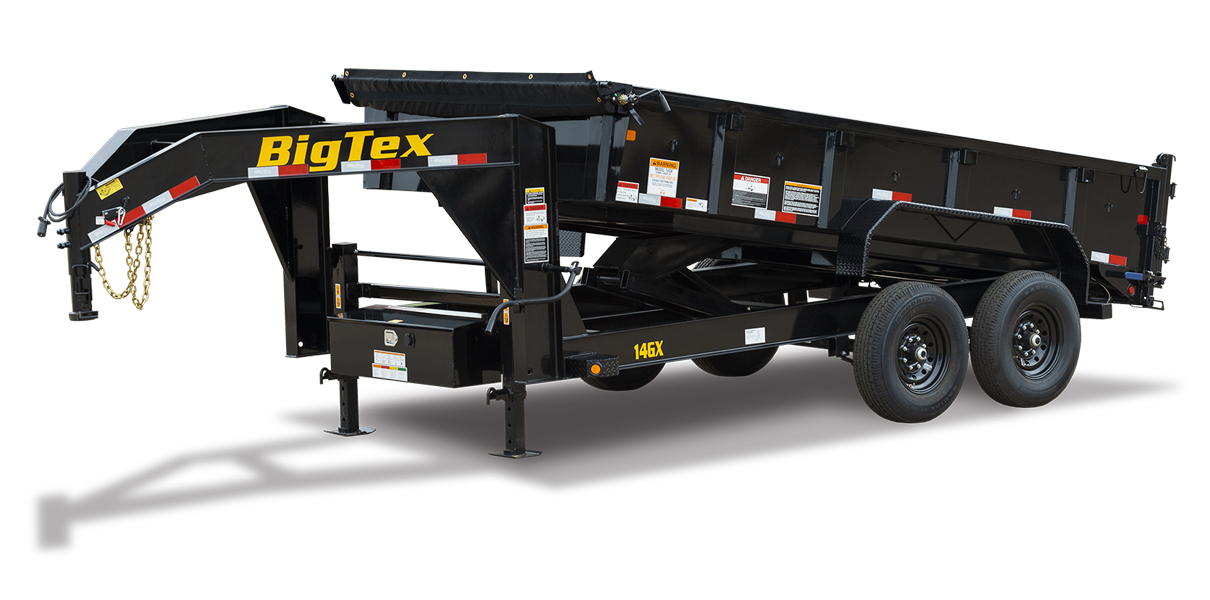

14GX

Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer

The 14GX Tandem Axle Low Profile Extra Wide Dump Trailer from Big Tex Trailers is a great way to gain the features of our popular 14LX in a gooseneck configuration. This unit combines a tube frame and heavy duty cross members in addition to the most complete box unit in the industry.

Interested in purchasing this trailer?

Locate a 14GX

Specs...

360°

AXLE (2) 7,000# EZ Lube w/Elec. Brakes
JACK Dual 12,000# Drop Leg - Side Wind
NECK 10" I-Beam
TIRE ST235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; HD Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER 2-5/16" Adjustable Pin (25K)
FENDERS 9" x 72" 14 Ga. Diamond Plate Souble Square Broke
G.V.W.R. 14,000#
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
MAIN FRAME 8" x 3" Rectangular Tubing
SUSPENSION Multi-Leaf Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 24" Tall Sides 912 Gauge)
DUMP BODY TOP RAIL 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000#
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers

Models

Model Weight Description
14GX-14 4,400# 83" x 14' Heavy Duty Tandem Axle Gooseneck Dump
14GX-16 4,700# 83" x 16' Heavy Duty Tandem Axle Gooseneck Dump

& Features

  • Gooseneck

    Gooseneck

    Gooseneck configuration for strength and stability.

  • 45 Degree Dump Angle

    45 Degree Dump Angle

    Steeper dump angles ensure cleaner dump outs.

  • Lockable Pump & Battery Box

    Lockable Pump & Battery Box

    This lockable box protects the battery and pump from damage and theft.

  • EZ Lube Hubs

    EZ Lube Hubs

    Making basic maintenance easier to keep up.

  • Top Wind Drop Leg Jack

    Top Wind Drop Leg Jack

    Easy to use and works well on any surface.

  • Dexter Brand Axles

    Dexter Brand Axles

    Dexter Axles outperform all others for strength and a smooth ride.

The 14GX also comes equipped with:

  • Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
  • Dual 12,000# Drop Leg (Side Wind)
  • Lockable Pump & Battery Box Mounted Between Jacks
  • 24" Tall, 12 Gauge Sides w/Formed Channel Supports
  • 10 Gauge Steel Floor
  • Fully Formed Tarp shroud on Front
  • Crank Style Roll Tarp - Standard Equipped
  • Tarp Rod Included to Secure Tarp on Rear
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electric/Hydraulic Scissor Hoist
  • Power Up/Power Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger (5 Amp)
  • Dexter Brand Axles
  • Cambered Axles w/EZ Lube Hubs
  • Nev-R_Adjust Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Complete Break-A-Way System
  • Zip Breakaway Cable
  • Diamond Plate Fenders
  • 2" square Tubing Top Rail on Dump Bed
  • Combo Gate (Barn Doors & Spreader Gate)
  • (4) 1/2" D-Rings Inside Bed to Secure Equipment
  • Spare Tire Mount
  • Radial Tires

Big Tex Trailers reserves the right to change price, design, material and/or specifications without notice or obligation.

Optional Equipment

Category Description
BODY 24" Expanded Metal Side Extensions
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
BODY Removable Deck on the Neck- Bolt On (8 W x 6 L)
COUPLER 30,000# Square Adjustable Screw Type Coupler
JACK Dual 2-Speed Landing Gear
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 7 Slide In Ramp Package
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)
