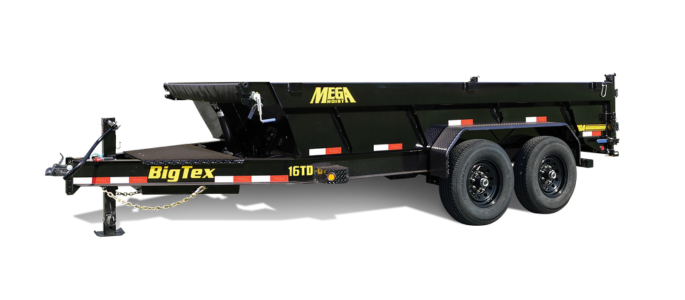

16TD
Heavy Duty Telescopic Dump Trailer

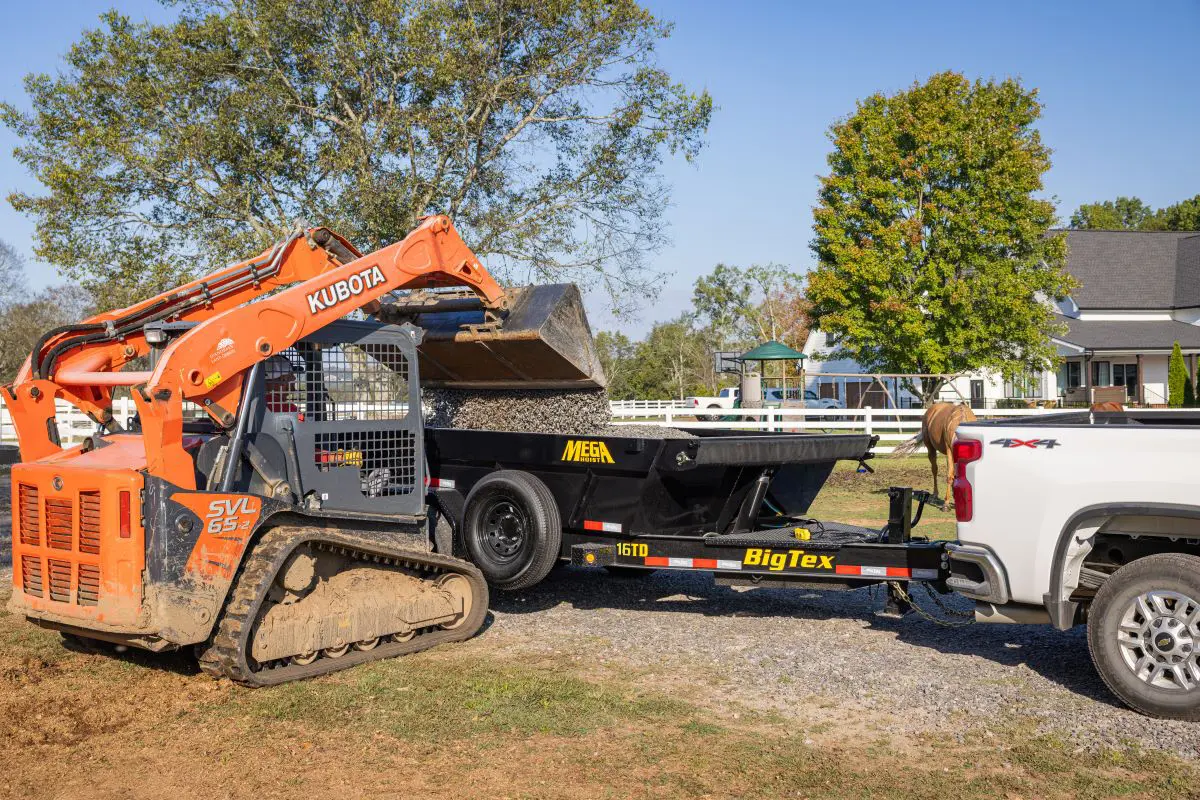

The redesigned 16TD from Big Tex is engineered for serious work. Featuring a 5-Stage Front-Mount Telescopic Cylinder, it delivers smooth, reliable lifting power for even the heaviest loads. The front-mounted cylinder enhances service access, while a steep 45° dump angle ensures fast, efficient unloading. The advanced dump body design includes reinforced side rails for added strength, and convenient features like the Demco EZ-Latch and full-width toolbox come standard. With available 4' sides, the 16TD can haul up to 16.3 cubic yards—built tough for long-lasting performance.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps | Drop Axles (Lowers Deck Height to 24" from Ground) |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Tongue | 8" I-beam Tongue | |
| Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | 12,000# Elec/Hyd. Jack BY Stillwell™ |
| Frame | 8" Seamless I-Beam (13#) | |
| Cross-Members | 3" Channel on 16" Centers | |
| Floor | 7 Gauge Smooth Steel | |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |

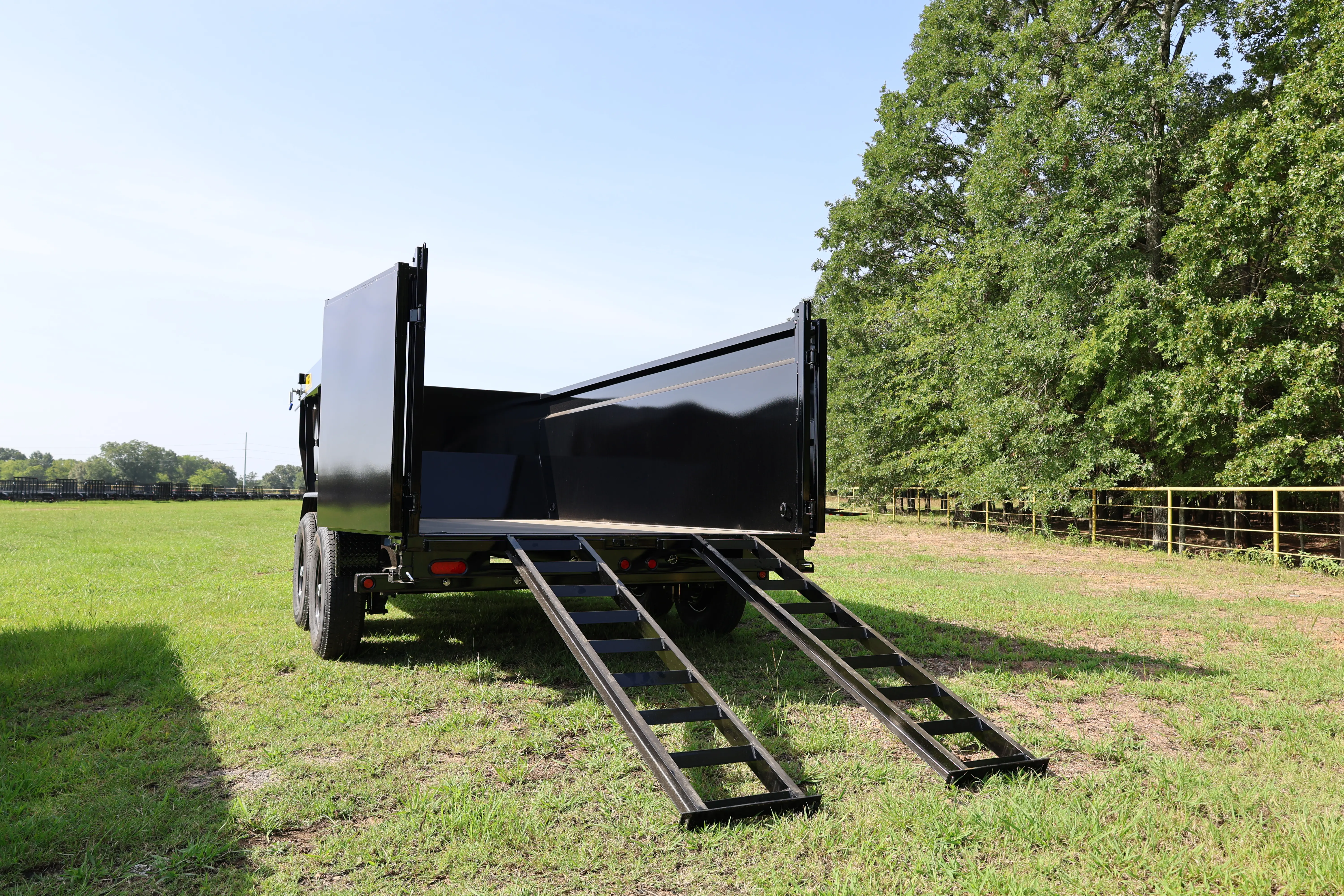

| Ramps | Not Included | 6.5’ Slide In Ramp Package |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST215/75 R-17.5 Load Range H | |
| Bolt Pattern | 8-Lug | |
| Wheels | Black Mod Steel | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire (ST215/75 R-17.5 LR-H) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Battery | 12V Deep Cycle | |
| Charger | 5A 110V on Board Battery Charger | |

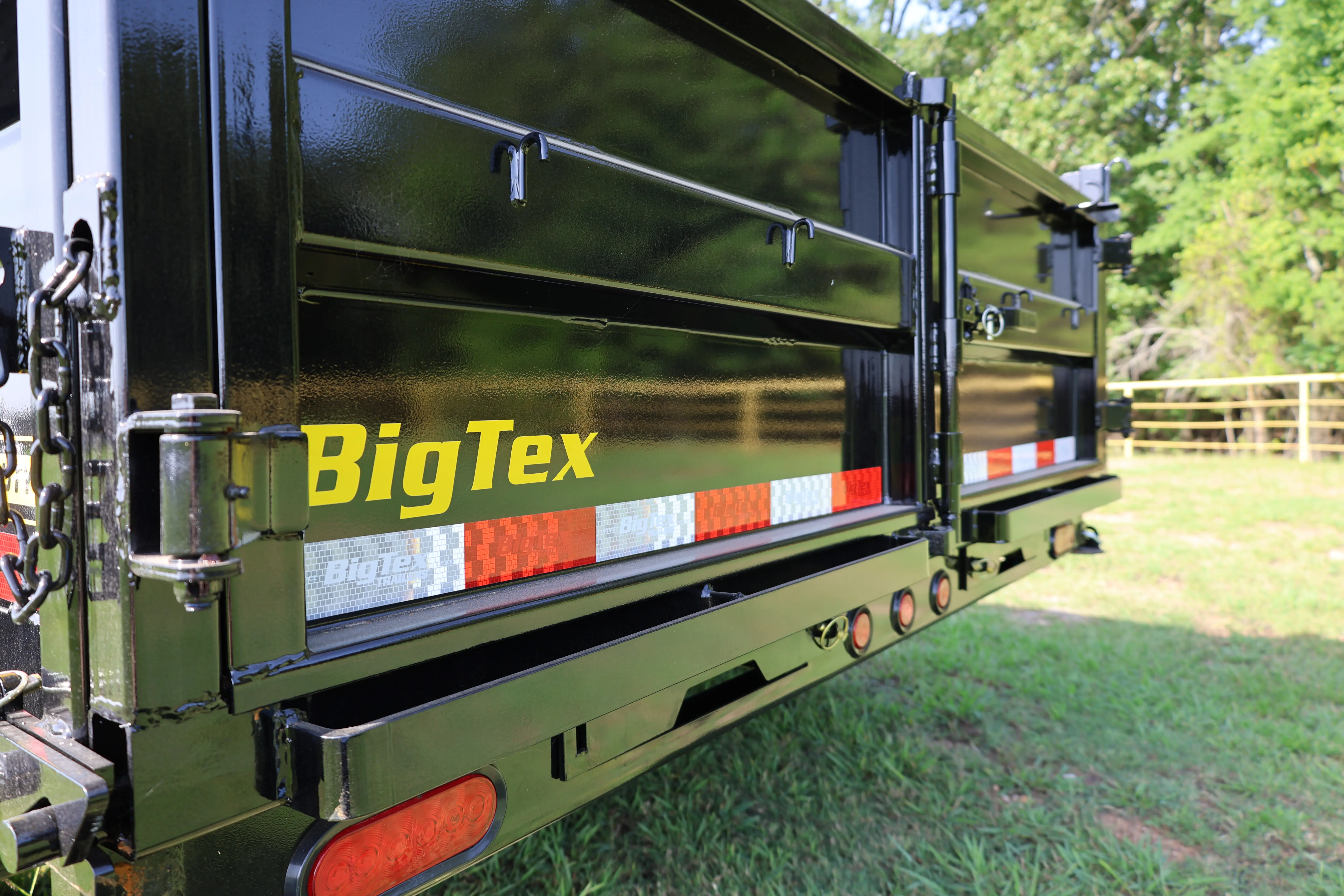

| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
| J-Hooks | Along sides and rear for Cargo Control | |
| Power | Power Up/Gravity Down Movement | 5 Watt Solar Charger Wireless Remote |

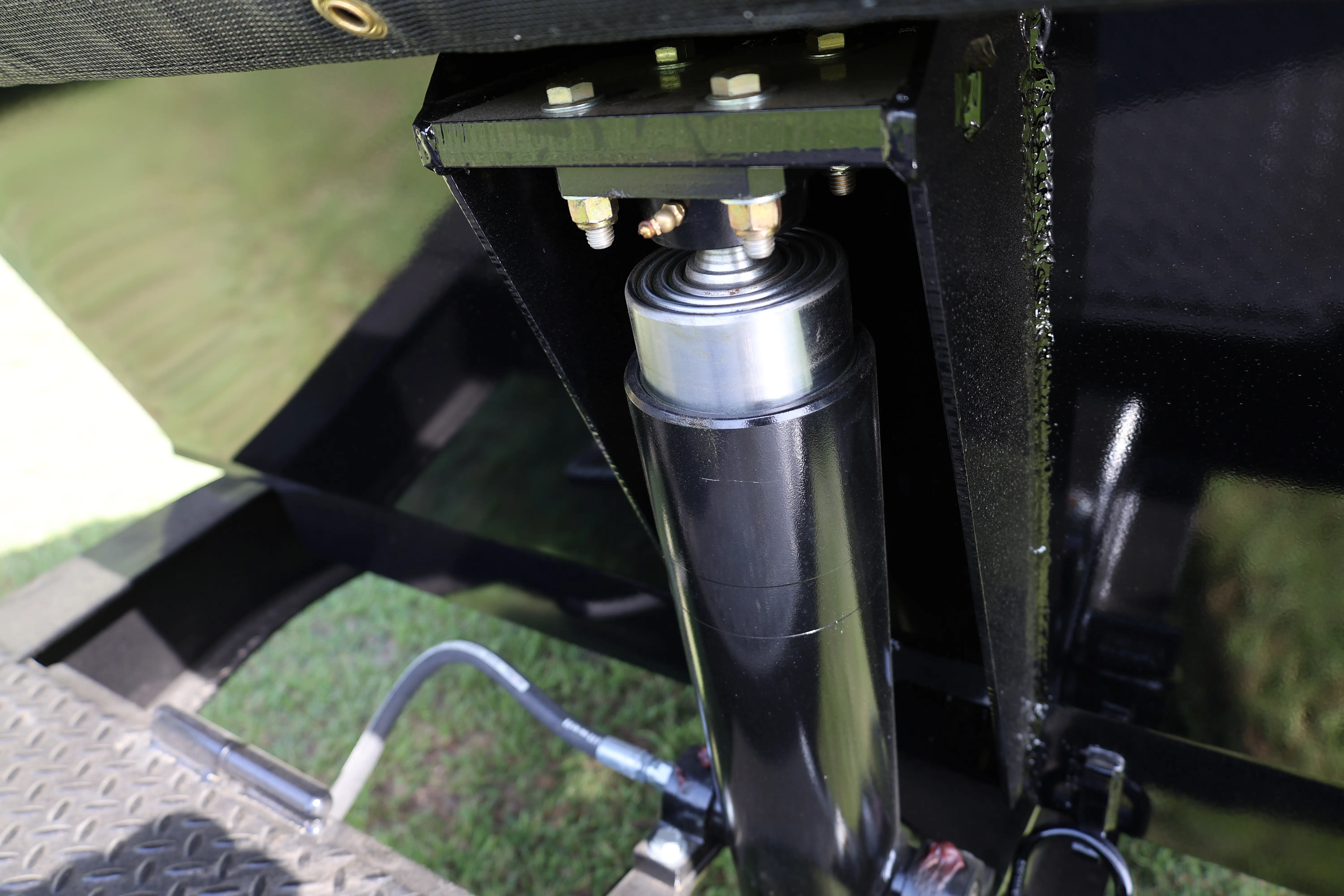

| Ram | 5-Stage Telescopic Cylinder | |

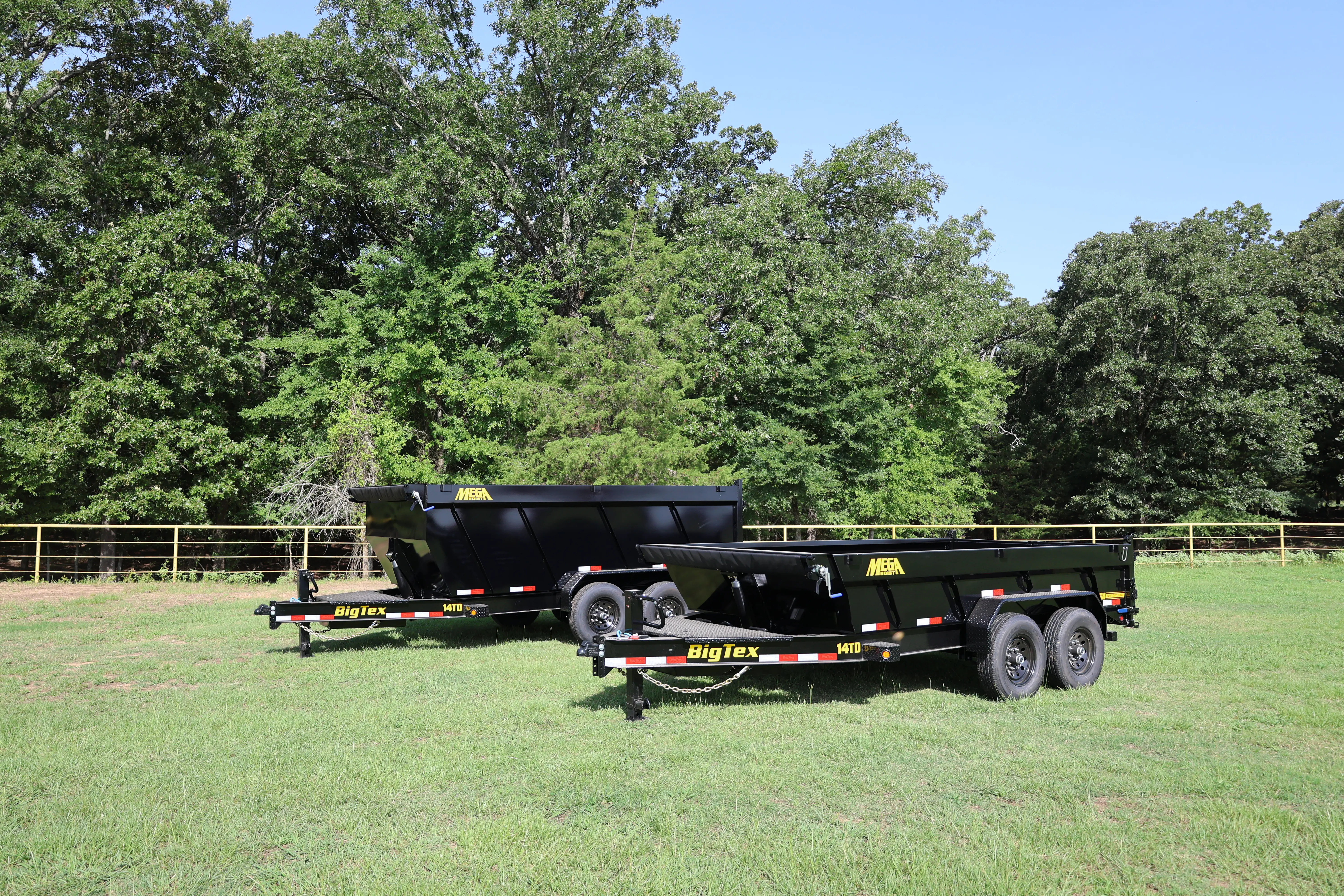

| Sides | 24" Tall (10 Ga) with formed Channel Supports | 4' Solid Sheet Metal Sides |
| Stabilizers | Rear Stabilizer Stands | |
| Steps | Convenient Side-Step to Access Top Rail | |

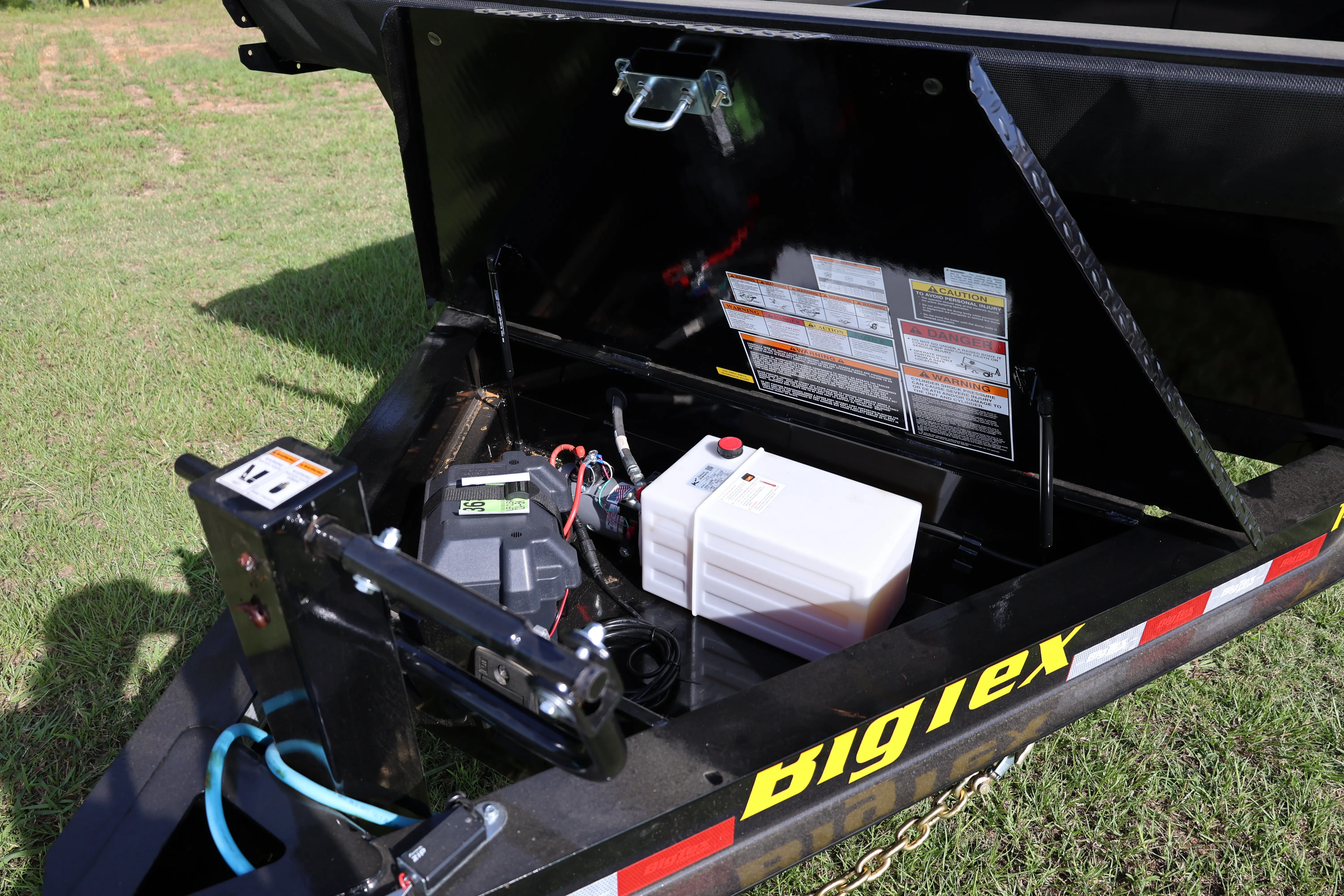

| Storage | Full Tongue Tool Box with Locking Lid | |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
| Top Rail | 3"x 2" Rectangular Tubing | |
| Steps & Handles | Convenient Side-Step to Access Top Rail |
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16TD-14C4A-BK | Bumperpull | 17600 lbs | 8000 lbs | 4940 lbs | 12660 lbs | 14' | 83" | 168" | 100" | 68" | 50-3/8" |
| 16TD-14C2A-BK | Bumperpull | 17600 lbs | 8000 lbs | 4400 lbs | 13200 lbs | 14' | 83" | 168" | 100" | 77" | 50-3/8" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
