Trailers / Dump Trailers / Light-Commercial Dump Trailers

12SR 12SR

12SR

Pro Series Tandem Axle Single Ram Dump

For professional construction workers, landscapers, and farmers looking for a trailer that’s designed for heavy hauls that need smooth dump outs, look no further. Experience a heavy-duty trailer that’s purpose-built for your needs, the 12SR Pro Series Tandem Axle Single Ram Dump. Manufactured for strength and durability with steel floors and sides, the 12SR delivers a payload capacity of 8,500 lbs. In other words, it’s time to get to work.

12SR

Pro Series Tandem Axle Single Ram Dump

For professional construction workers, landscapers, and farmers looking for a trailer that’s designed for heavy hauls that need smooth dump outs, look no further. Experience a heavy-duty trailer that’s purpose-built for your needs, the 12SR Pro Series Tandem Axle Single Ram Dump. Manufactured for strength and durability with steel floors and sides, the 12SR delivers a payload capacity of 8,500 lbs. In other words, it’s time to get to work.

12SR 12SR

Model Pull Type GVWR Empty Weight Cargo Capacity Bed Length Bed Width A B C Tongue Length
12SR-12XL Bumperpull 12000 lbs 3500 lbs 8500 lbs 12' 83" 144 83-3/4" 62-1/4" 40-3/4"

Standard Feature Available Options
Axles 2 - 6,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 6" Channel
Coupler Demco EZ Latch
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 8,000# Top Wind Drop Leg
Frame 6"x2" Channel
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke
Ramps Not Included 6.5’ Slide In Ramp Package
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 16" x 6"; Black Mod, 8 Bolt
Wheels Black Mod Steel
Spare Mount Side Spare Tire Mount
Spare Tire Not Included Spare Tire (ST235/80 R-15 LR-E)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down Movement
Ram Self-Contained Single Cylinder Lift
Sides 24" Tall Sides (12-Gauge)
Storage Lockable Pump and Battery Box mounted in Front of Bed
Tarp Tarp Mounting Brackets on Front of Bed Crank Style Roll Tarp
Top Rail 2" x 2" Square Tubing

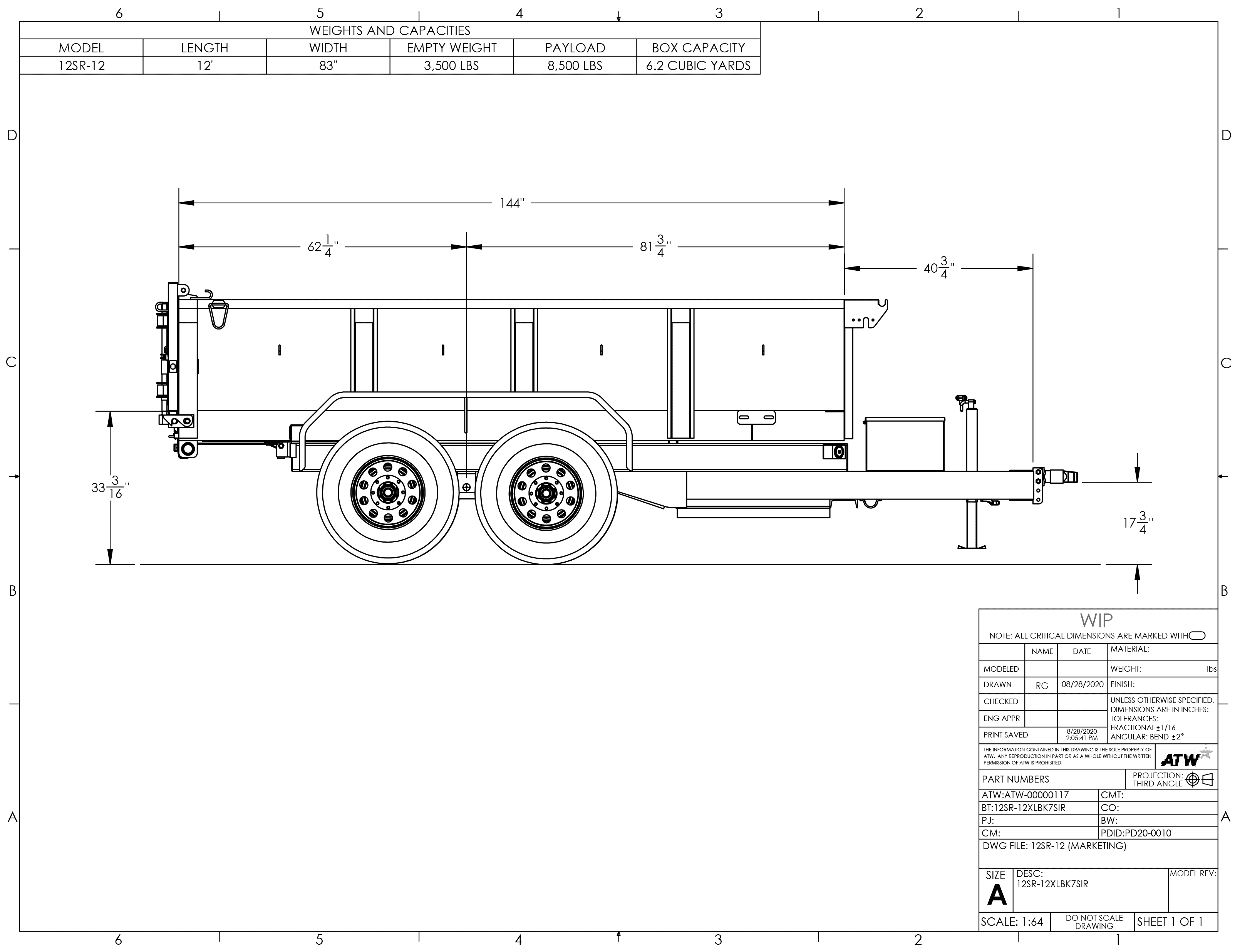

https://www.bigtextrailers.com/wp-content/uploads/2023/07/12SR_specdiagram.png
