10LX

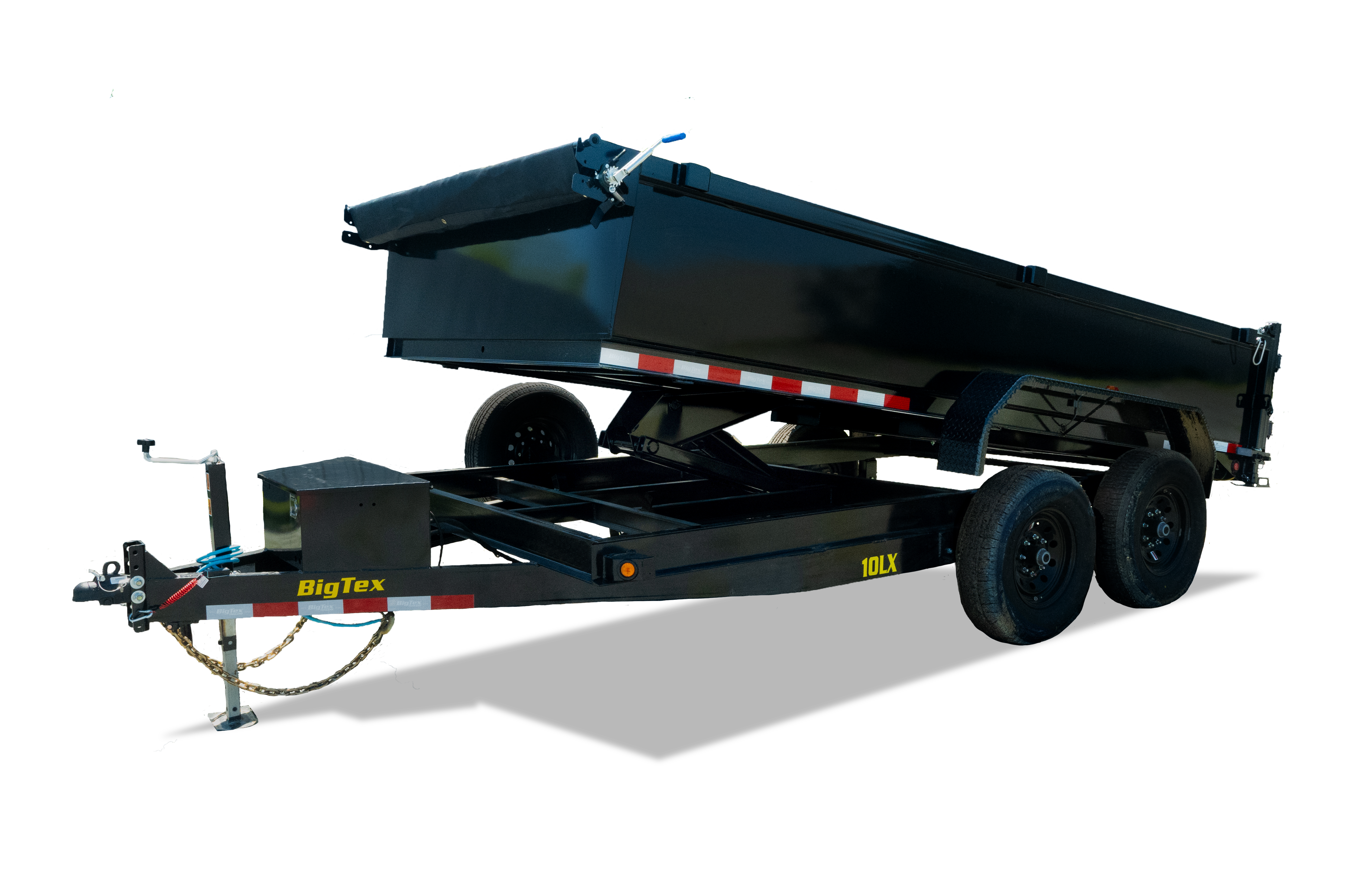

Channel Tandem Axle Dump Trailer
The 10LX Pro Series Tandem Axle Extra Wide Dump Trailer is a medium-duty dump trailer that comes with an 83’’ wide bed, giving you extra cargo width for bigger loads. Plus, it’s equipped with a hydraulic scissor hoist that has power up, power down, and gravity down functionality. This paired with 6' slide in ramps gives you the versatility to haul equipment and various kinds of aggregate to your destination.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Adjustable Forged 2-5/16” | |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) | |
| Jack | 8,000# Top Wind Drop Leg | |
| Frame | 6" Channel | |
| Cross-Members | 3" Channel on 16" Centers | |
| Floor | 10 Gauge Smooth Steel | |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke | |
| Ramps | 6' Slide in Ramps with integrated Ramp Door | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | |
| Bolt Pattern | 6-Lug | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire (ST235/80 R-15 LR-E) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
| Break-Away Kit | Complete System with Breakaway Cable | |
| Battery | 12V Deep Cycle | |
| Charger | 5A 110V on Board Battery Charger | |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump | 5 Watt Solar Charger Wireless Remote |
| Ram | Self-Contained Single Cylinder Lift | |
| Sides | 24" Tall Sides (12-Gauge) | |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
| Top Rail | 2" x 2" Square Tubing |

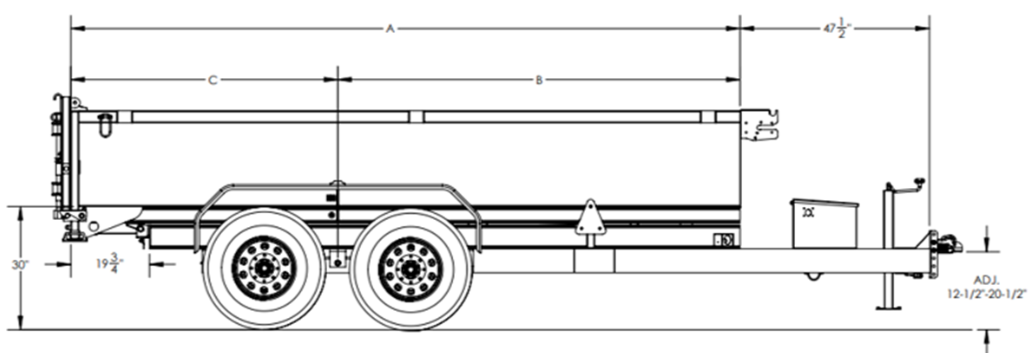

| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10LX-12 | Bumperpull | 9990 lbs | 5200 lbs | 3500 lbs | 6830 lbs | 12' | 83" | 144" | 83" | 61" | 47-1/2" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
