14RB
Roll-Off Dump Trailer (and Bin)

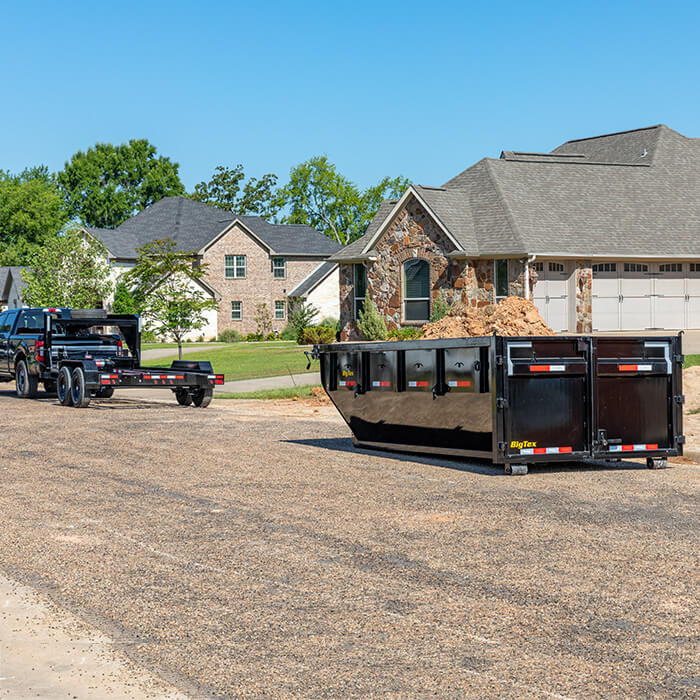

Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
14RB
Roll-Off Dump Trailer (and Bin)
Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width |
---|---|---|---|---|---|---|---|
14RB-14 | Bumperpull | 14000 lbs | 7000 lbs | 3310 lbs | 8410 lbs | 14' | 83" |
13BN (14RB) | 2280 lbs |
Standard Feature | Available Options | |
---|---|---|

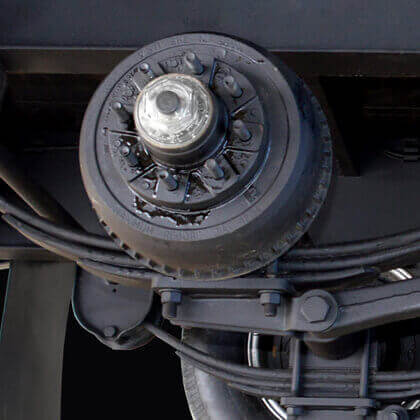

Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
Coupler | 2-5/16" Ball, Adjustable Demco EZ Latch Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
Jack | 12,000# Drop-Leg Jack (Side Wind) | 12,000# Elec/Hyd. Jack BY Stillwell™ |

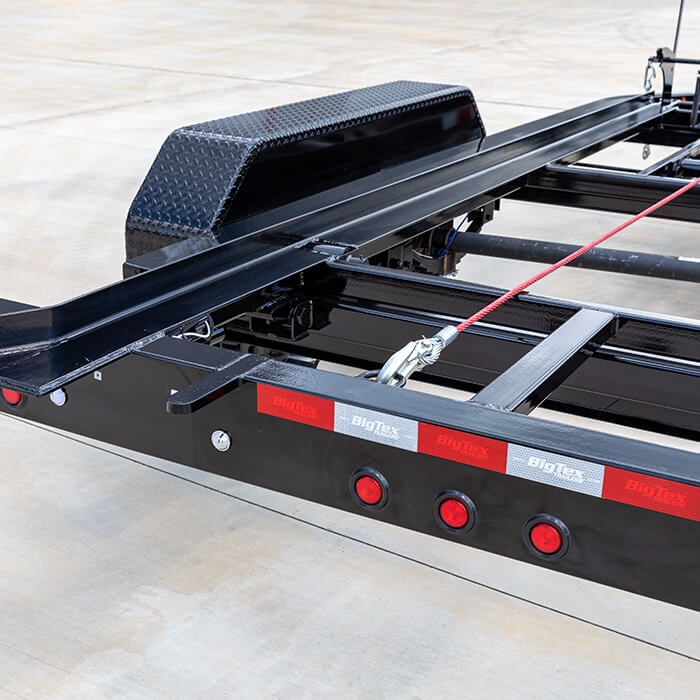

Frame | 8" Seamless I-Beam (10#) | |
Cross-Members | 3" Channel on 16" Centers | |
Floor | 10 Gauge Smooth Steel | |
Fenders | 9" x 72" 14 Ga. Diamond Plate Double Broke | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
Bolt Pattern | 8-Lug | |
Spare Mount | Side Spare Tire Mount | |
Spare Tire | Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) | |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
Battery | 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch | |
Charger | (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch | |
Gate | Barn Doors | |
Power | Power Up/Power Down & Gravity Down Hydraulic Pump | Wireless Remote for Hoist Wireless Remote for Winch |

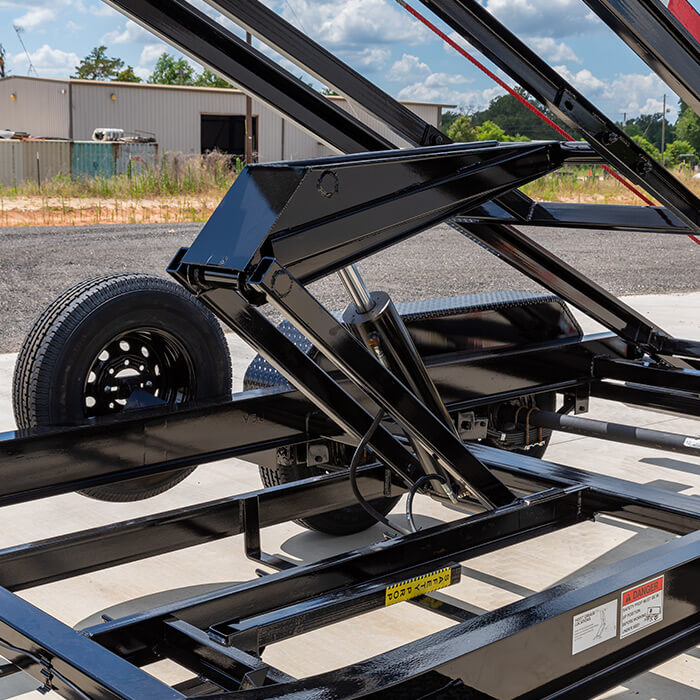

Ram | Self-Contained Scissor | |

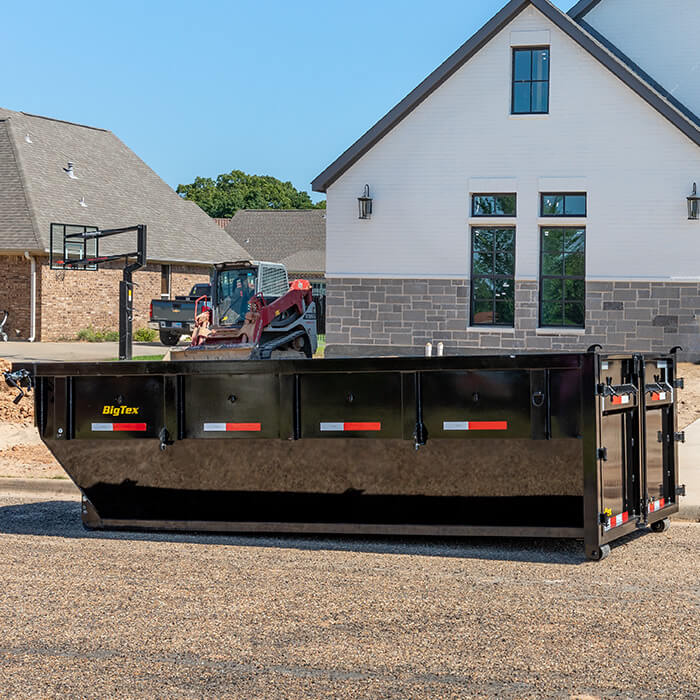

Sides | 48" Tall (12 Ga) with formed Channel Supports | |
Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
Tarp | Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders | |
Top Rail | 4"x 3" Rectangular Tubing | |
Battery Box | Tilt Bed mounted Battery Box for Independently wired Winch Power System | |
Rollers | Greaseable Rollers | |
Steps & Handles | Convenient Side-Step to Access Top Rail | |

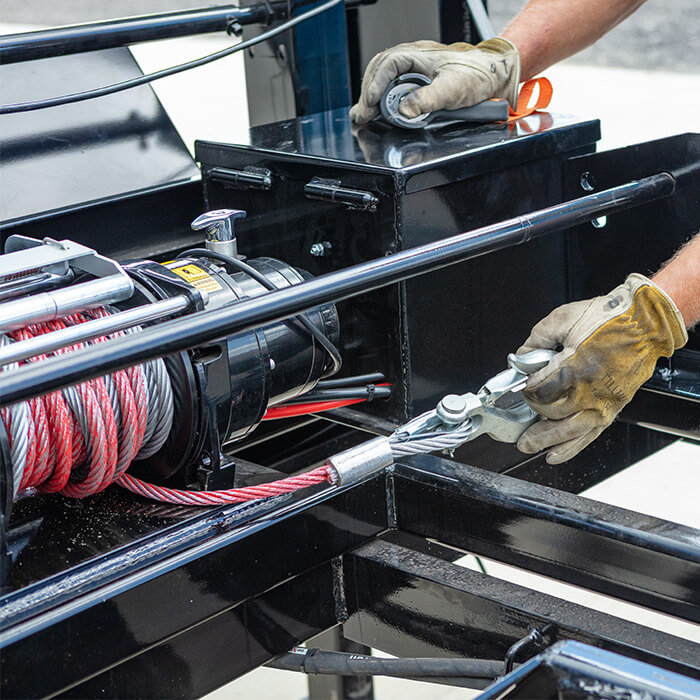

Winch | Specially Designed High Duty Cycle 15K Winch |
