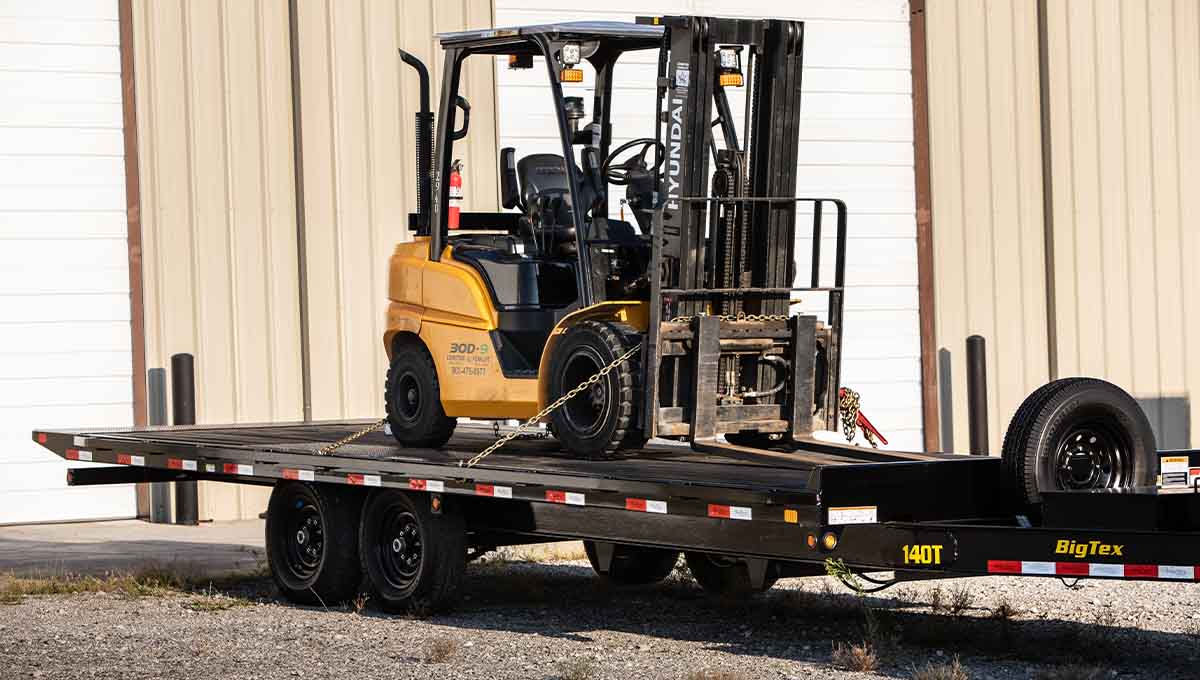

Heavy Duty Over-The-Axle Tilt

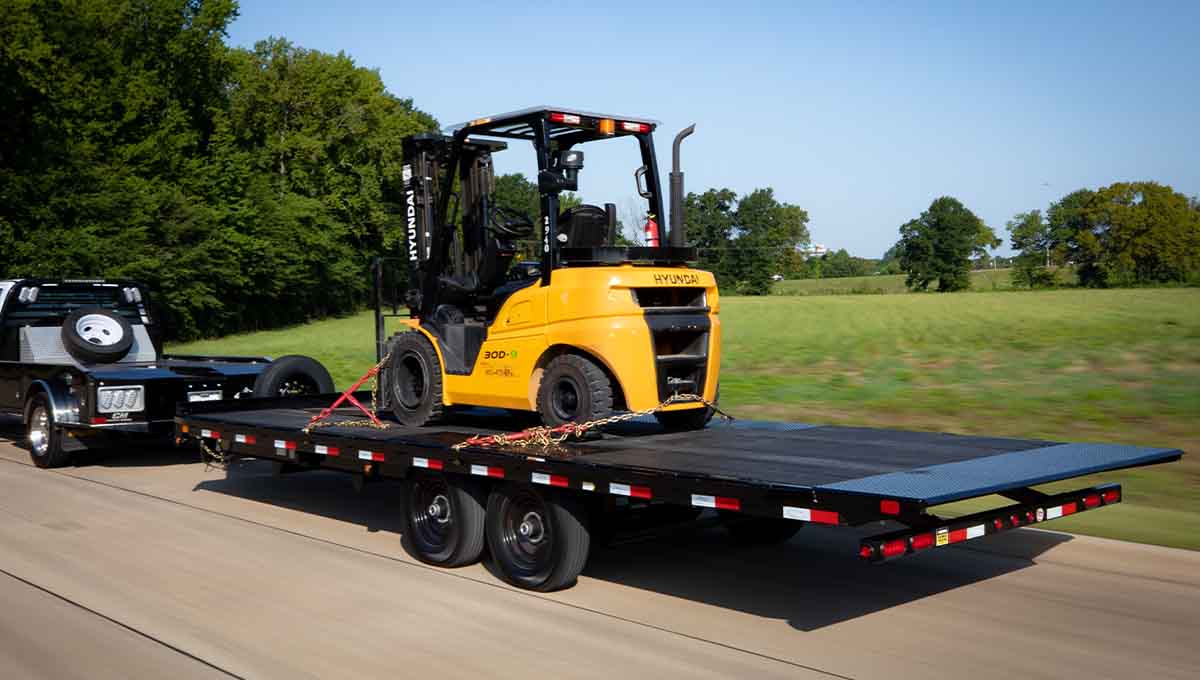

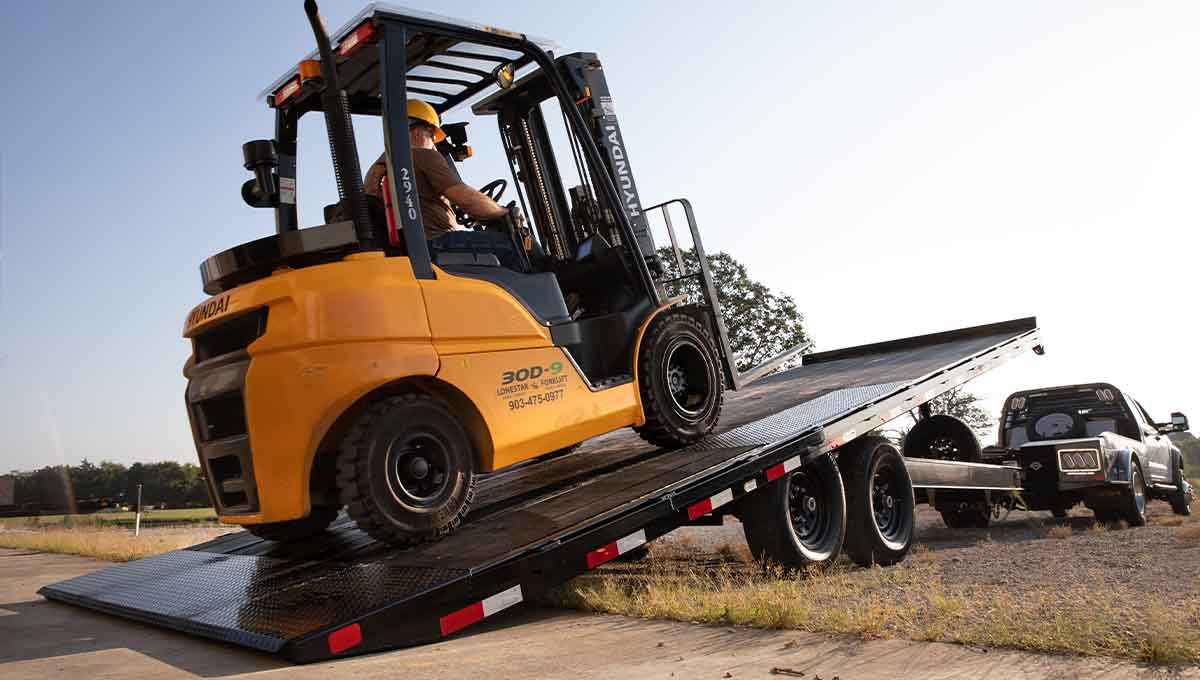

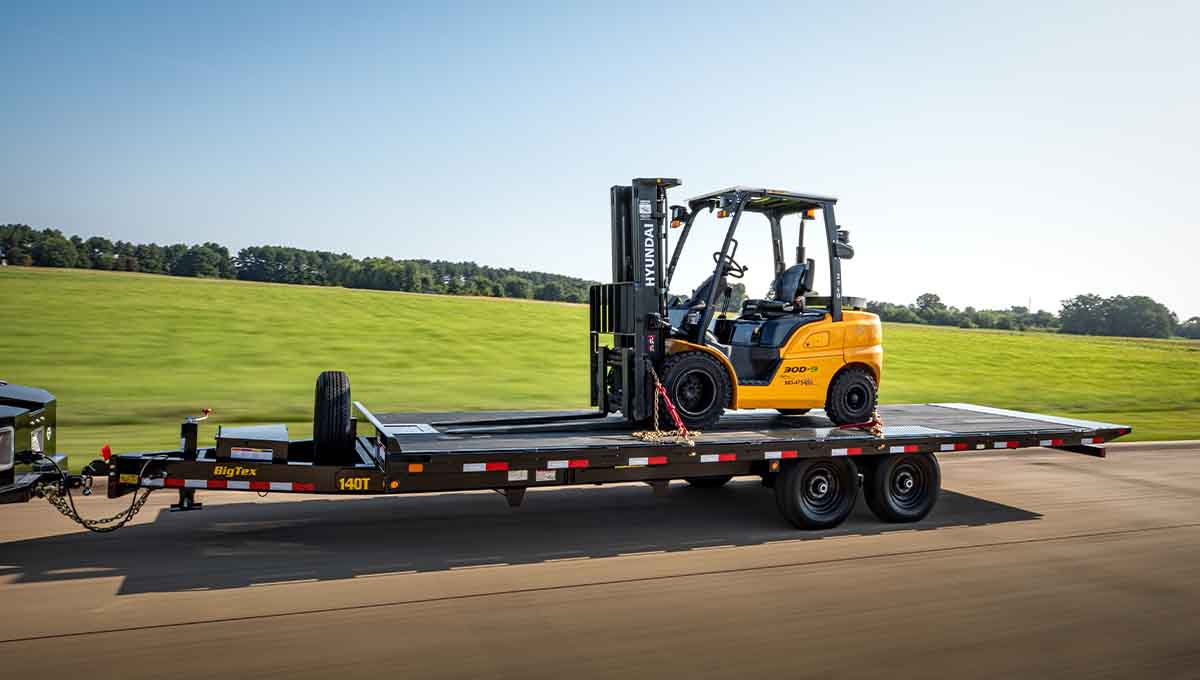

Bring your low-profile equipment hauling to new heights with the 14OT Heavy Duty Over-the-Axle Tilt Bed Equipment Trailer. It’s unlike any of our other trailers, highlighted by a scissor-style hydraulic hoist that offers stability, energy efficiency, and less maintenance than other systems. With a rear knife edge, a full 96”-wide tilt platform, and a winch mount plate at the front of the platform, you can take your productivity into overdrive with this over-the-axle workhorse.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

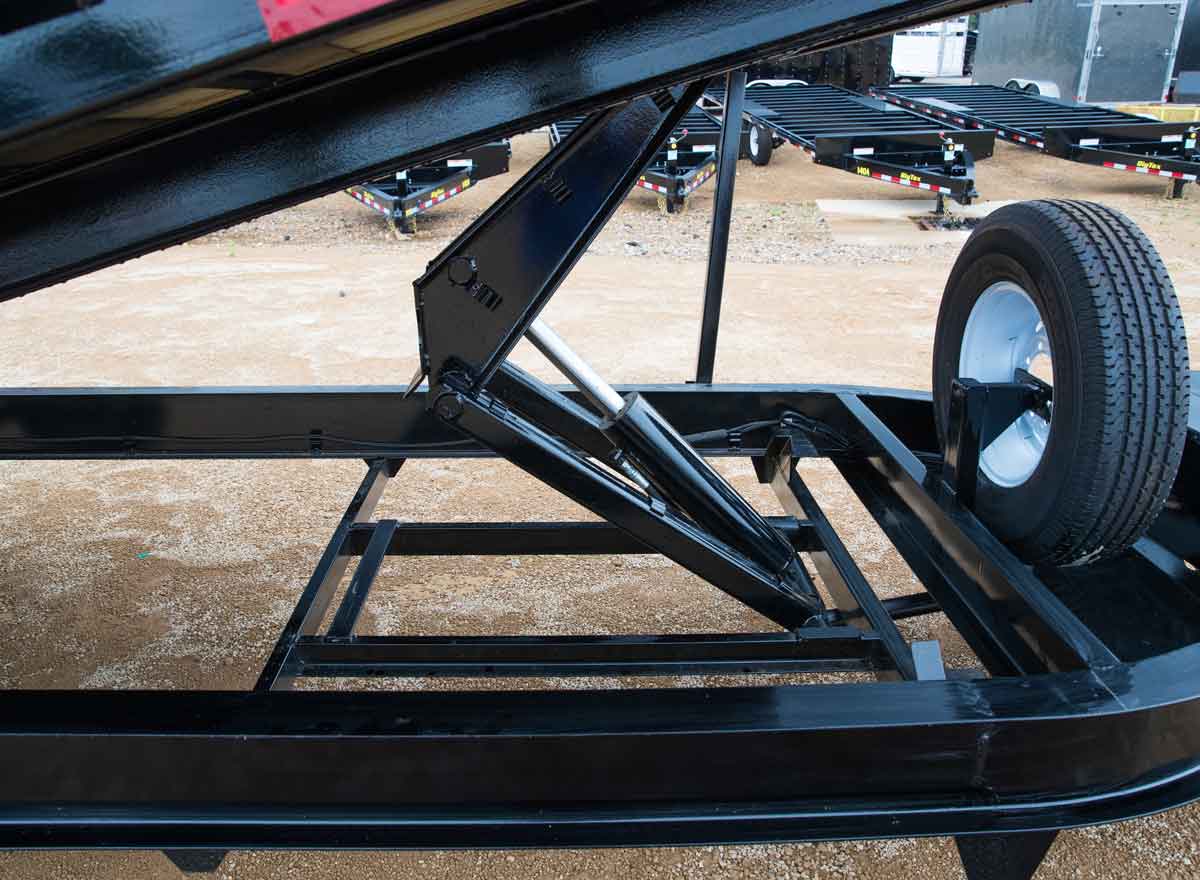

Hydraulic Scissor Lift System with Power Up/Power Down
An efficient and strong hydraulic lifting system that makes loading and unloading a simple task.

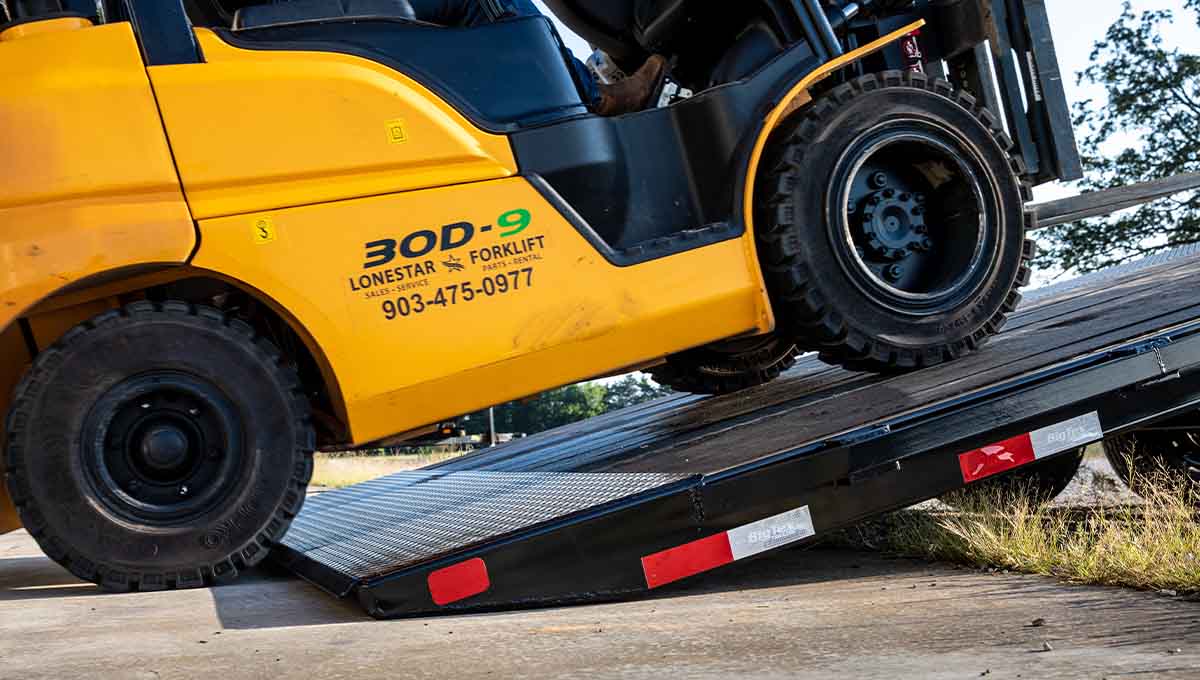

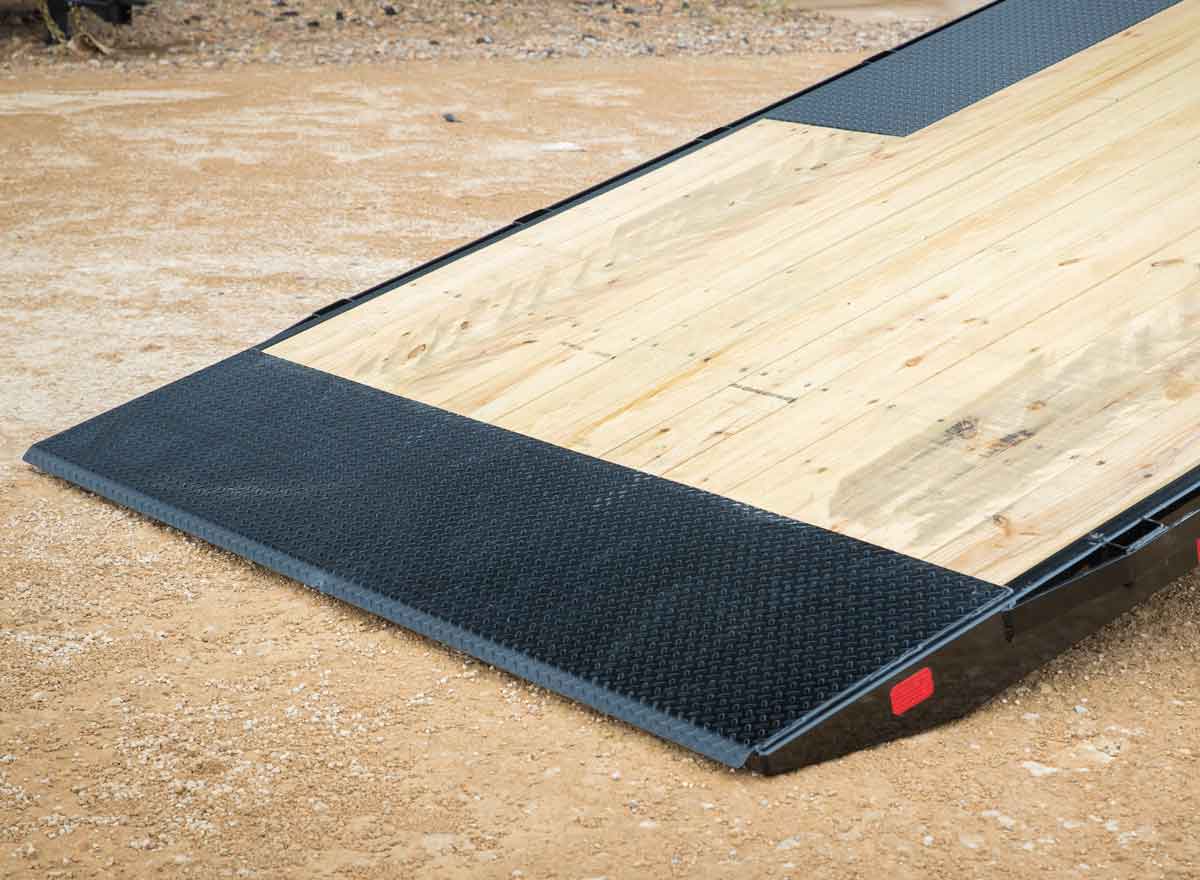

Rear Knife Edge with Collapsible Bumper
A knife edge at the rear makes loading and unloading easy and provides a smooth transition. The collapsible rear bumper also provides additional safety.

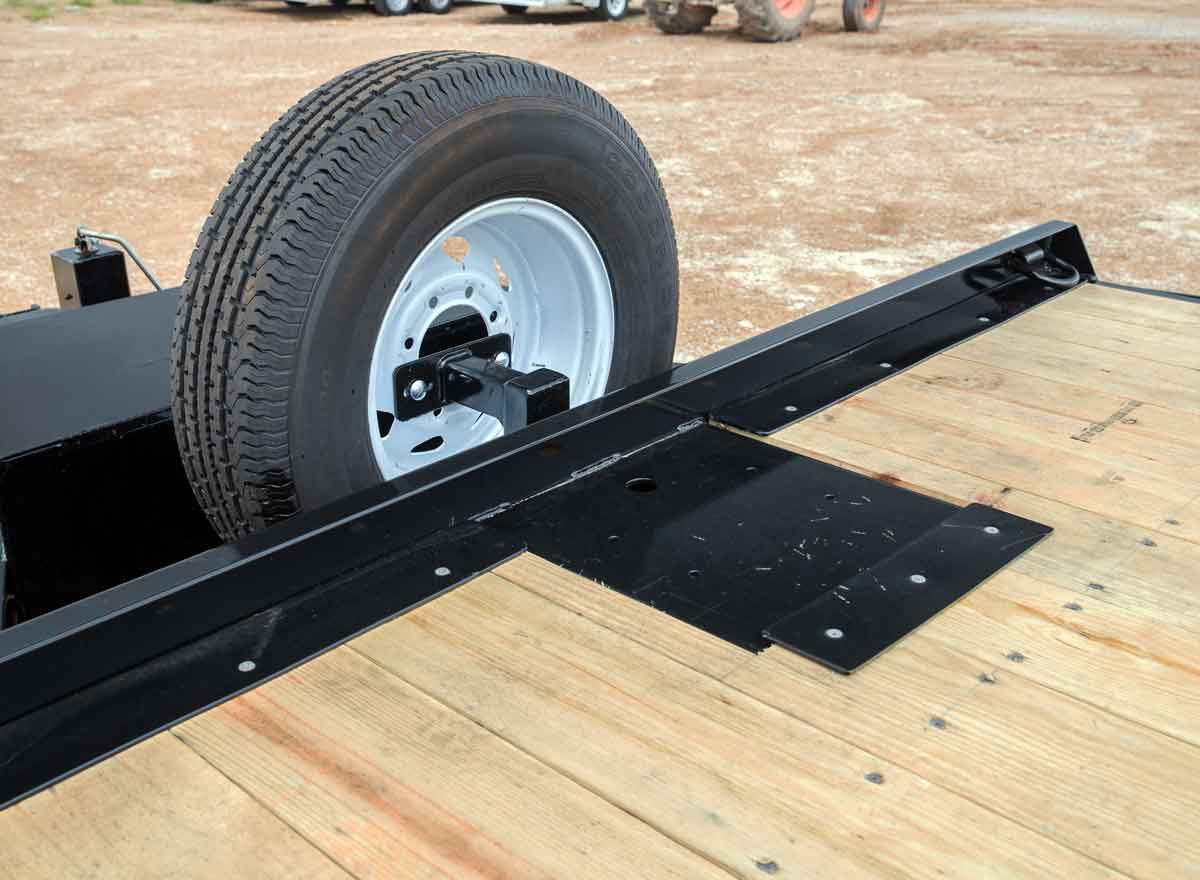

Front Mount Winch Plate Standard
Add an electric winch to the tilt platform with ease by using the standard equipped winch mount plate
0 of 0

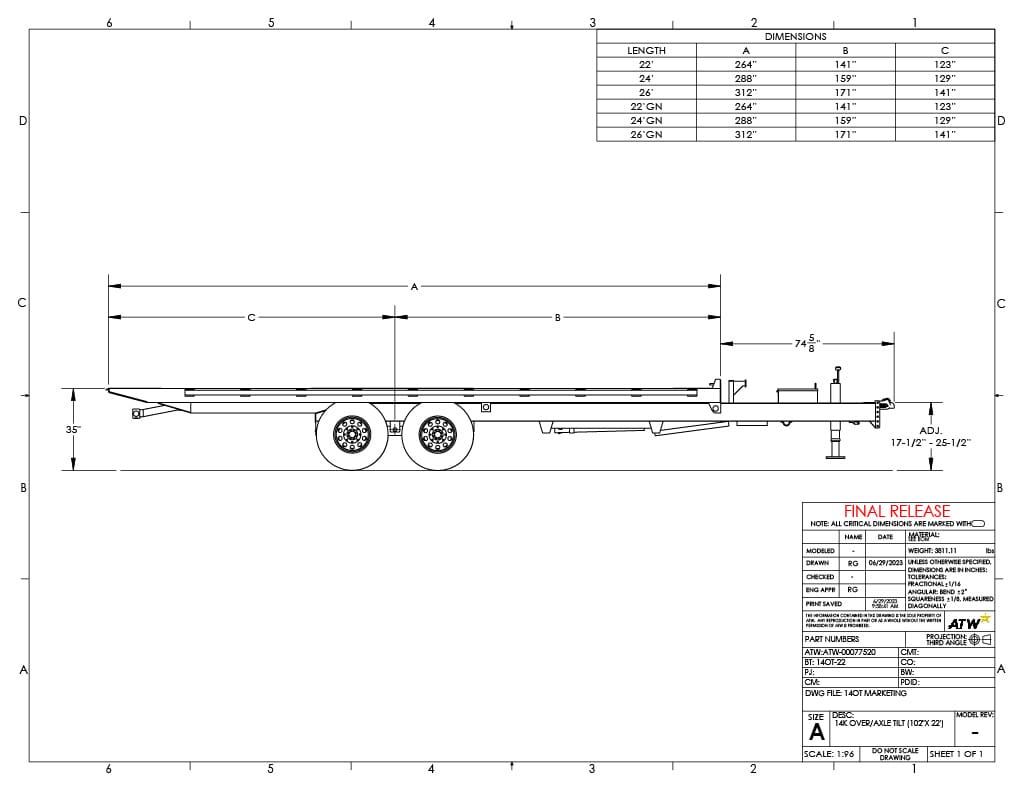

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14OT-26GN||Bumperpull||14000 lbs||5155 lbs||8845 lbs||26'||102"||312"||171"||141"||96-1/8"|
|14OT-24GN||Bumperpull||14000 lbs||5175 lbs||8825 lbs||24'||102"||288"||159"||129"||96-1/8"|
|14OT-22GN||Bumperpull||14000 lbs||4970 lbs||9030 lbs||22'||102"||264"||141"||123"||96-1/8"|
|14OT-26||Bumperpull||14000 lbs||5290 lbs||8710 lbs||26'||102"||312"||171"||141"||73-3/8"|
|14OT-24||Bumperpull||14000 lbs||4950 lbs||9050 lbs||24'||102"||288"||159"||129"||73-3/8"|
|14OT-22||Bumperpull||14000 lbs||4745 lbs||9255 lbs||22'||102"||264"||141"||123"||73-3/8"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Coupler||Adjustable 2-5/16” Demco EZ Latch, Round Adjustable Pin 2-5/16” on Gooseneck Model||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model||12,000# Elec/Hyd. Jack BY Stillwell™ Dual Elec/Hyd 12,000# Jacks by Stillwell™ Dual Single-Speed Drop-Leg Jacks Dual 2-Speed Landing Gear|
|Frame||8" I-Beam, 10# / 13# on 26' Models|
|Front Stop Rail||3/16" Fabricated Front Stop Rail (Bumper Pull Only)|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro Rubber Infused Lumber Floor (per linear foot)|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST235/80 R-16 LR-G)|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tilt Deck Dimensions||102" Wide with 1/4" Diamond plate Knife Edge|
|Tilt Deck Operation||Power Up/Power Down with Hydraulic System|
|Rubrail||Rub Rail Along Both Sides|
|Tie-Downs||Extra 5/8" D-Rings|
|Break-Away Kit||Complete Breakaway System w/ Zip™ Breakaway Cable and Charger|
|Tilt Deck Angle||16°|
|Winch Plate||Front Mounted Steel Winch Plate|

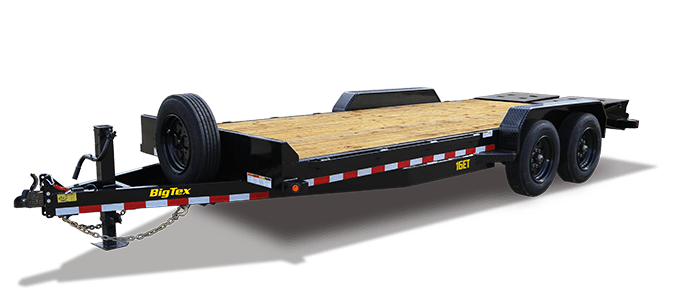

Heavy Duty Tandem Axle Equipment Trailer
