Heavy Duty Full Tilt Bed Equipment Trailer

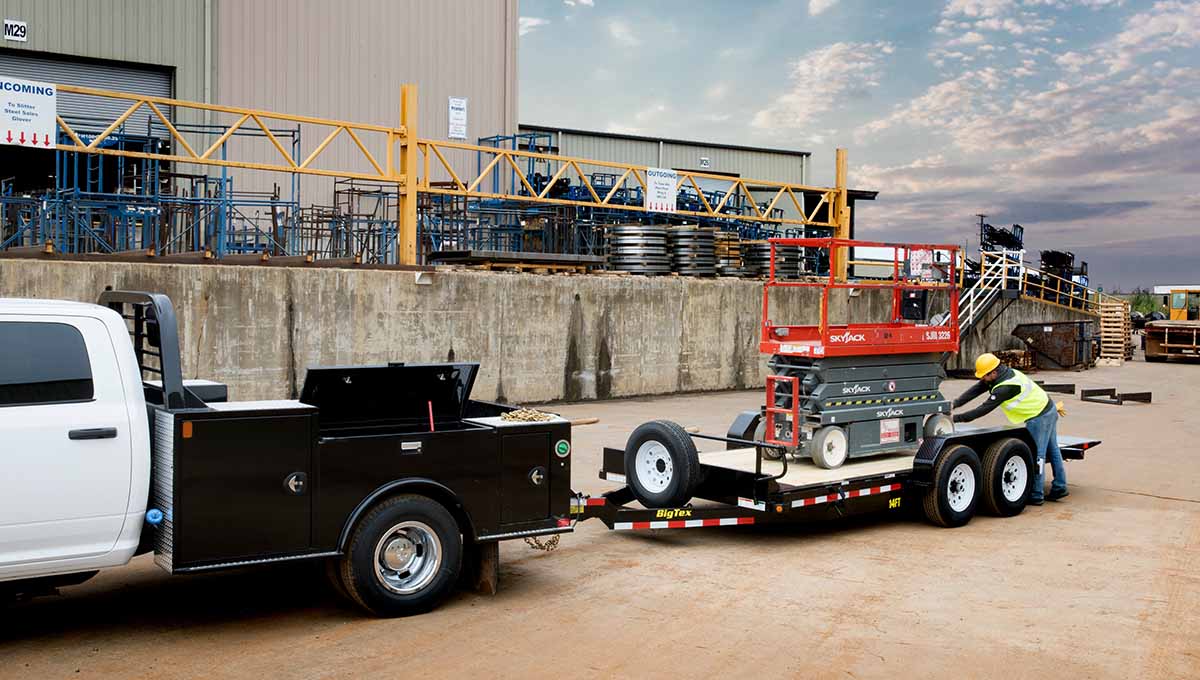

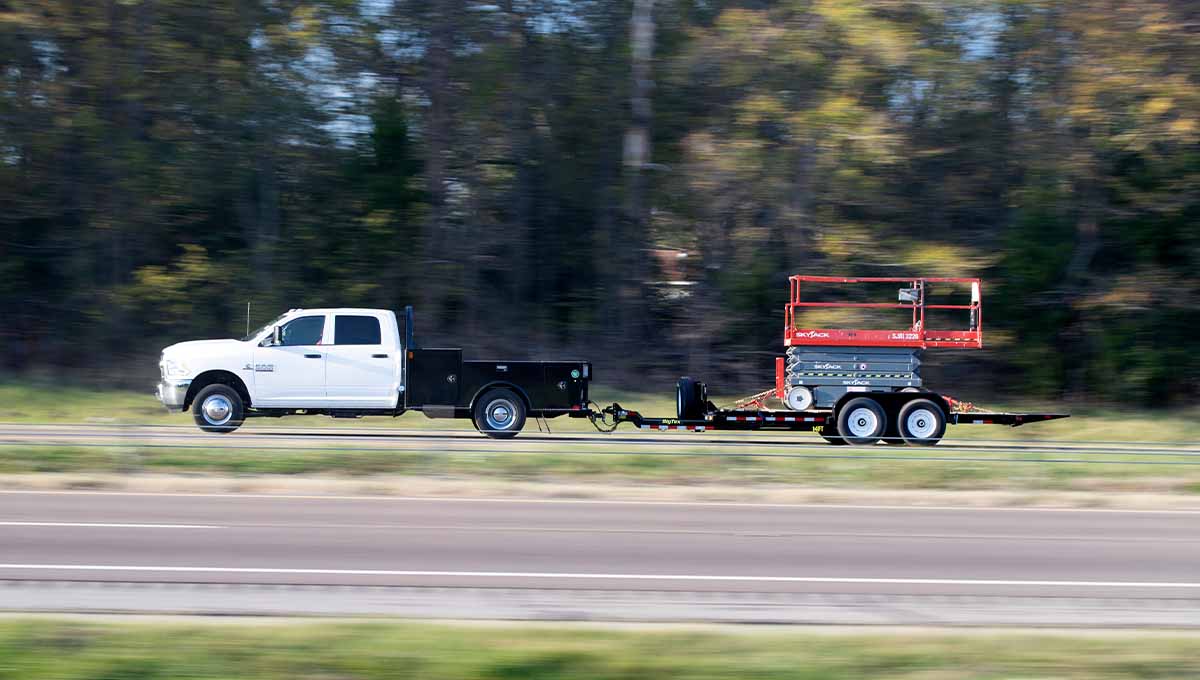

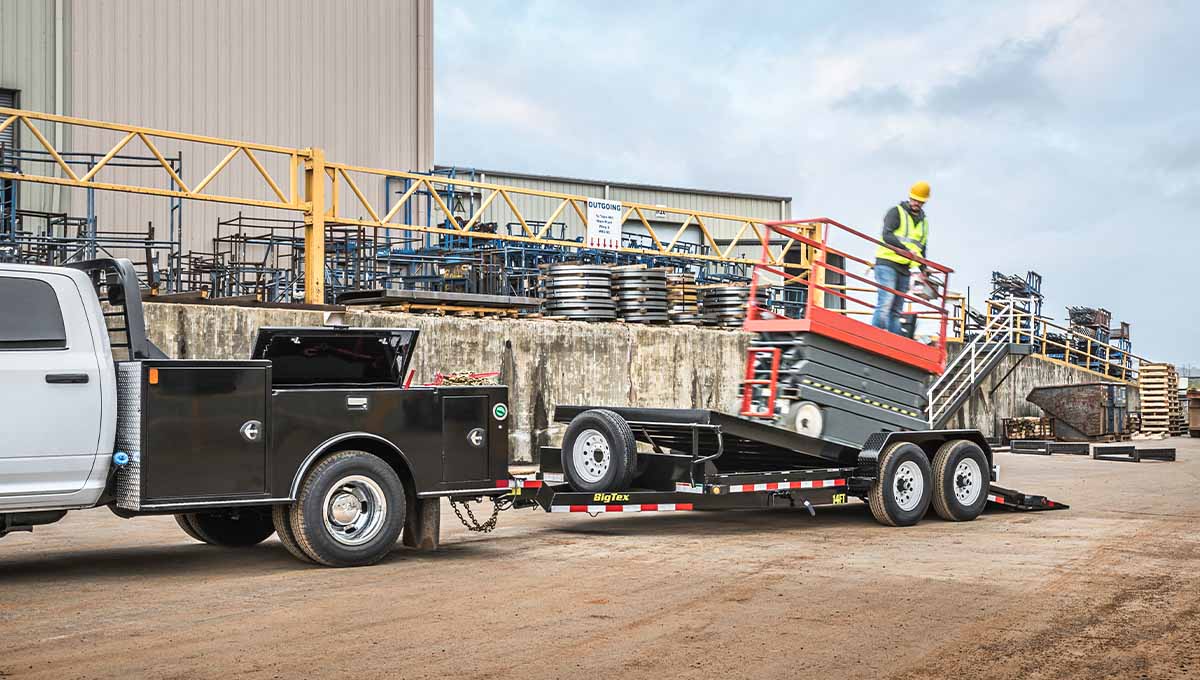

Make hauling light and medium duty equipment easy with our 14FT Heavy Duty Full Tilt Bed Equipment Trailer. Featuring a smooth hydraulic dampening system, an accessible 12 degree loading angle, and a slick, high traction rear knife edge, it has all the tools you need for a seamless hauling experience. And it’s built to last, with a 6” channel frame and two 7,000-pound axles, giving you a powerful combination of strength and stability.

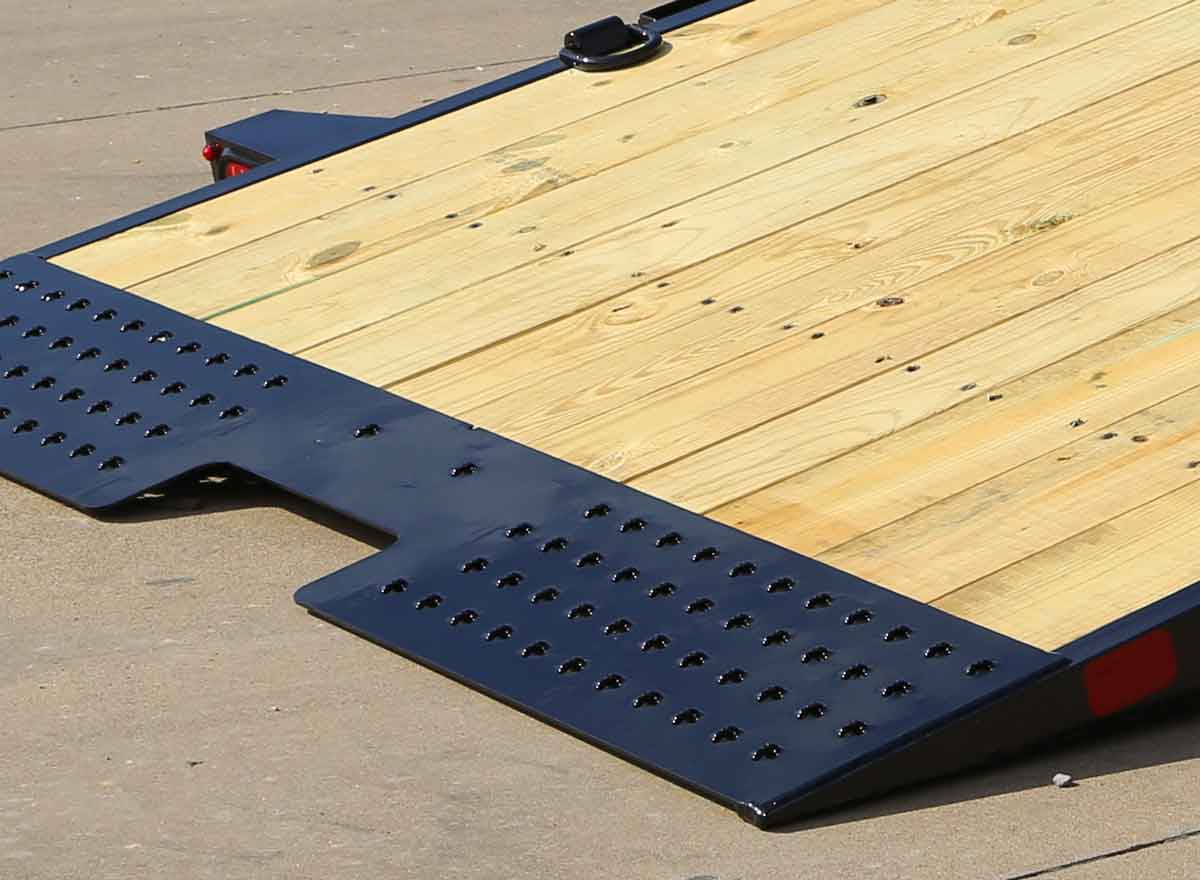

Rear Knife Edge
Tow a wide variety of equipment and small vehicles with the versatile 1/4" diamond plate rear knife edge.
Heavy Duty Diamond Plate Steel Fenders
Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.
Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
0 of 0

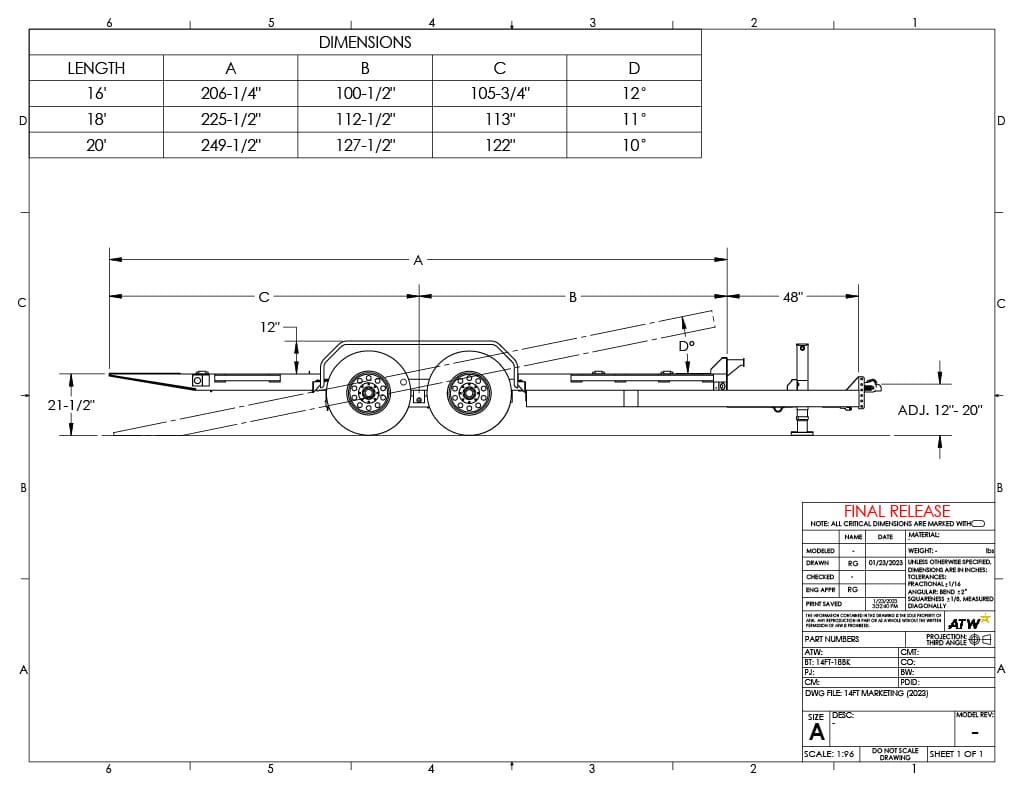

|Model||Pull Type||GVWR||Empty Weight||Cargo Capacity||Bed Length||Bed Width||A||B||C||Tongue Length|
|14FT-20||Bumperpull||14000 lbs||3490 lbs||10510 lbs||20'||83"||249-1/2"||128"||121-1/2"||48-1/2"|
|14FT-16||Bumperpull||14000 lbs||3090 lbs||10910 lbs||16||83"||202-1/2"||101"||101-1/2"||48-1/2"|
|14FT-18||Bumperpull||14000 lbs||3290 lbs||10710 lbs||18'||83"||225-1/2"||113"||112-1/2"||48-1/2"|
|Standard Feature||Available Options|
|Axles||2 - 7,000# Premium, 4" Drop-Axles with Quick-Lubricating Hubs|
|Brakes||Forward Self-Adjusting Electric Brakes on Both Axles|
|Suspension||Multi-Leaf Slipper Spring w/ Equalizer|
|Coupler||Adjustable 2-5/16” Demco EZ Latch||Adjustable Pintle in Channel in Lieu of Coupler|
|Safety Chains||3/8" Grade 70 w/ Safety Latch Hook (2 ea)|
|Jack||12,000# Drop-Leg Jack (Side Wind)|
|Cross-Members||3" Channel, 3" Square Tube|
|Front Stop Rail||3/16" Fabricated Front Stop Rail|
|Floor||2" Treated Pine or Douglas Fir*||Blackwood Pro- Outer Deck Only (X Length of Trailer) Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)|
|Fenders||9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)|
|Stake Pockets||Stake Pockets Along Both Sides (Quantity Varies by Length)|
|Trailer Plug||7-Way RV|
|Lights||Recessed, Grommet-Mounted L.E.D. Lighting|
|Wiring||Sealed, Modular Cold-Weather Wiring Harness|
|Tires||ST235/80 R-16 Load Range E Radial Tires||Tire Upgrade (ST235/80 R-16 LR-G)|
|Bolt Pattern||8 x 6.5|
|Spare Mount||Front Spare Tire Mount|
|Spare Tire||Not Included||Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)|
|Paint Type||Professional Finish w/ Primer Standard|
|Paint Color||Black||Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow|
|Tilt Deck Dimensions||75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge|
|Tilt Deck Operation||Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism|
|Rubrail||Rub Rail Along Both Sides|
|Tie-Downs||(6) 5/8" D-Rings||Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)|
|Break-Away Kit||Complete Breakaway System w/ Zip™ Breakaway Cable and Charger|
|Tilt Deck Angle||12°|
